Spanner for 4 Bolt Type
Water Pump
for Range
Rover Classic
We have made this special tool to aid with removal of the viscous coupling on the water pump.

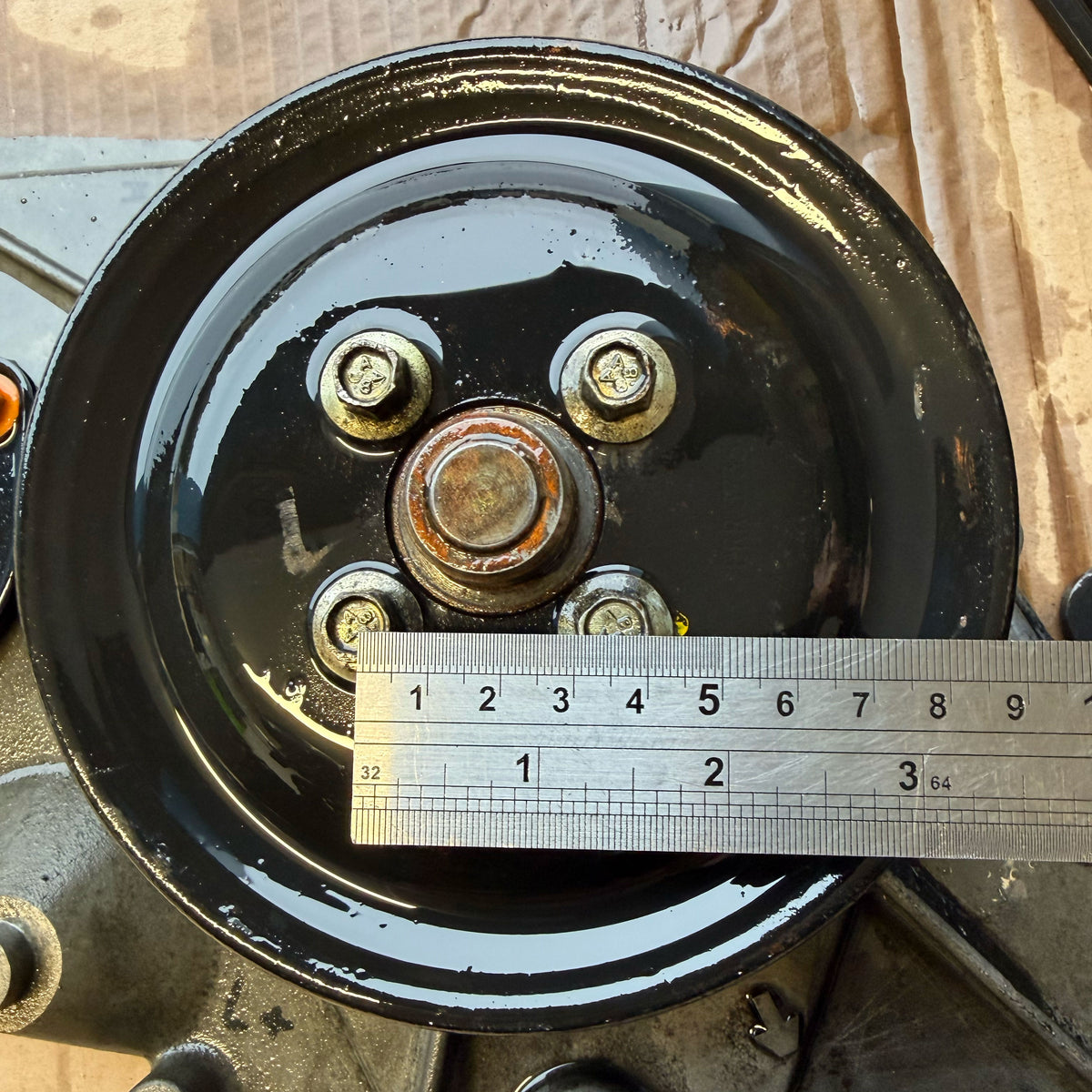

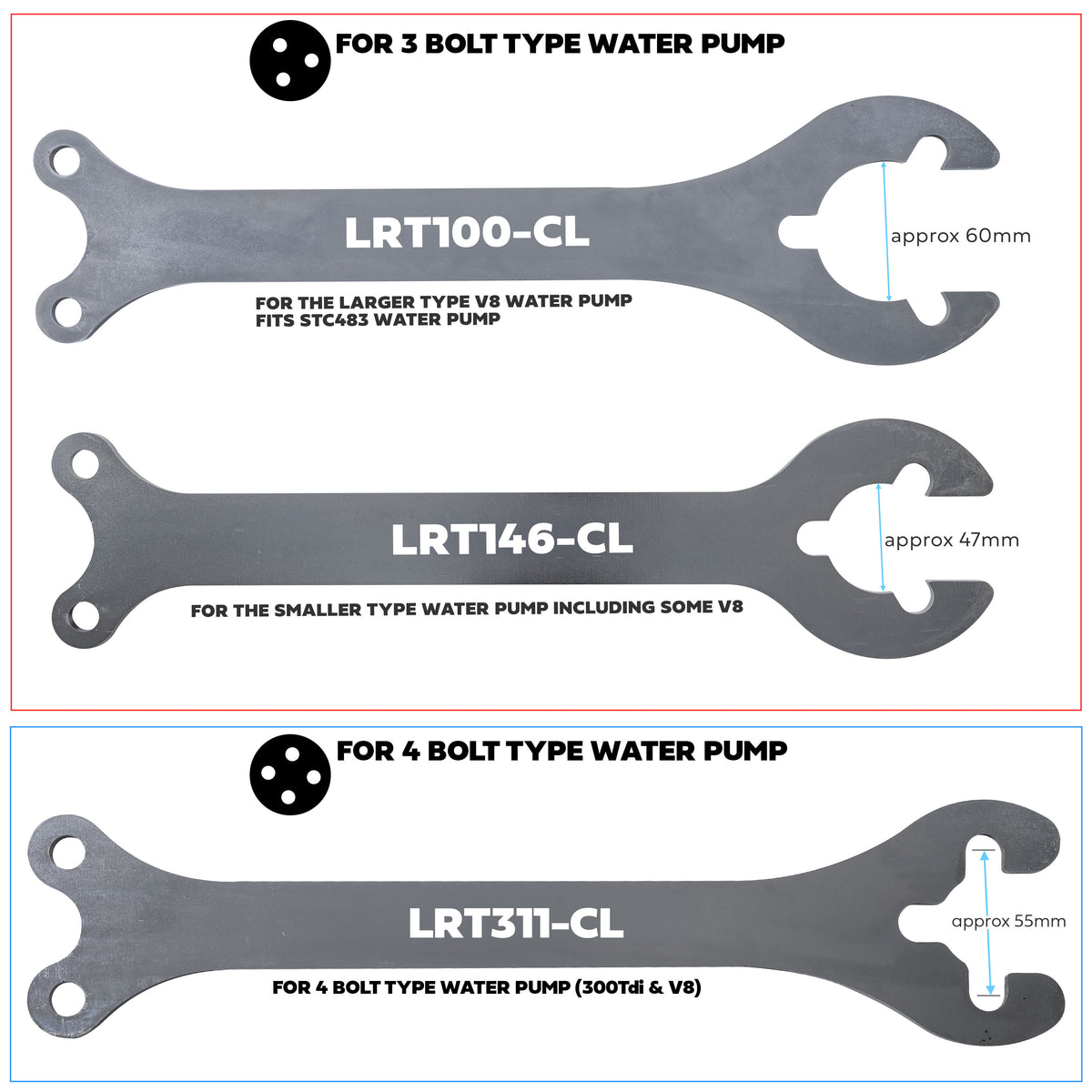

This tool is designed for the 4 bolt type water pump used on the 300Tdi engine (see photo).
This may also fit a V8 4 bolt type water pump.

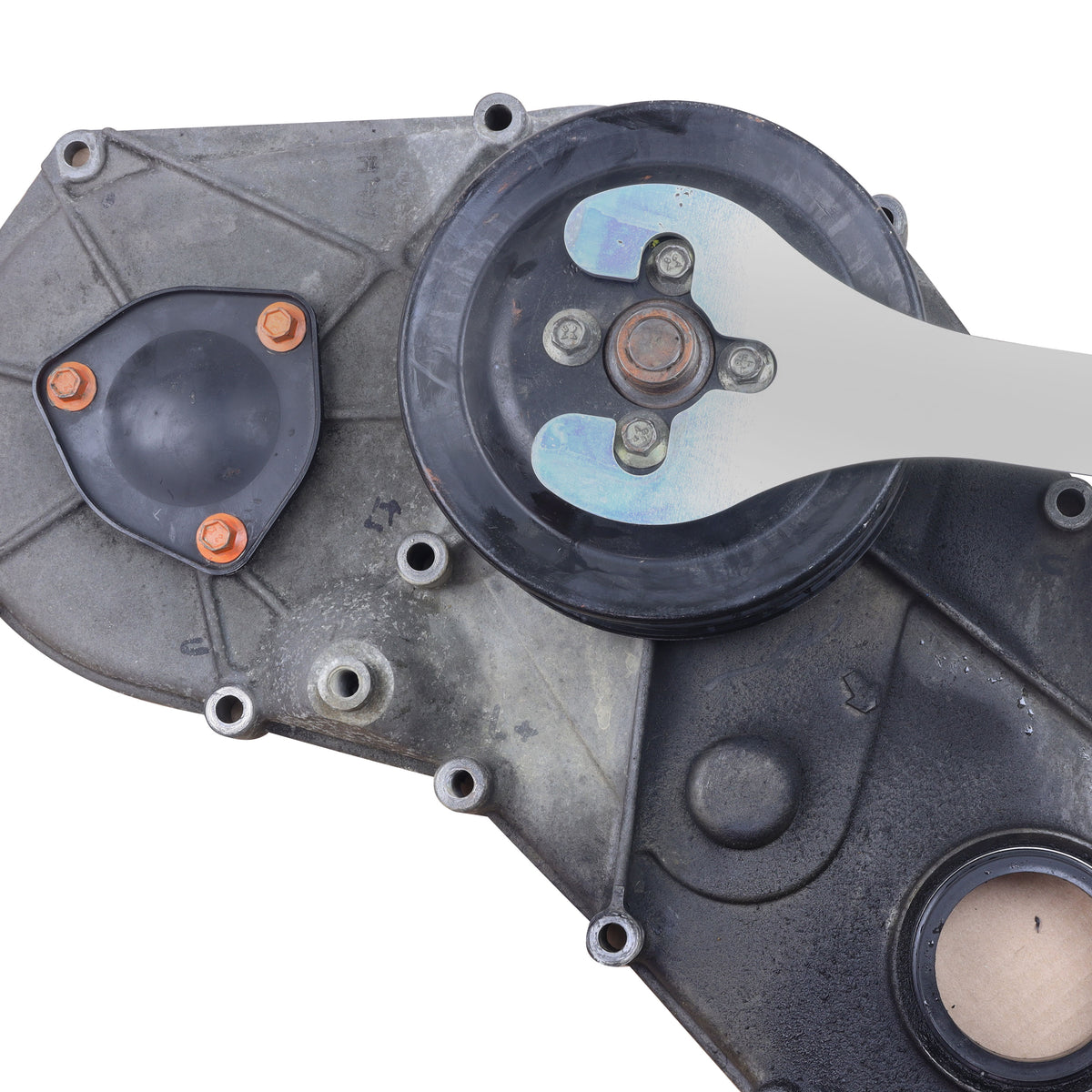

The 'clover leaf' tool is designed to fit over the bolt heads on the viscous fan and hold it still.
This can be used as an alternative to Land Rover tool LRT-12 -093

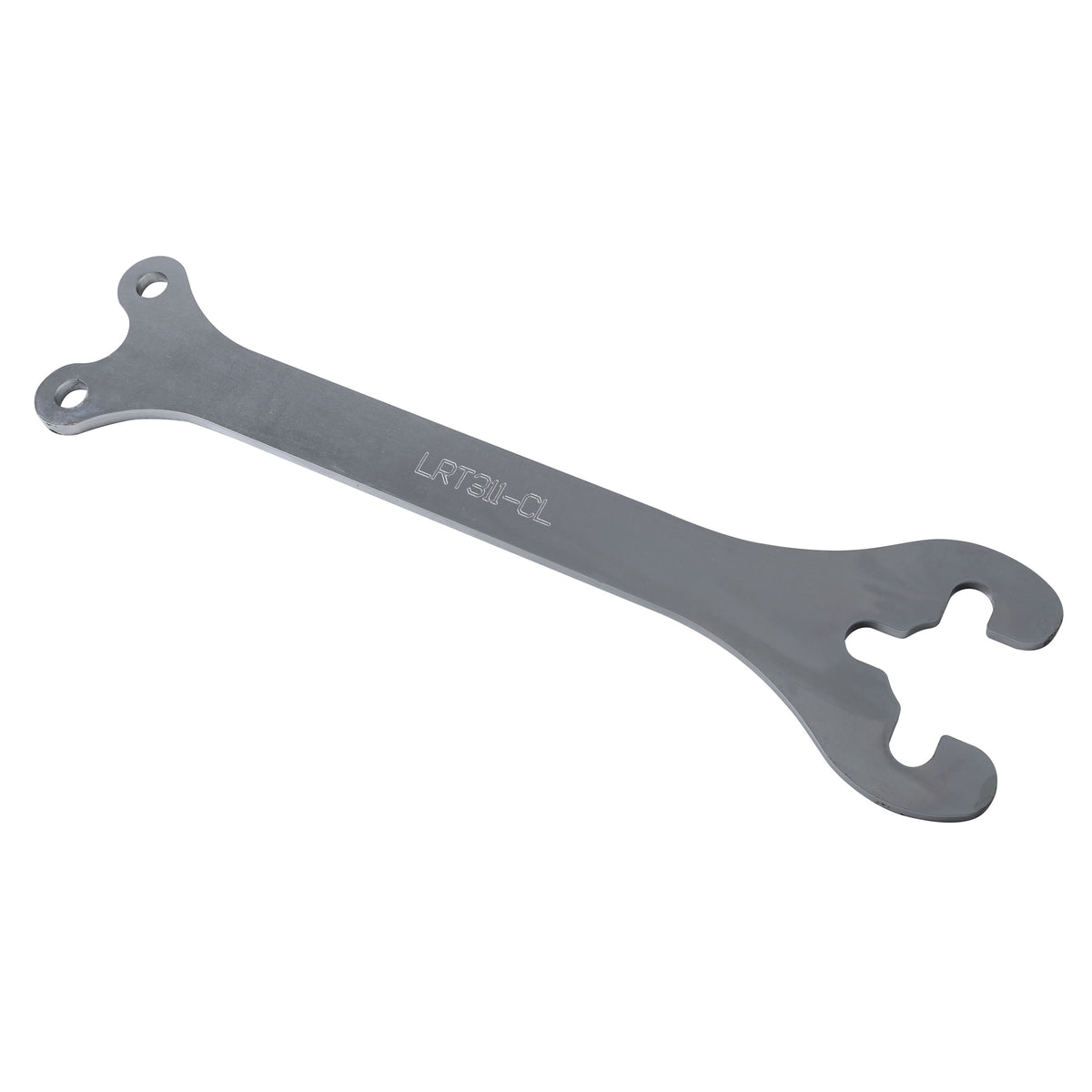

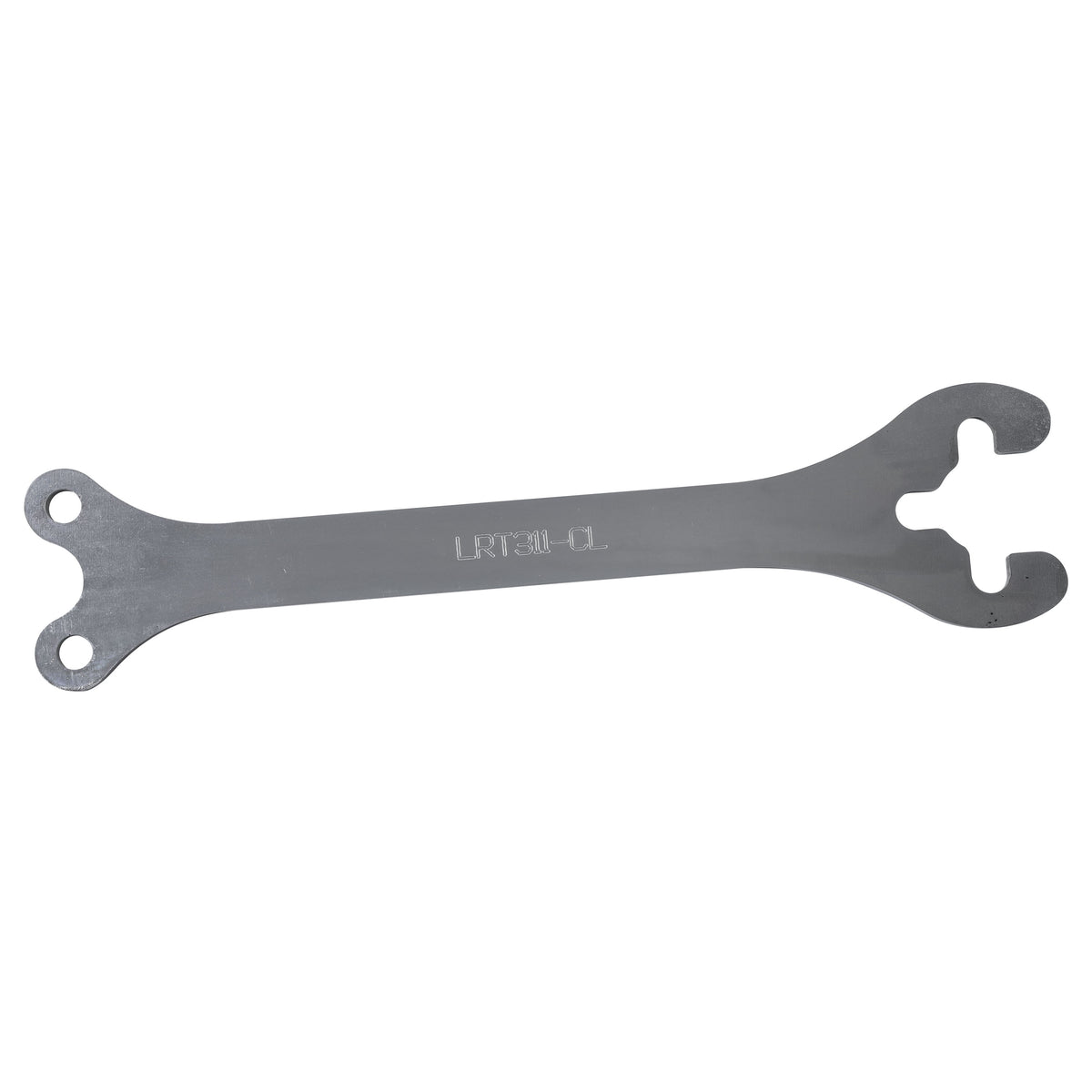

This tool is made from 6mm zinc coated steel.
This is not a genuine Land Rover item.
Fitting Details
See this tool in use in the below video (this is the smaller tool used on our Discovery):
Which vehicles will this fit?
This item WILL fit the Range Rover Classic 300Tdi/V8 models with 4 bolt type water pump
