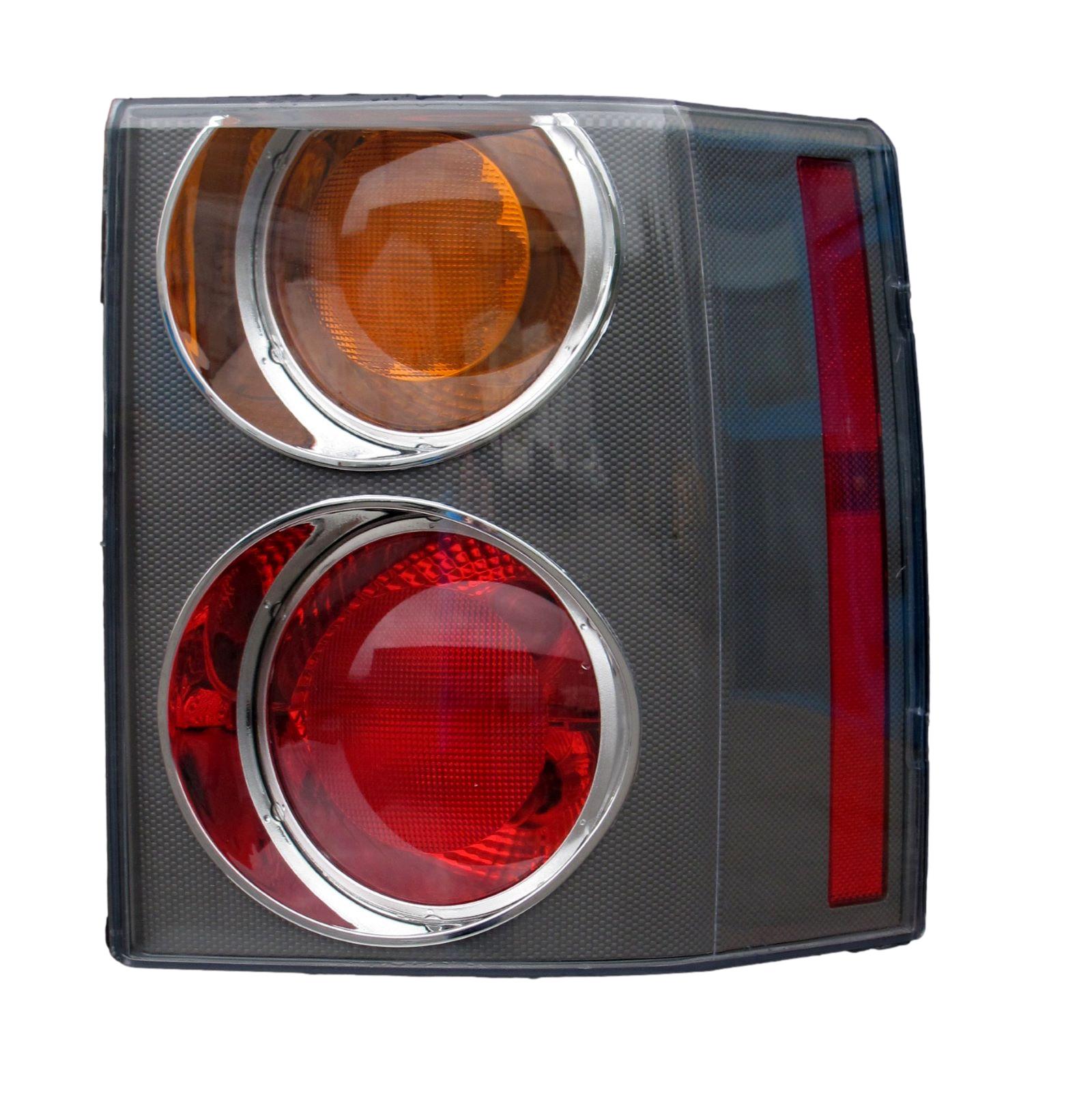

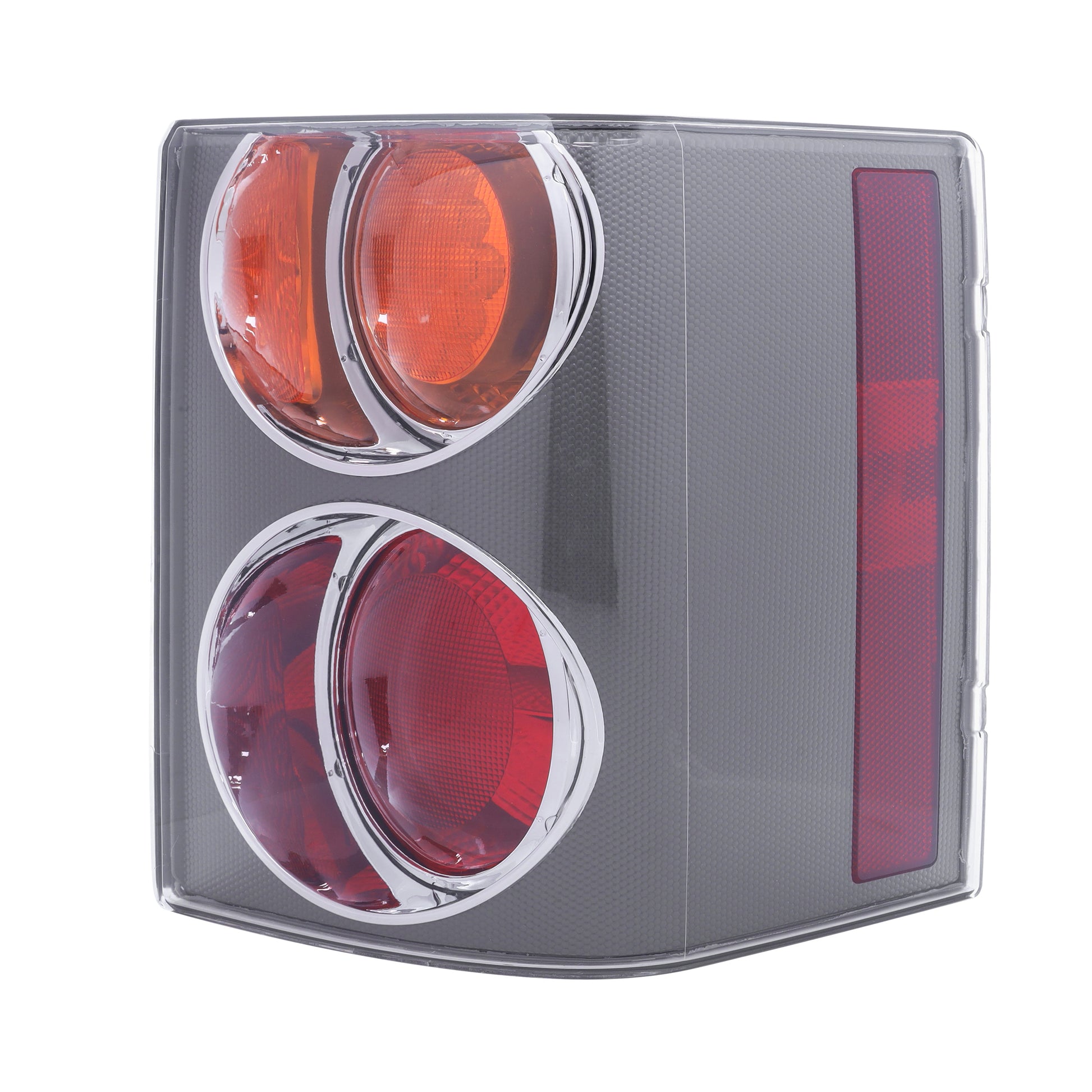

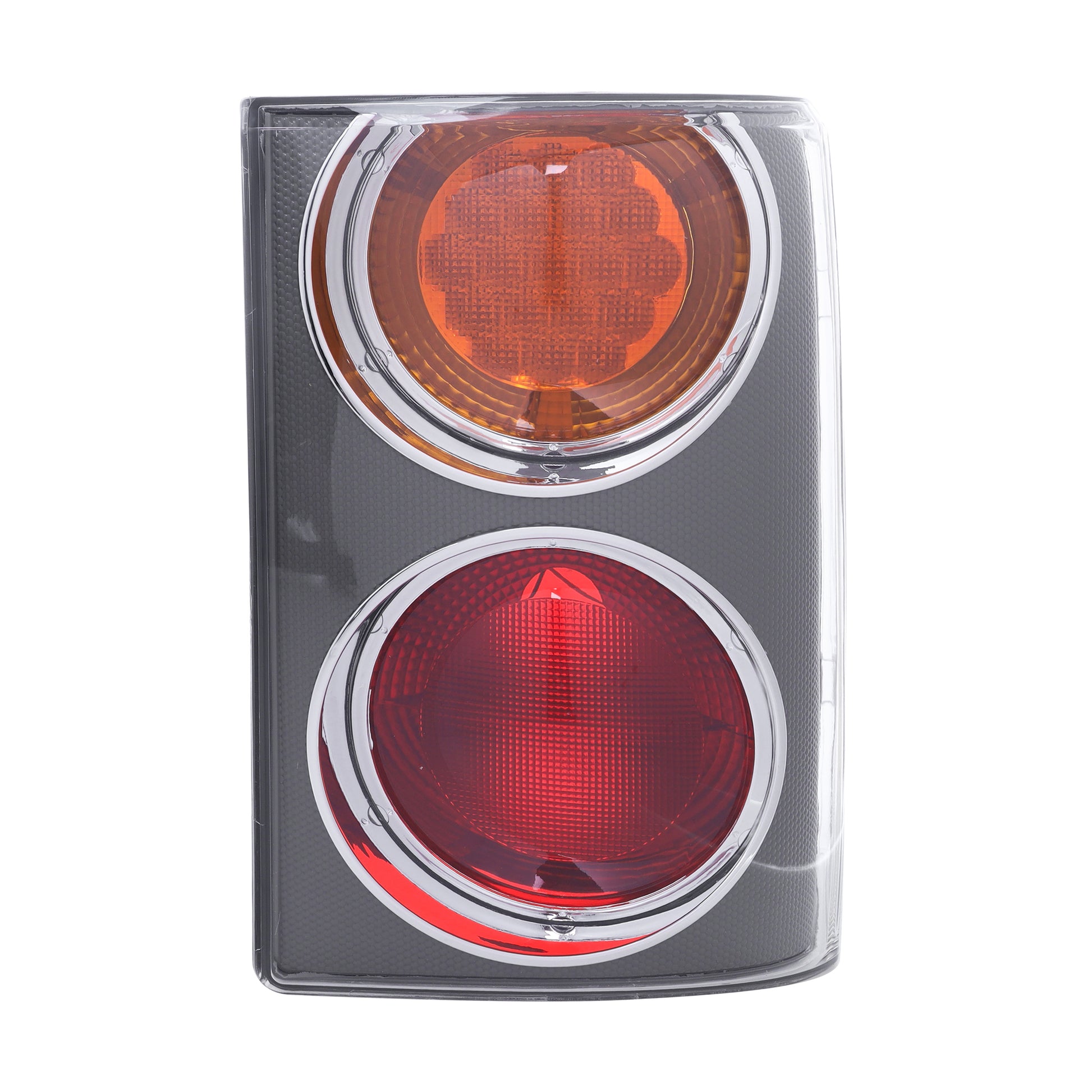

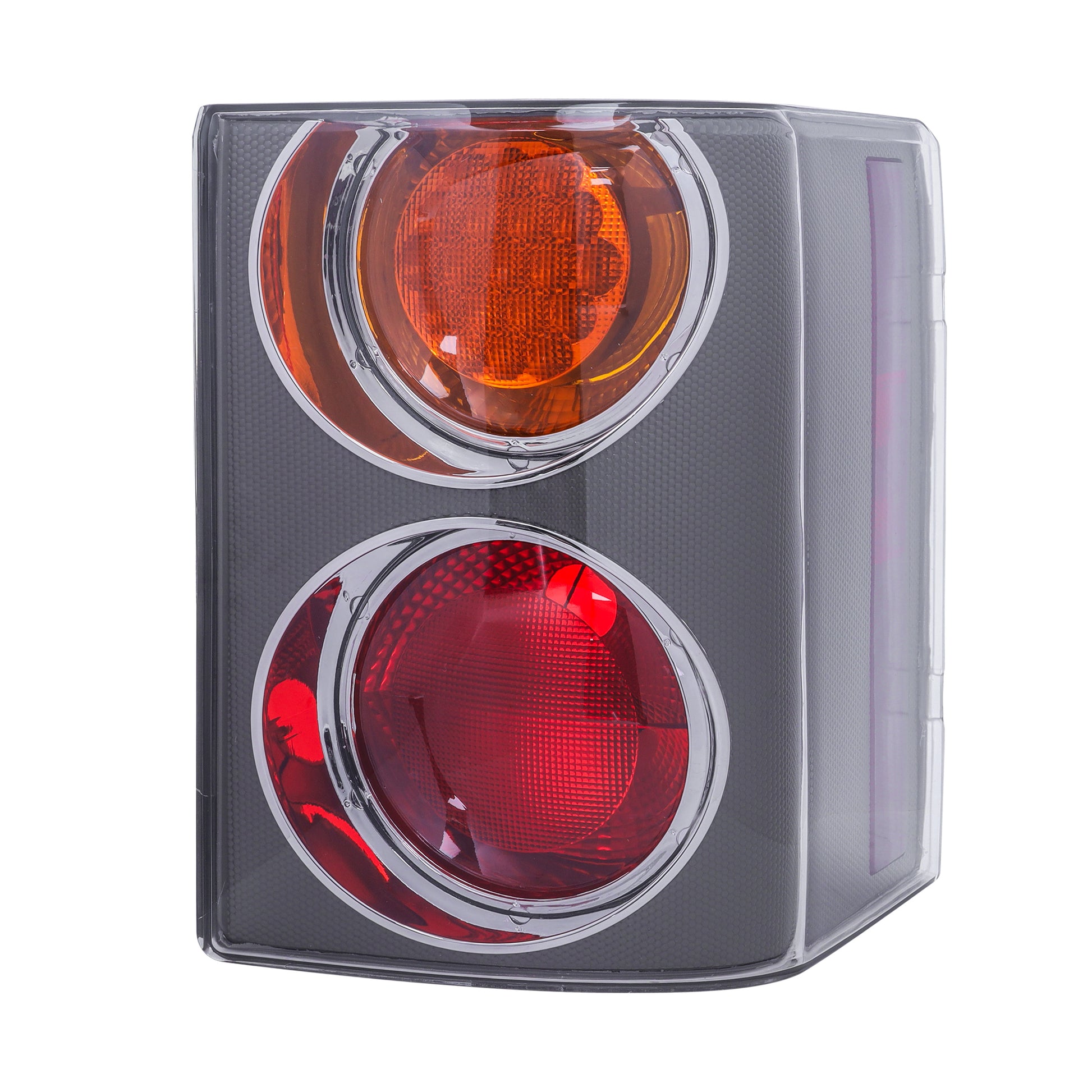

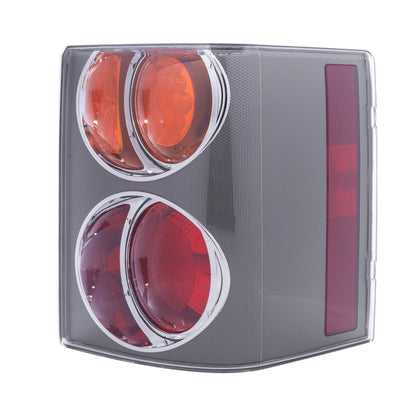

Rear Light Red/Orange for Range Rover L322 2002-05 - RIGHT RHPart number: RRL276-AM-R
Right side Rear light unit (Orange & Red)
for Range Rover L322 Vogue 2002 - 2006
This listing is for a right hand ( UK drivers side ) replacement rear light for a Range Rover L322.
The original lights seem to be prone to the rear lens cracking and leaking / misting up.

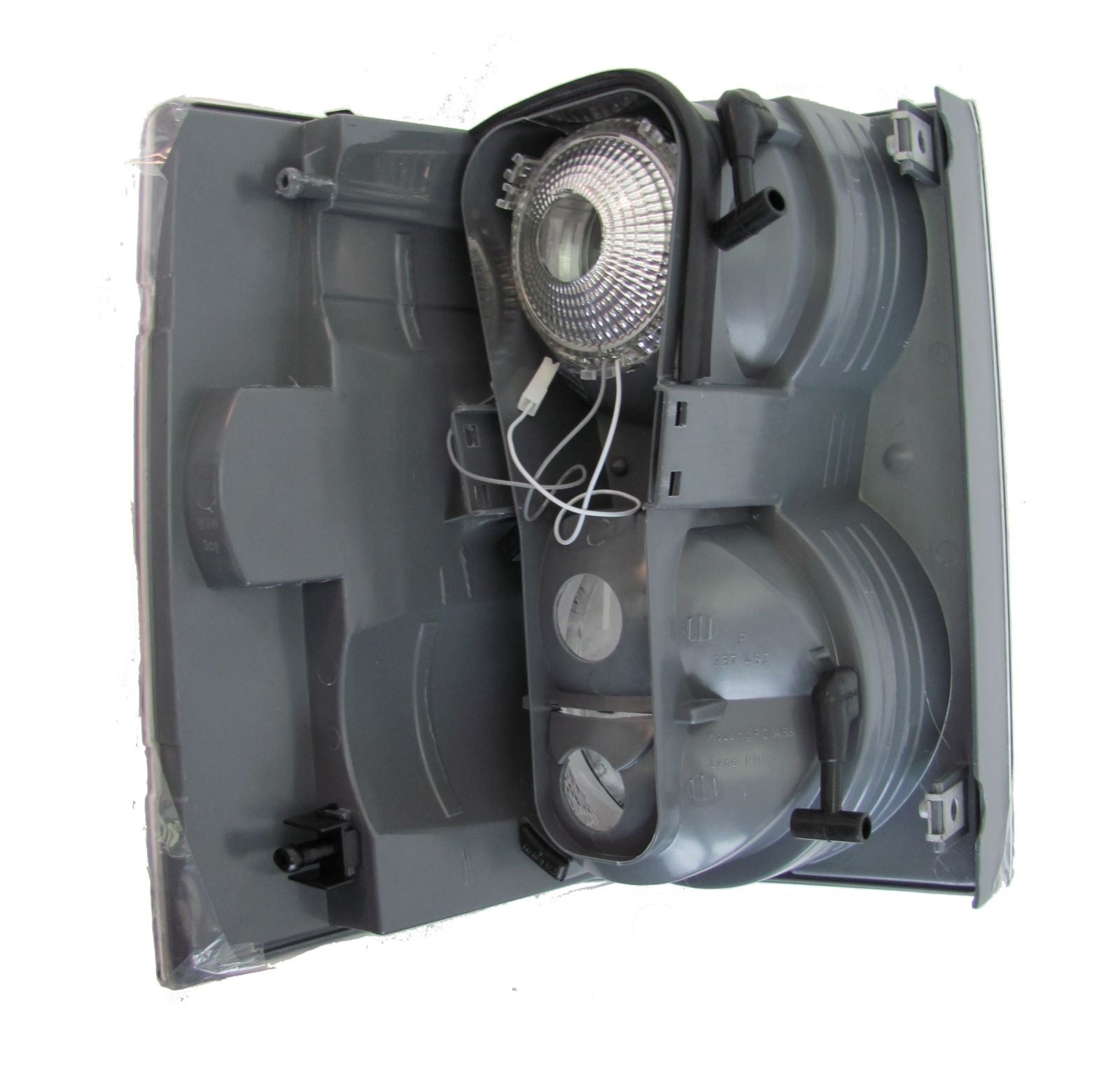

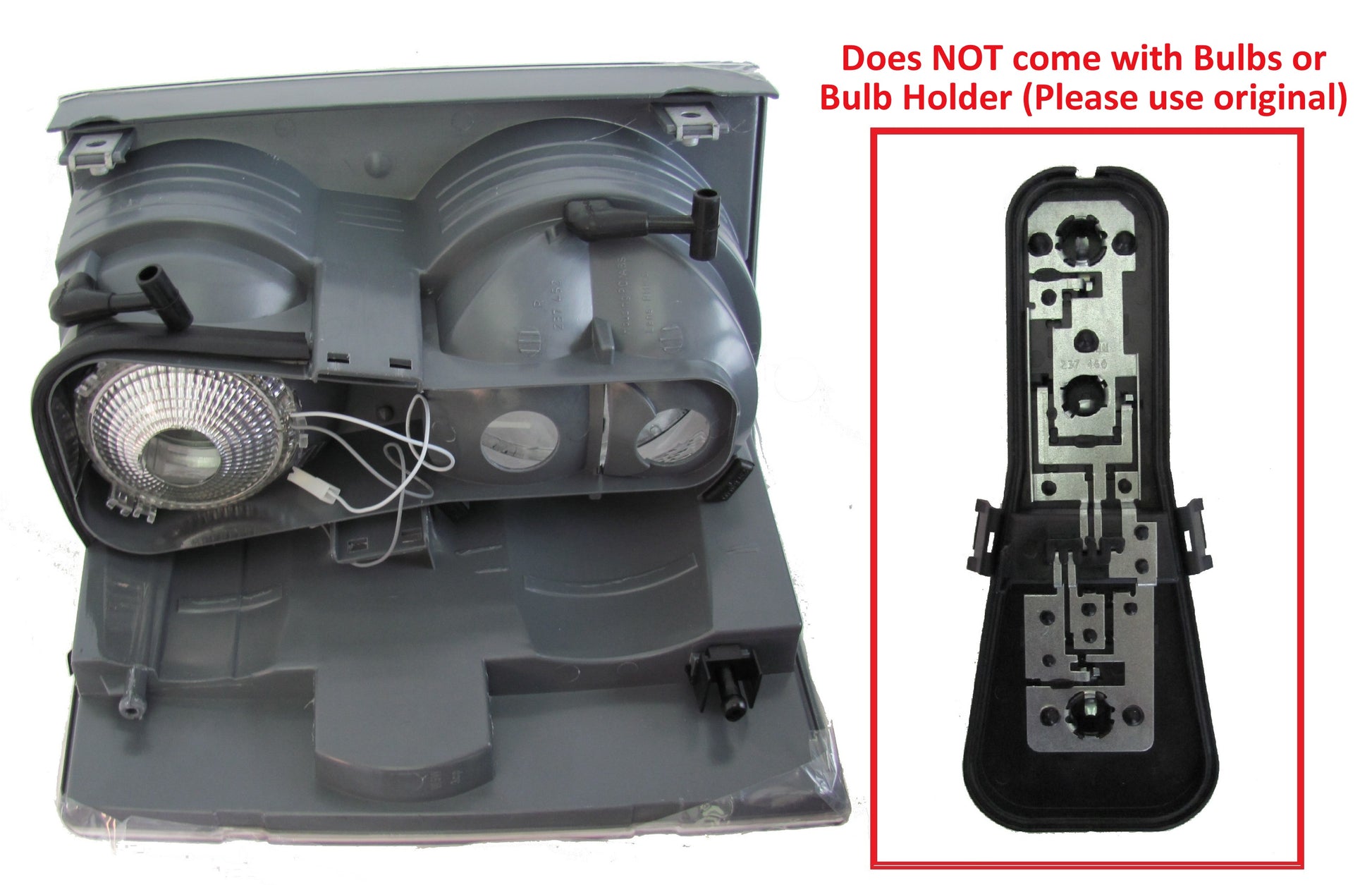

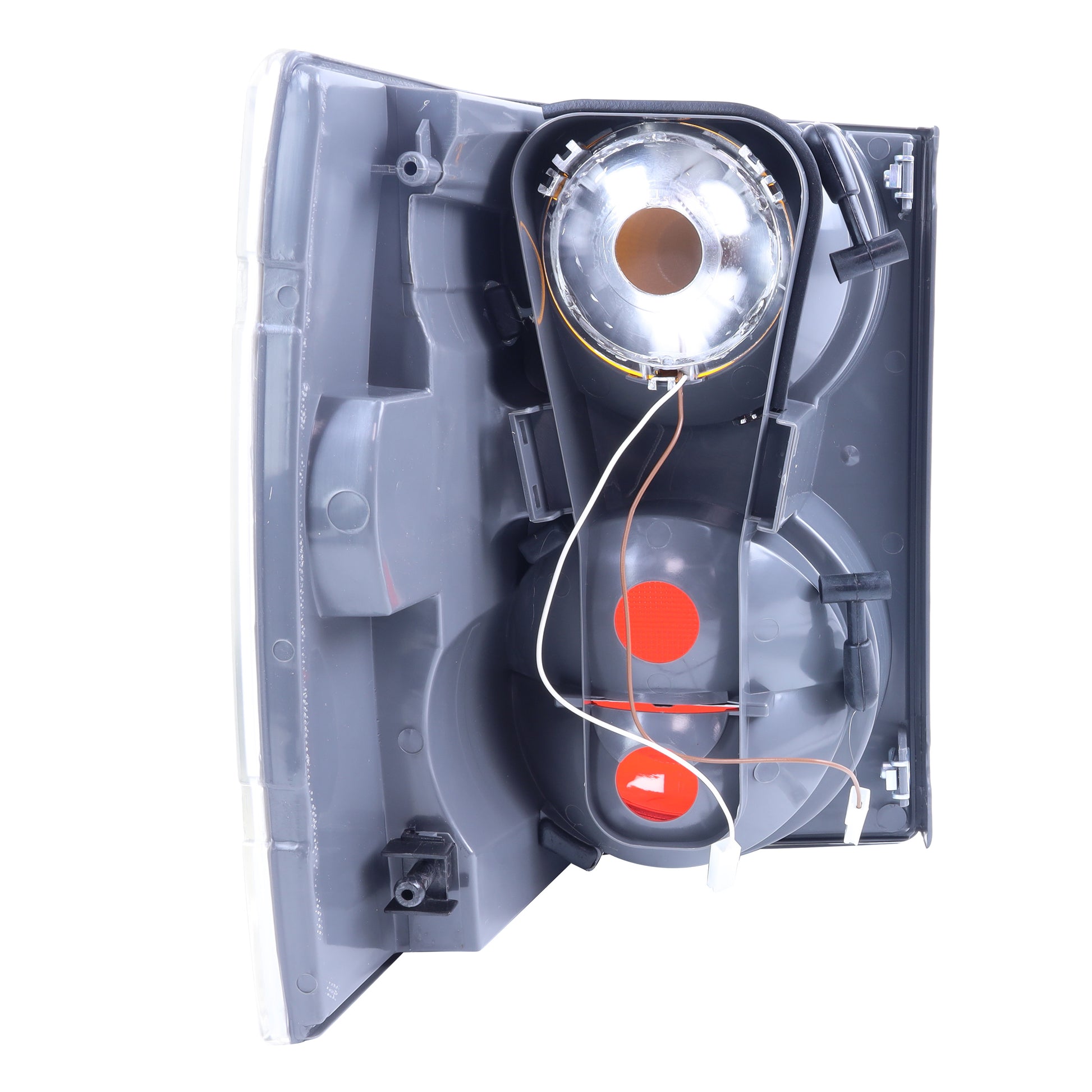

This is a complete light apart from the rear bulb holder and bulbs - you need to swap the bulbs holder assembly from your old light.

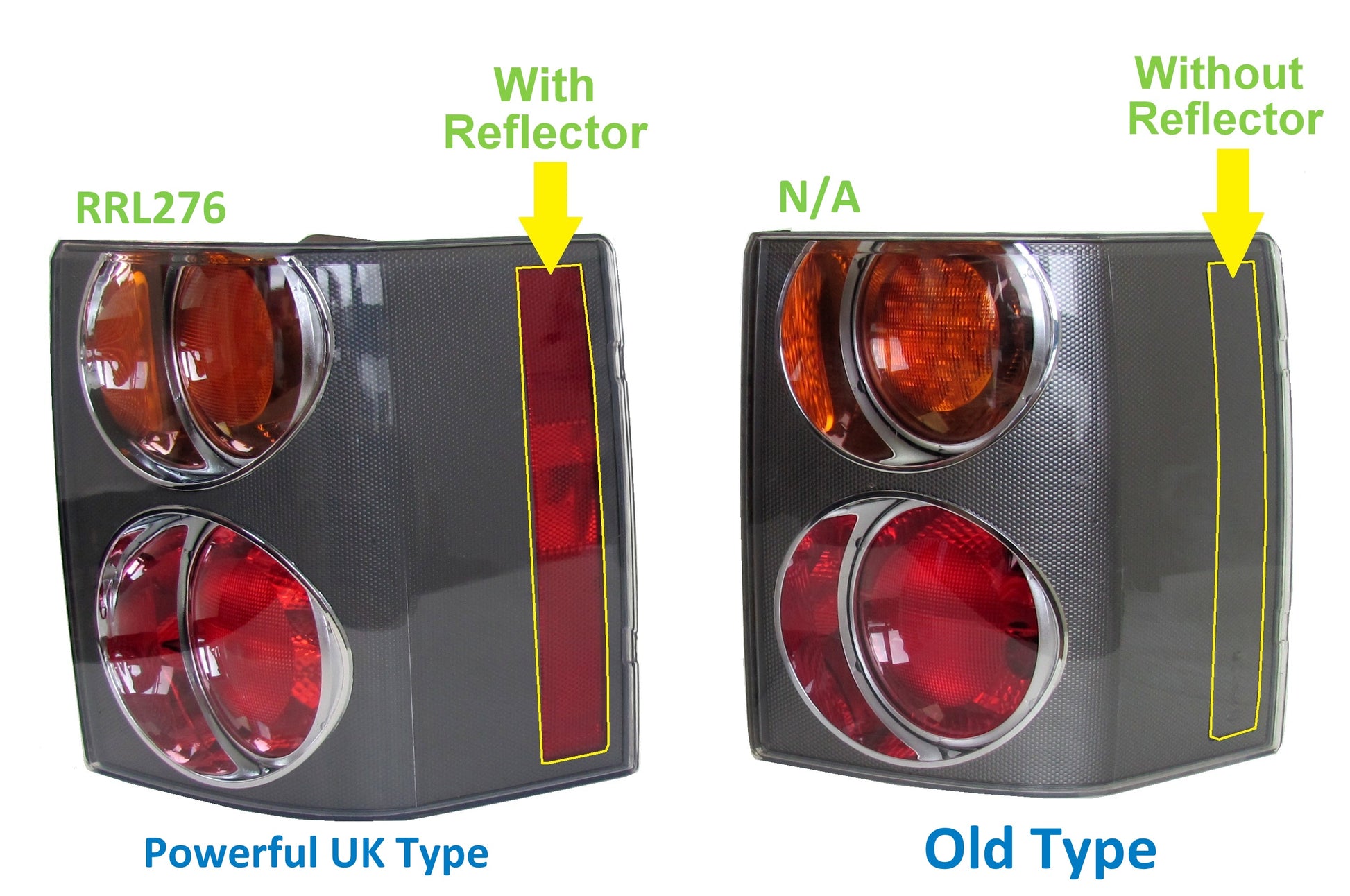

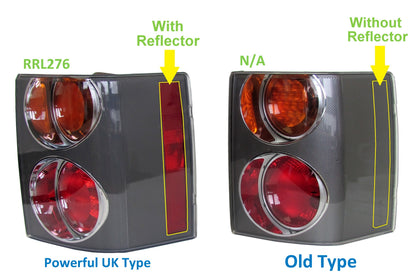

**Please note these lights have the side reflector strip** - see pictures

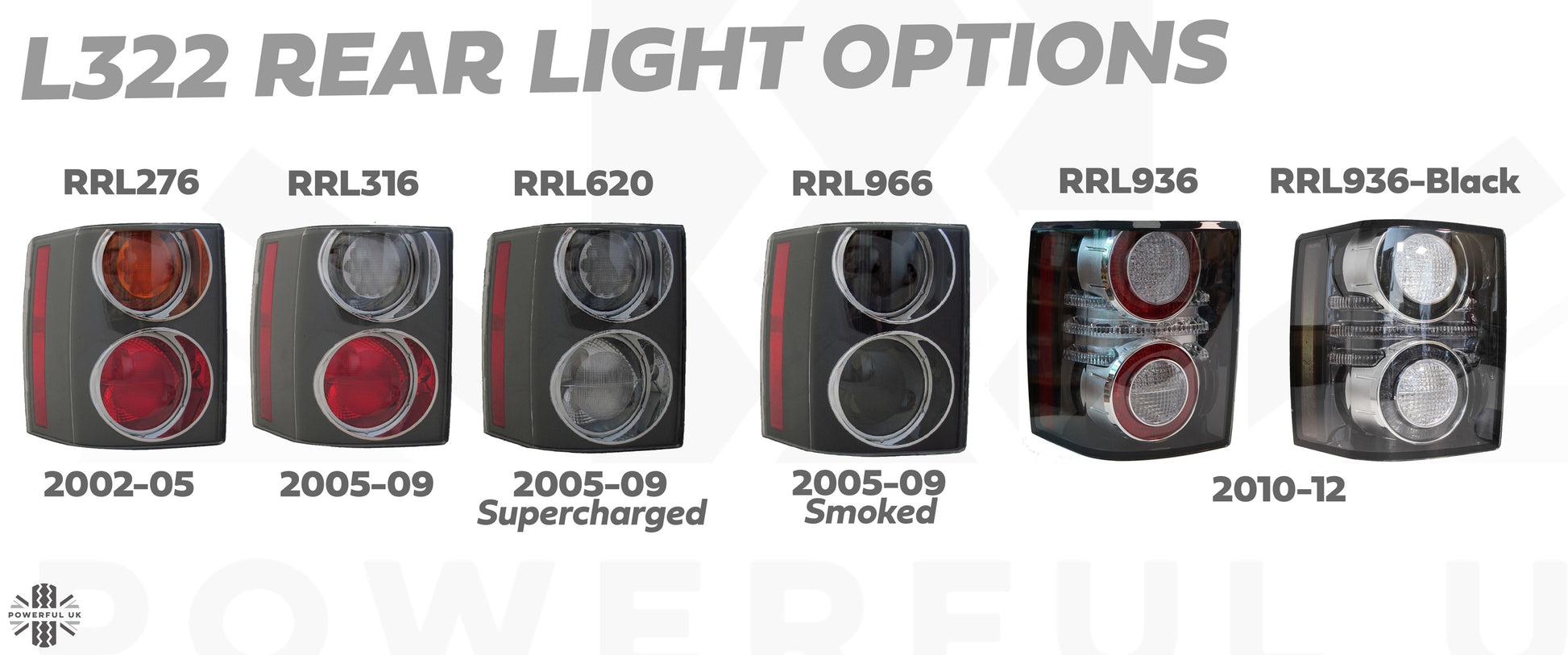

There are 3 types of rear lights fitted to the L322 :-

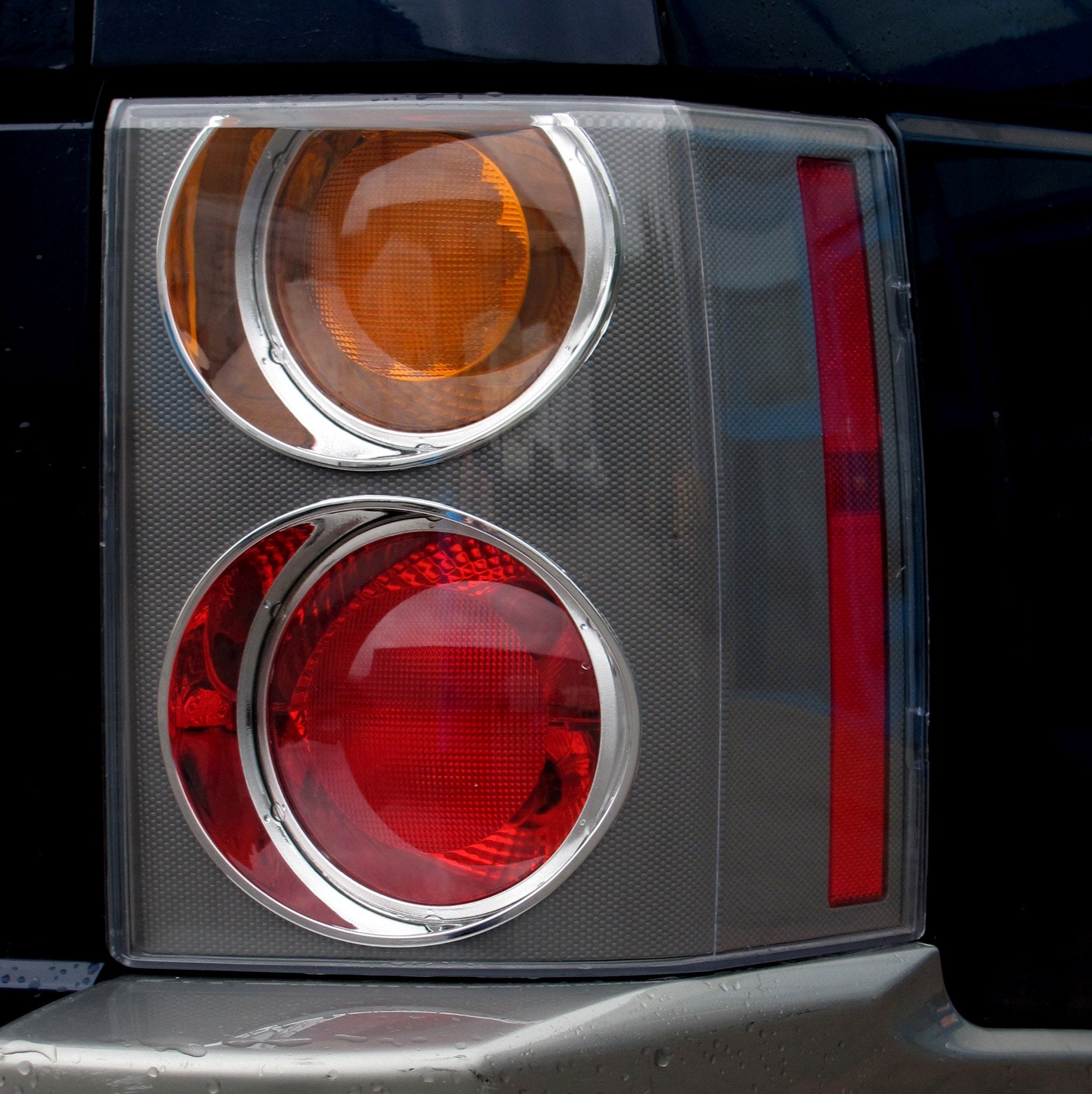

1) Orange and Red lens - these were fitted to the early models from 2002 to 2005 ( this type is for sale in this listing )
2) Clear and Red lens - these were fitted to the 2005 to 2009 models.
3) Clear and Clear lens - these were fitted to the 2005 to 2009 Supercharged models.
This listing is for a Right side ( driver side or offside ) rear light for a Range Rover L322 with the ORANGE and RED lens.
This can be fitted to a 2005 - 2009 model to replace a damaged or leaking item or fitted to a 2002 - 2005 model as an upgrade.
This will fit Left hand drive and right hand drive cars but please note these are not USA spec ( USA or "NAS" spec lights have additional bulbs in the side )
This light is not genuine Land Rover Parts but can be used as an alternative to Land Rover PN XFB500360
This parts are not E Marked but will pass an MOT
See our other listings for the opposite side.
Remove the rear trim in the boot
Remove the electrical connector from the rear of the light.
Remove the light and fit the new item.
See below video showing how to remove the lights from your car..
See below video showing how fit the rear bulb holders to the lamp unit.
How to change bulbs / replace bulb circuit board on Range Rover L322 rear lights. - YouTube
Video will open in a new window
This item will fit Range Rover L322 models from 2002 to 2009.
These WILL NOT fit a Range Rover P38, SPORT
