Headlight Conversion Looms (Pair) for Range Rover L322 2006> 2010

Part number: RRC209-PAIR
Regular price Price:  £90.00 GBP
Sale price Price: £90.00 GBP
FREE SHIPPING included to most UK locations
Shipping to other locations calculated at checkout.
Price includes VAT.

Headlight Conversion Connectors

for Range Rover L322 2006 > 2010

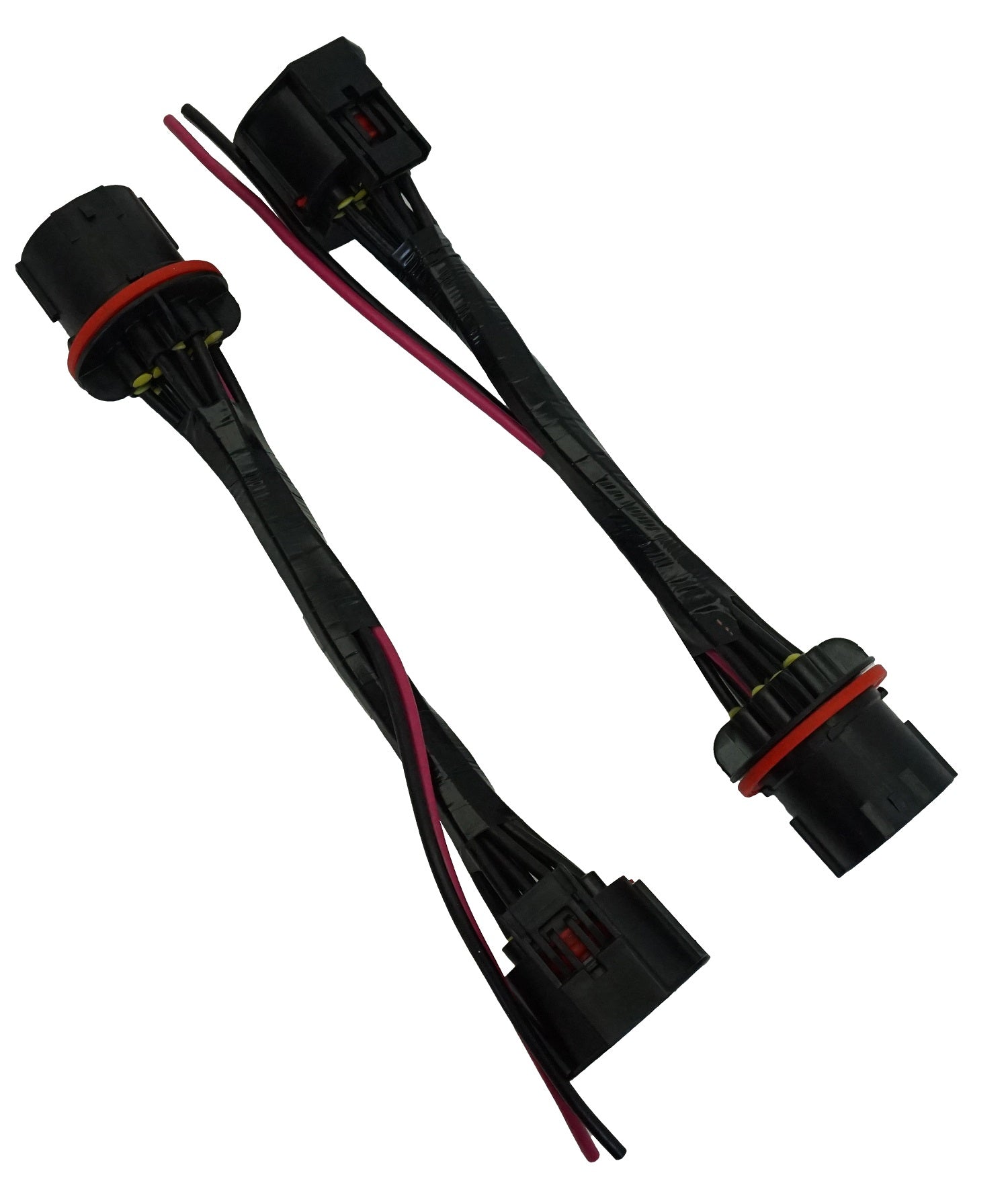

This is a pair of plug and play adaptors to convert the wiring on a 2006 -2009 Range Rover L322 to the correct configuration to support the 2010 headlamp upgrade.

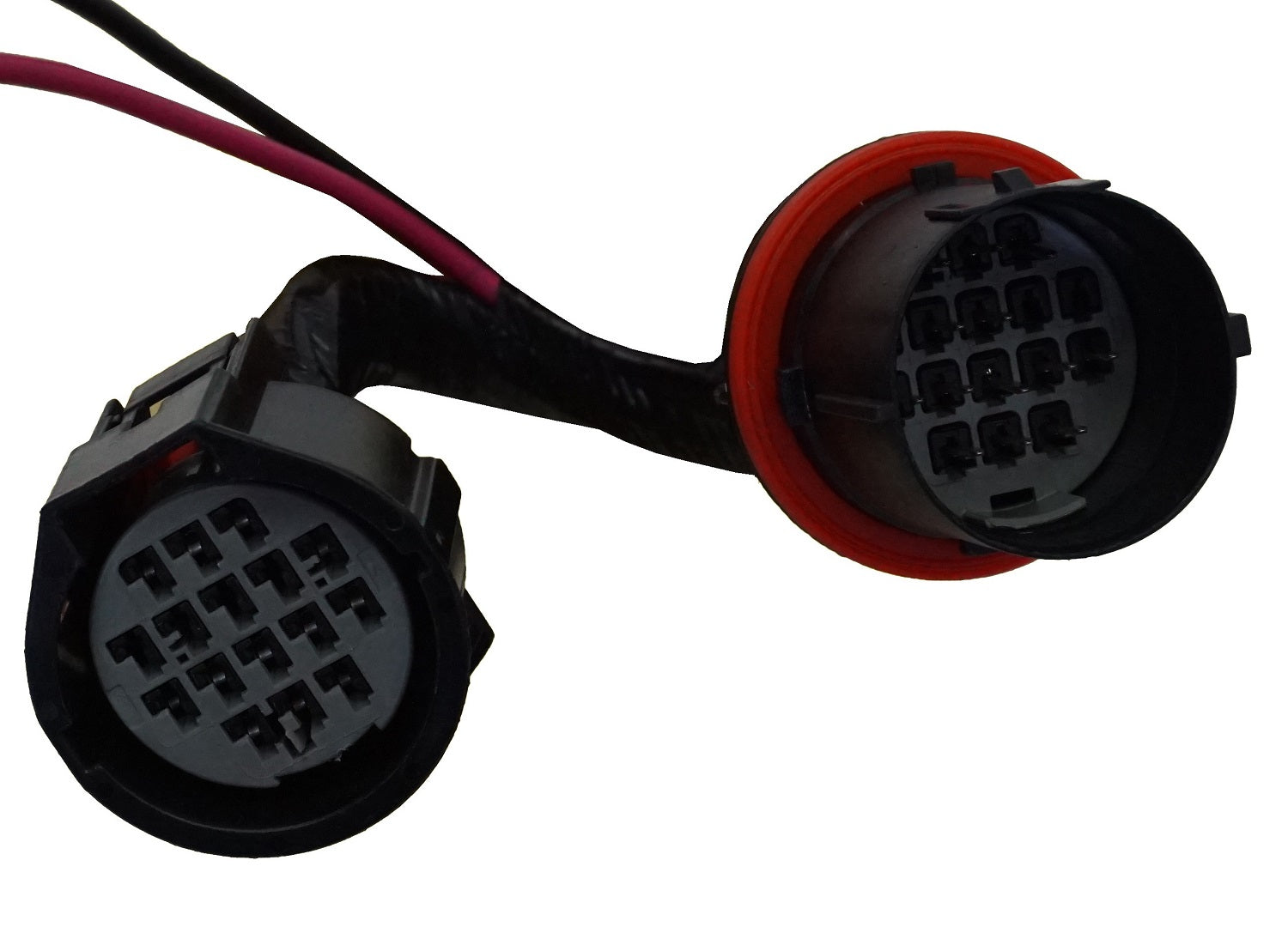

These consist of a male connector (16 way) at one end and a female connector at the other end.

These are all pre-wired and assembled ready to just plug in.

This is what we used in our video where we converted our company 2006 Range Rover L322 to the newer 2010 front end.

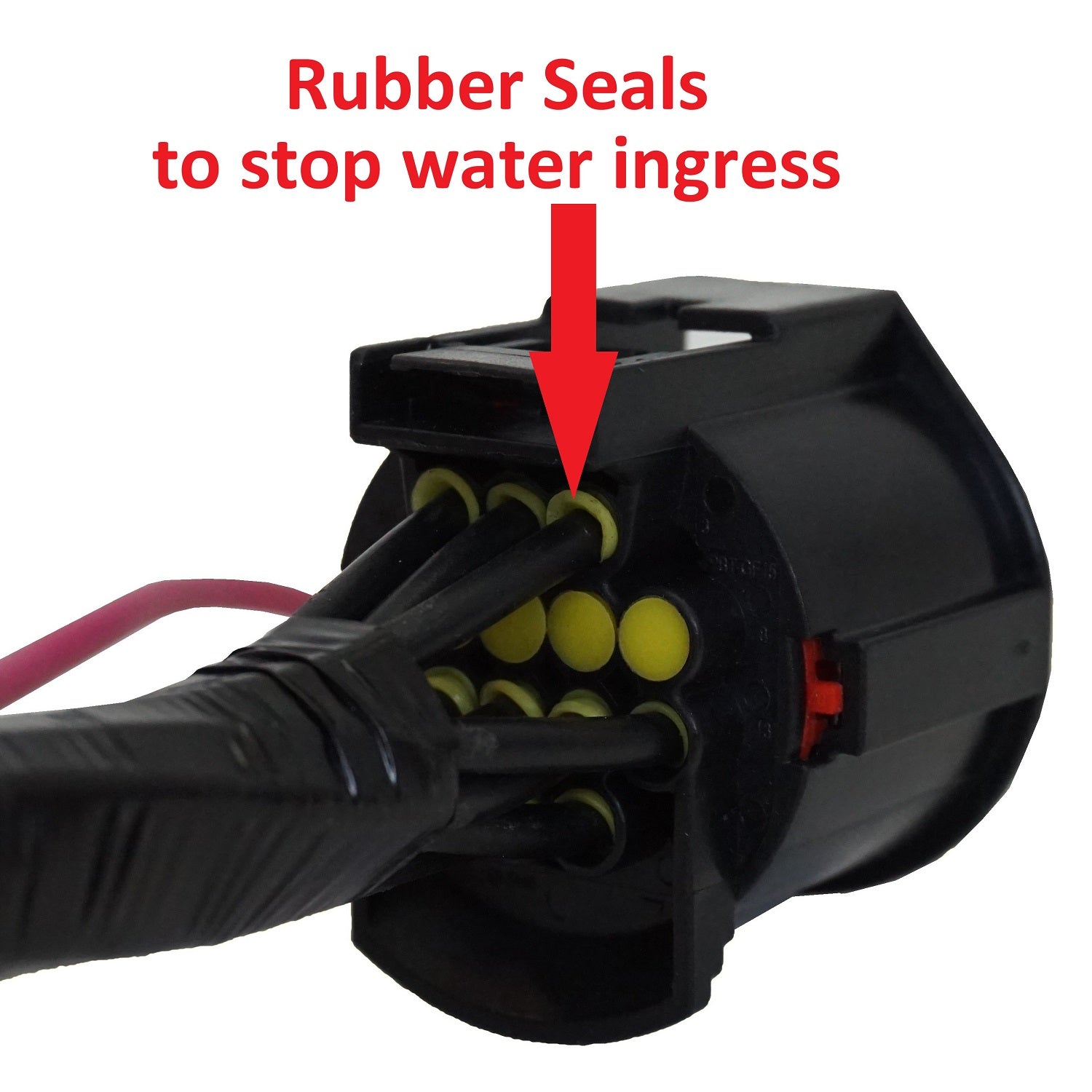

These have been assembled complete with the waterproof seals fitted around the wires at the back of the connectors to stop water ingress.

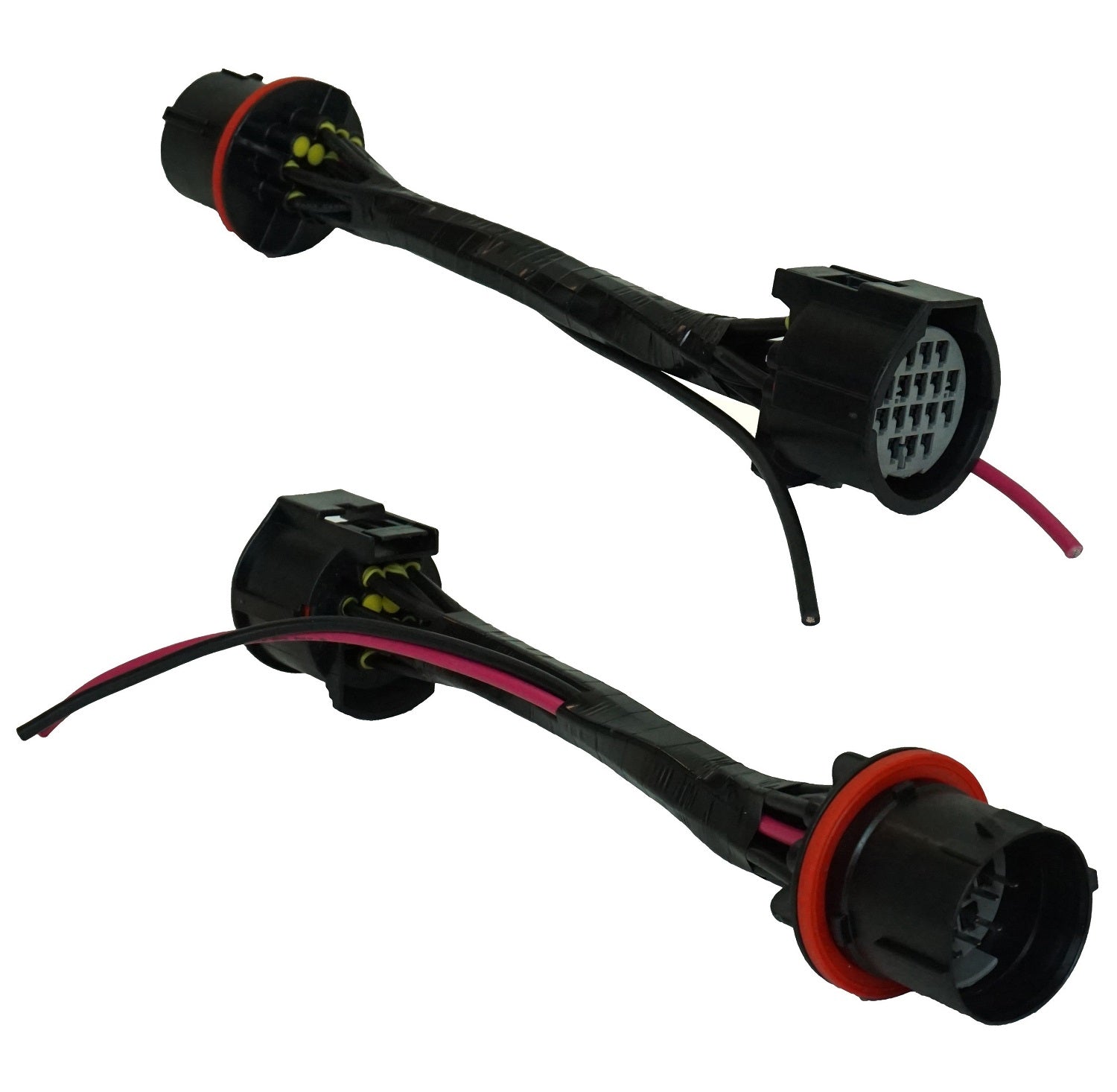

We have designed these looms with two extra wires (black & pink) so you can connect additional driving lights that will come on with main beam. These wires should be taped up if not used.

The AFS (cornering headlight) function will not work on this conversion as the 2006 and 2010 AFS control are not compatible - the AFS warning light can be turned off by unpluging the AFS module.

These are not available to purchase from Land Rover - they have been specially made for us to our design.

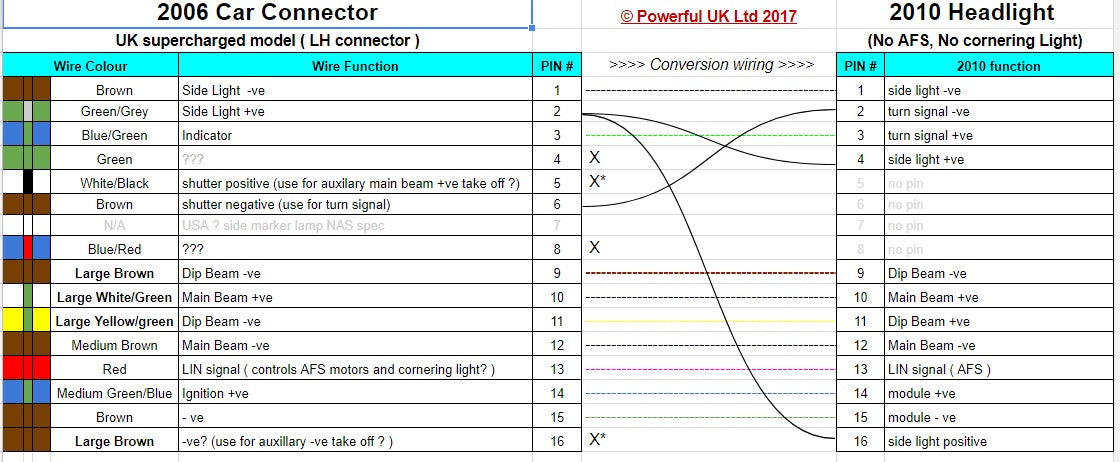

If you have the skills and want to rewire your own car then you don't need to buy these looms - or even buy connectors. We have included the wiring diagram in the pictures to help you !

These are not genuine Land Rover parts.

Fitting Details

See below video

Range Rover L322 2006 to 2010 Conversion - Front Electrical Changes - YouTube

Video will open in a new window
