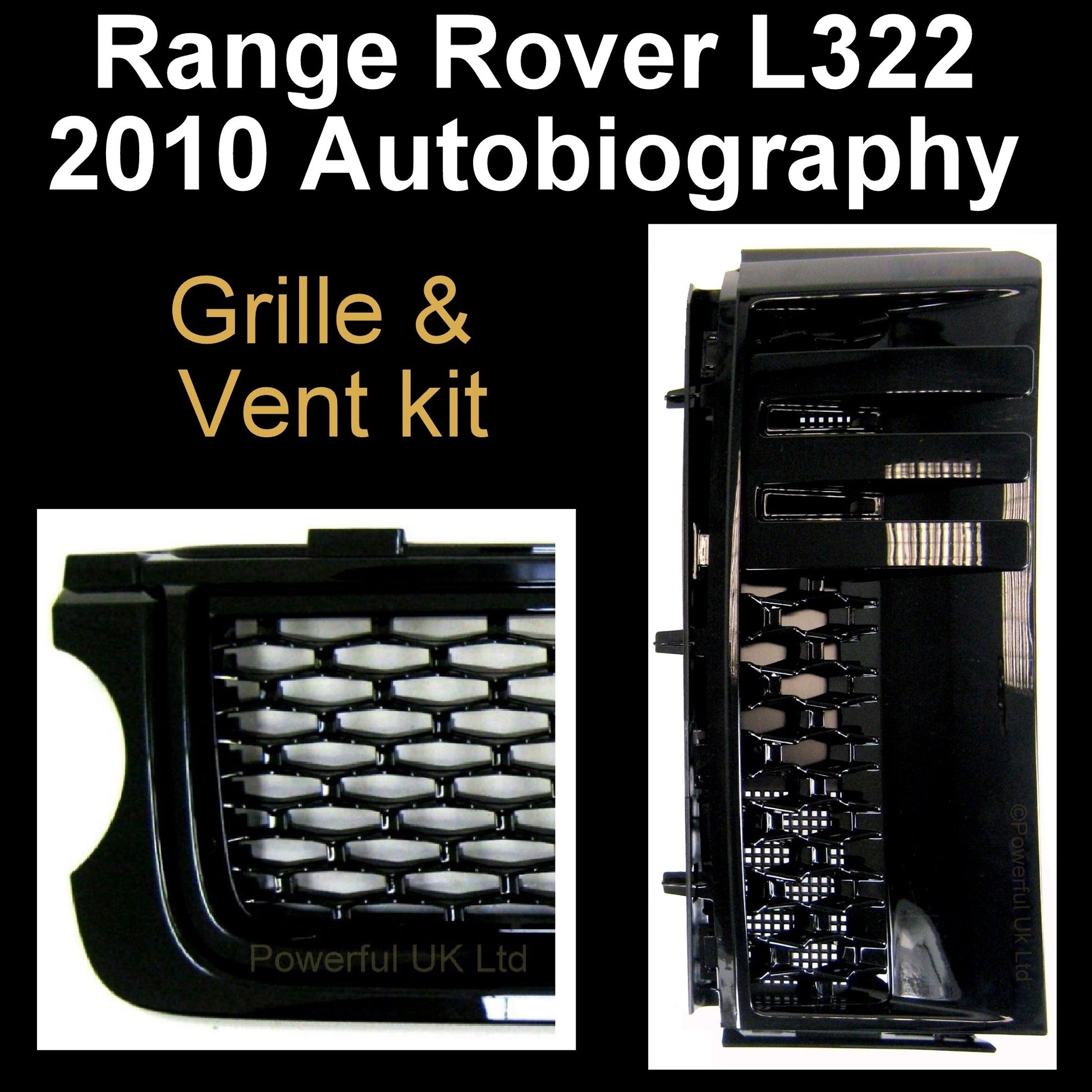

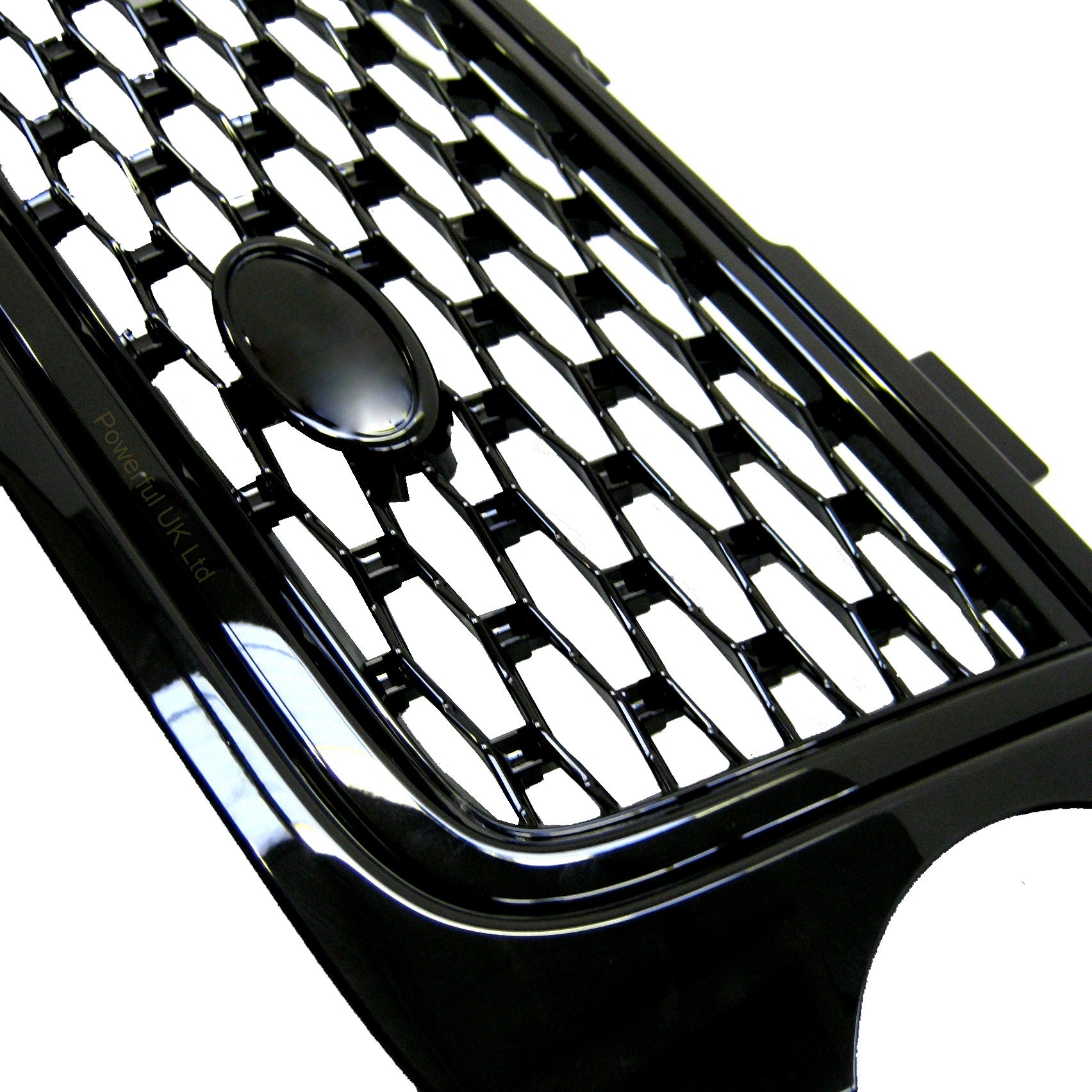

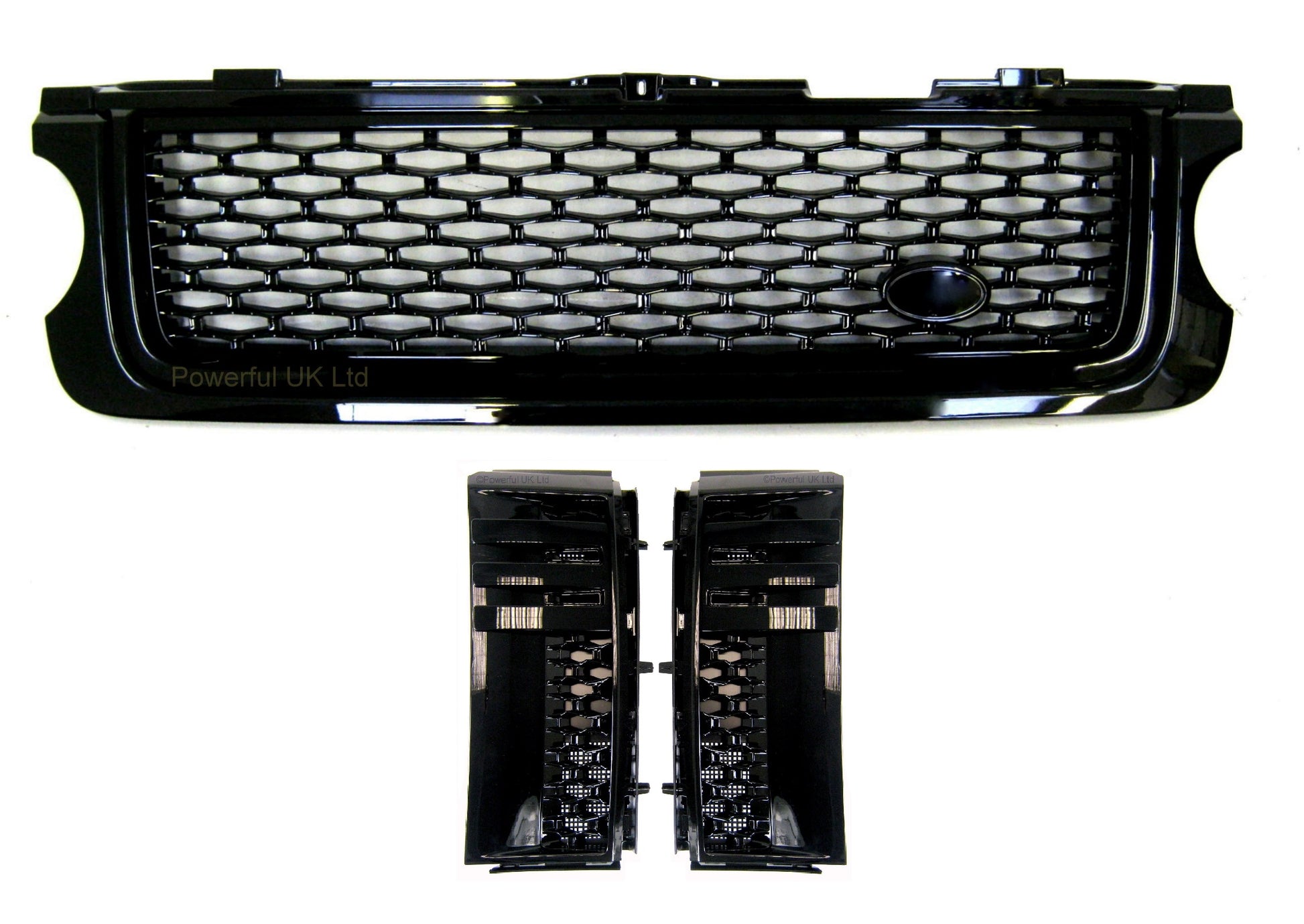

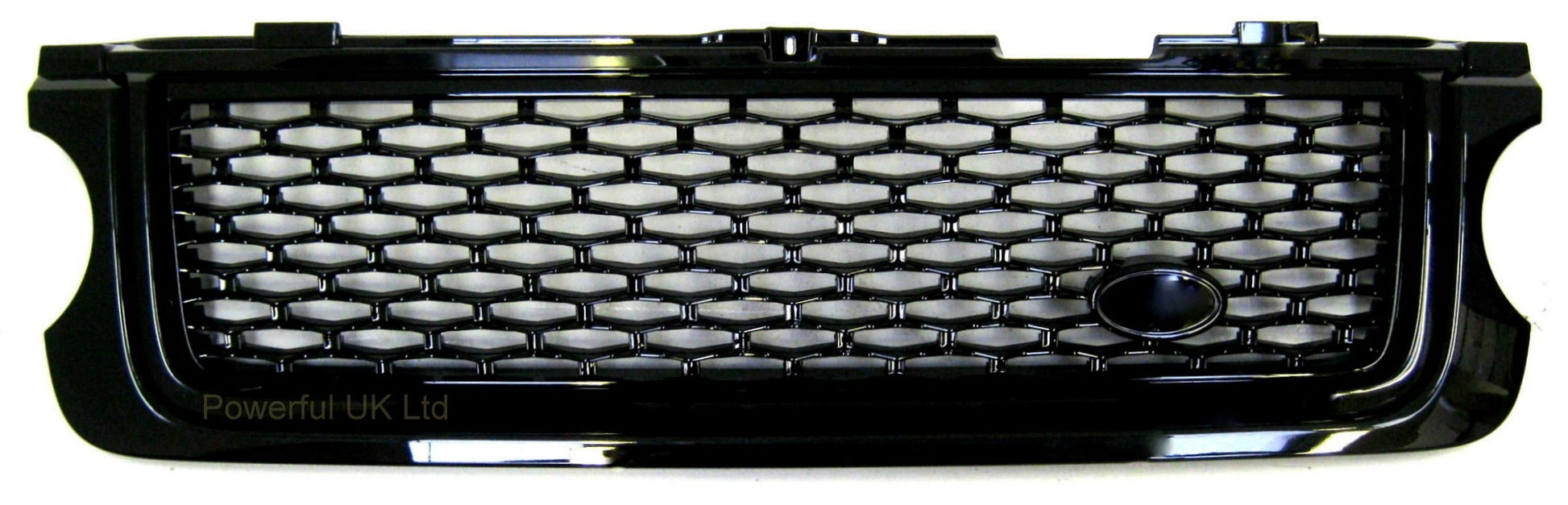

Grille+Vents "Autobiography Style" for Range Rover L322 2010+ - BlackPart number: RGK577-BBB

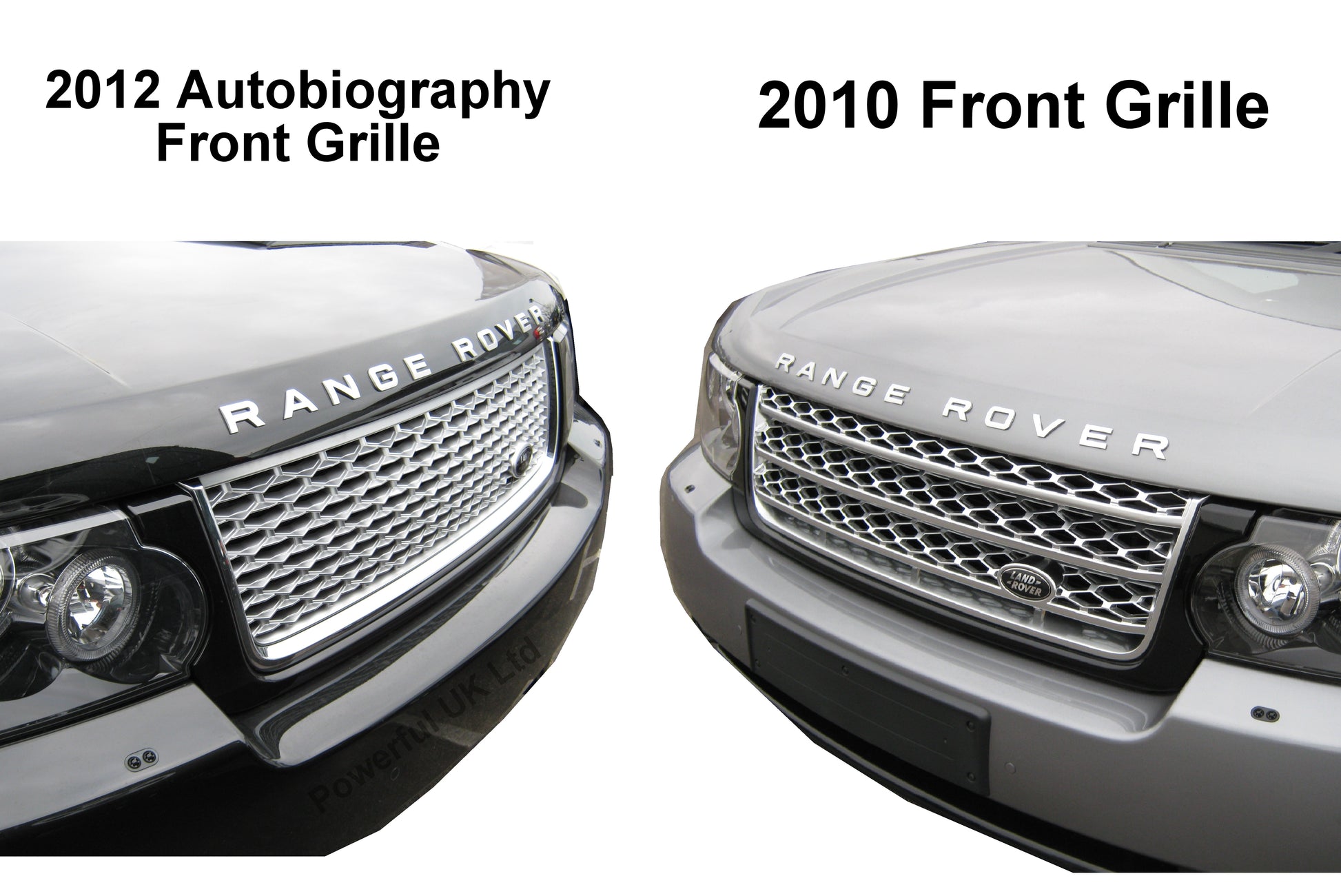

2012 "Autobiography" style Grille + Side Vents
Black Frame / Black Trim / Black Mesh
for Range Rover L322 2010 - 2013
Ideal to replace a worn or damaged front grille.
This is the style of grille and vents used on the top of the range "Autobiography" model.
This grille can be used as an alternative to Land Rover part number LR031241
We also have these kits available in other colour combinations - see our other items.
This Grille DOES NOT come with a badge, you will need to purchase this separately. ( We sell the badge - search our other items for part number "LRB365" ).
This is not a genuine Land Rover item.
Open the bonnet ( 'hood' for our American friends ) and remove the 3 bolts at the top of the grille.
Remove the grille by pulling it forwards at the bottom.
Fit the new grille and refit the screws - done.
To do this you need only a cross head screwdriver ! no other tools.
This will take 15 minutes maximum.
See below fitting video for the grille change :
How to change the front grille on Range Rover L322 2010 on - YouTube
Video will open in a new window

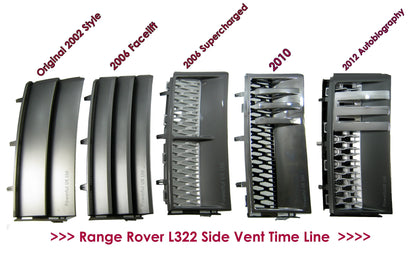

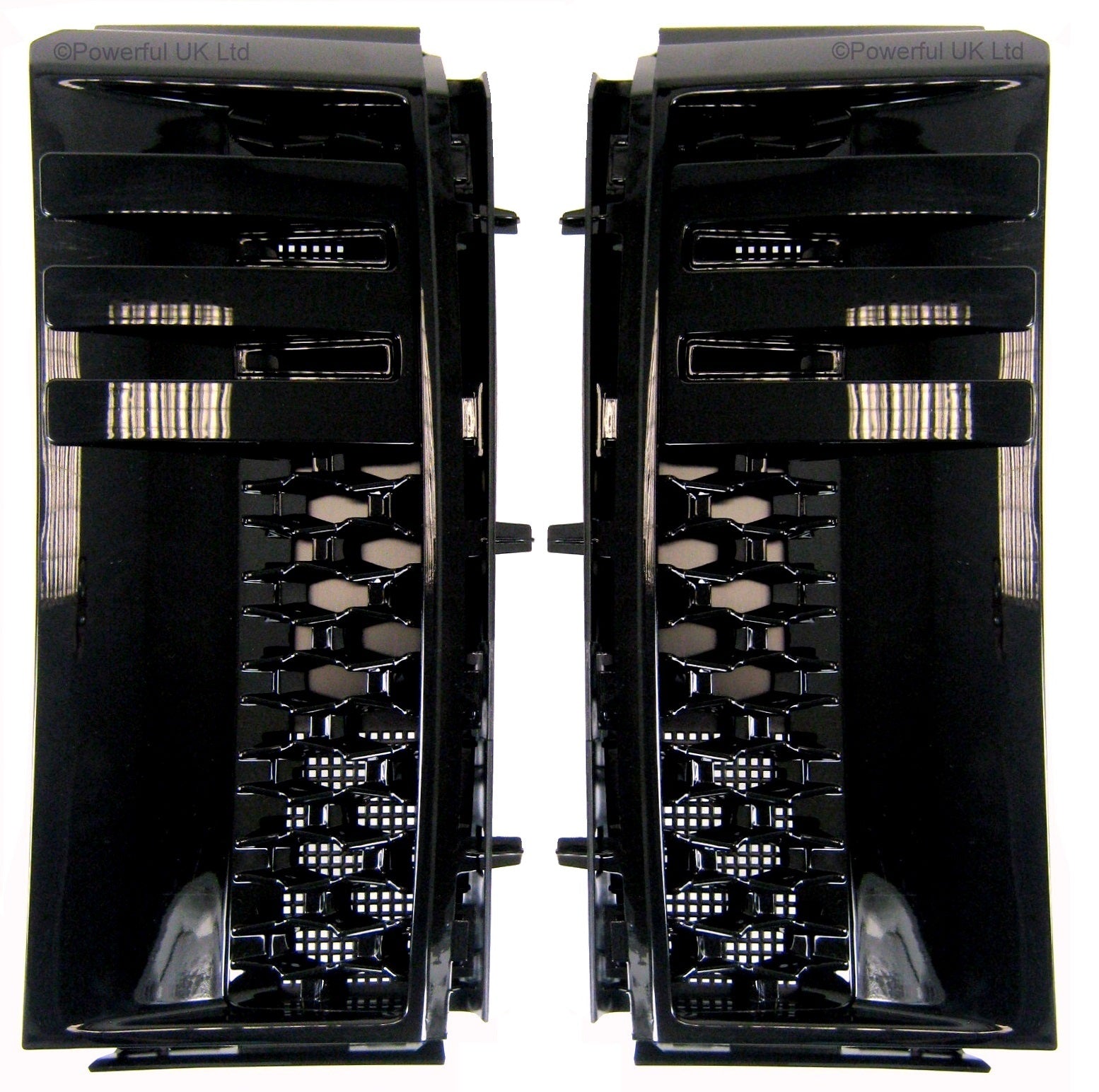

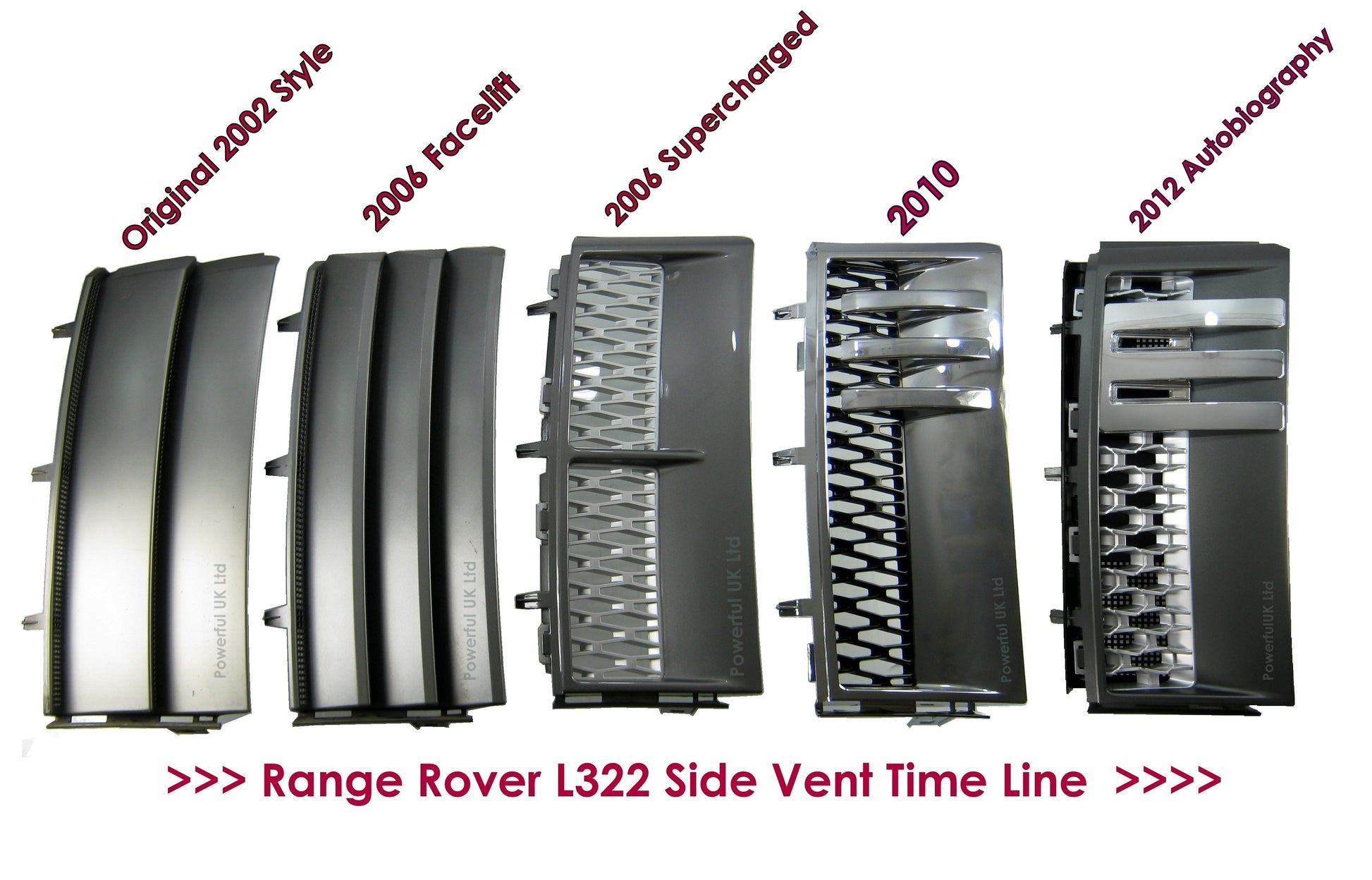

And this video shows how to change the side vents.
Which Vehicles will this fit ?
This item WILL fit Range Rover L322 models from 2010 - 2013
This item WILL NOT Fit a 2002 -2009
This item WILL NOT fit a Range Rover Sport
This item WILL NOT fit a P38 Range Rover.
