Front Bumper 2 in 1 LED DRL & Fog Lamp Kit
including DRL controller board and wiring kit
for Land Rover Discovery 3

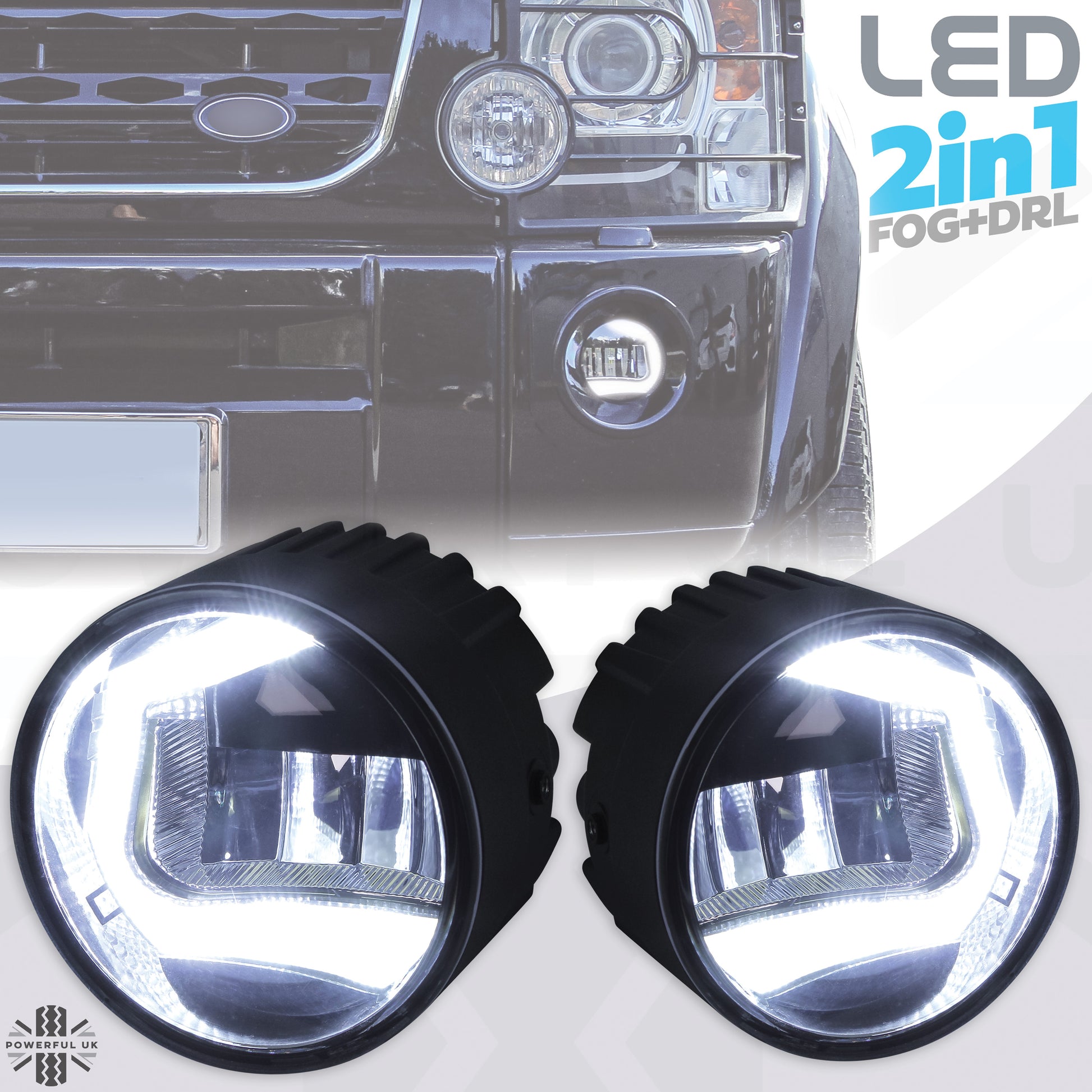

This listing is for a complete LED DRL/Fog upgrade kit to fit the Land Rover Discovery 3.
We weren't able to source a LED fog light unit for the Discovery 3 so we engineered a complete solution!
We have designed and manufactured these kits to enable you to fit our '2in1 LED DRL' lamps to the Discovery 3.
This kit has been a labour of love for us, we've spent some time developing the right components for this kit - you will not be able to get these components elsewhere!

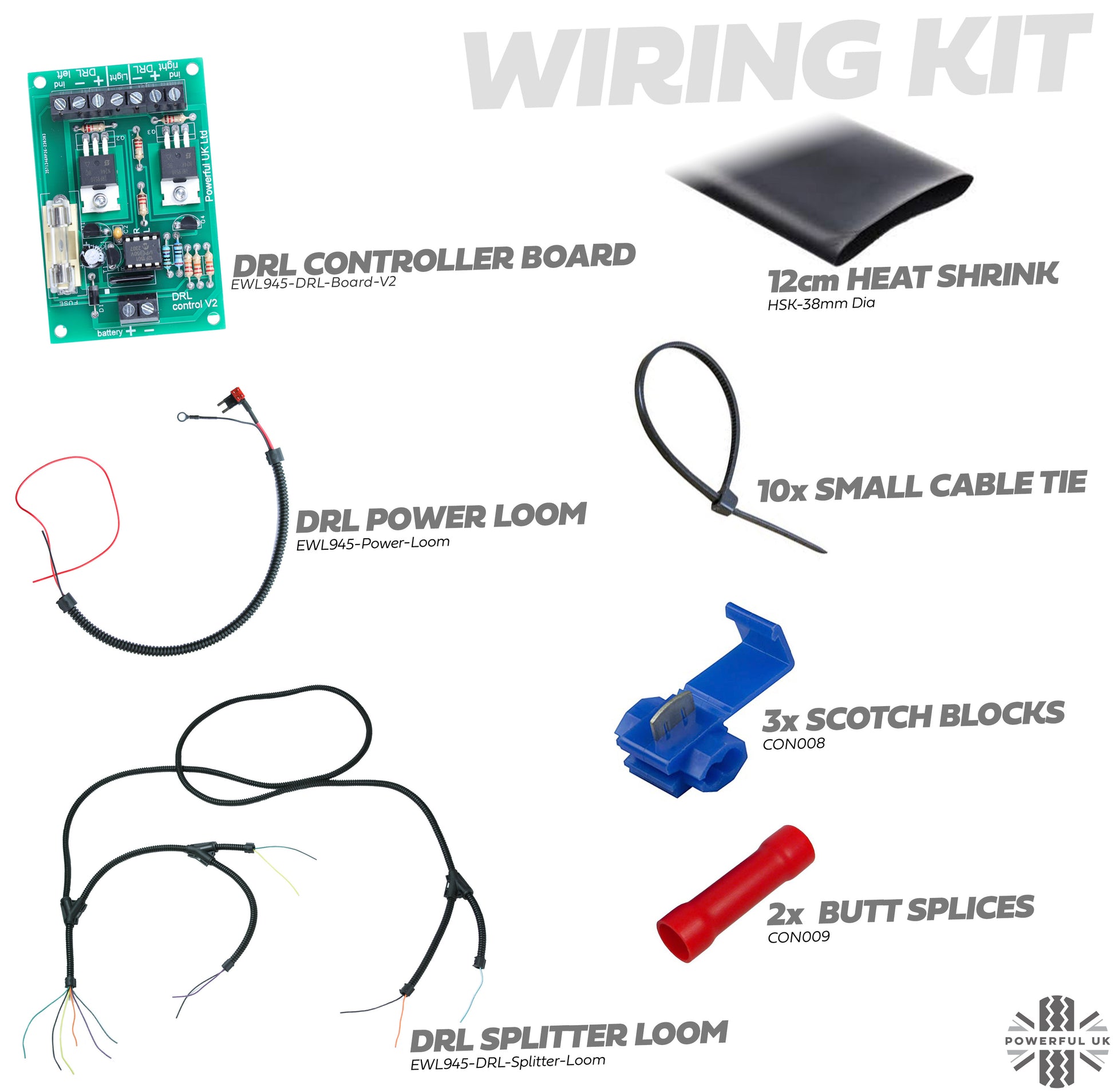

In this kit you will receive:
- 2x of 2in1 LED Fog/DRL lamps
- 2x lamp fitting brackets (Made in the UK)
- DRL controller board (Made in the UK) & Heat shrink
- Power loom: piggy-back fuse holder, fuses and negative lead/terminal in mini conduit

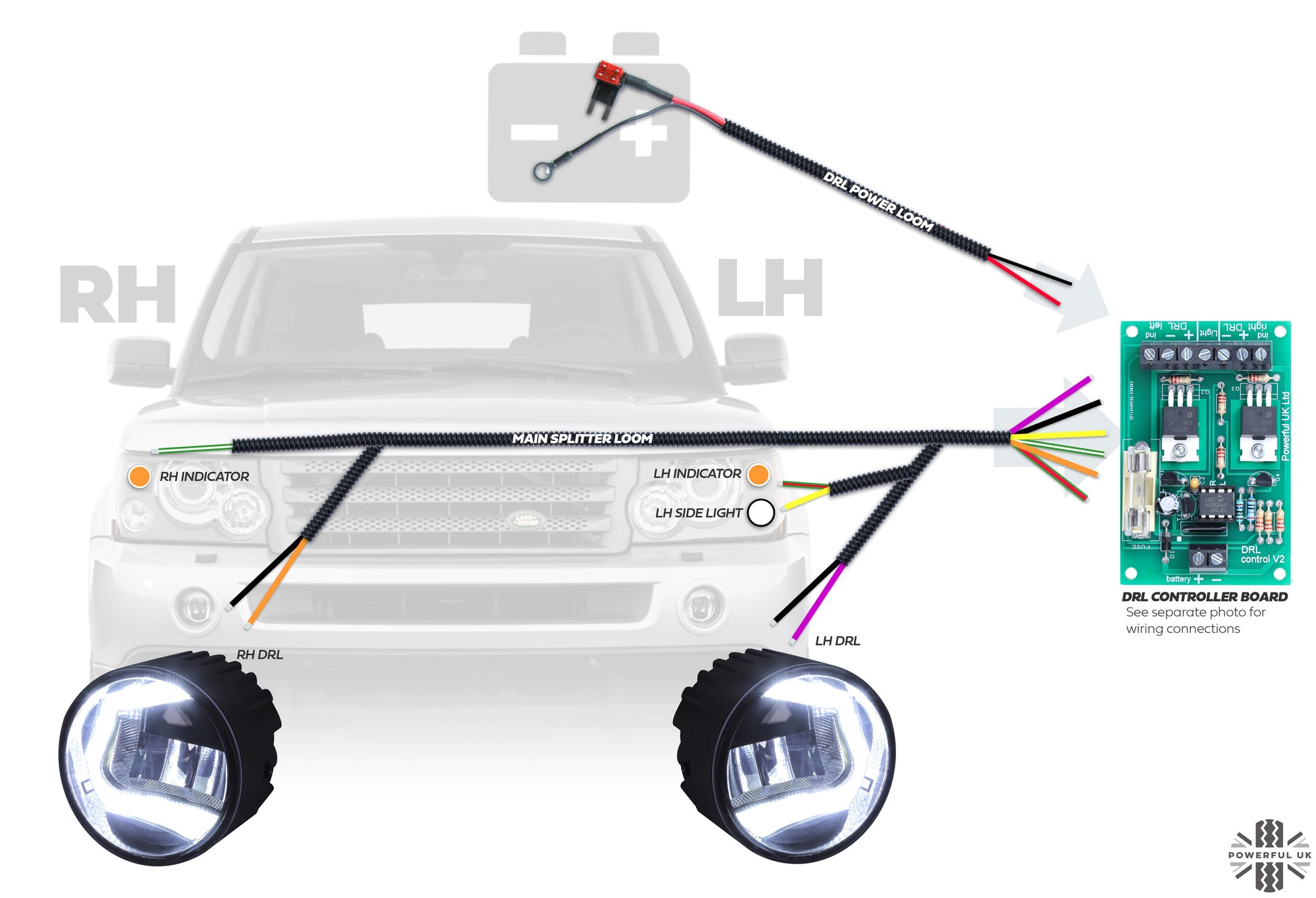

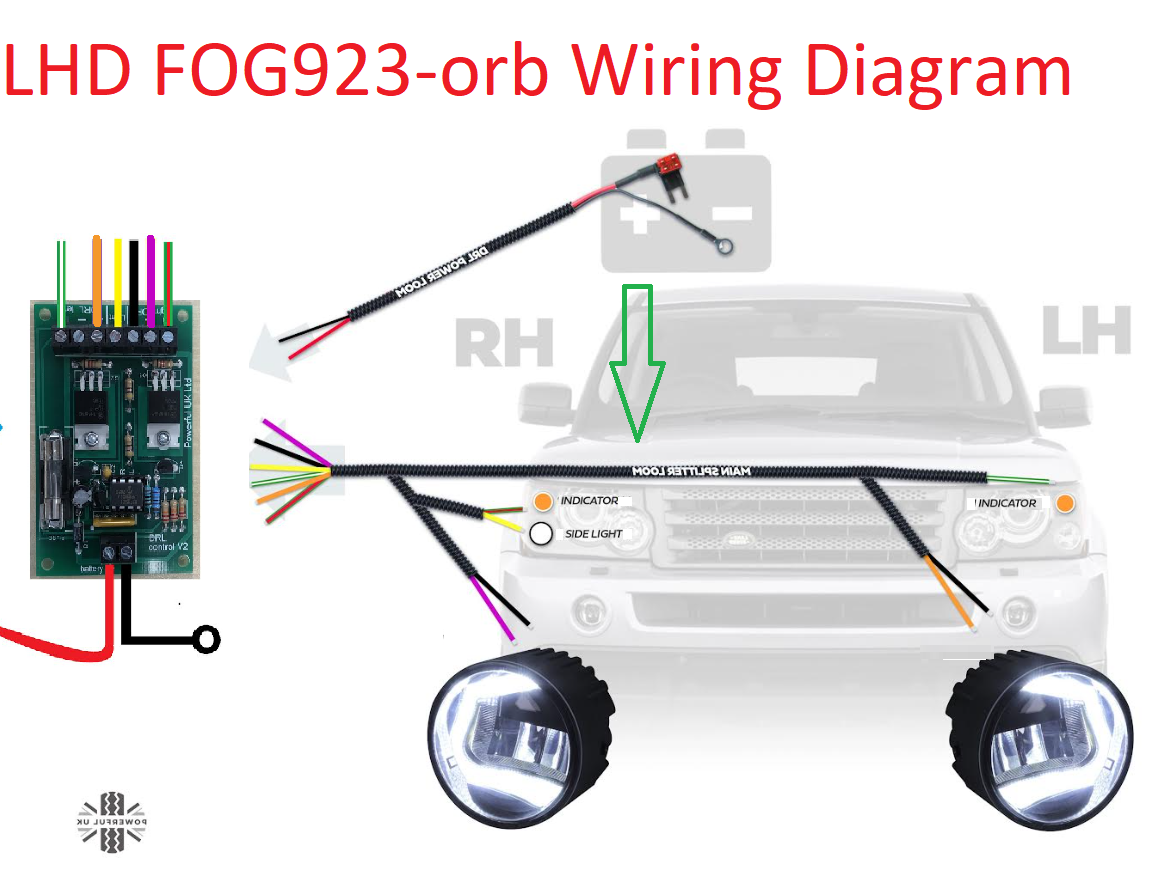

- DRL splitter loom: main loom which links DRL lamps to the controller board
- Wiring sundries i.e. cable ties and connectors

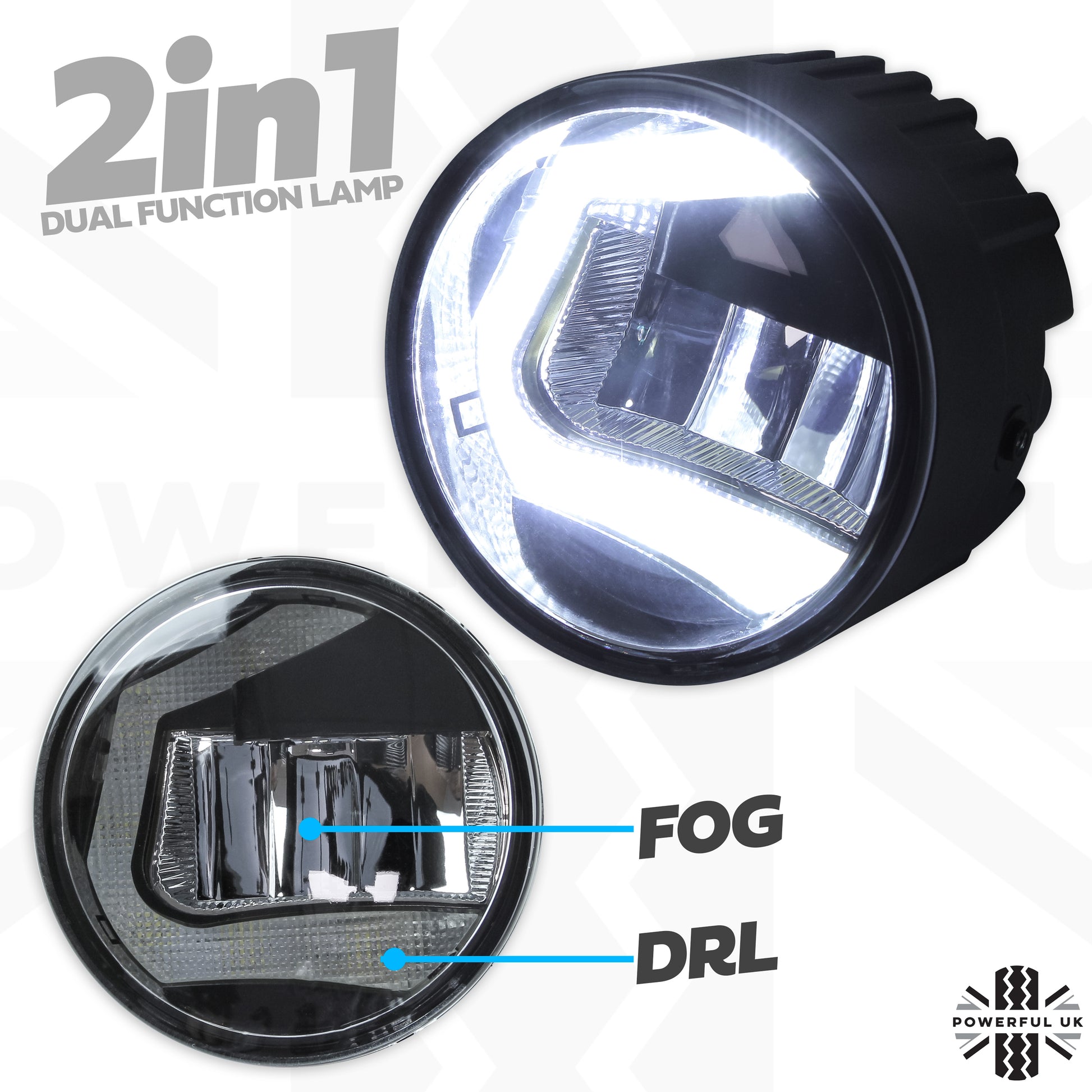

These light units have 2 separate functions:

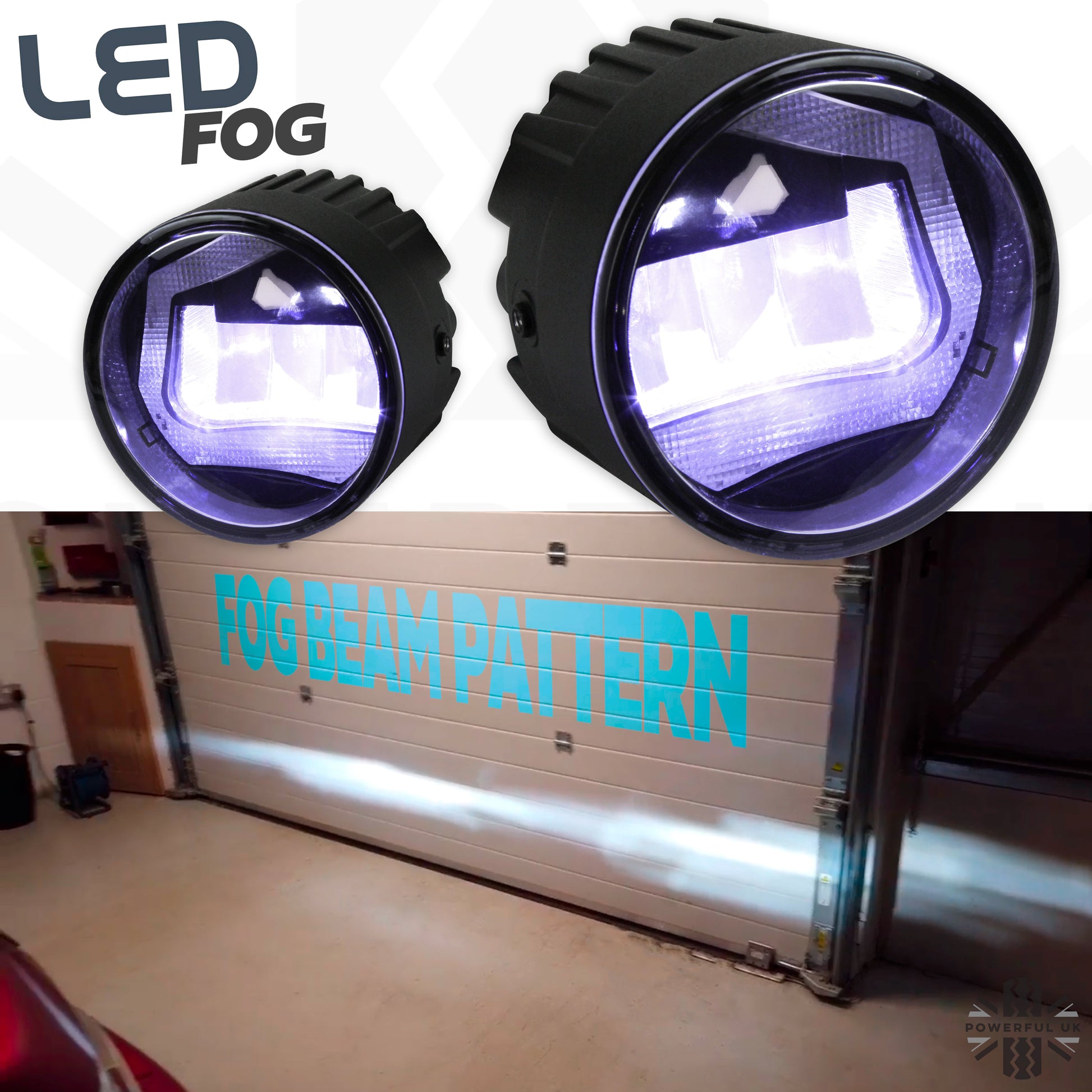

a) FOG LAMP - this is the central part of the lamp and it has a powerful LED lamp producing a clear white light.
b) DRL LAMP - this is produced by the LED around the outer edge of the lamp unit.

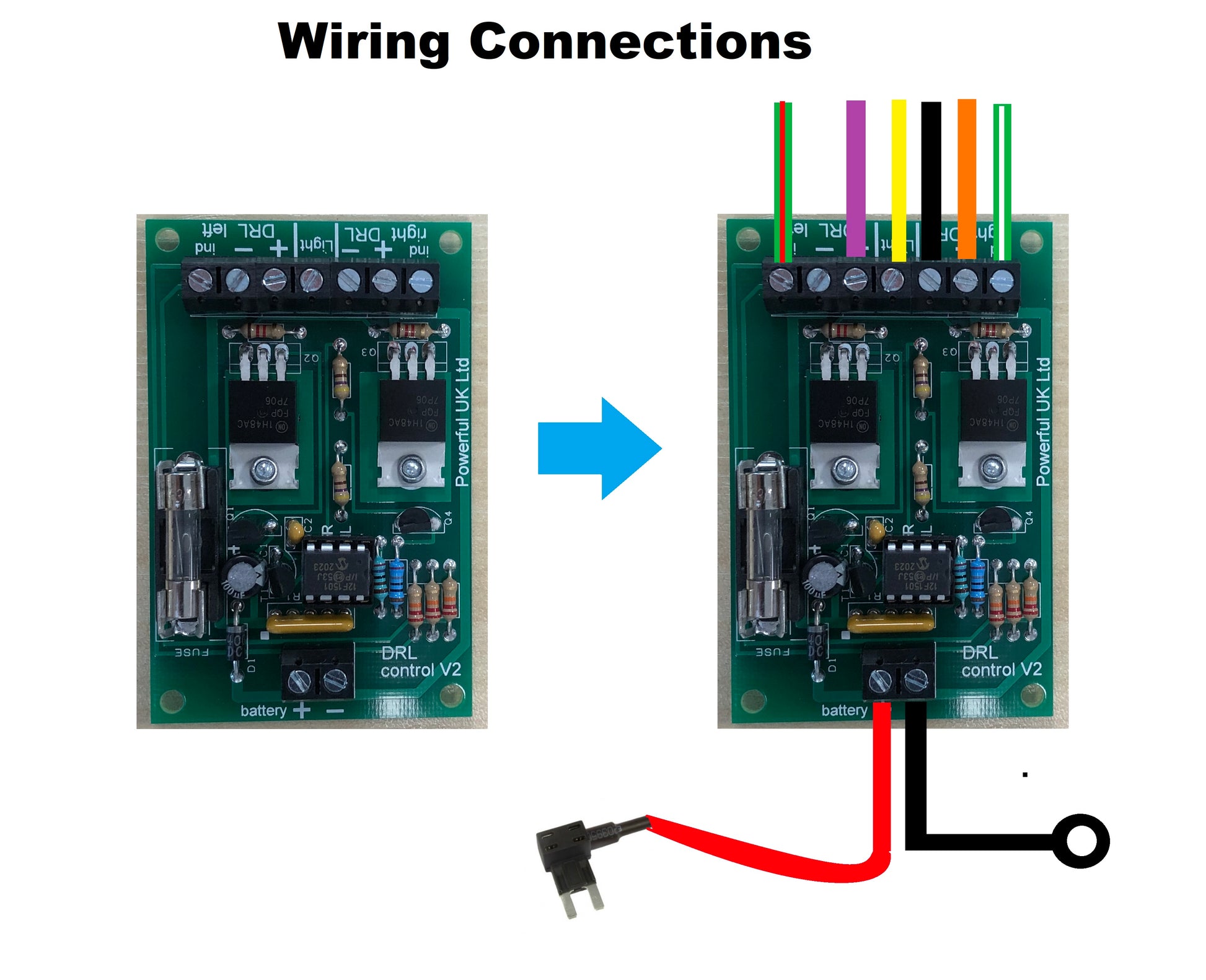

We have designed these DRL controller boards to our own high specification and had them manufactured in the UK by our micro-electronics partner.
The controller board give the following functions :-
1) Auto turn on when the engine starts - no need to find an ignition live feed.
2) Auto dimming of the DRL's when the lights are turned on
3) "follow me home" DRL's stay on after you stop the car to provide lighting for your walk to your front door
4) When you indicate the DRL on that side will go out so as not to obscure your indicator ( option feature if you connect your indicator feed to the controller )

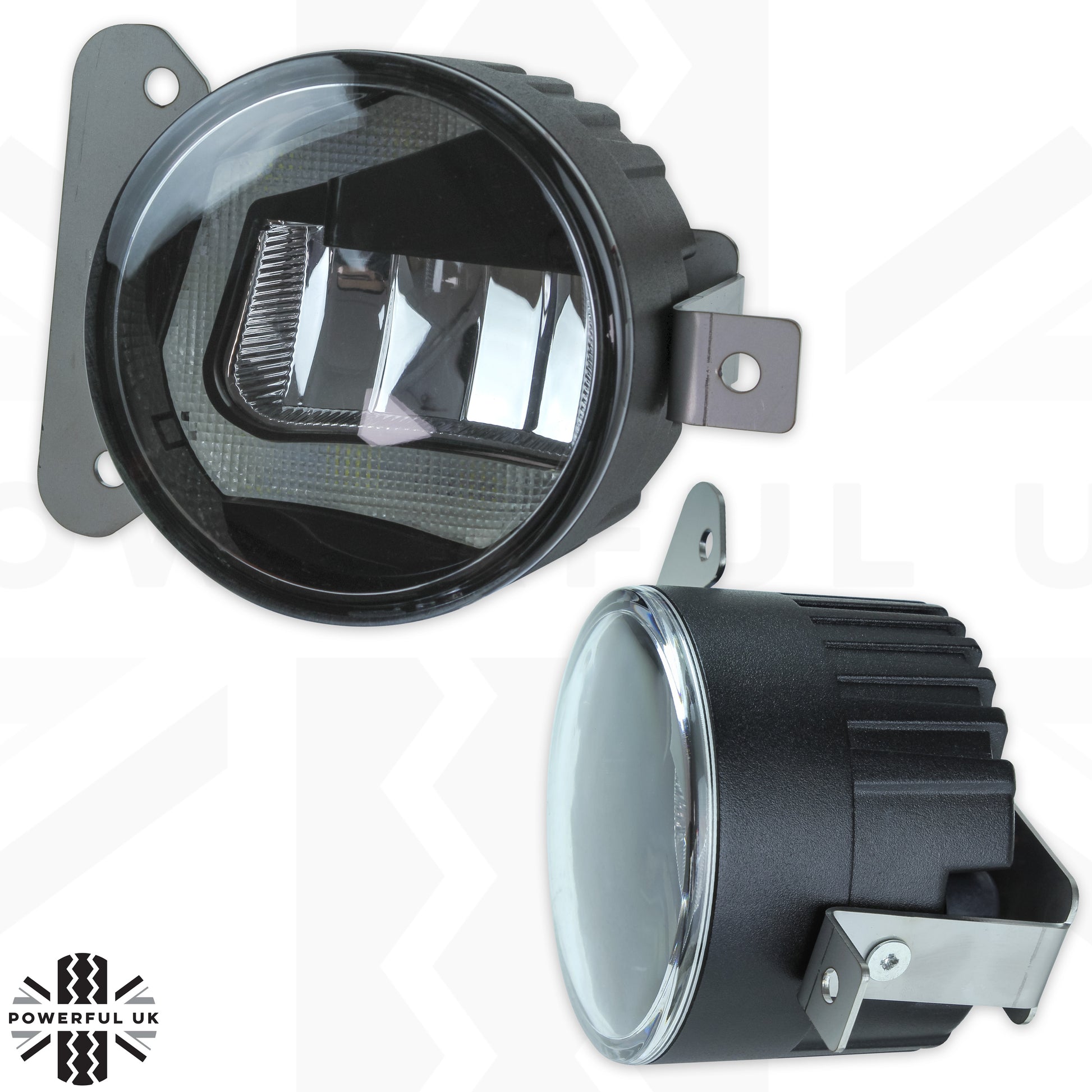

The rear of the light unit is made from aluminium with a finned heatsink design to dissipate heat.
The approximate diameter of this lamp lens is 90mm across.
These units have a tough plastic lens that makes them less likely to crack than glass.
Note: The lights may flash when vehicle is connected to a battery charger.
This is not a genuine Land Rover item. Please note that the lenses on the fog lights are not "E" marked.
Fitting Details

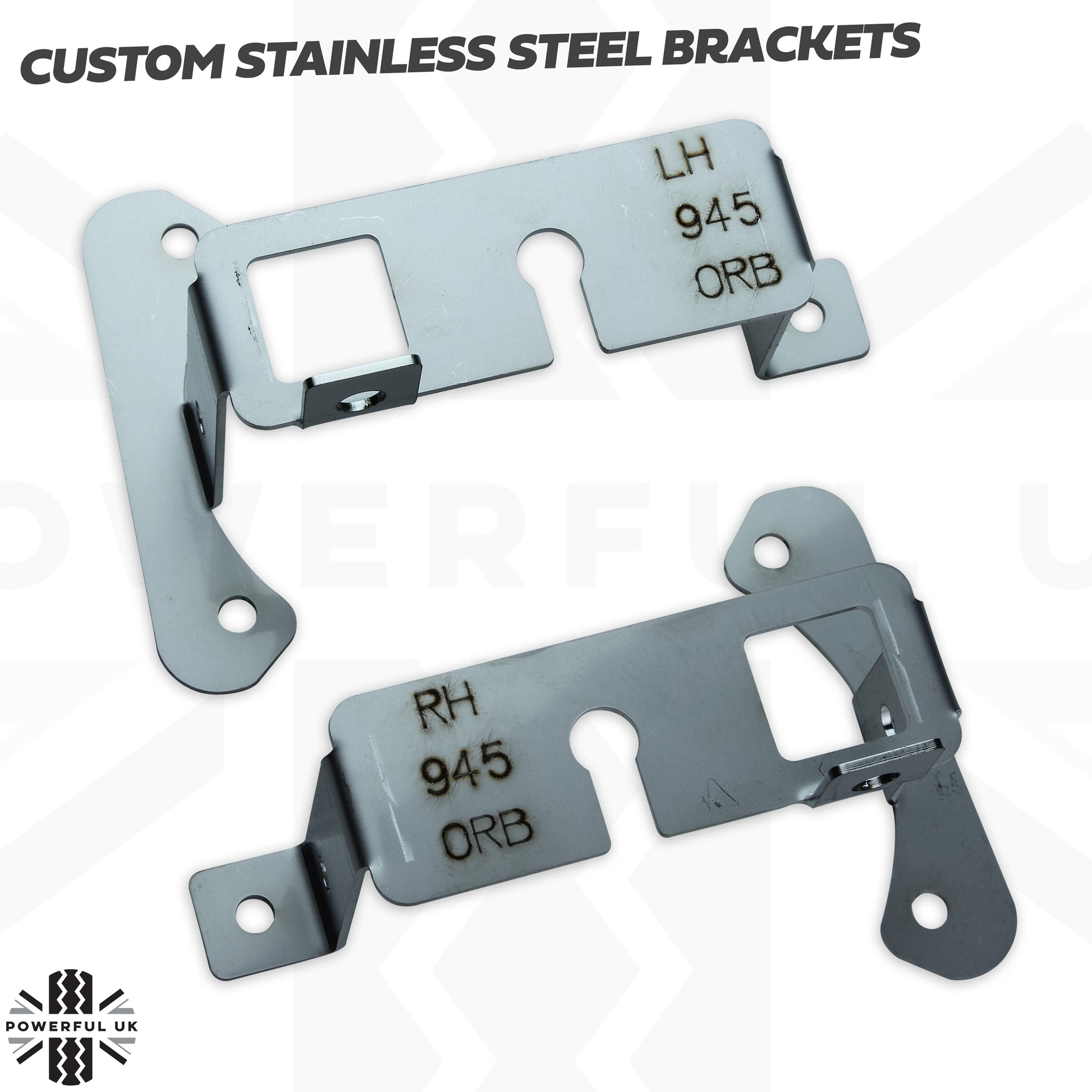

You will need to remove the standard brackets from the light unit you receive and replace with the new custom brackets.
NOTE: A small amount of customers have experienced an issue with their parking sensors after installing these lights. If you experience any issues of this nature then the FIX is to connect the earth wire from the loom to the fog lamp.
See below fitting video:
Which Vehicles will this fit ?

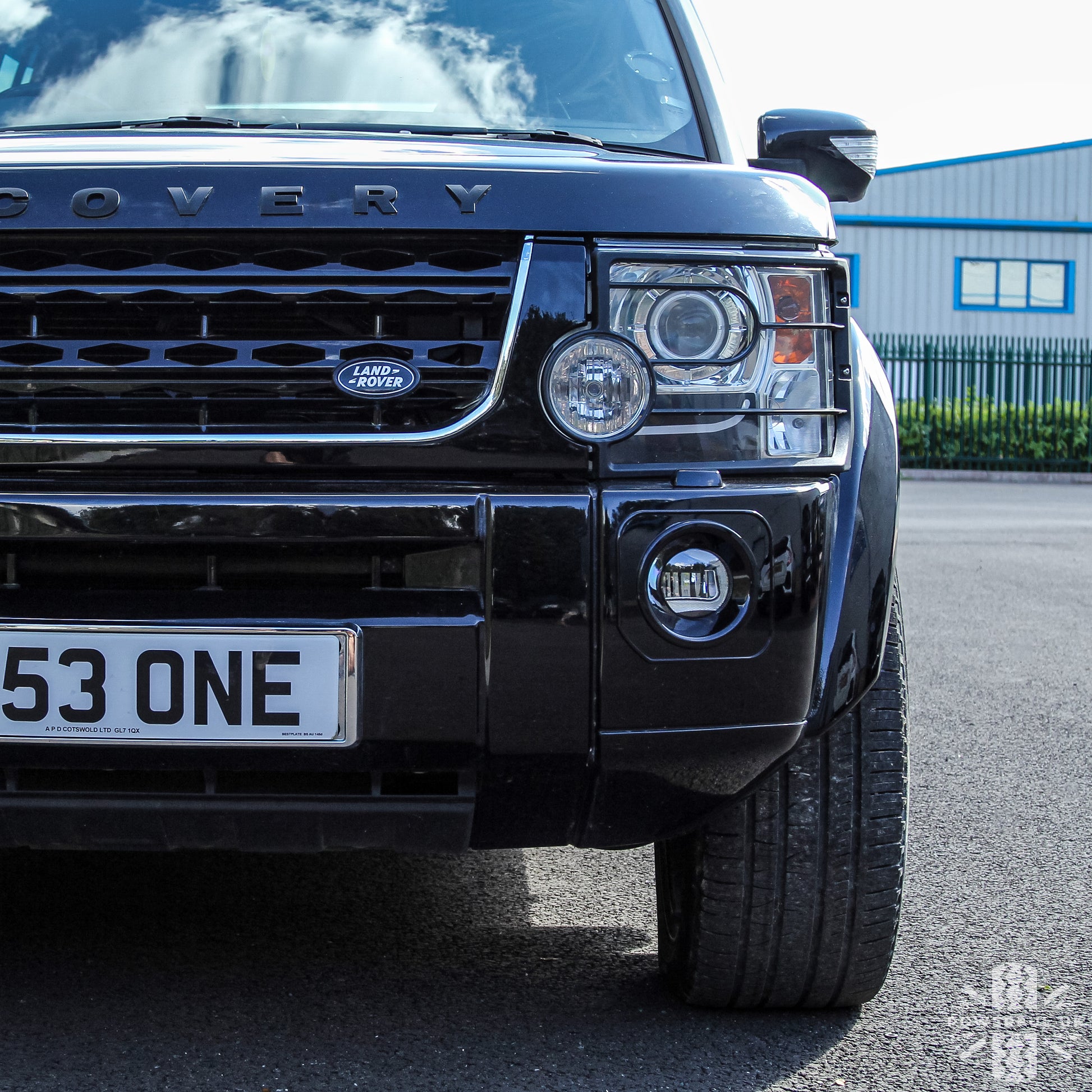

This item WILL fit Land Rover Discovery 3 models from 2005 to 2009
This item WILL NOT Fit the later Discovery 4 as the brackets are different - see our other listing for these
