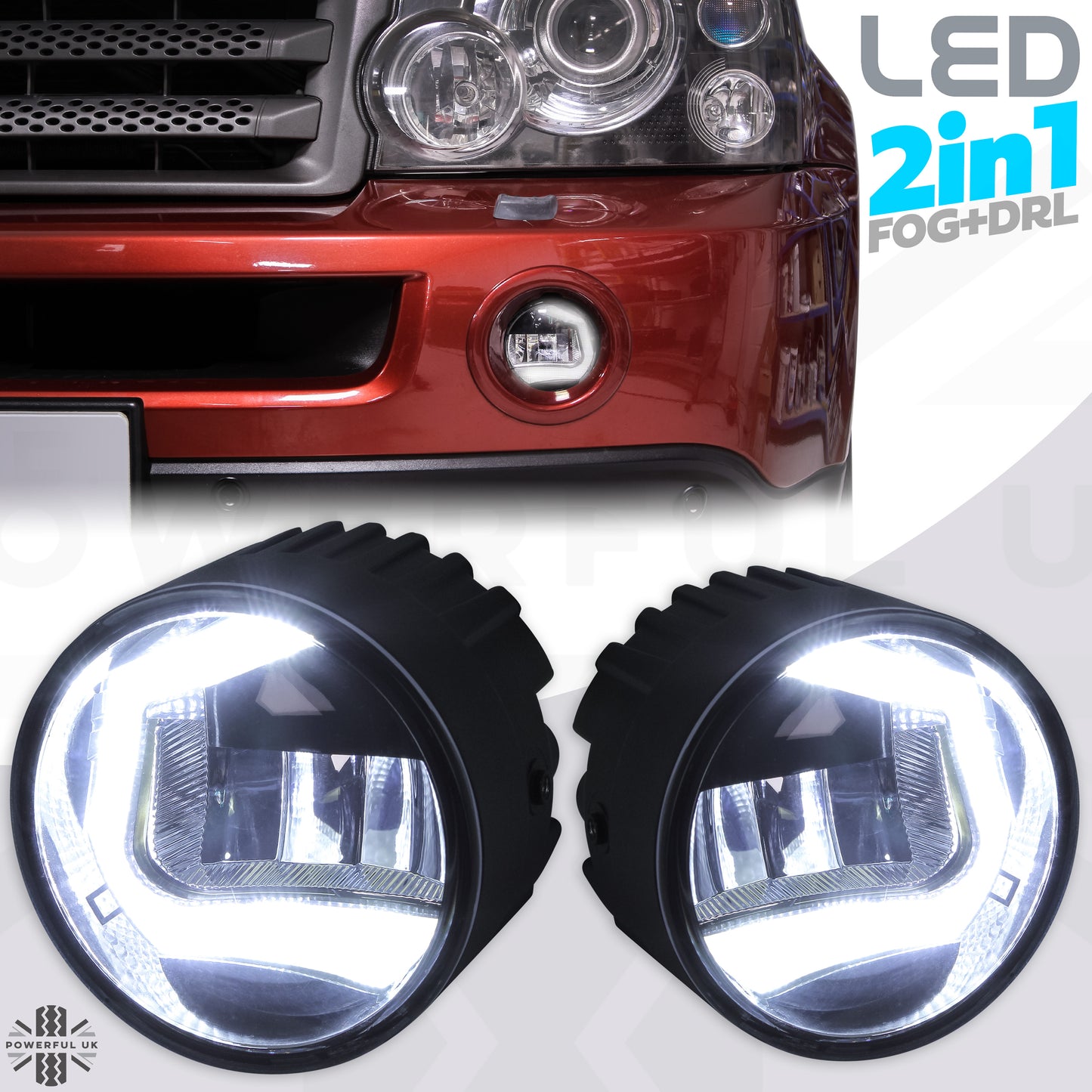

Full "2in1" LED Fog Lamp & DRL Kit wiith wiring for Range Rover Sport 2005-09

Part number: FOG945-ORB-Kit-V2
Regular price Price:  £128.00 GBP
Sale price Price: £128.00 GBP
FREE SHIPPING included to most UK locations
Shipping to other locations calculated at checkout.
Price includes VAT.

Front Bumper 2 in 1 LED DRL & Fog Lamp Kit

including DRL controller board and wiring kit

for Range Rover Sport L320 2005-2009

This listing is for a complete LED DRL/Fog upgrade kit to fit the Range Rover Sport L320 (2005 -09).

We weren't able to source a LED fog light unit for the Range Rover Sport 2005-09 so we engineered a complete solution!

We have designed and manufactured these kits to enable you to fit our '2in1 LED DRL' lamps to the Range Rover Sport 05-09.

This kit has been a labour of love for us, we've spent some time developing the right components for this kit - you will not be able to get these components elsewhere!

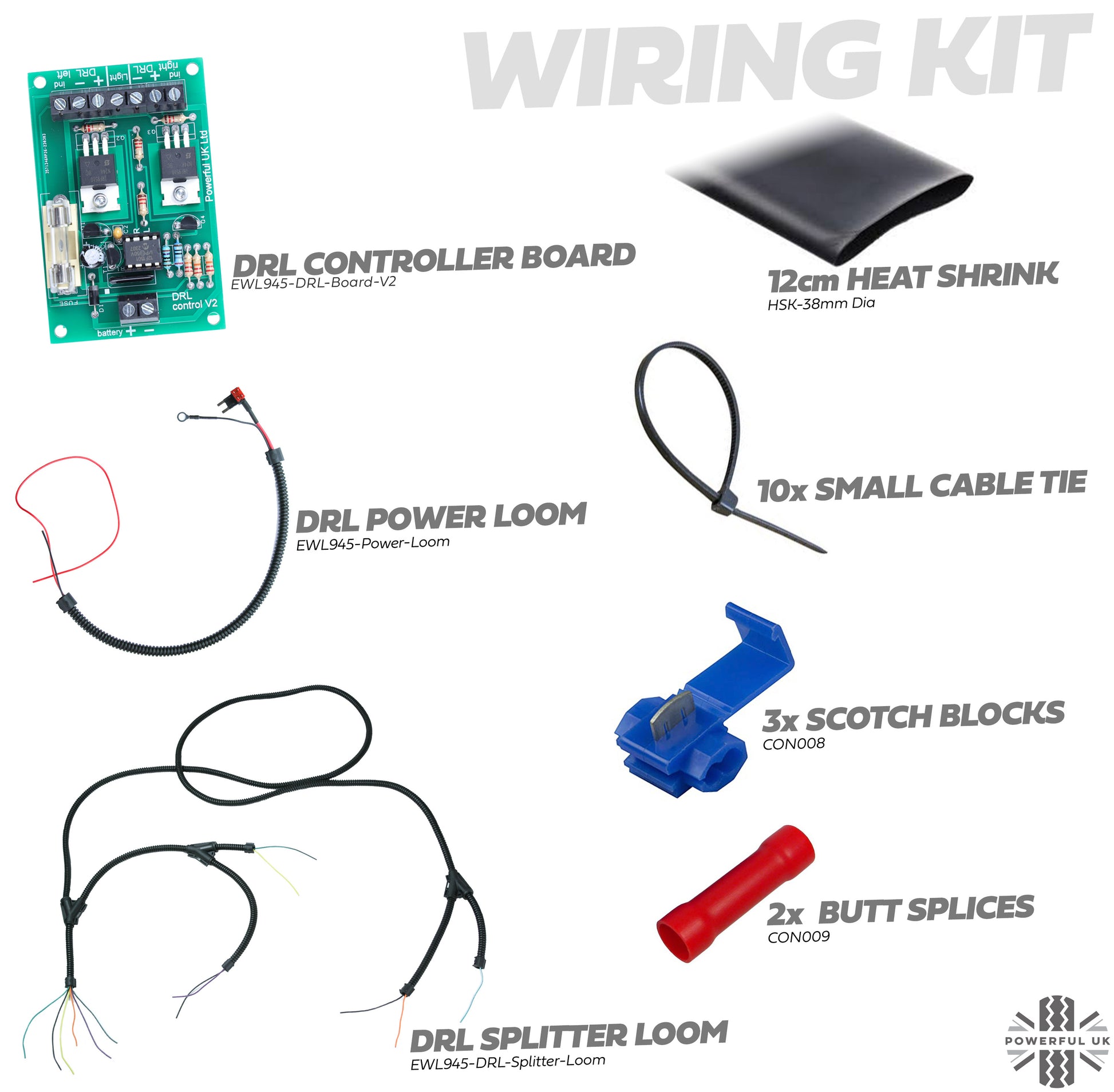

In this kit you will receive:

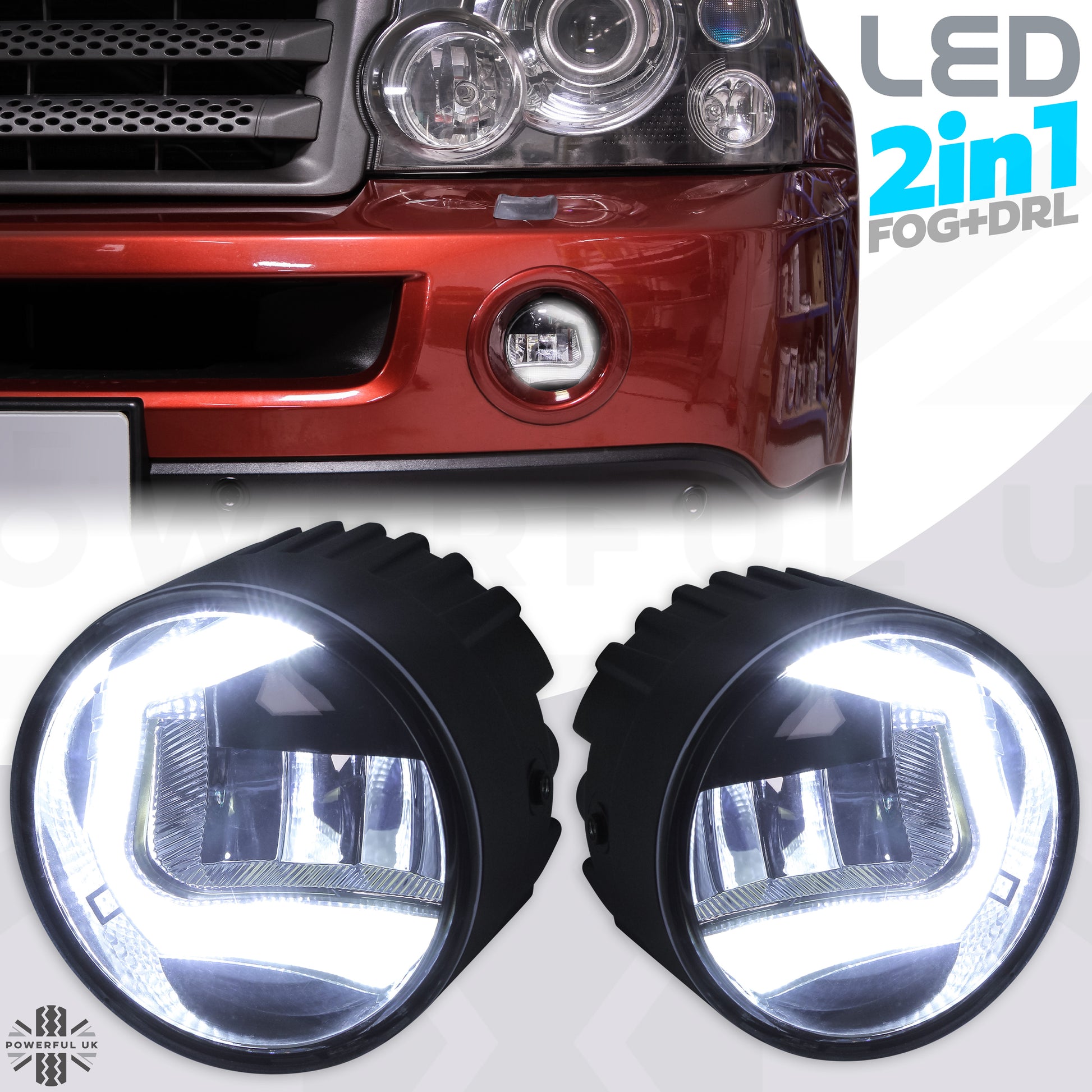

  • 2x of 2in1 LED Fog/DRL lamps
  • 2x lamp fitting brackets (Made in the UK)
  • DRL controller board (Made in the UK) & Heat shrink

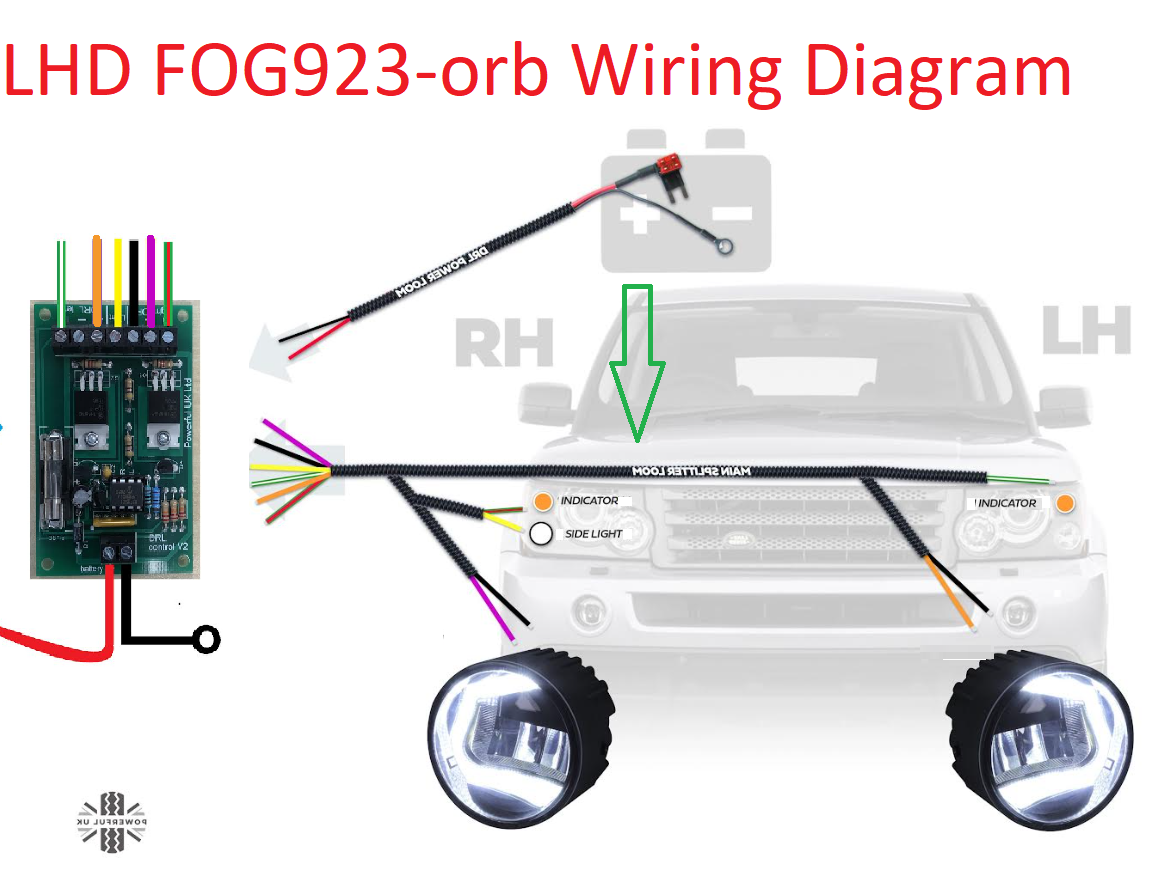

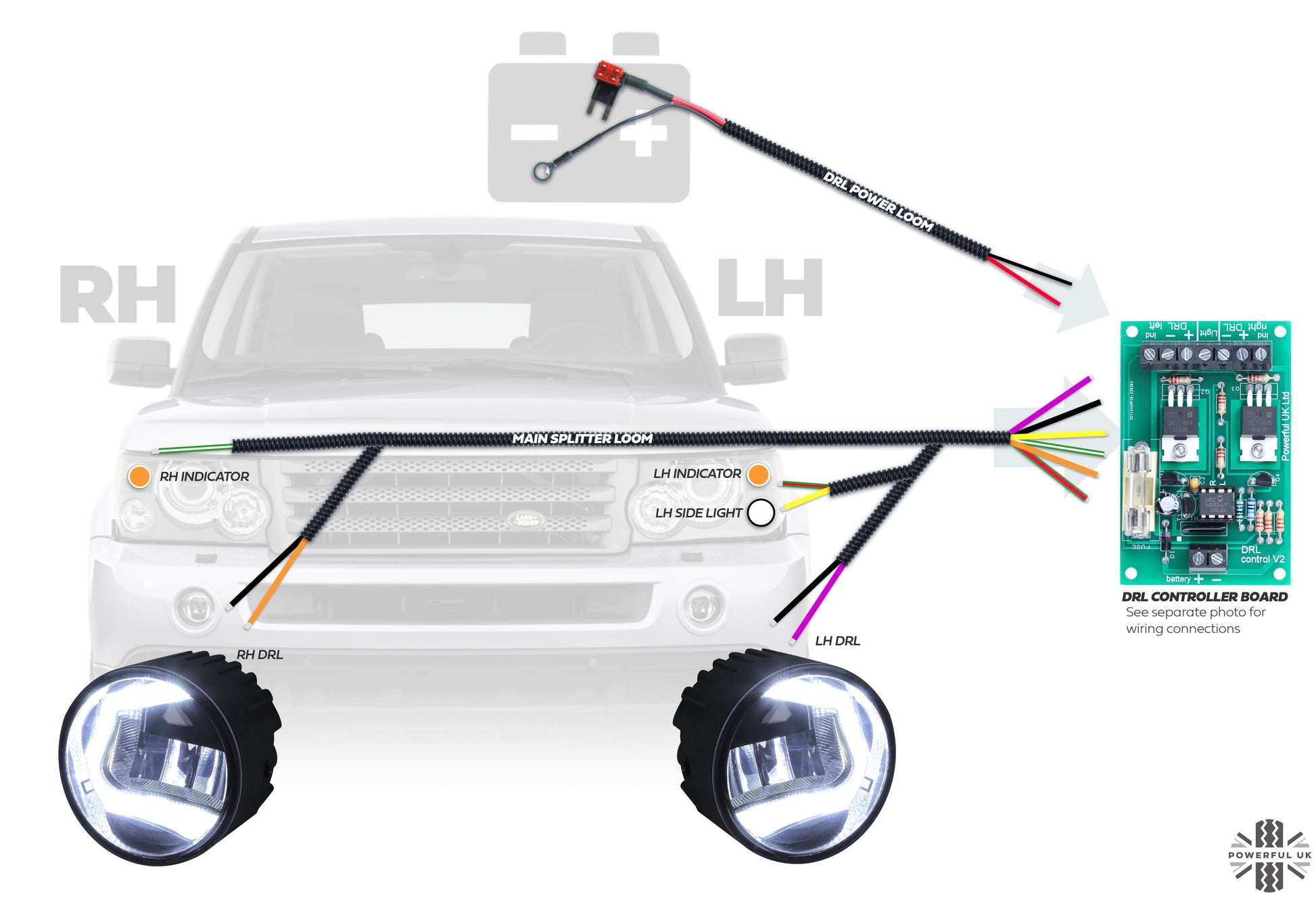

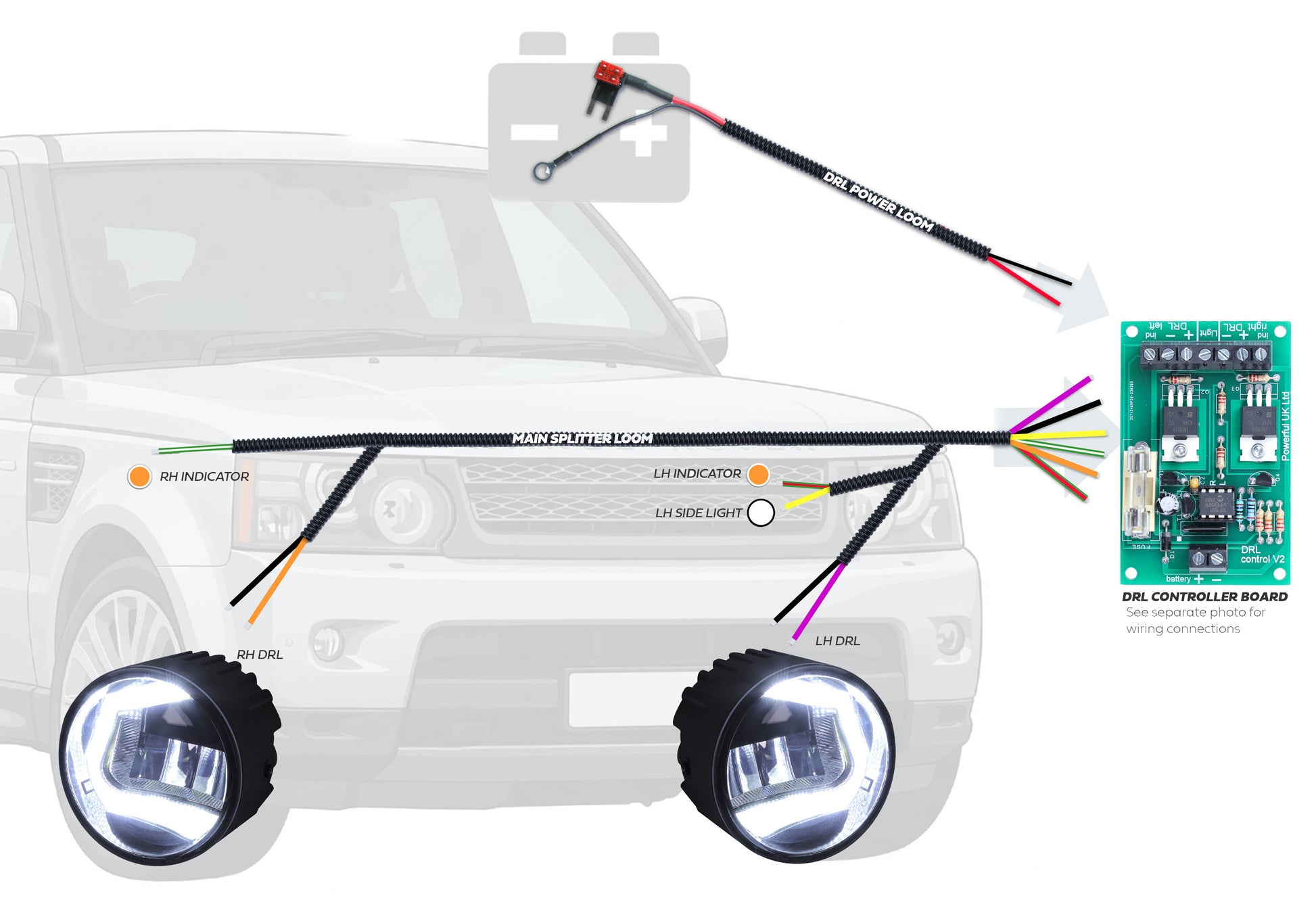

  • Power loom: piggy-back fuse holder, fuses and negative lead/terminal in mini conduit
  • DRL splitter loom: main loom which links DRL lamps to the controller board
  • Wiring sundries i.e. cable ties and connectors

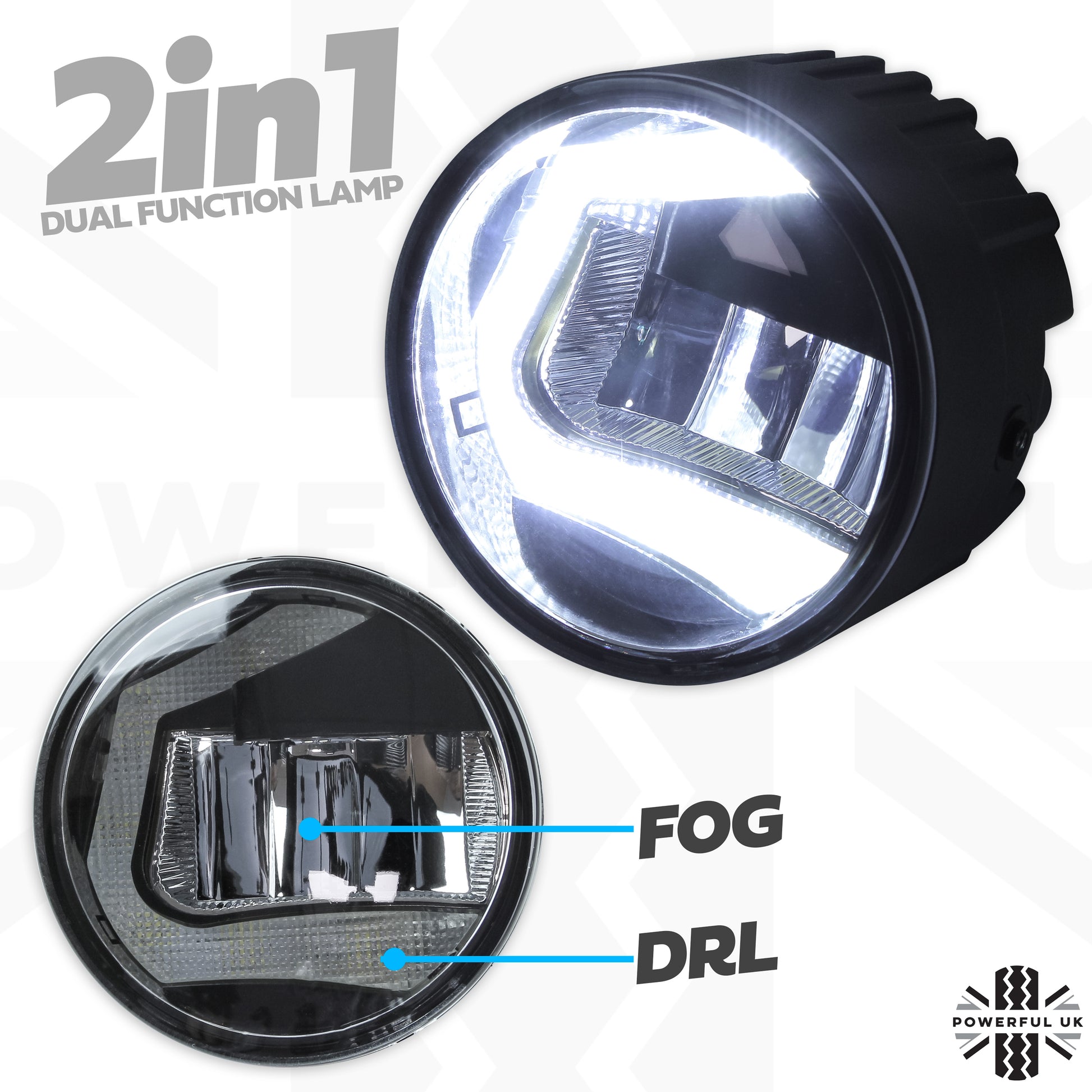

These light units have 2 separate functions:

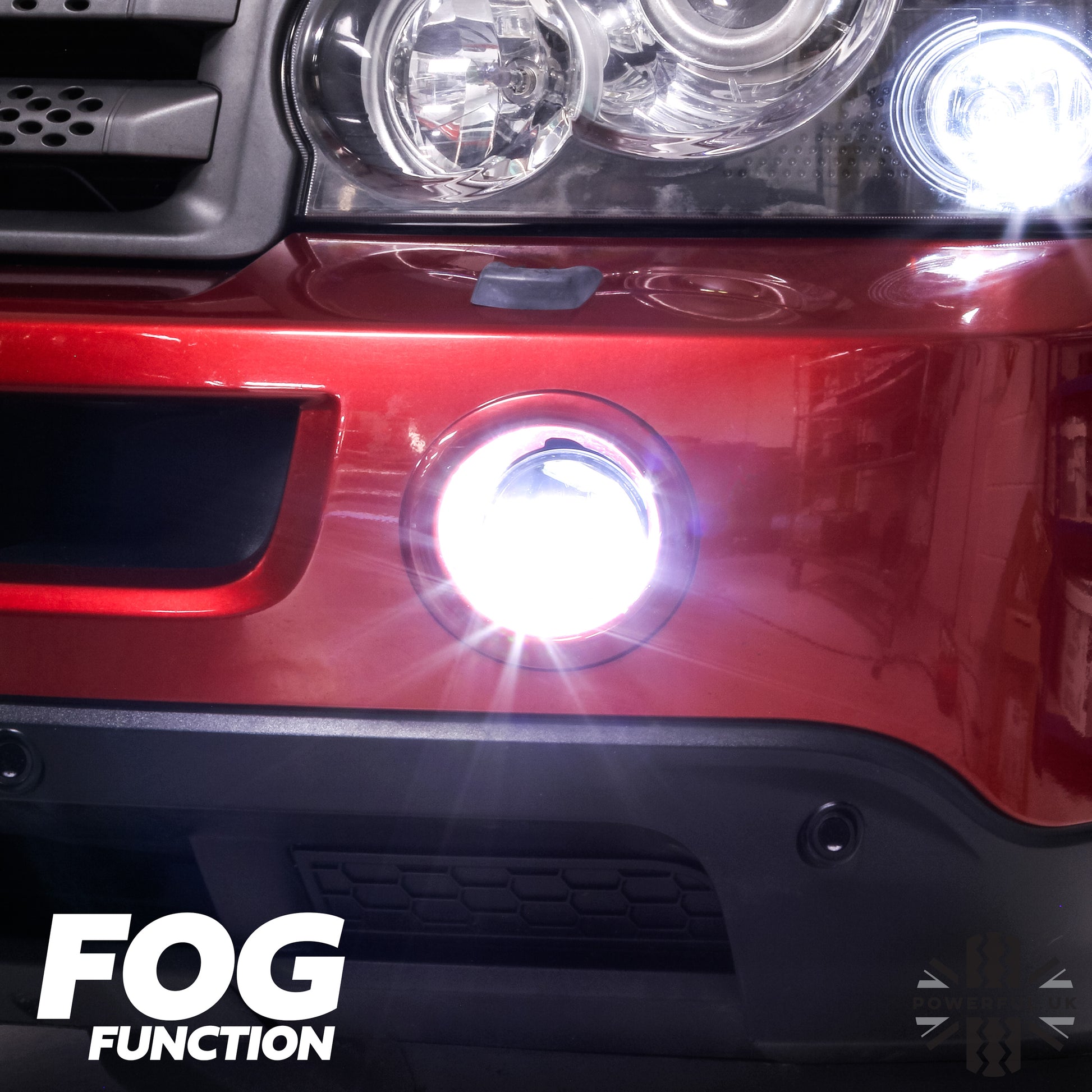

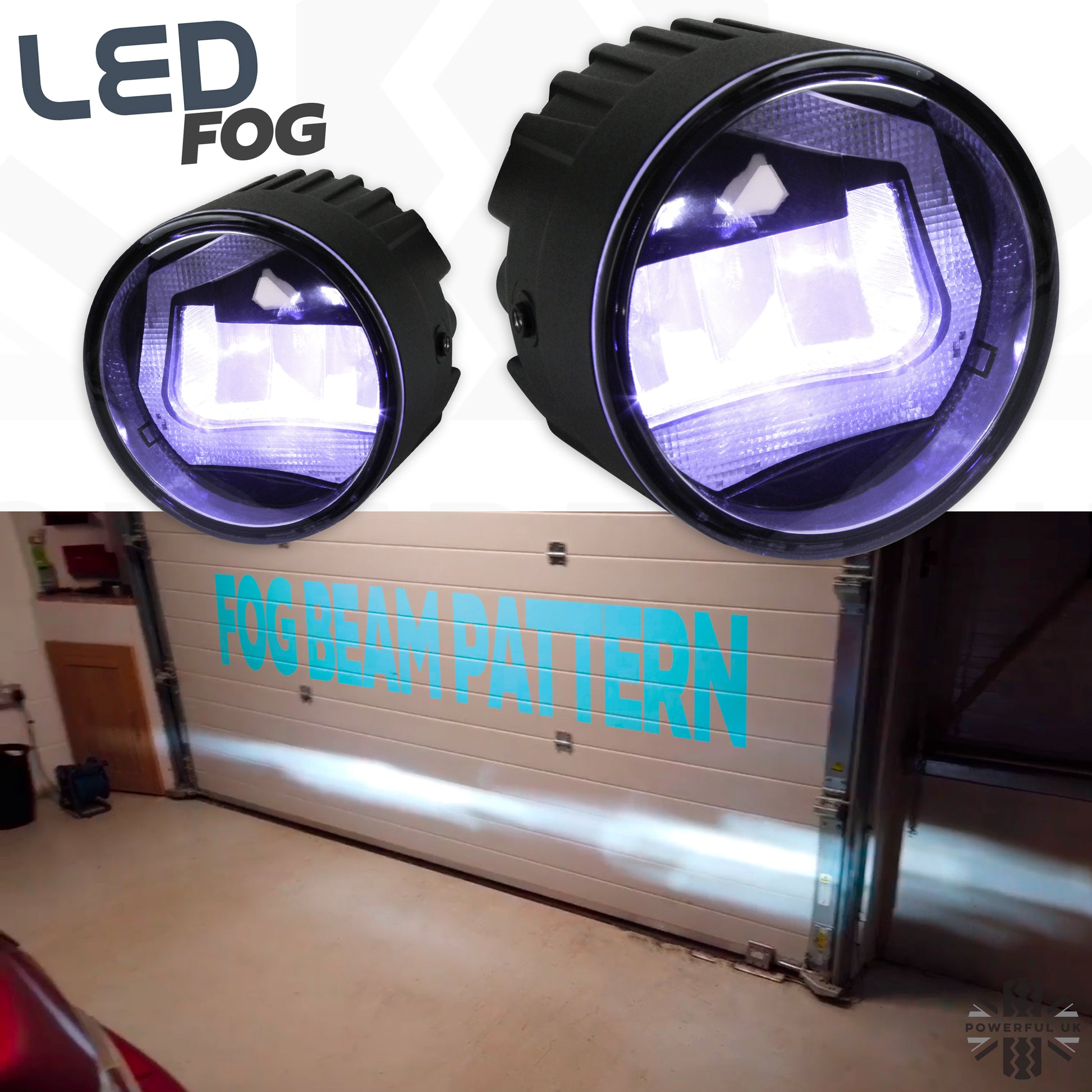

a) FOG LAMP - this is the central part of the lamp and it has a powerful LED lamp producing a clear white light.

b) DRL LAMP - this is produced by the LED around the outer edge of the lamp unit.

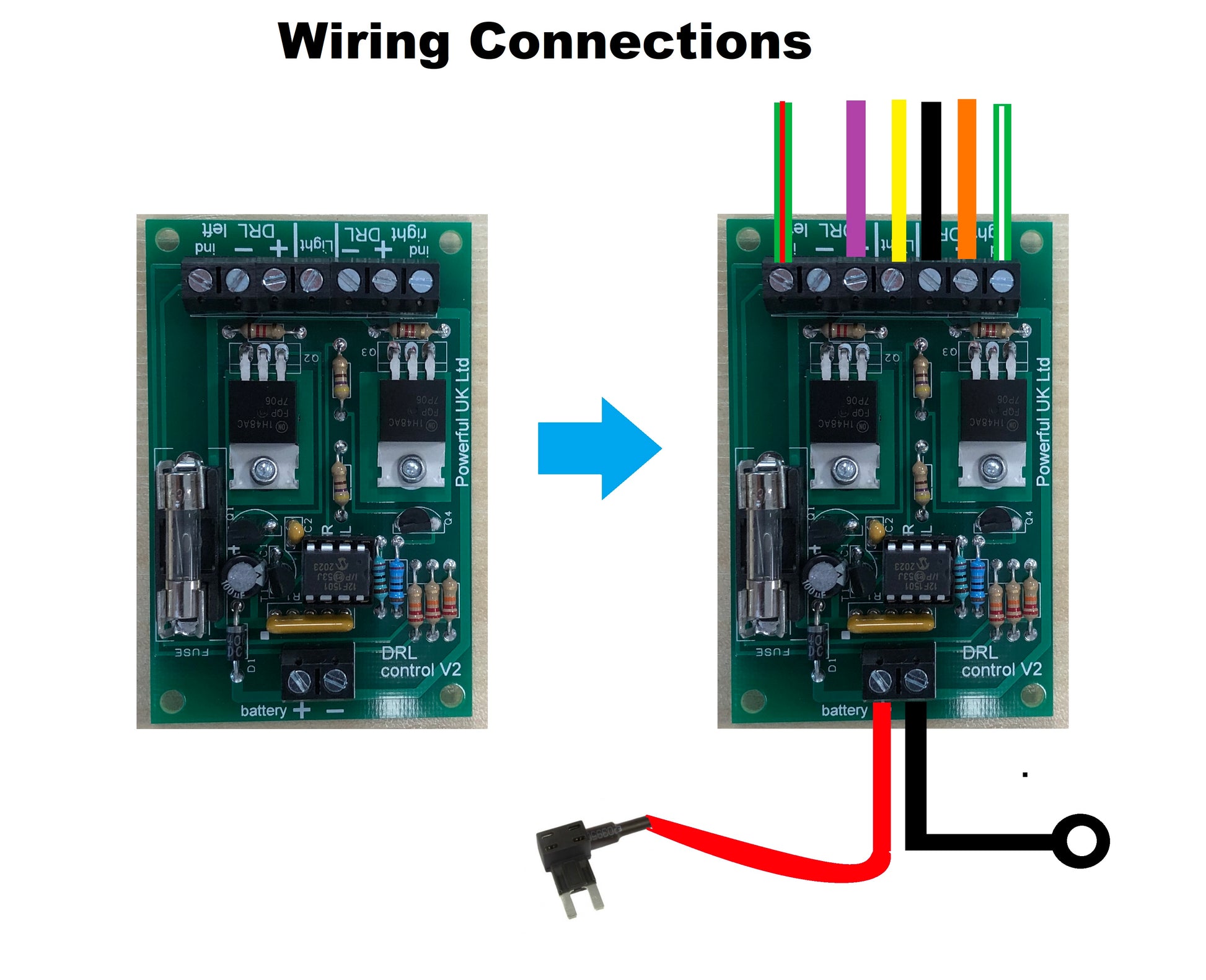

We have designed these DRL controller boards to our own high specification and had them manufactured in the UK by our micro-electronics partner.

The controller board give the following functions :-

1) Auto turn on when the engine starts - no need to find an ignition live feed.

2) Auto dimming of the DRL's when the lights are turned on

3) "follow me home" DRL's stay on after you stop the car to provide lighting for your walk to your front door

4) When you indicate the DRL on that side will go out so as not to obscure your indicator ( option feature if you connect your indicator feed to the controller )

The rear of the light unit is made from aluminium with a finned heatsink design to dissipate heat.

The approximate diameter of this lamp lens is 90mm across.

These units have a tough plastic lens that makes them less likely to crack than glass.

Note: The lights may flash when vehicle is connected to a battery charger.

This is not a genuine Land Rover item. Please note that the lenses on the fog lights are not "E" marked.

Fitting Details

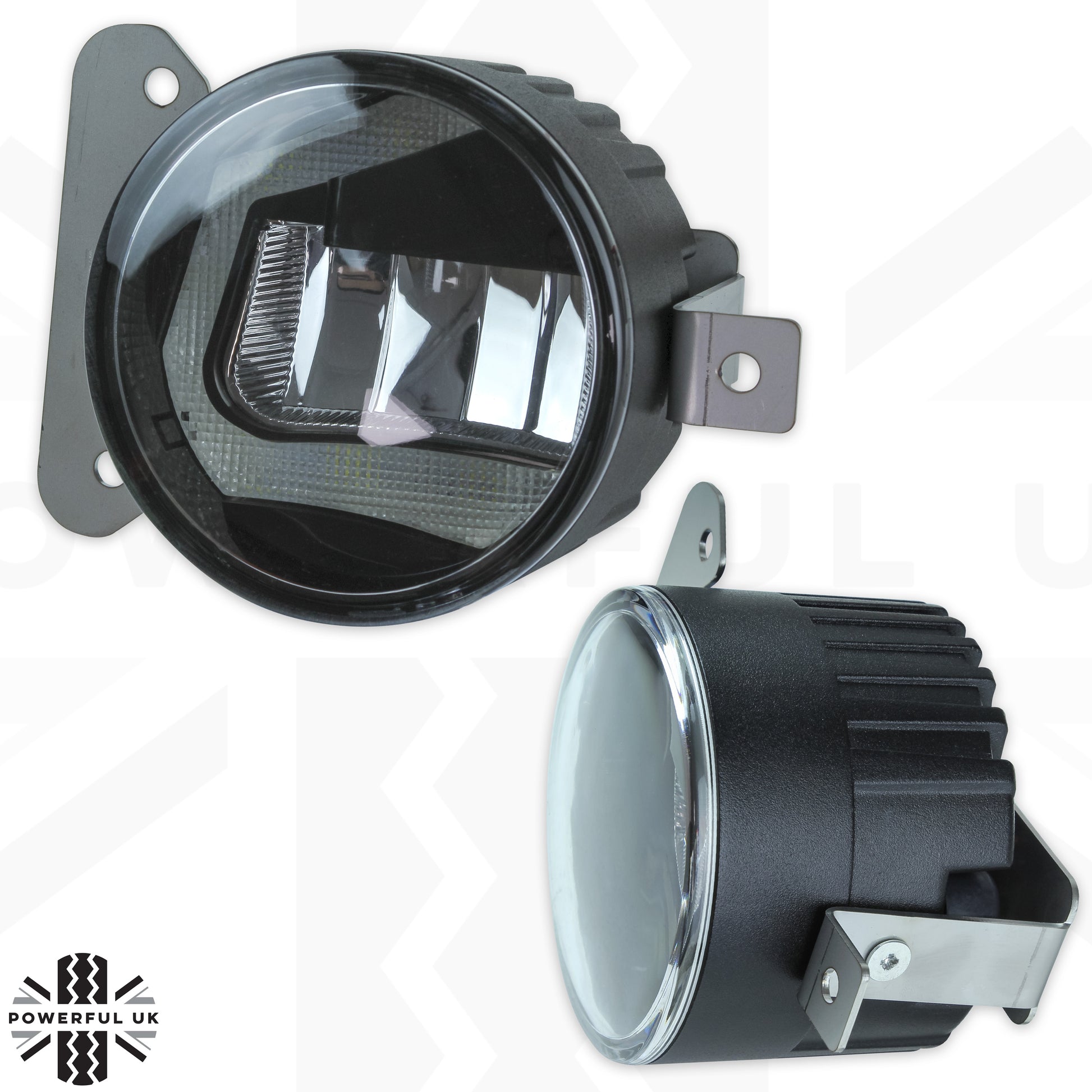

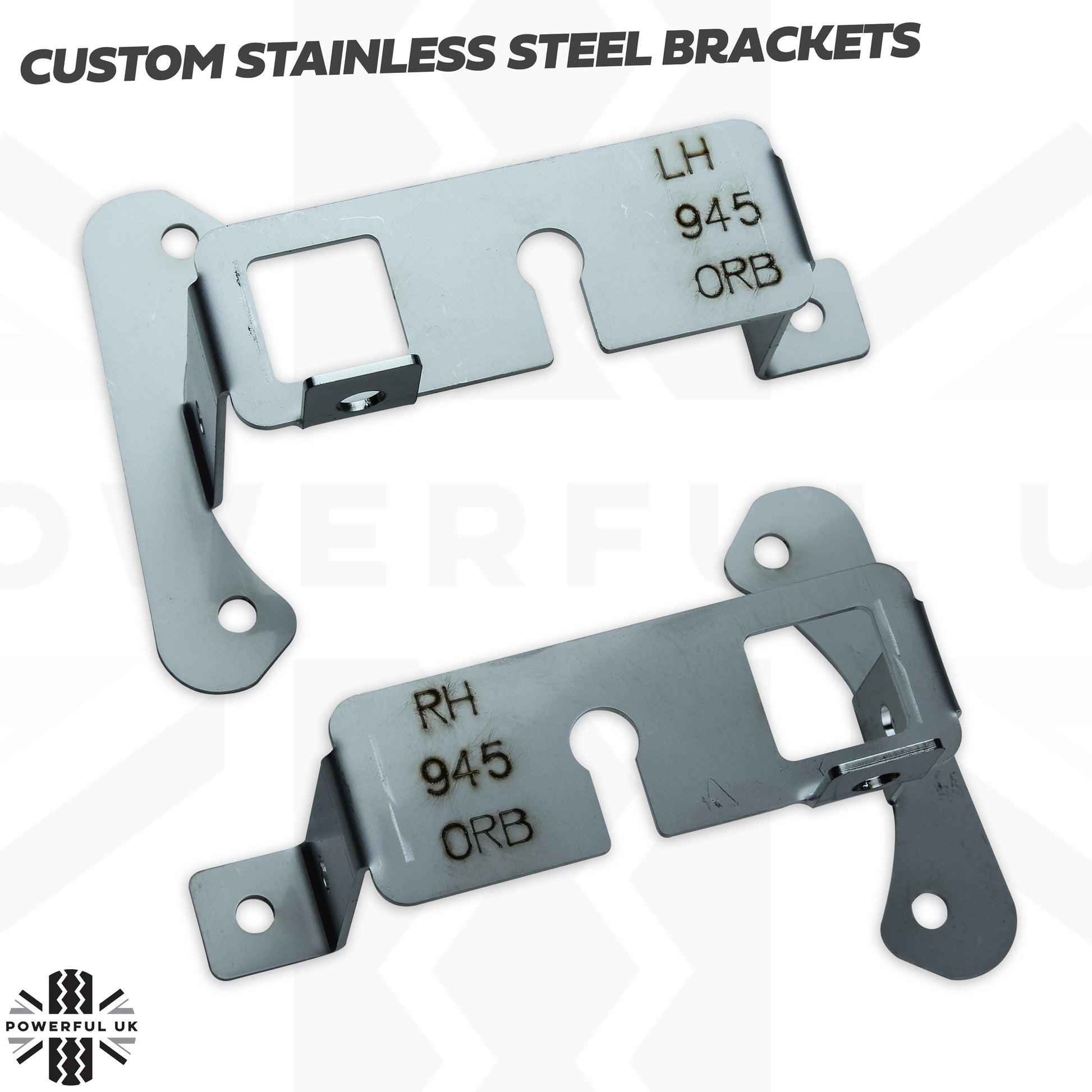

You will need to remove the standard brackets from the light unit you receive and replace with the new custom brackets.

NOTE: A small amount of customers have experienced an issue with their parking sensors after installing these lights. If you experience any issues of this nature then the FIX is to connect the earth wire from the loom to the fog lamp.

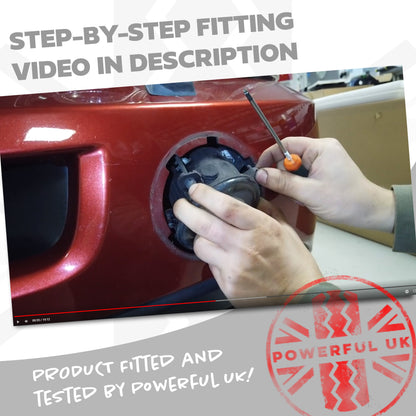

See below fitting video:

Range Rover Sport LED + DRL fog lamp light upgrade - YouTube

Video will open in a new window

Which Vehicles will this fit ?

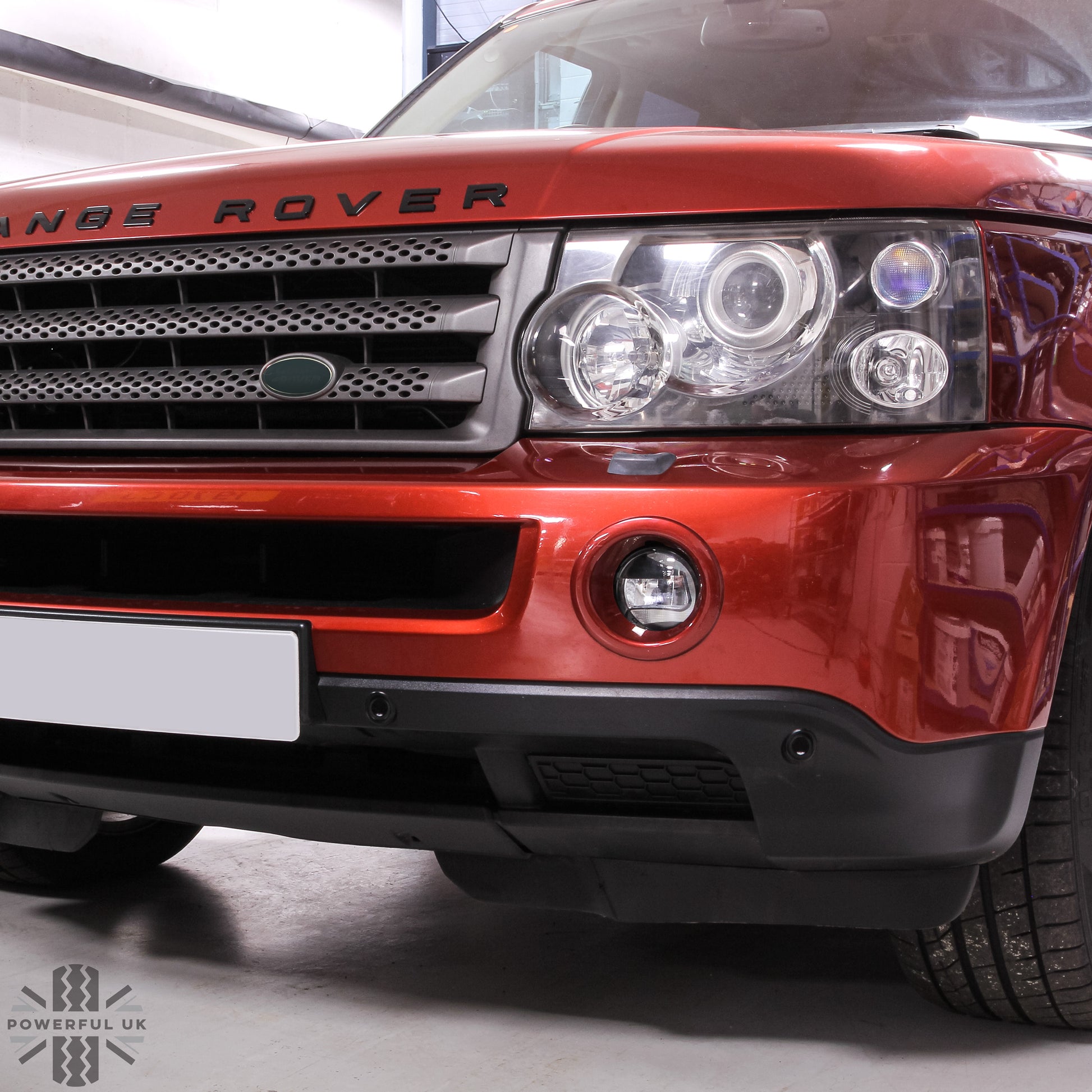

This item WILL fit Range Rover Sport L320 Models from 2005 to 2009

This item WILL NOT Fit the later Range Rover L320 fitted with the Autobiography Front bumper or the HST Front Bumper

This item WILL NOT Fit the later Range Rover L320 from 2010-14

This item WILL NOT Fit the later Range Rover Sport L494 from 2014 onwards
