Front Bumper PDC Conversion Wiring Loom for Land Rover Discovery 3 to 4Part number: LR4C737
Front Bumper Conversion Wiring Loom
for Discovery 3 to Discovery 4
This is the loom you need if you want to fit a 2010 Discovery 4 front bumper to a Discovery 3 made from 2005 to 2009.

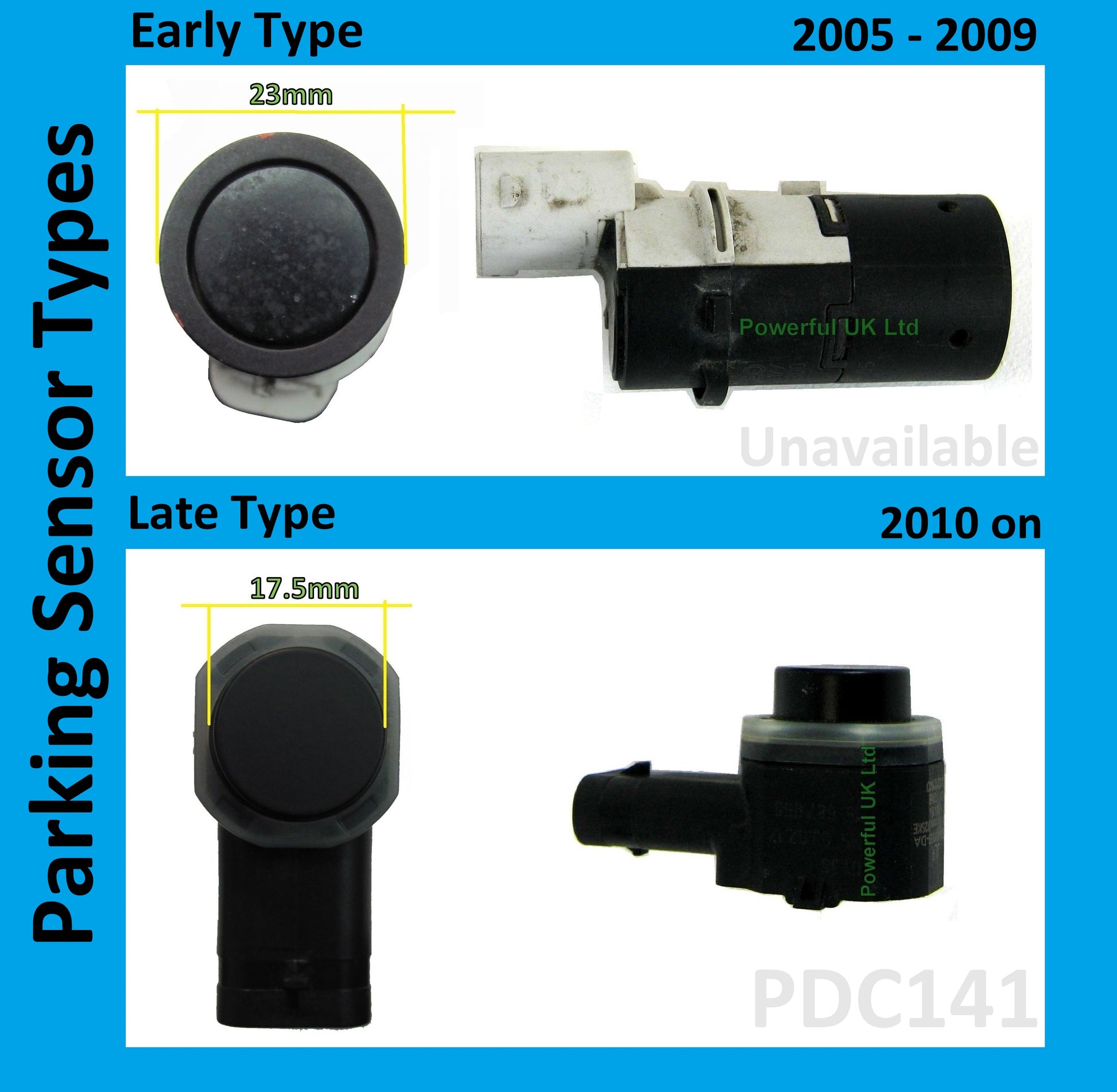

The front parking sensors on the later models are smaller and have a different rear connector so you cant use the original loom.
This loom also has the wiring for fitting the front fog lights as well
You basically have 2 choices if you want to change the front bumper to 2010
Option 1 - keep your original sensors and wiring and mutilate your bumper to take the early sensors ( the discovery 4 parking sensors are smaller that the Discovery 3 ones )
Option 2 - You could just cut off the parking sensors ( 3 wires each ) and buy the later type parking sensor connectors and change these ( see our item CNN141 )
Option 3- buy this loom that is "plug and play" and will give you a no cut factory finish ( but more expensive )

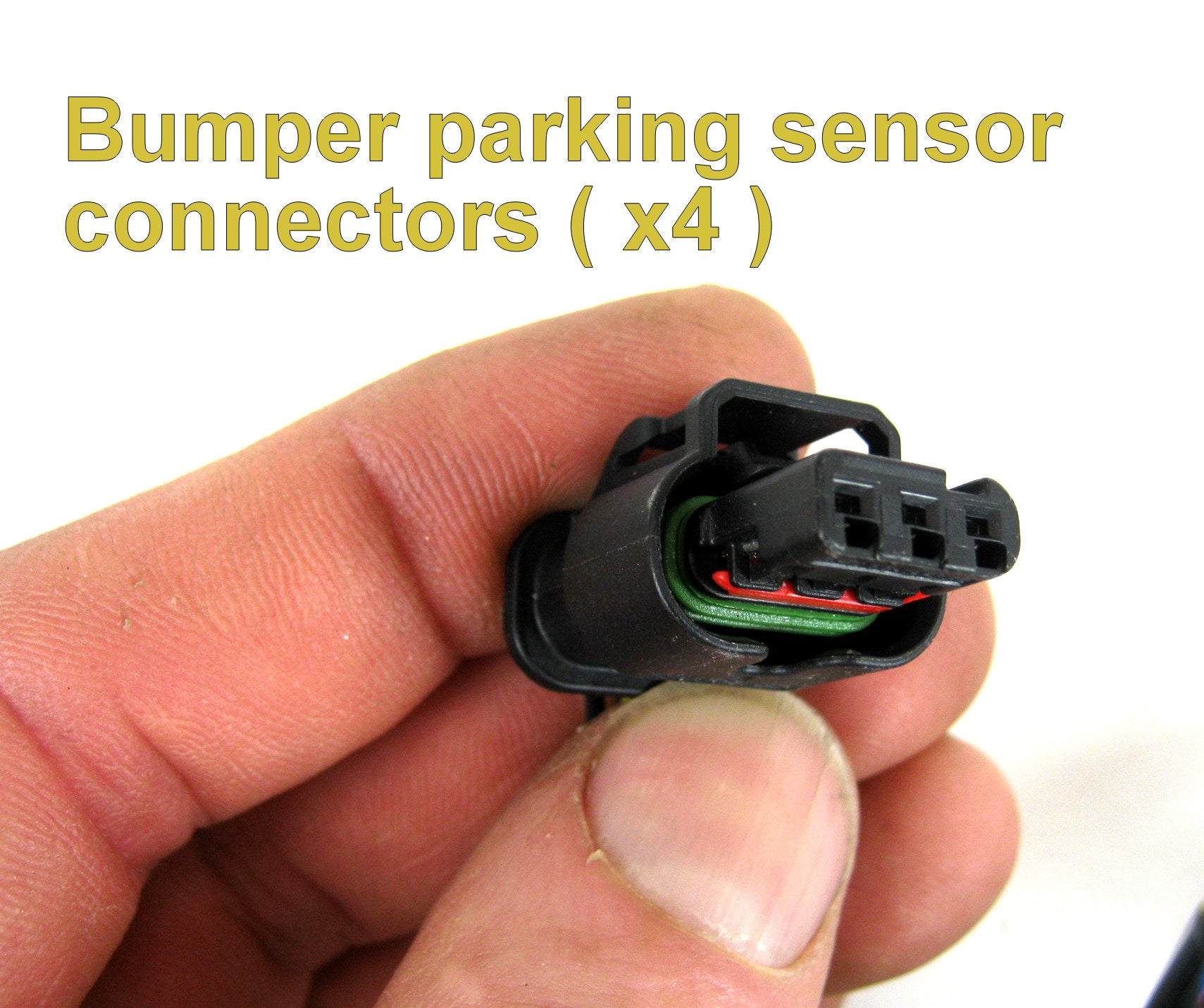

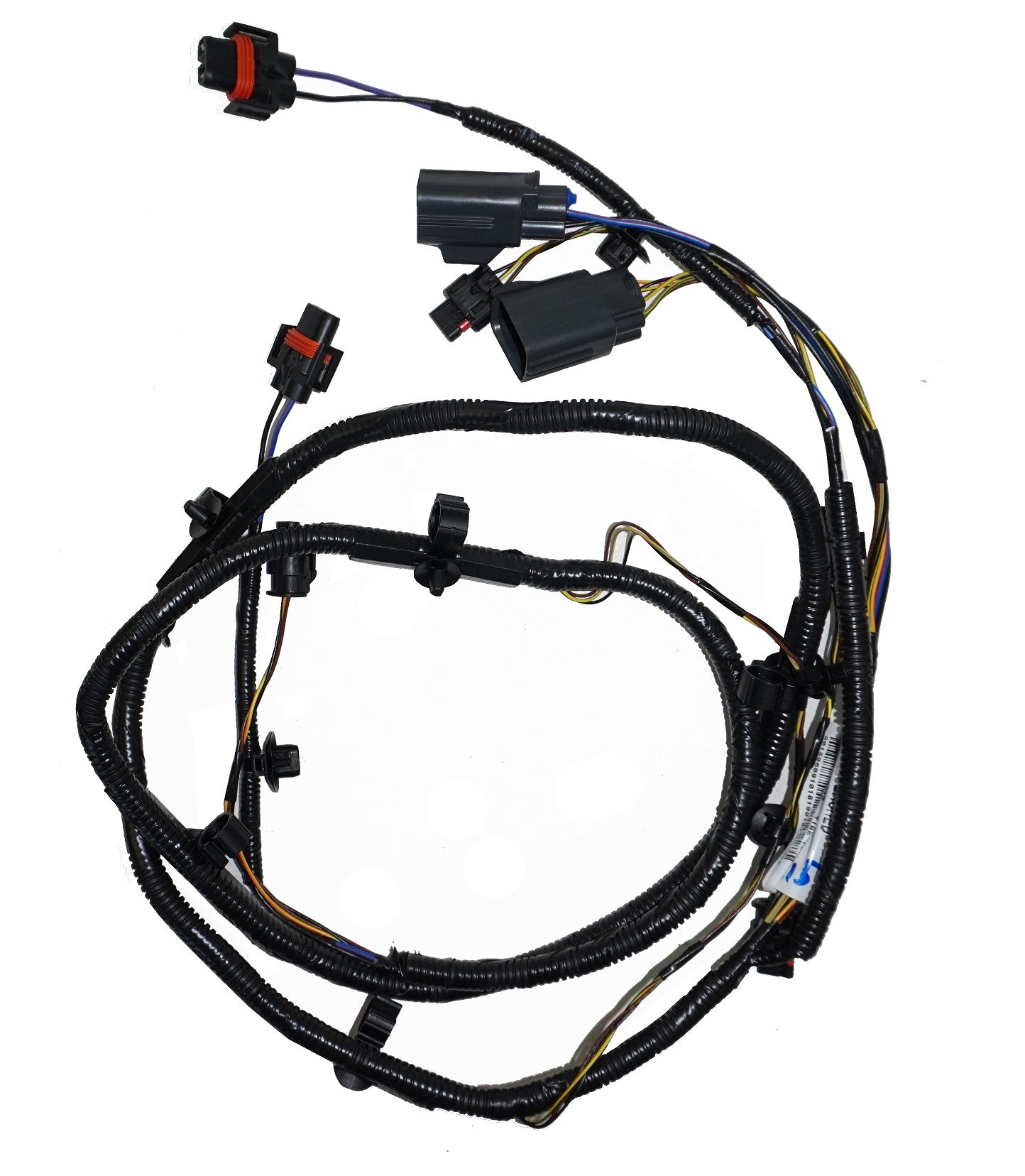

This loom includes the main connectors that plug into the 2005 -09 Discovery 3 and then the wiring to the 4 PDC sensors and the connectors for the left and right fog lamps.
You will also need to buy 4 x new parking sensors if you are doing this upgrade - see our other items.

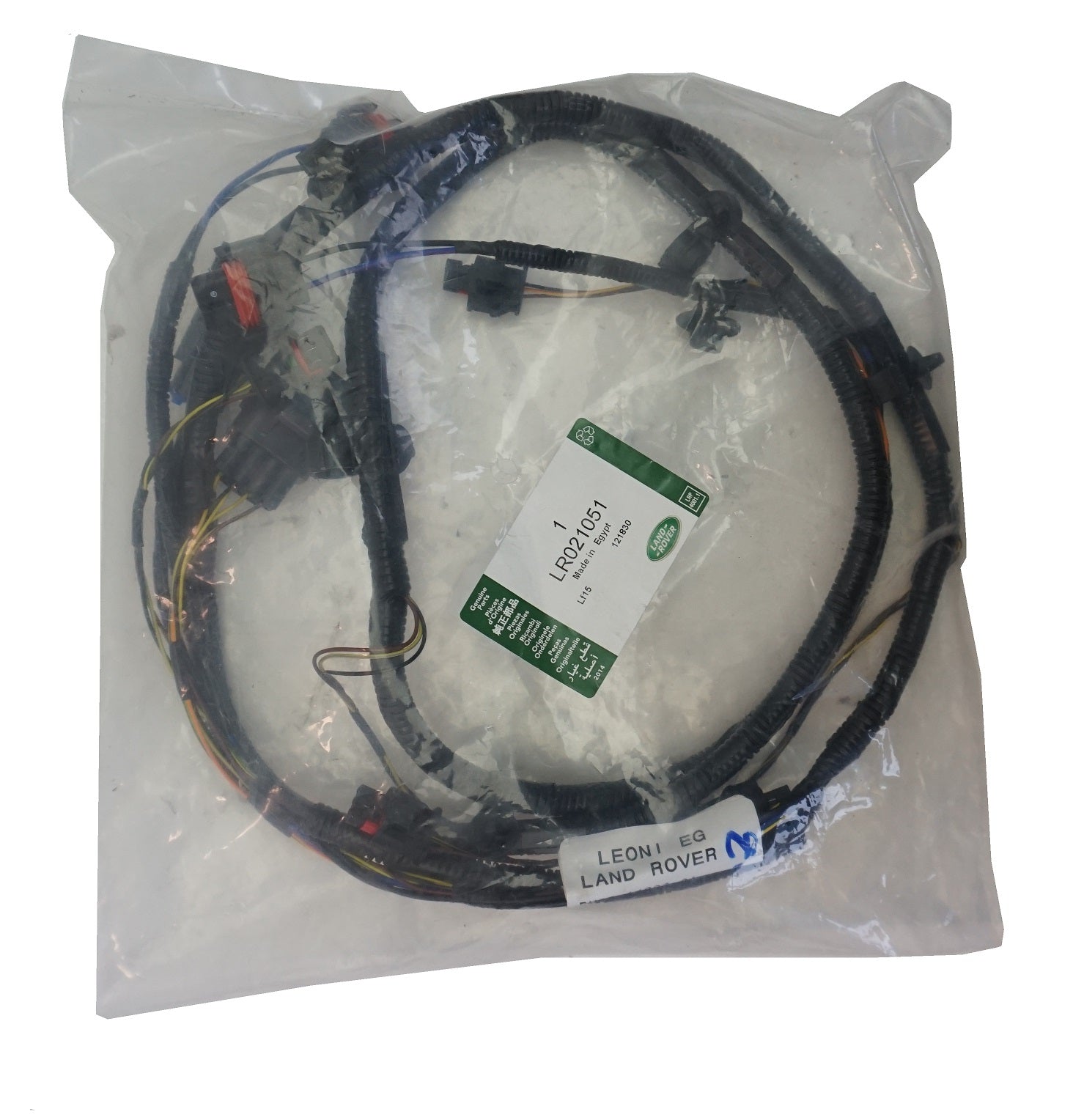

This is a genuine Land Rover Item in retail packing
See below video showing how to remove and refit rear bumper.
The main connector for the parking loom is behind the left hand rear light.
Which Vehicles will this fit ?
This loom WILL fit a 2005 - 2009 Discovery 3 fitted with a 2010 (Discovery 4) front bumper with fog lights.
