Front Bumper fog & DRL 2 in 1 LED lamps for Land Rover Discovery 4 ( Type 2 )

Part number: FOG923-WIN
Regular price Price:  £95.00 GBP
Sale price Price: £95.00 GBP
FREE SHIPPING included to most UK locations
Shipping to other locations calculated at checkout.
Price includes VAT.

Front Bumper 2 in 1 LED DRL & Fog Lamp Kit

for Land Rover Discovery 4

This listing is for a pair of replacement LED fog lights that are ready to fit the Land Rover Discovery 4.

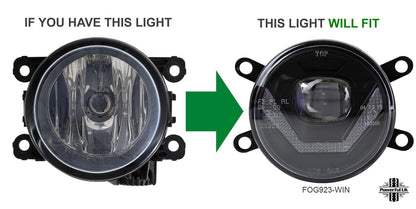

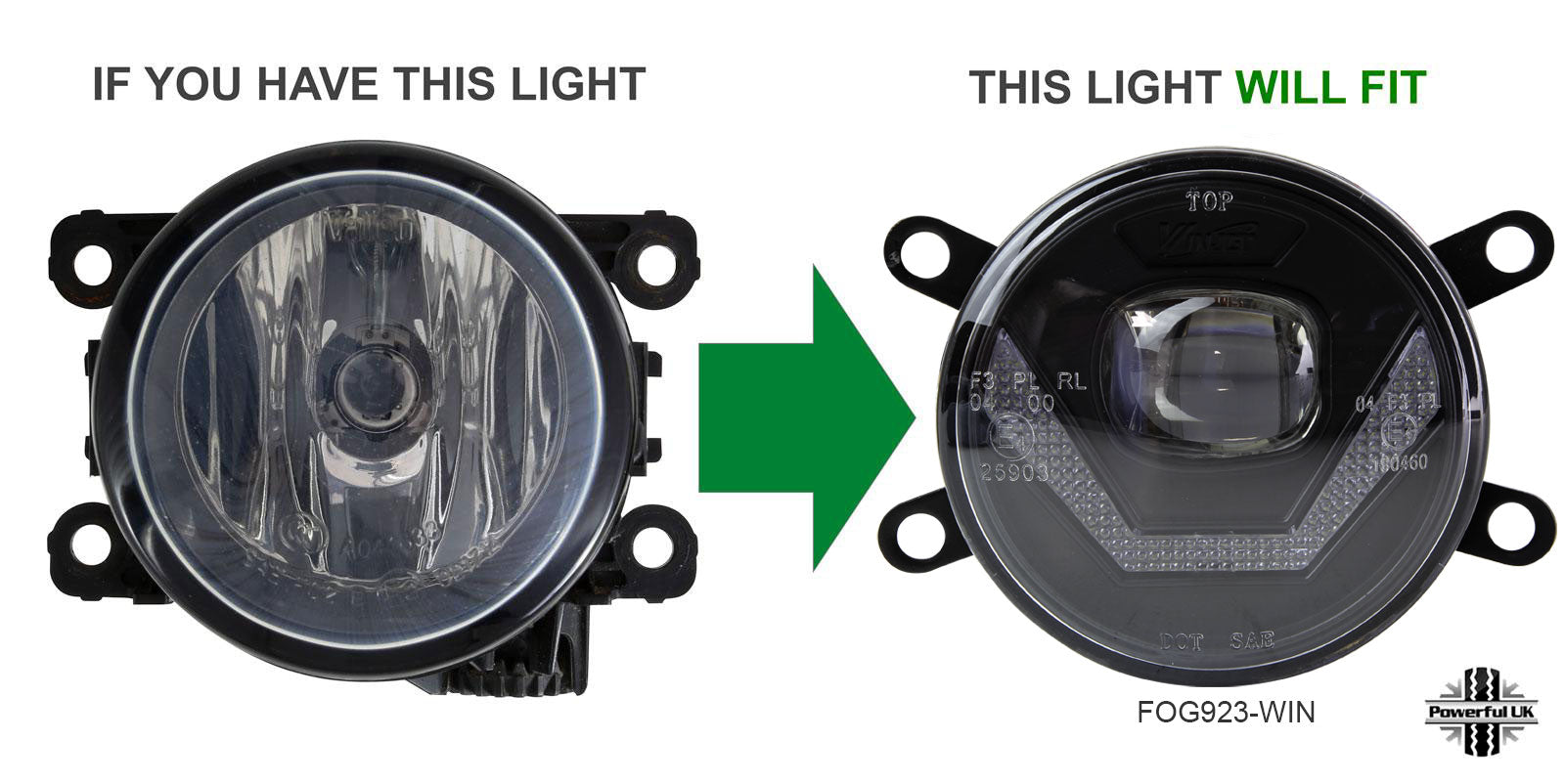

These lights have been designed to be a direct replacement for the standard FOG Lamps.

These items have 2 separate functions :-

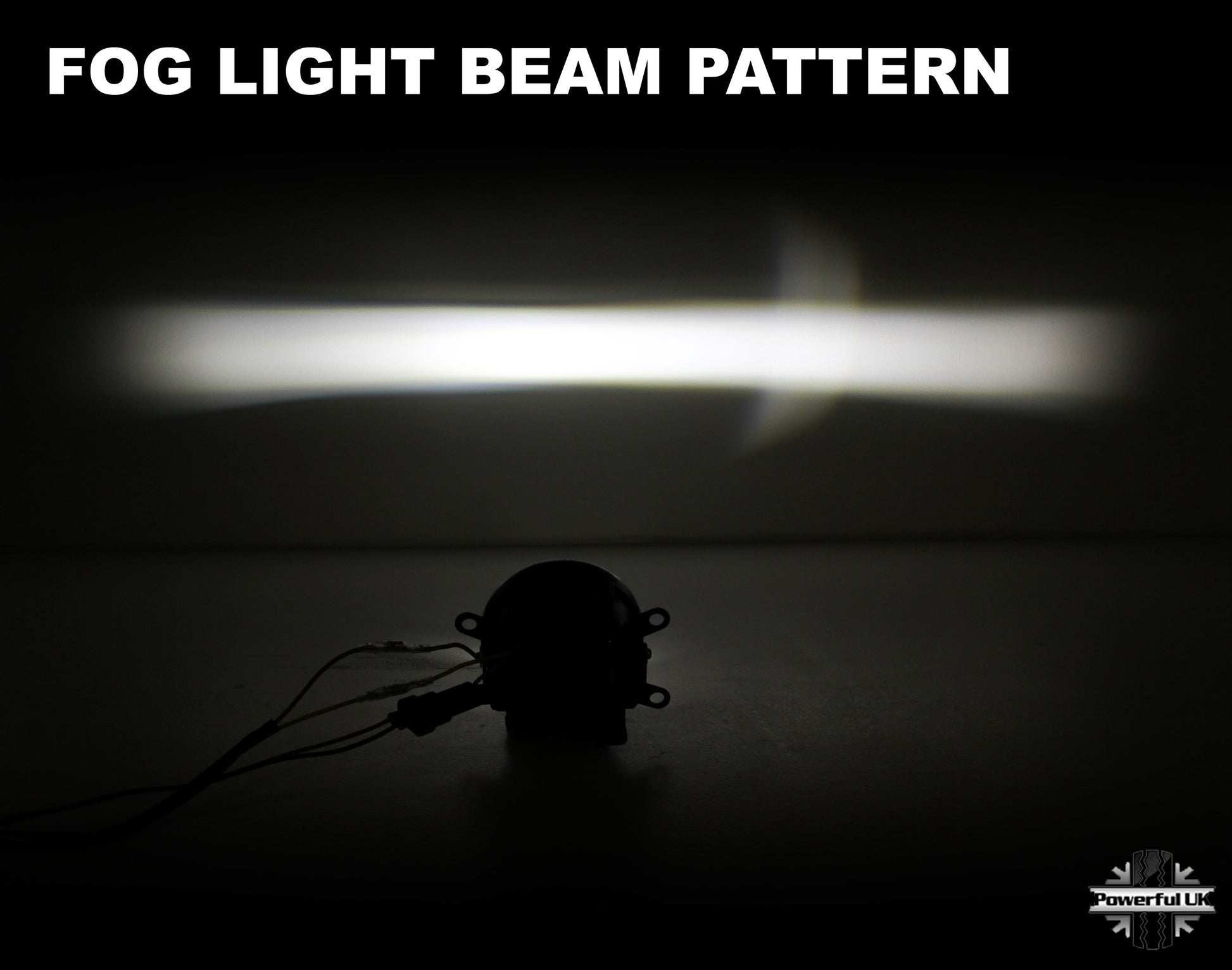

a) FOG LAMP - this is the central part of the lamp and it has a powerful LED lamp producing a clear white light.

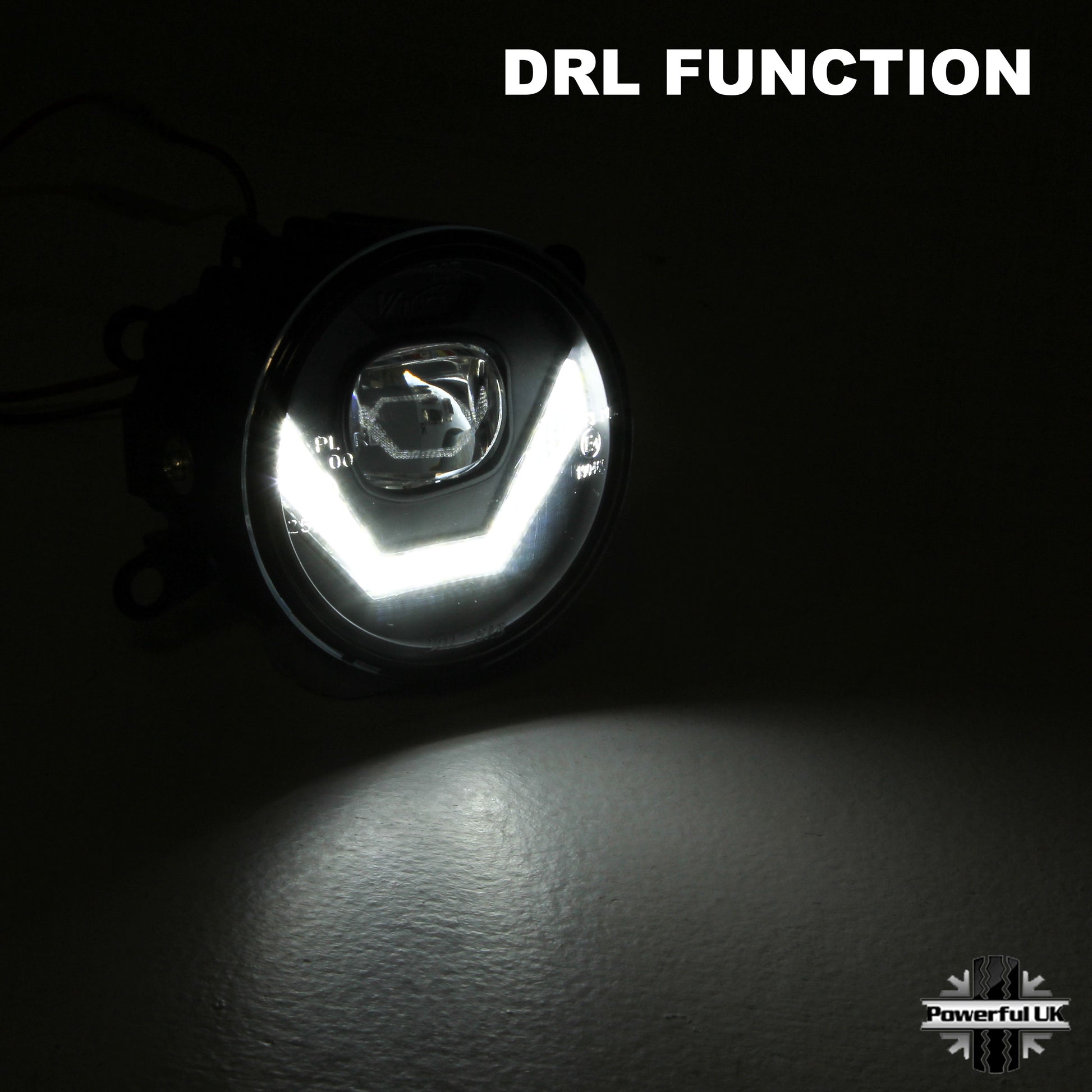

b) DRL LAMP - this is produced by the LED around the outer edge of the lamp unit.

The lamp consumes the following power: DRL= 8.5 watts for both sides & FOG= 10 watts per side.

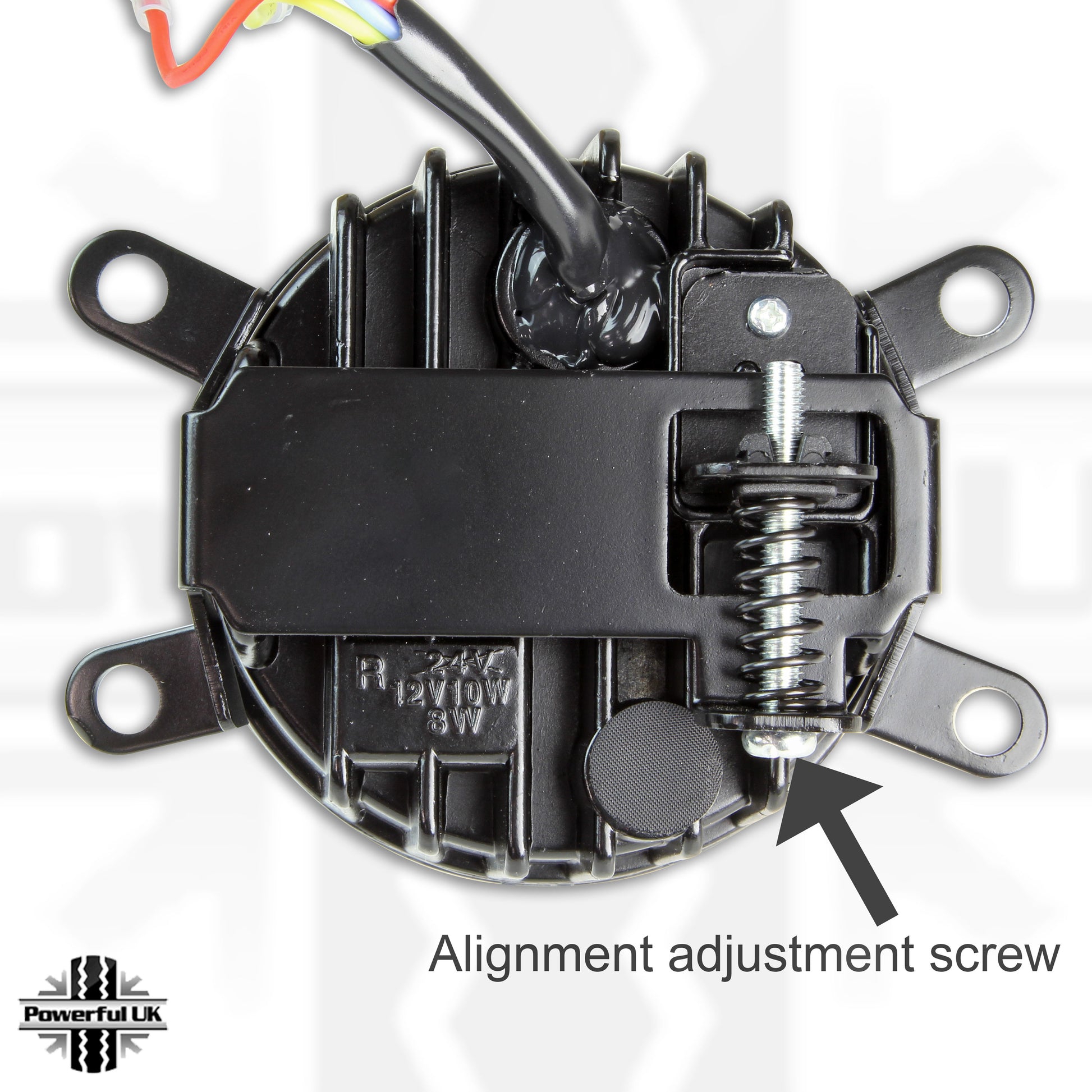

The rear of the light unit is made from aluminium with a finned heatsink design to dissipate heat.

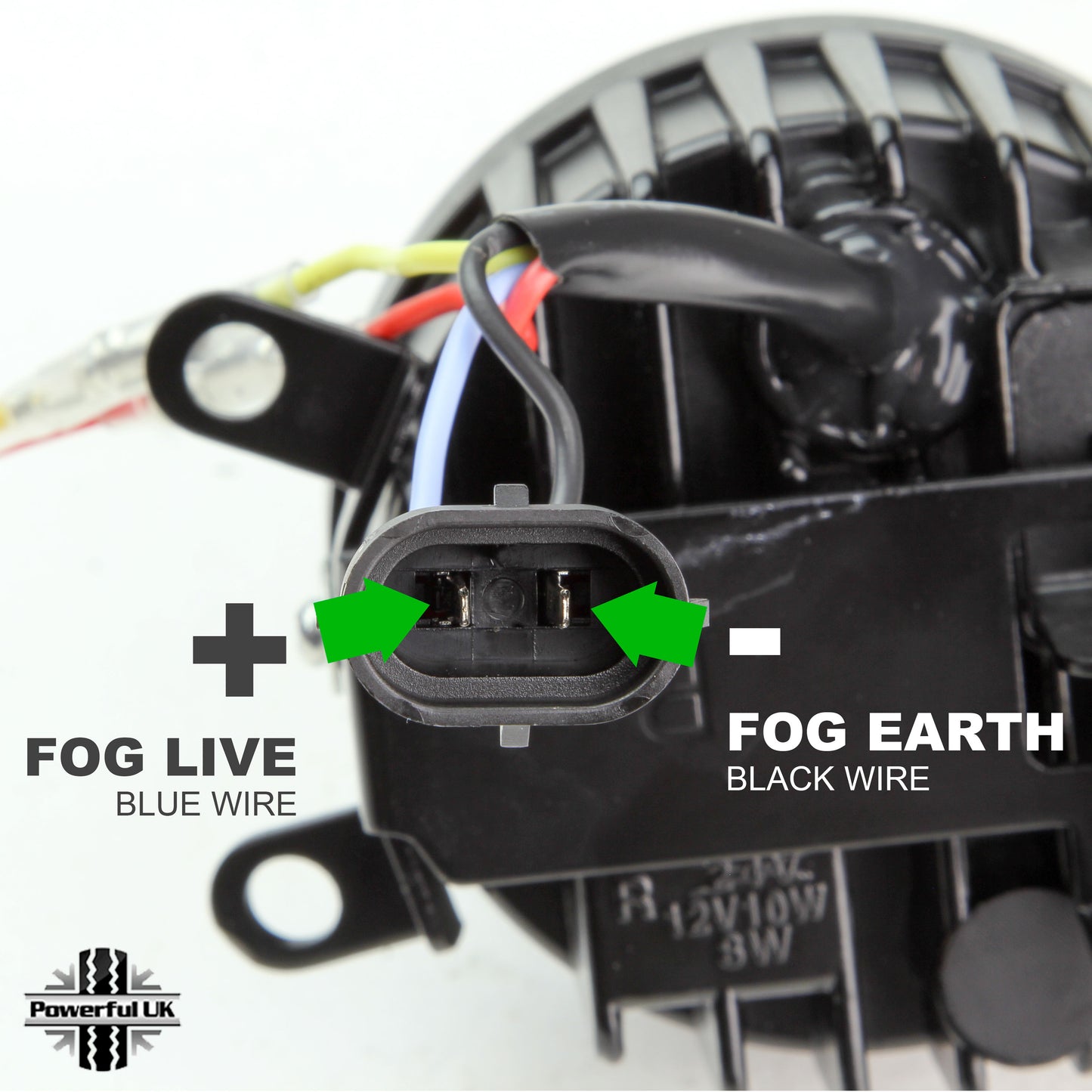

There is a standard H11 connector pre-fitted to the light units so they are just plug and play installation.

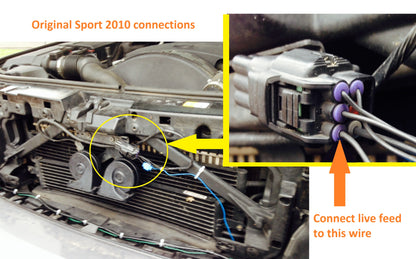

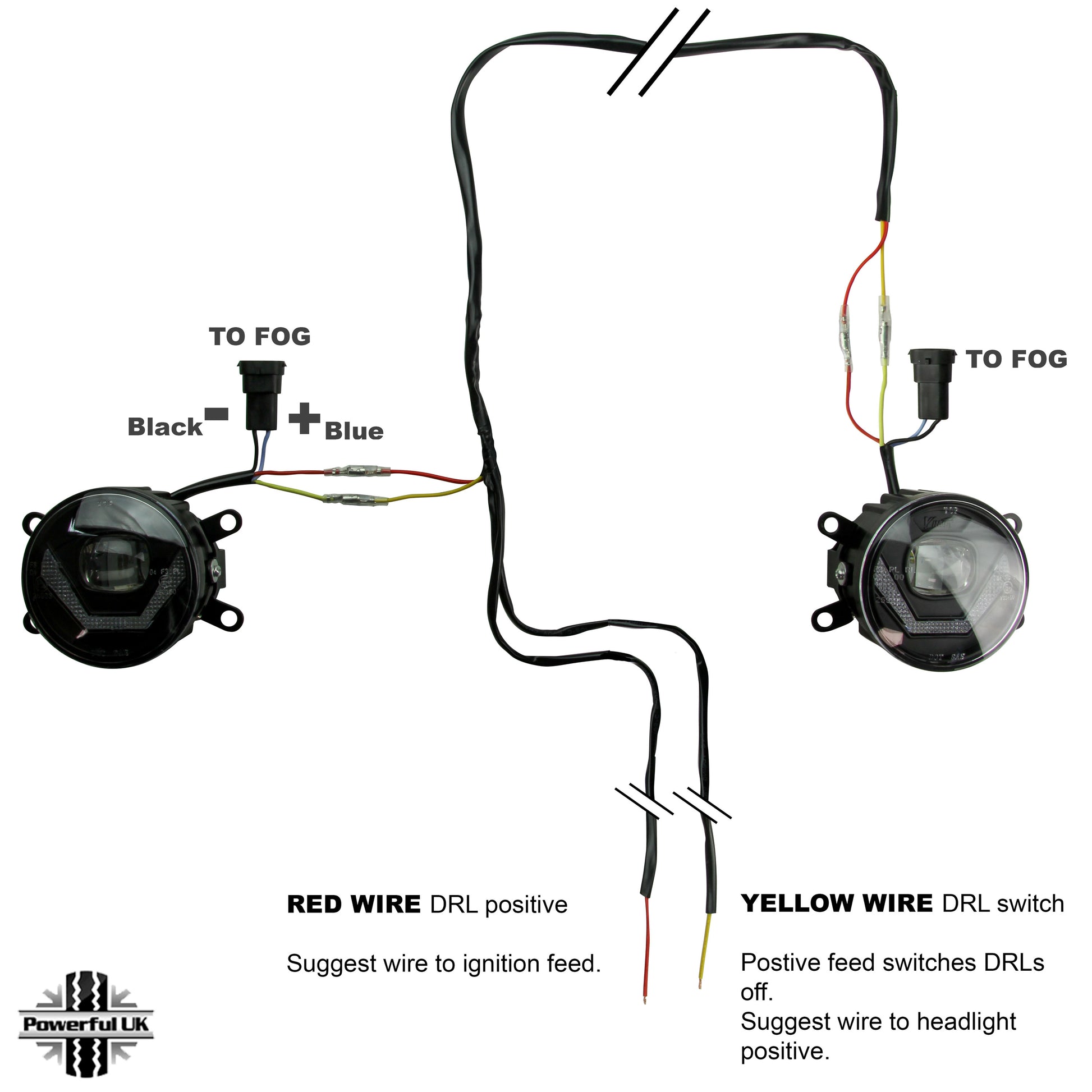

The DRL function needs 2 wires connecting into your electrical system: A positive ignition feed and a positive feed from your headlight wiring (to switch DRL off when headlights are turned on).

Scotch lock wiring connectors are supplied for simple installation - see photos for wiring diagram.

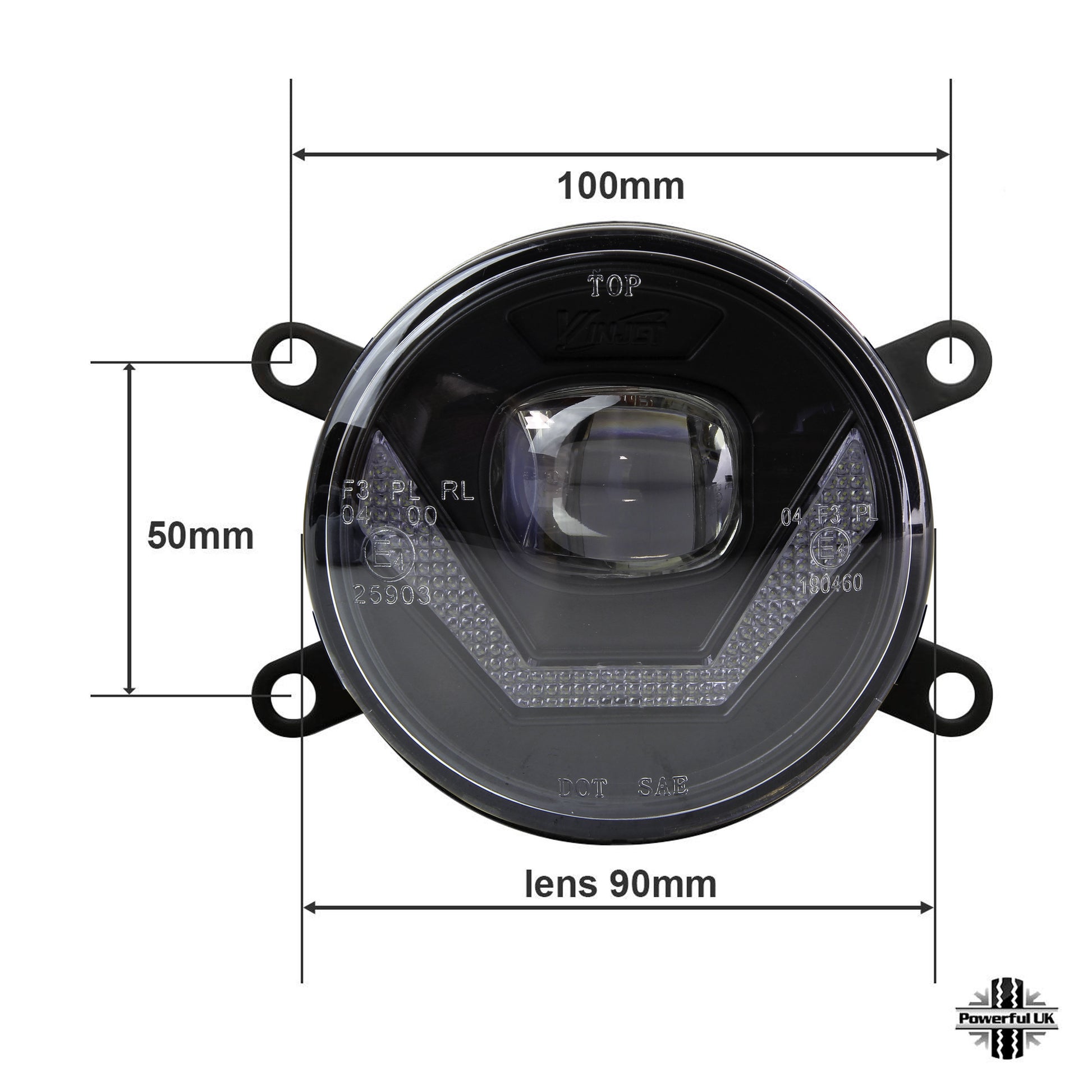

The approximate diameter of this lamp lens is 90mm across.

These units have a plastic lens that makes them less likely to crack than glass.

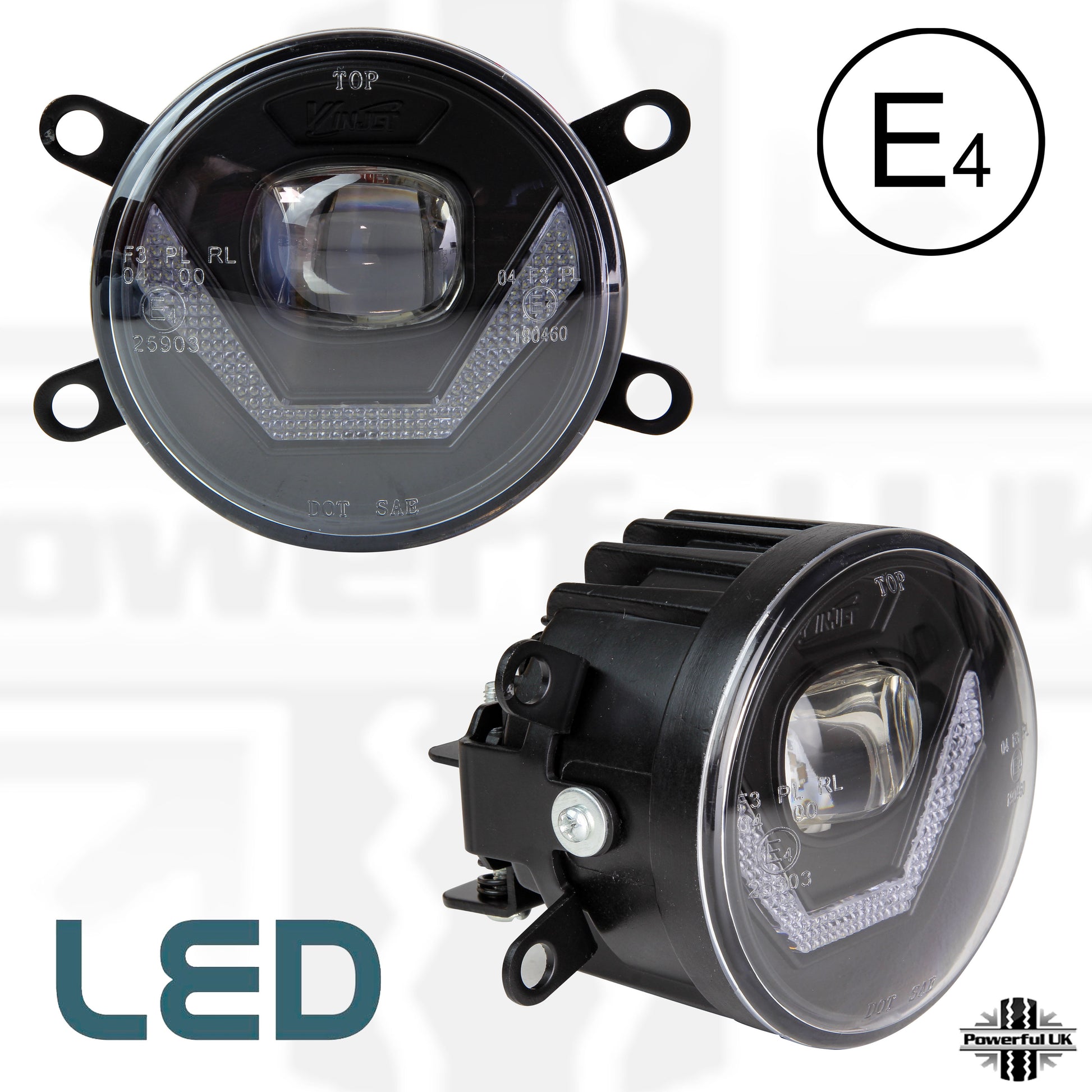

These lights are E Mark approved.

This is not a genuine Land Rover item.

Fitting details

See below video showing how to remove the old fog lamps in a discovery 4

How to replace the fog lamp / bulb / upgrade to LED on Land Rover Discovery 4 - YouTube

Video will open in a new window

Which Vehicles will this fit ?

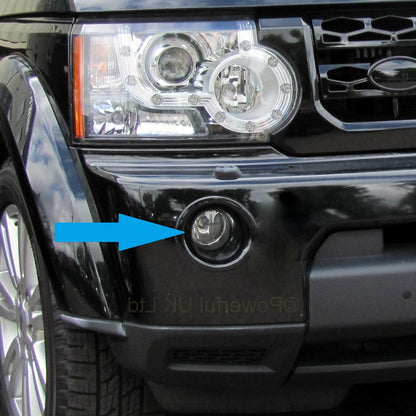

This item WILL fit all Land Rover Discovery 4 models ( 2010 on ).

These WILL NOT fit the older Discovery 1,2 and 3 models.
