Aftermarket Rear Light ( RIGHT )
Clear Fog Window (includes Red bulb)
to fit Ford Ranger 2006 - 2009
This listing is for a RIGHT hand side rear light for a Ford Ranger ( also referred to in the UK as Offside or Driver Side ).
This is a good quality and well constructed aftermarket light

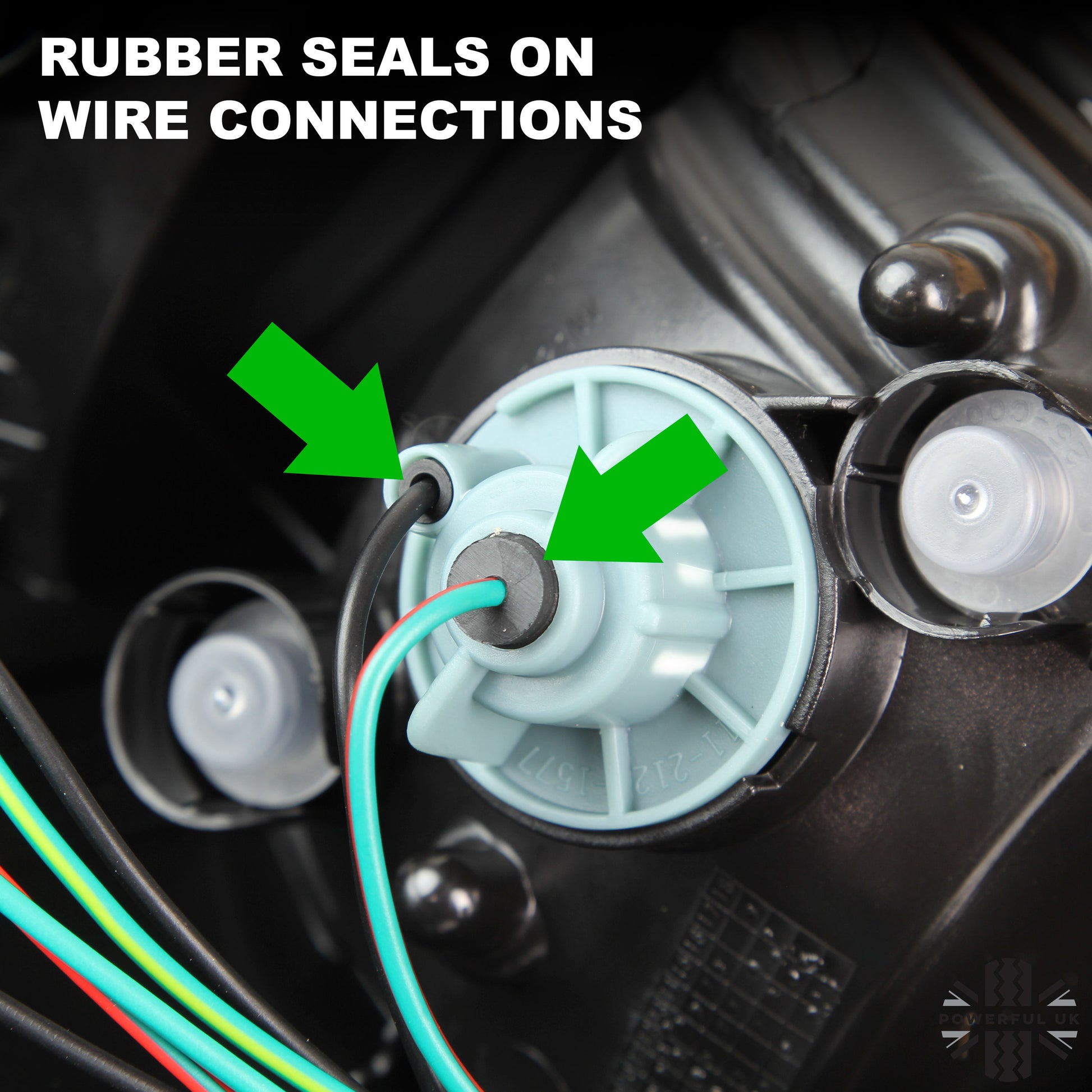

This light features rubber seals on each of the wires for weather sealing and moisture resistance.
This lights is E-Marked ( certificate available ) so they will pass an MOT and be 100% road legal.

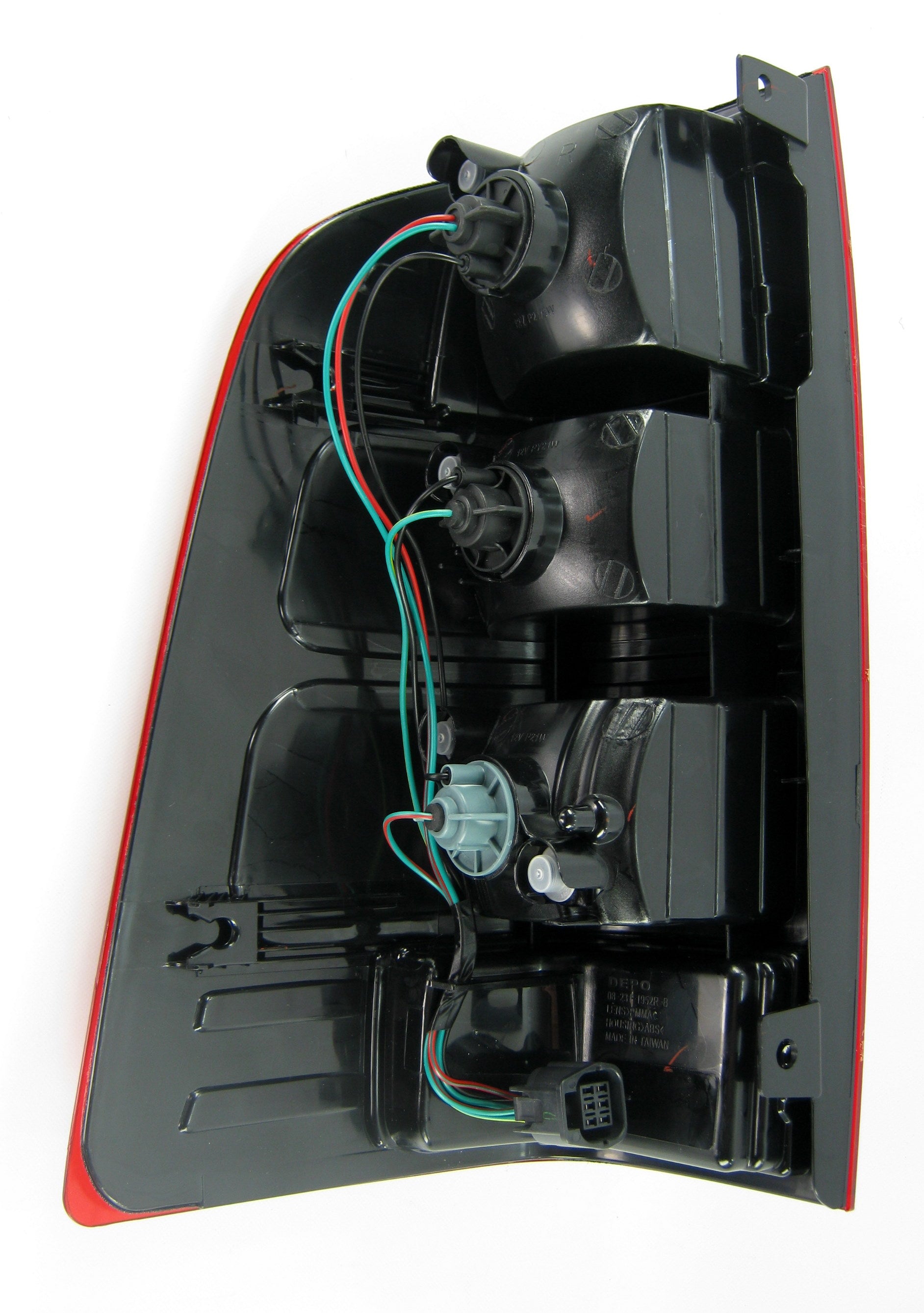

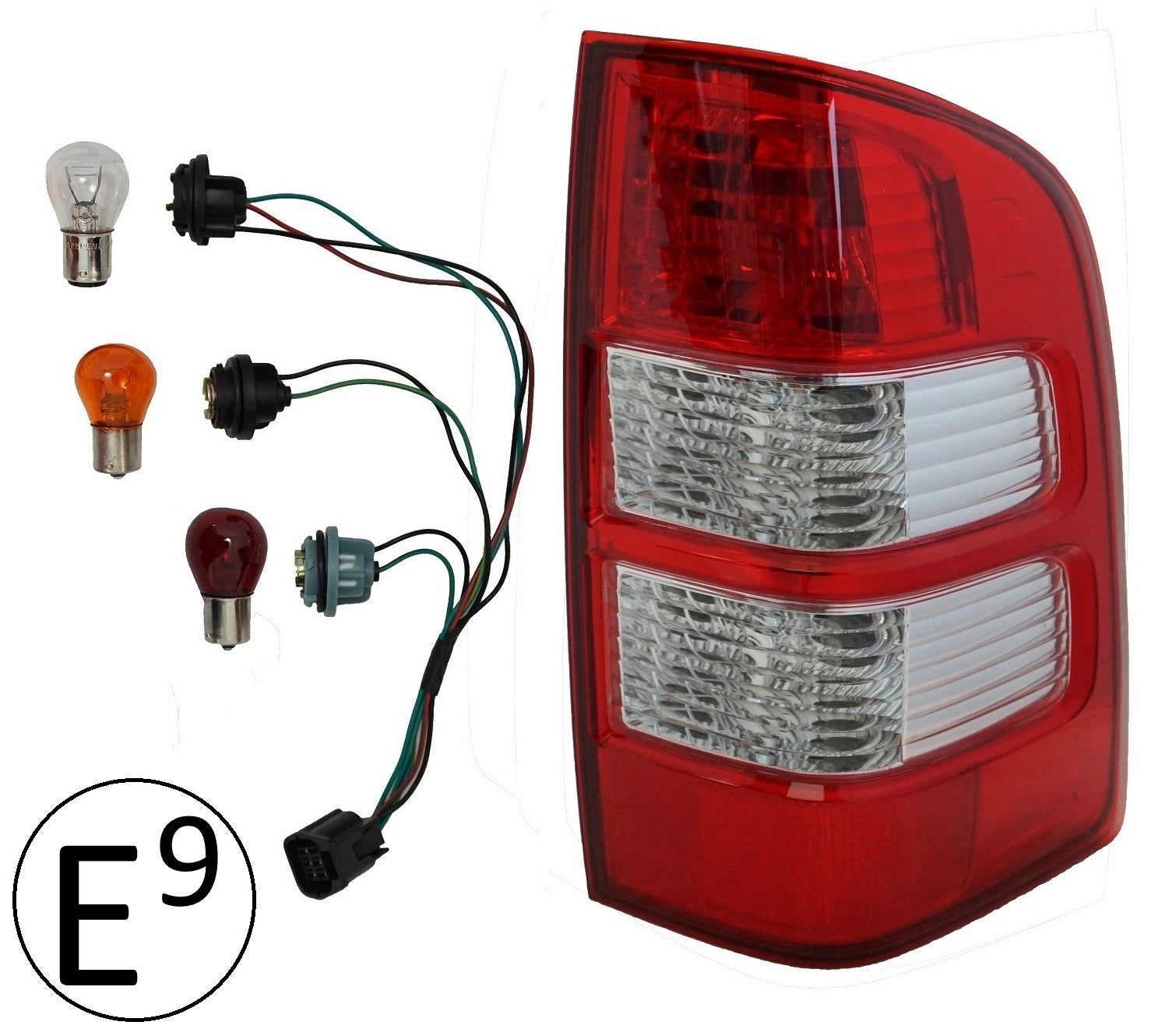

This light is brand new and comes complete with Wiring loom / Connector / Bulbs / Lens / Reflector etc.

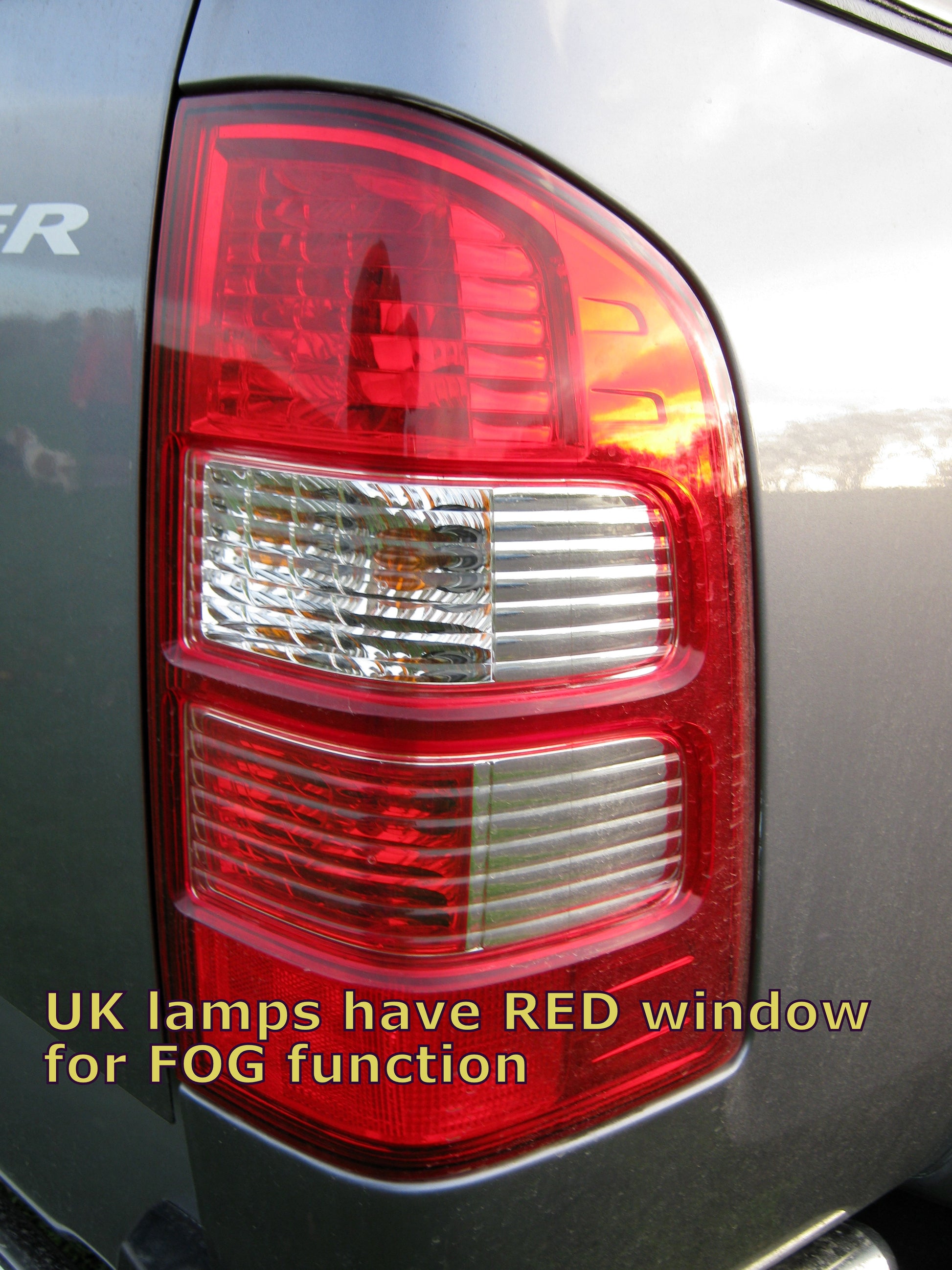

This is an Asia spec light and does not have the fog light fitted - a red fog bulb will be supplied with this light but you will need to check the wiring. It may be possible to use the wiring loom and connector from your original light and just change the fog bulb for the red one provided.
This light will fit any Ford Ranger pickup from 2006 to 09.
Please note: The Ford Ranger had a facelift in 2010 where the design of the rear light changed (this light will fit and function correctly in the facelift version but the design is different).
This light is not a genuine Ford part but a good quality aftermarket alternative from DEPO
We also sell these Asia Spec lights as a pair - please see our other listing.
Fitting Details
Drop the tailgate and remove the 2 screws holding each rear light in place
Pull the light rearwards to remove the 2 push fit fixings.
Remove light unit and disconnect the electrical connector.
Replace the rear light with the new units.
See below video showing how to swap the light yourself.
How to remove the rear light on a Ford Ranger Pickup 2007-2011 - YouTube
Video will open in a new window
To Change the wiring in the new light loom you will need to move the Green+Red wire to the empty pin in the connector - see below video. ( or you can use you old loom in the new lights and then you don't need to do this )
How to swap reverse & fog light wiring connections on a Ford Ranger rear lamp - YouTube
Video will open in a new window
Which Vehicles will this fit ?
This item WILL fit the Ford Ranger 2006 to 09 models (will also fit and function correctly in 2010-11 facelift models but the design is different).
