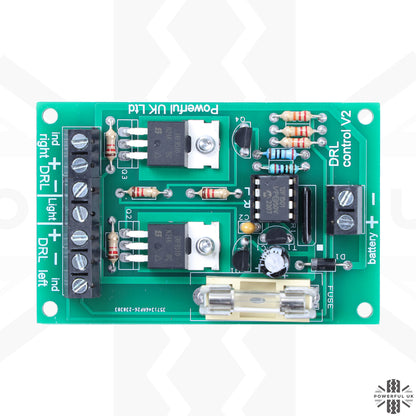

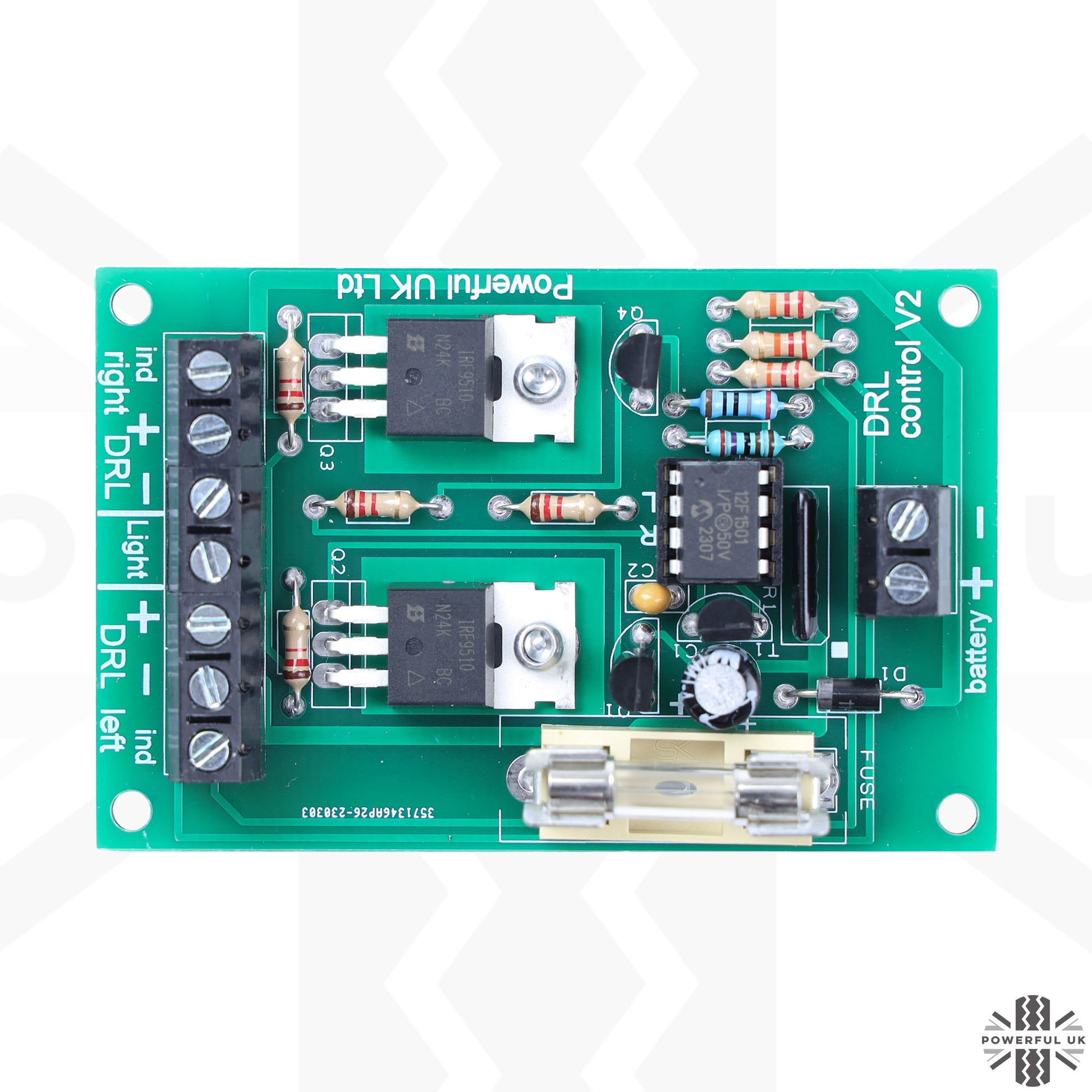

DRL Controller BoardPart number: EWL945-DRL-Board-V2
DRL Controller Board
This listing is for a Daytime Running Light (DRL) controller board.
Note: This board is suitable for use with LED bulbs and will not work with halogen.
A DRL controller board will control the function of DRL lights dependant on certain criteria i.e. dim them when headlights are on, turn them off when indicators are active, plus a turn-off timer delay when exiting your vehicle.
We have tried various controller boards but were never happy with the quality or function, so we specified / designed one to our own spec!
These boards are made in the UK by our micro-electronics partner using top quality components.
We usually supply these controller boards with our '2in1 Fog/DRL' lighting kits, but after many enquiries, we have made them available for sale separately here.
Regrettably, we can only provide technical support for these boards if you purchase one of our vehicle specific 'full lighting kits' (search FO945-ORB).

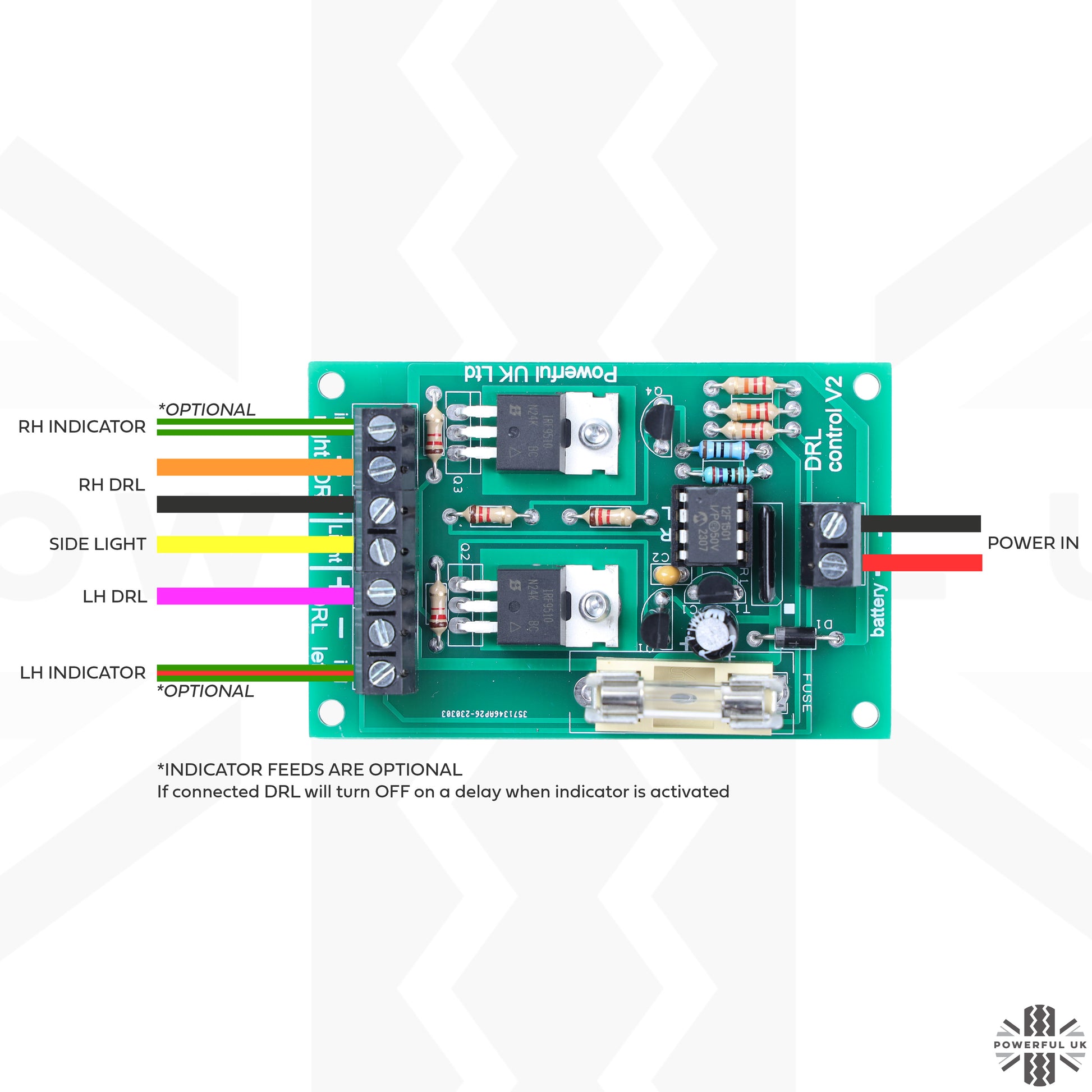

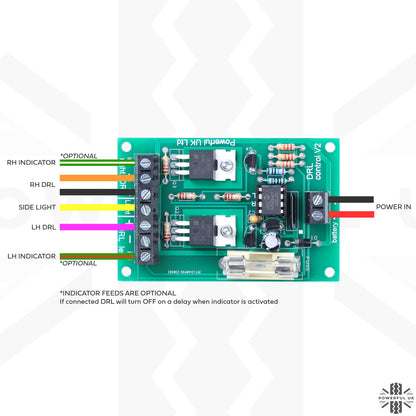

You can purchase this board for your own project but please remember we are unable to offer support (but we're sure you'll be alright) - p.s. you can reference our wiring diagram and videos for guidance.
If you find this board is unsuitable for your application you can return it for a refund.
We'll include a section of heat-shrink to provide some protection after wiring is completed.
The controller board give the following functions :-
1) Auto turn on when the engine starts - no need to find an ignition live feed
2) Auto dimming of the DRL's when the lights are turned on
3) "follow me home" DRL's stay on after you stop the car to provide lighting for your walk to your front door
4) When you indicate the DRL on that side will go out so as not to obscure your indicator ( option feature if you connect your indicator feed to the controller ).
This listing is for 1 controller board ( that controls 2 DRLs ) plus a section of heat-shrink.
If you have a Land Rover Discovery 3/4, Freelander 2 or Range Rover Sport L320 then consider one of our complete kits which includes lights, wiring loom and controller board.
See below video as an example of us using this board with one of our Fog/DRL kits:
Which Vehicles will this fit ?
This controller board can be used in most 12v automotive applications where you need to control the DRL function (works with LEDs only - not halogen)
