Door Handle "Skins" for Land Rover Discovery 3 fitted with 2 pc Handle - Gloss BlackPart number: RRH414-AM-JVA
Door Handle "skin" kit - Java Black
for Land Rover Discovery 3 2006 -2009
fitted with 2 piece handle type (see pictures)
We sell 2 quite different products for the door handles on a Land Rover Discovery 3 - "Covers" and "Skins".
- The "covers" are an easy to apply stick on cover that cover the grey painted handles with great results.

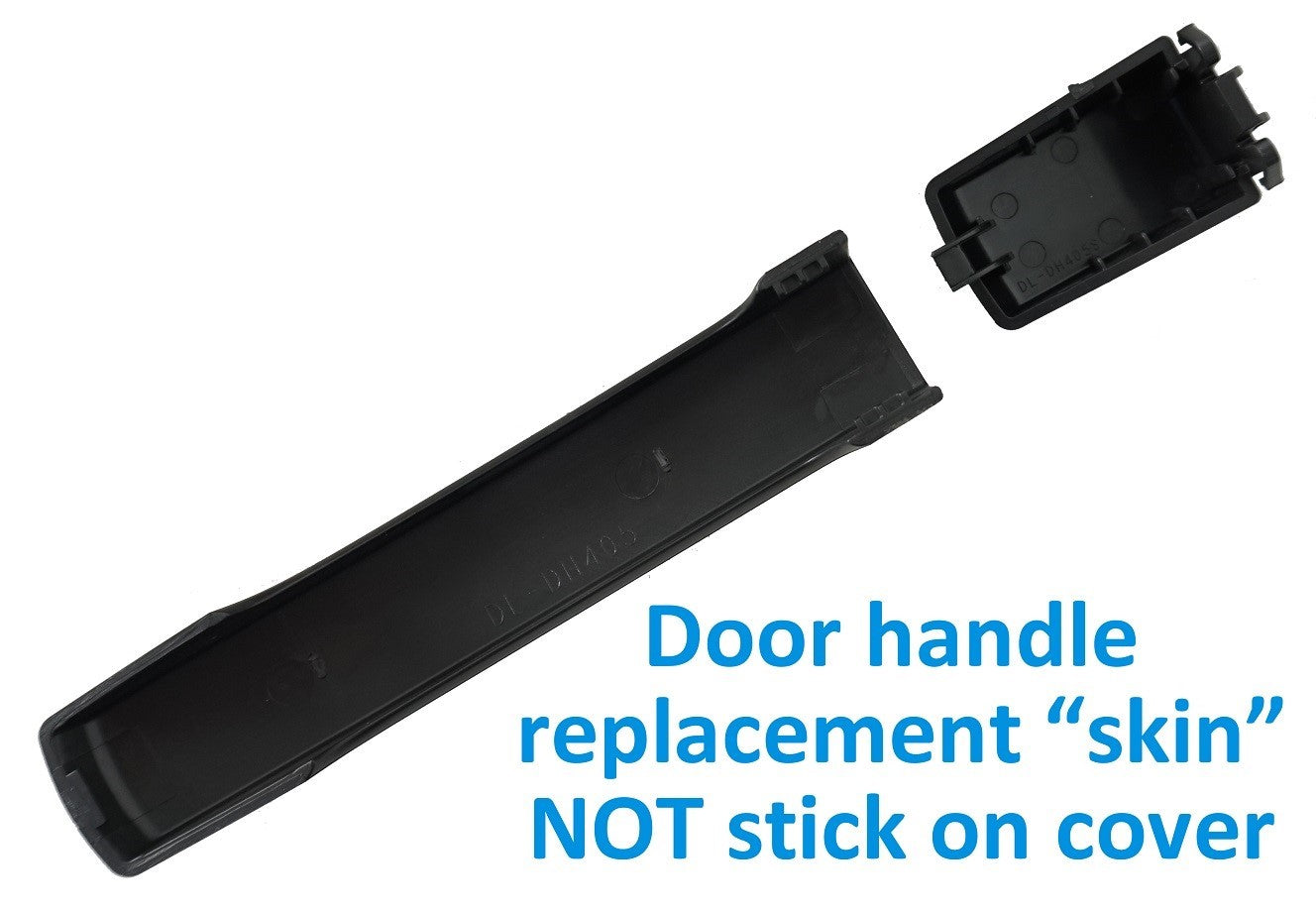

- The "skins" are replacement fascias for the door handles - like changing the fascia on a mobile phone. Here you remove the old grey "skin" and replace with a body colour "skin"

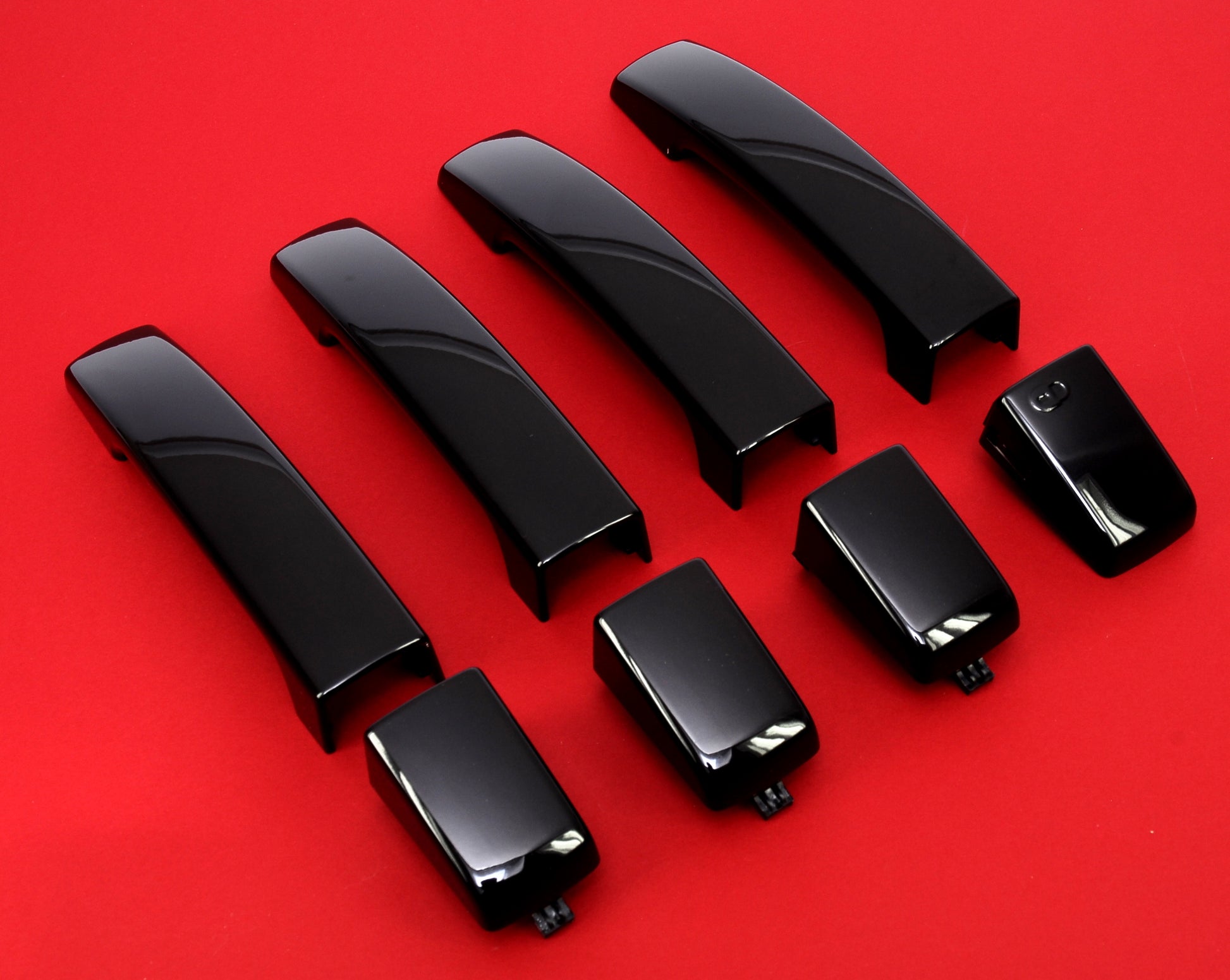

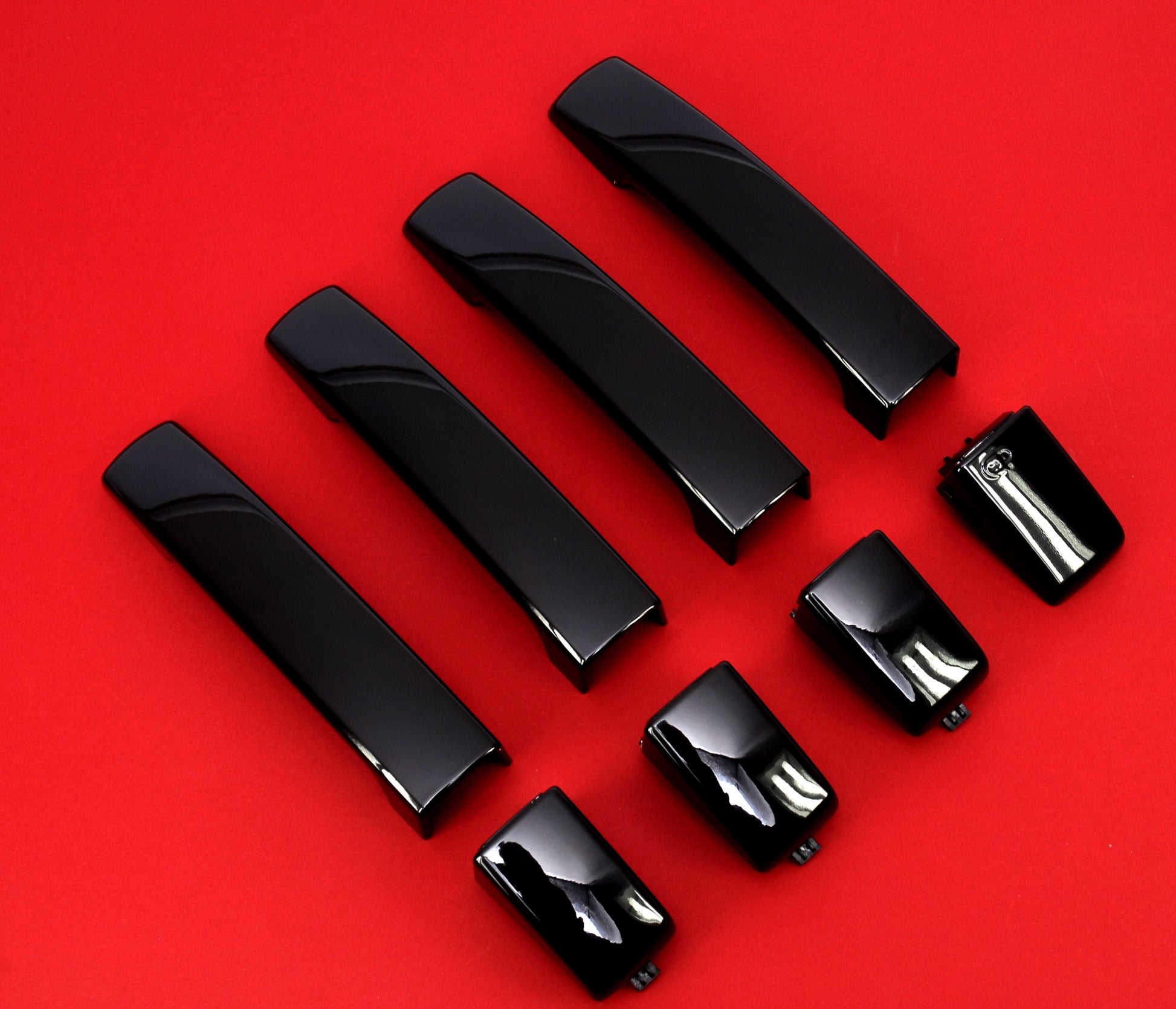

This listing is for an 8 piece SKIN kit ( 4 long pieces, 3 short pieces and 1 short Key release piece )
These parts are painted Java Black ( Land Rover Discovery 3 are available in Java and Santorini Black so check which you have ) - check you chassis plate for colour code LRC697 or paint code PNF
Many of the discovery 4 models came with colour coded handles as standard so this is a good upgrade if you want to make your car look more like a Discovery 4.

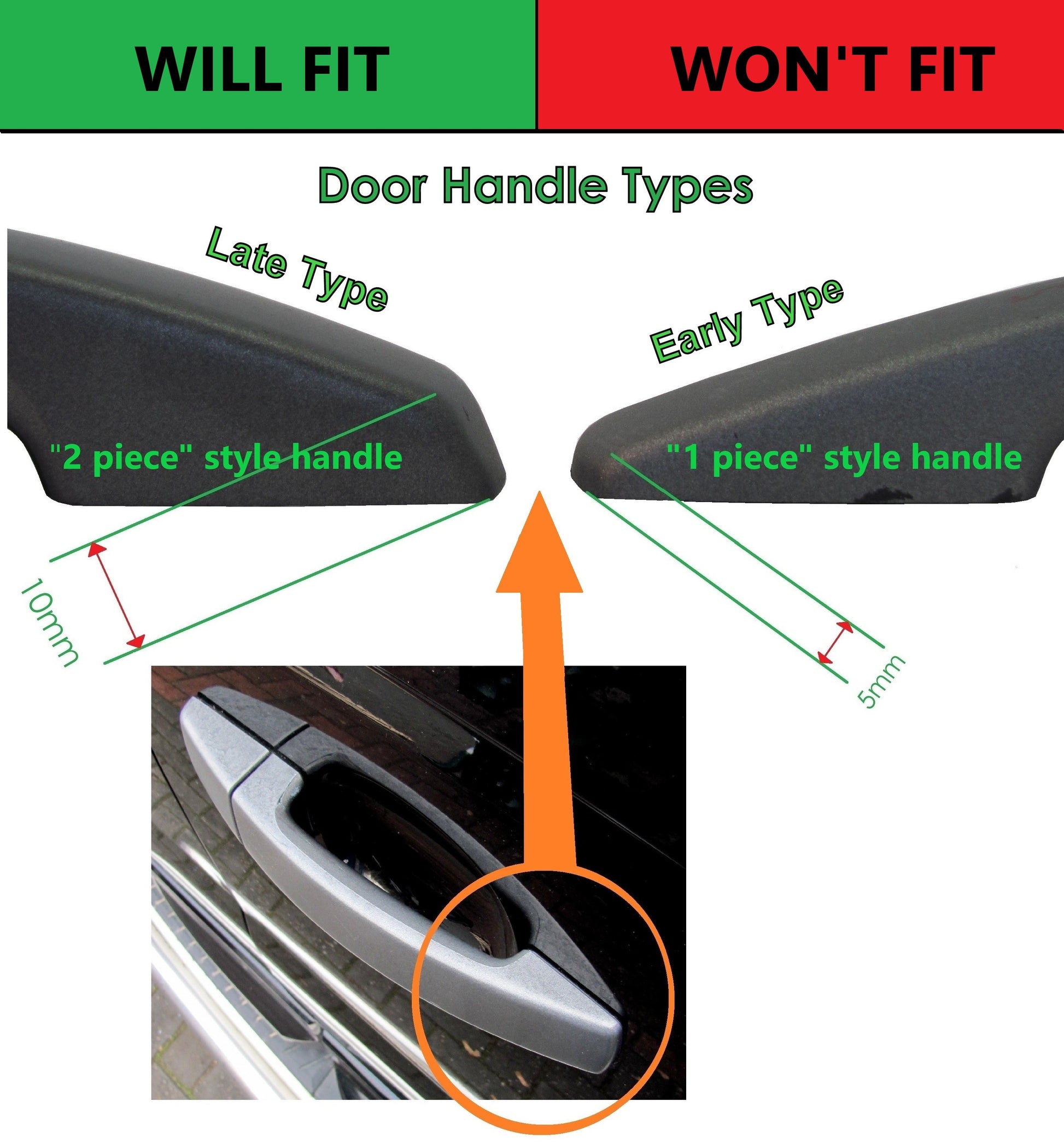

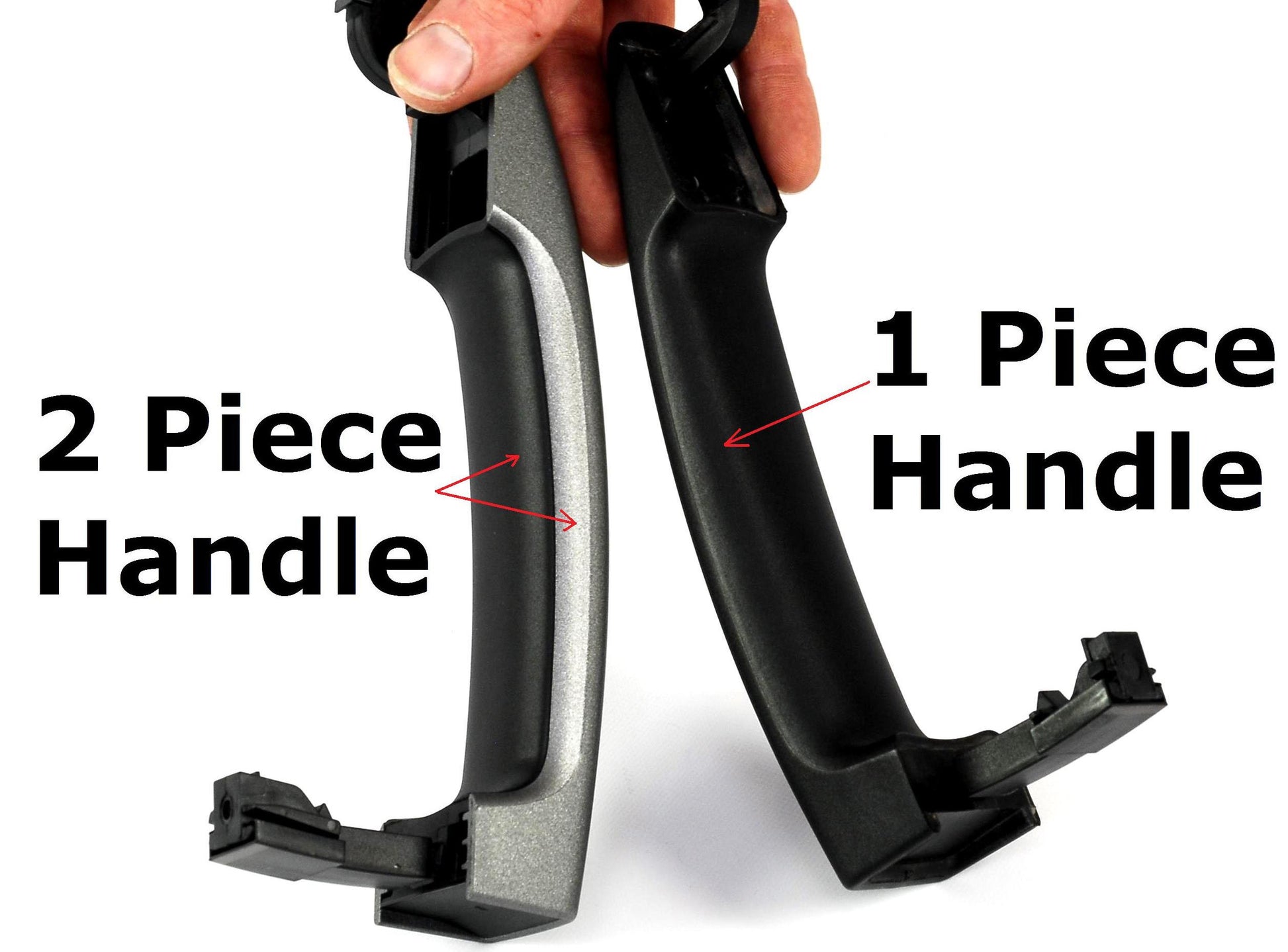

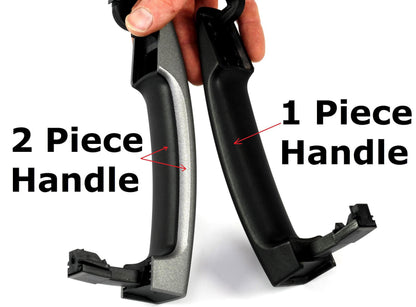

This product will only fit your car if it has the 2 piece door handle design - see pictures that show the difference between the 1 piece and 2 piece door handle designs.
You need to look in the area at the back of the handle "grip" area to see if you can see the 2 parts joining together. Most Land Rover Discovery models from 2006 have the 2 piece handle design.
The small part with the padlock symbol is for the left ( UK passenger side ) door handle where there is an emergency key access in case of battery failure.

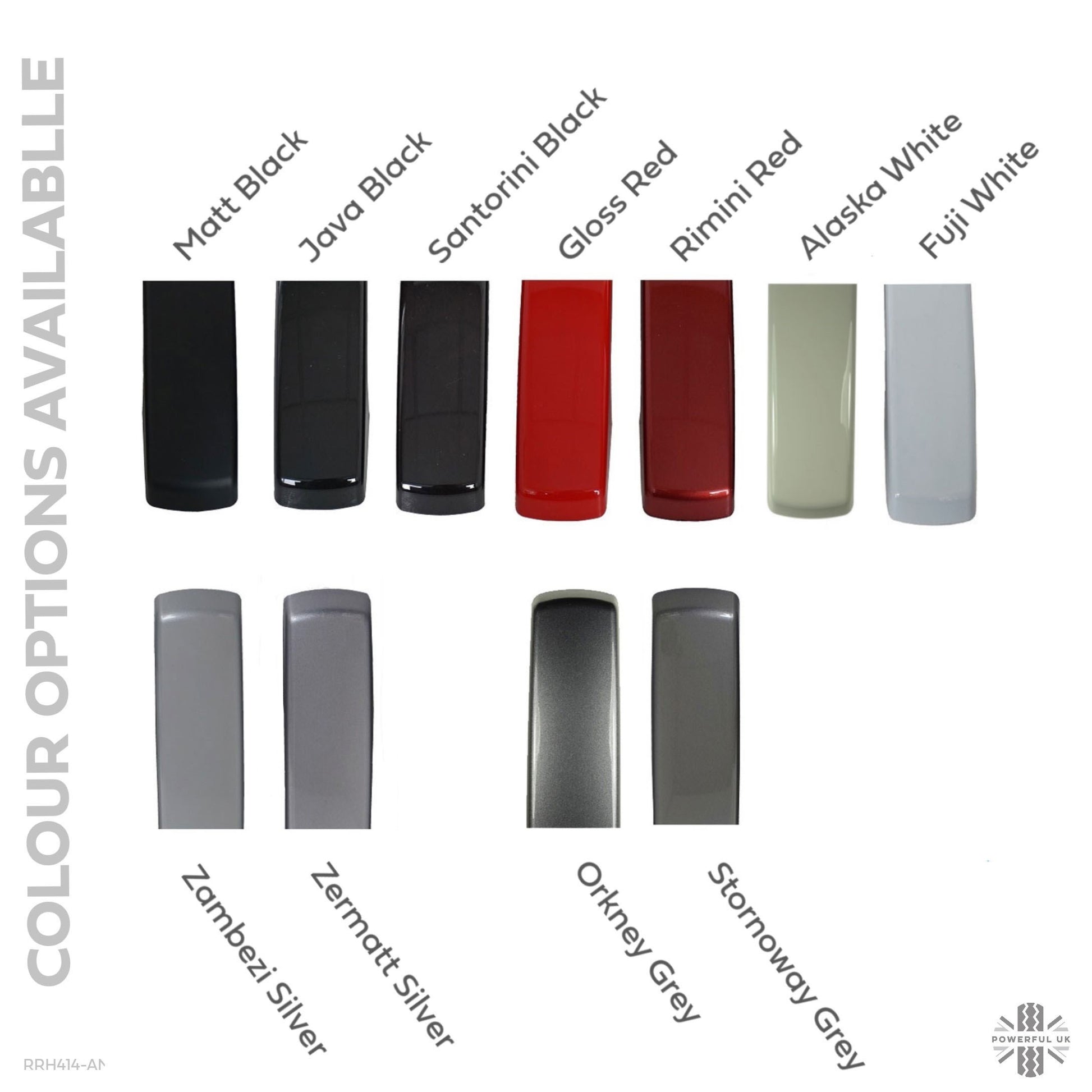

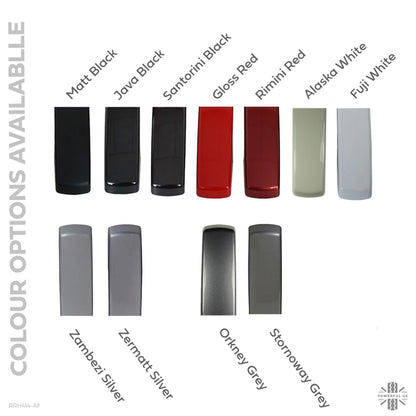

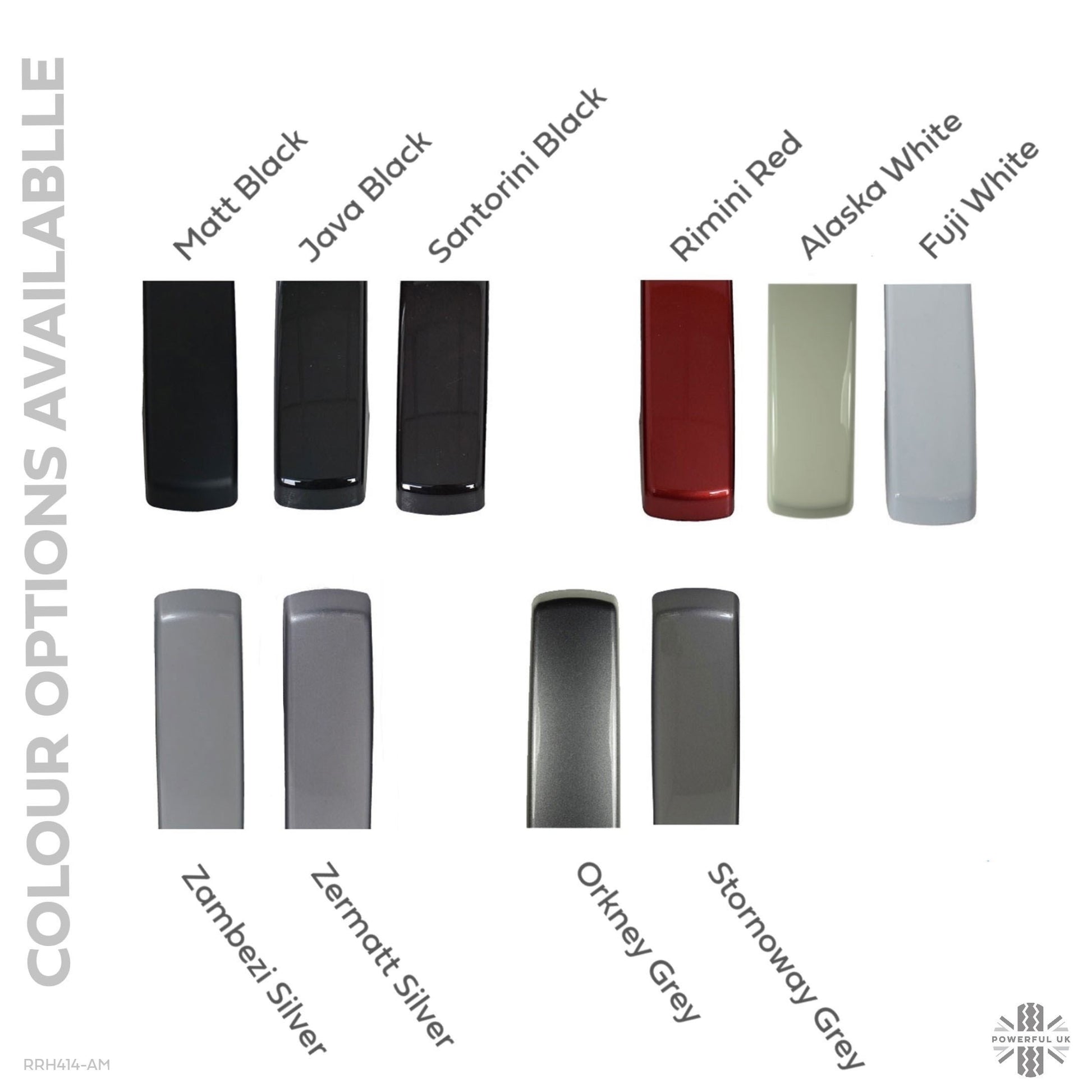

We also have these available other colour coded options. (see other listings)
These are NOT genuine Land Rover parts but can be used as an alternative to LR PN LR006949

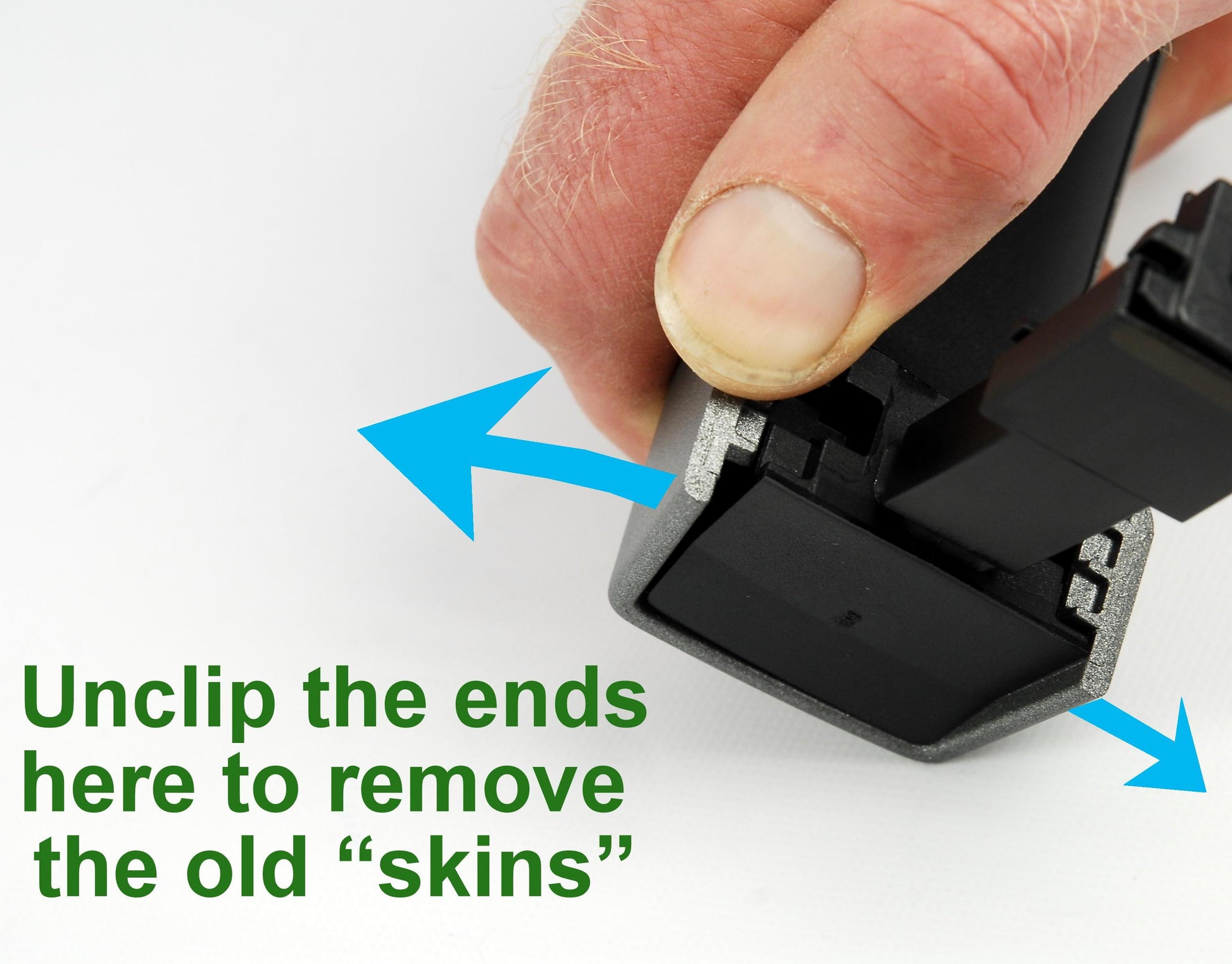

To remove the old door handle "skin" you need to close all doors and lock the car. Then pull the door handle open and at the exposed edge unclip each side of the door handle as shown in the pictures. Then slide the door handle forward to remove the "skin". Fitting the new skin is easy at it just clips into place.
The small parts on the doors can be pulled off but this will on some occasions break the clips - this is not a problem as you don't need to re-use the old parts.
The left hand front door has a padlock symbol - to remove this piece you need to insert your key into the hole on the underside then pull the piece away from the door.
Make sure you identify the small part with the emergency key release slot in ( see note in above section ) when refitting the new parts.
See below fitting video...
Which Vehicles will this fit ?
These door handle covers WILL fit all of the Land Rover Discovery 3 models with the 2 piece handle design ( see pictures )
These WILL NOT fit the Discovery 3 models with the "1 piece" handle.
These WILL NOT fit the Discovery 4 models with the press button in the front face of the handle. (Keyless entry)
