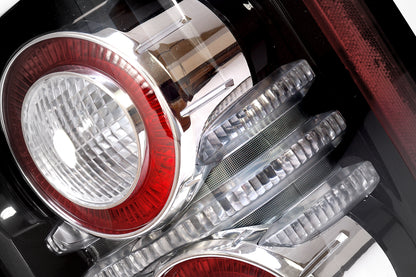

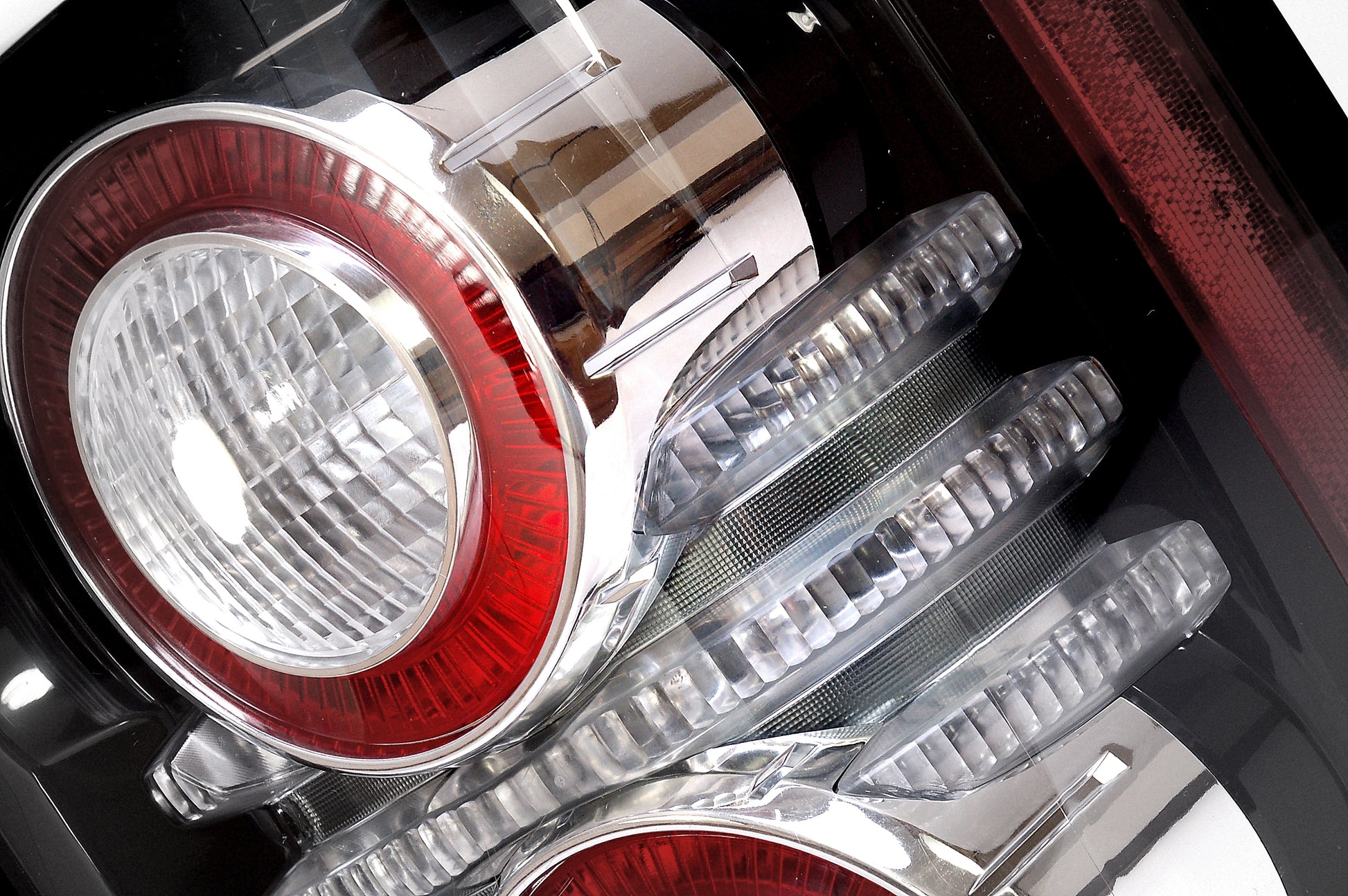

2012 LED UK Spec Genuine Rear Light (Black Inside) for Range Rover L322 2012+ - RIGHT RHPart number: RRL936-GEN-ROW-R
LED Rear Light Right side ( 2012 style )
for Range Rover L322 Vogue 2002 on
This listing is for a genuine rear light for a Range Rover L322 2012 model.

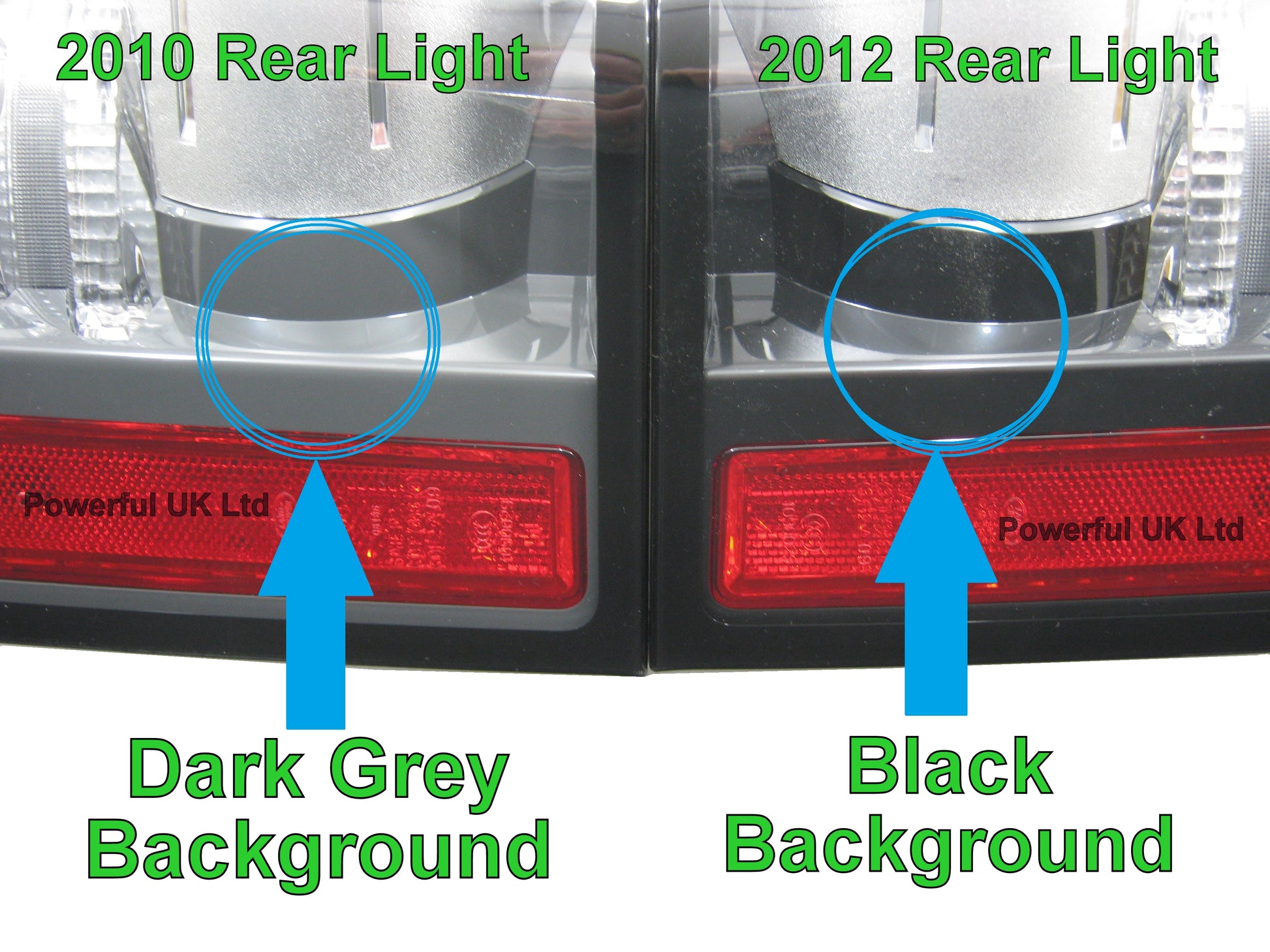

The 2012 model has an black inside plastic background whereas the 2010 -2011 model lights has a dark grey background ! ( its a small but noticeable change ! )

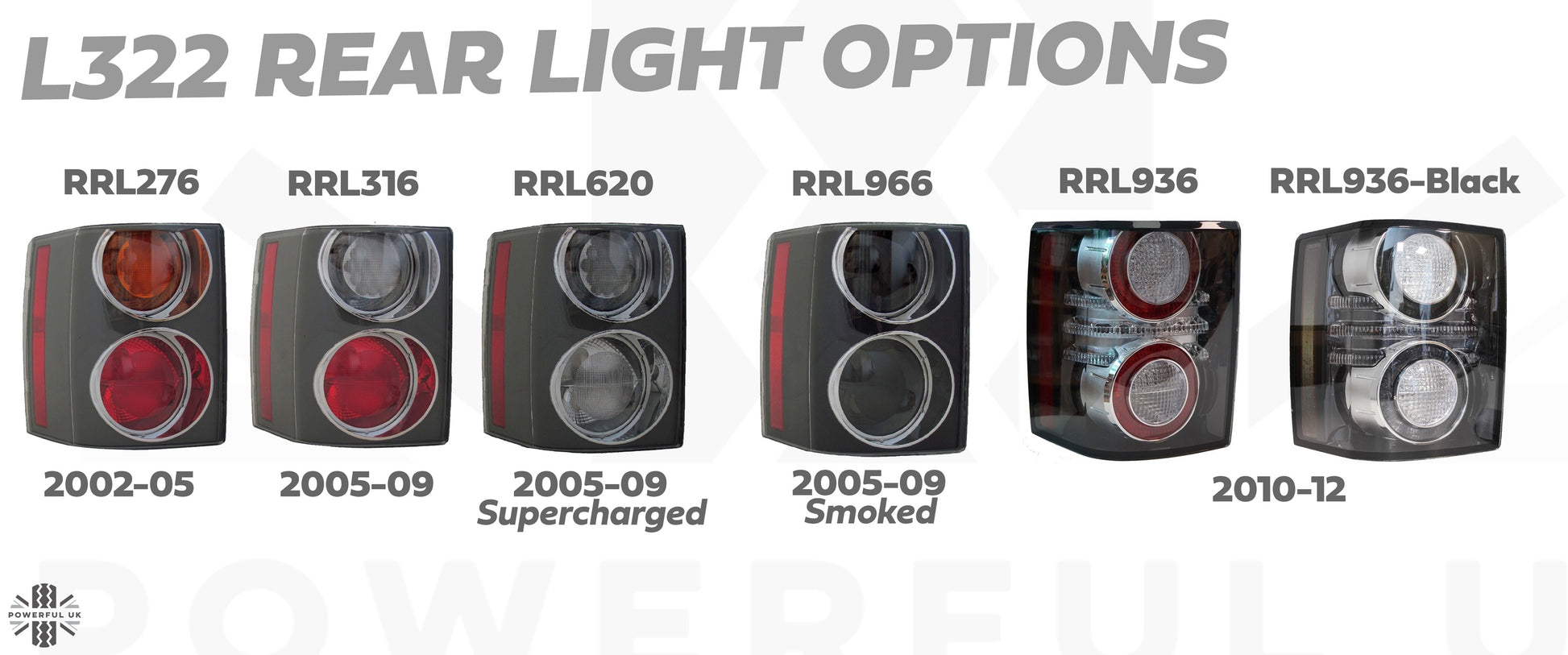

There are 5 types of rear lights fitted to the L322....
1) Orange and Red lens - these were fitted to the early models from 2002 to 2005
2) Clear and Red lens - these were fitted to the 2005 to 2009 models.
3) Clear and Clear lens - these were fitted to the 2005 to 2009 Supercharged models.
4) The 2010 style with clear lenses and LEDs and grey background

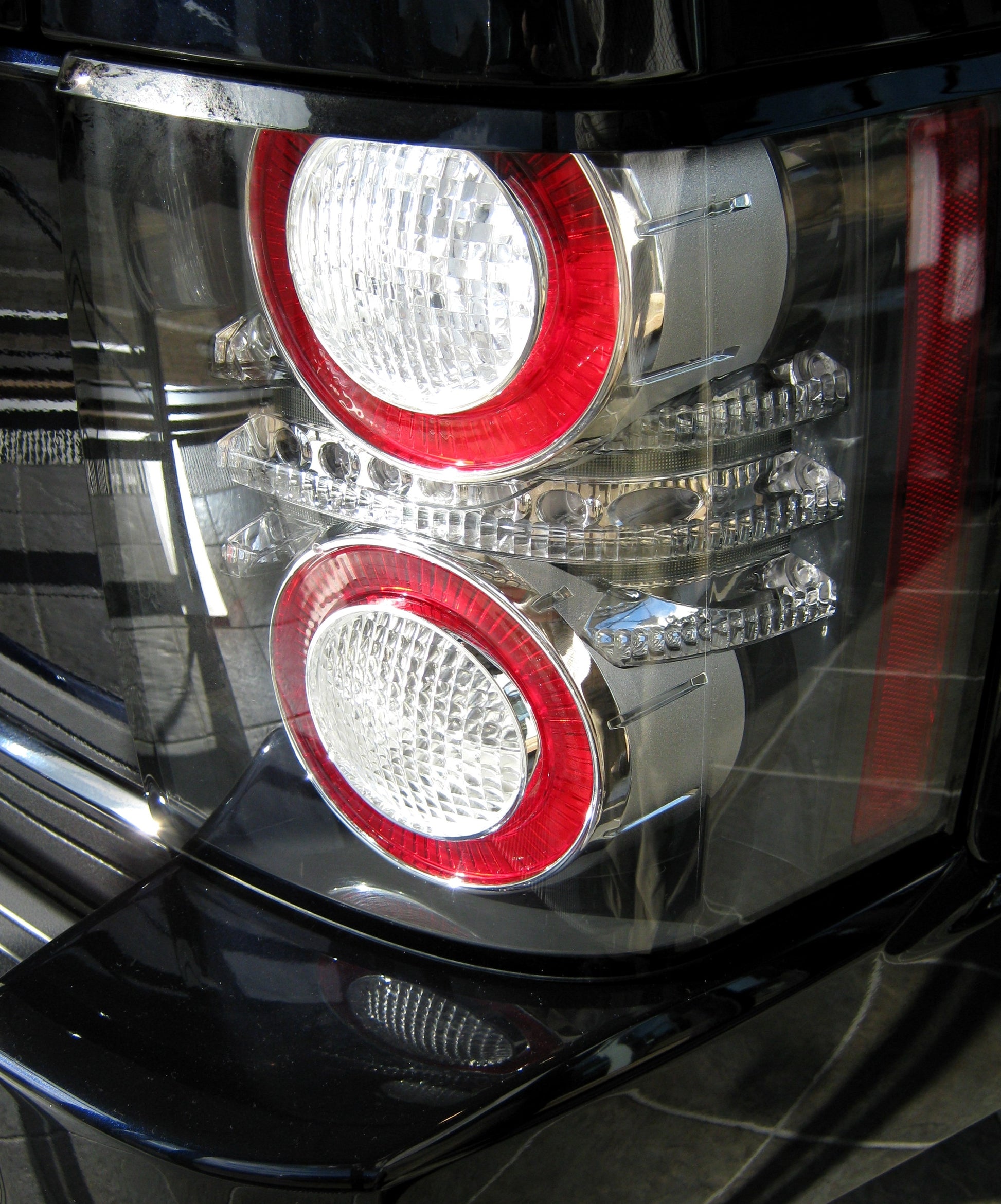

5) This new 2012 style with clear lenses and LEDs and black background

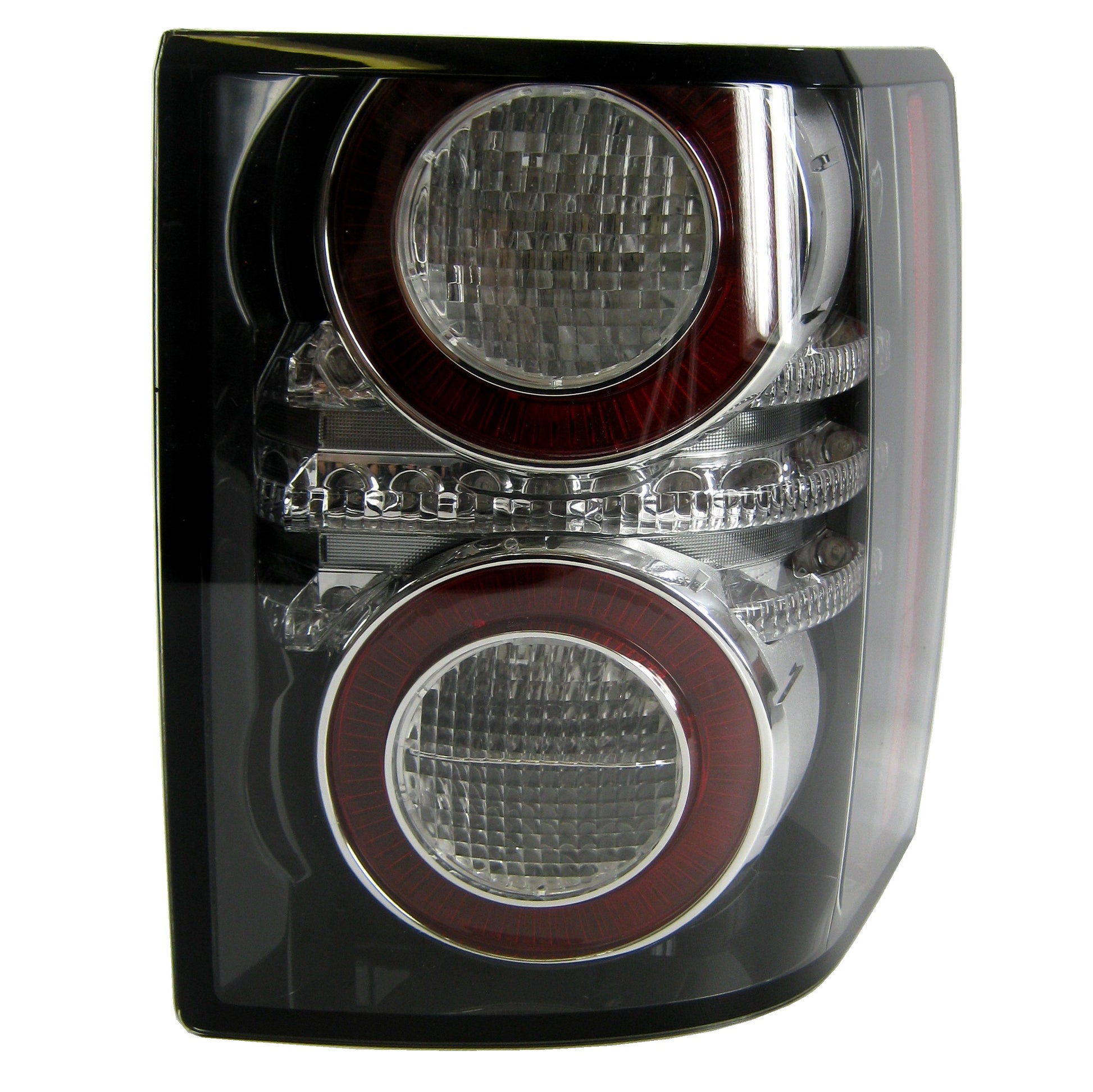

This listing is for a Right side ( UK Drivers side or Offside ) rear light for a Range Rover L322 2012 model with LEDs.
These can be fitted to a 2012 model to replace and damaged item or fitted to a 2002 - 2011 model as an upgrade.
When fitting to the earlier ( 2002 - 2009 ) models some modification will be required to get the lights to function as the LED's draw less current than normal bulbs and this can cause problems with the computer thinking a bulb has gone and also the indicator lights can flash too fast. The fog light will also need modification to work correctly. This is not straightforward and we recommend you contact an auto electrician to complete this work. We do not have a complete wiring solution for this modification.
The lights are the same size and have the same connector as the 2002 -2009 models.
These lights are genuine Land Rover items brand new in original retail packing.

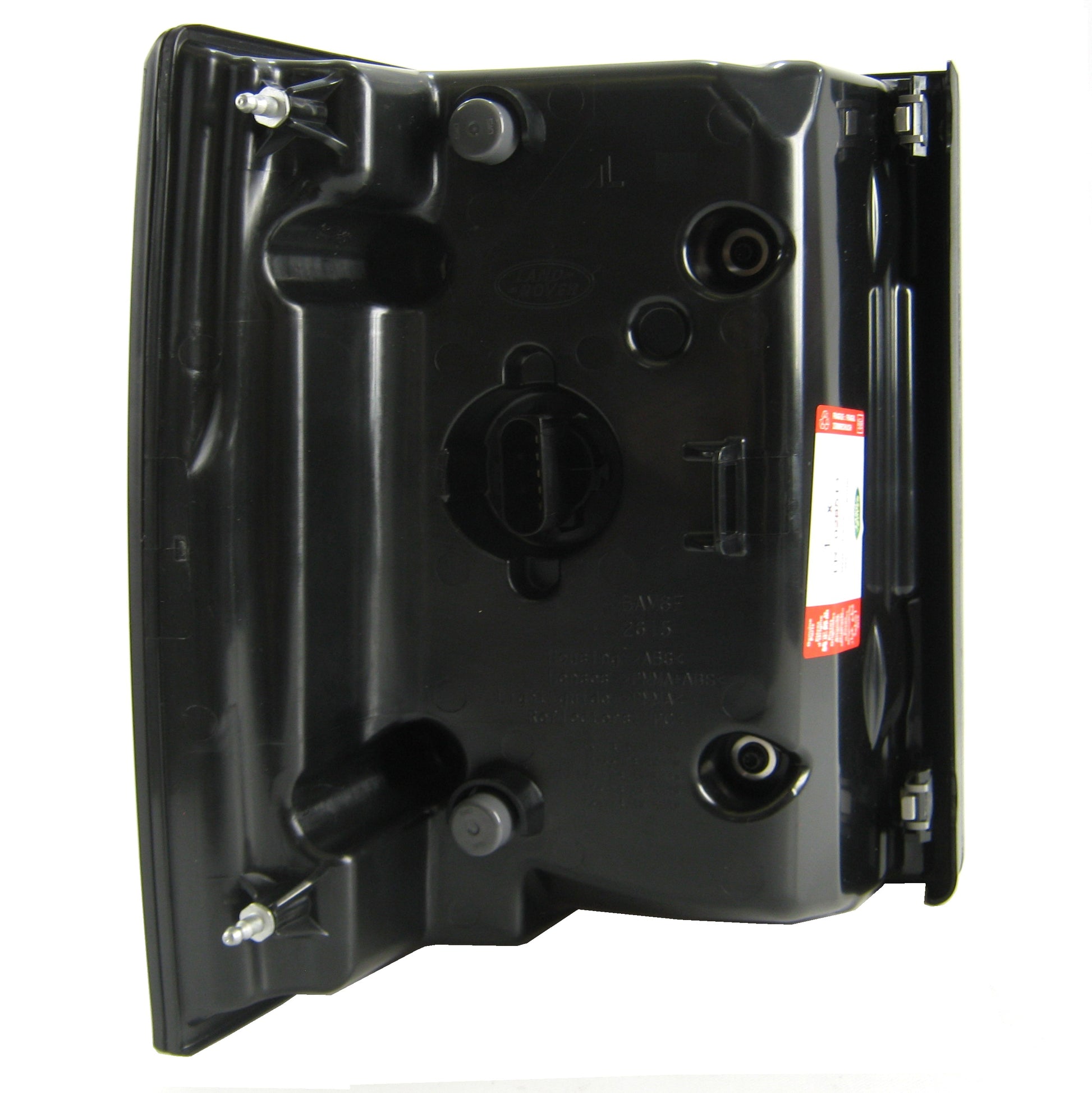

This unit comes complete with bulbs and bulb holder and rear electrical connection
To fit to the early models you will also need to remove the original rear fixings and fit the new style inserts - see our other items.
See our other listings for the opposite side.
Remove the rear trim in the boot
Remove the electrical connector from the rear of the light.
Remove the light and fit the new item.
See below for fitting video, Video shows how to remove earlier 2003 lights. .
If you would like to fit these 2010 rear lights to an earlier vehicle, please take a look at our youtube video channel
Which Vehicles will this fit ?
This item will fit all non USA Range Rover L322 models from 2002 - 2013 ( 2002 - 2009 require wiring modification )
These WILL NOT fit a Range Rover P38, SPORT
