Front Bumper 2 in 1 LED DRL & Fog Lamp Kit
for Suzuki Jimny (2013-on)

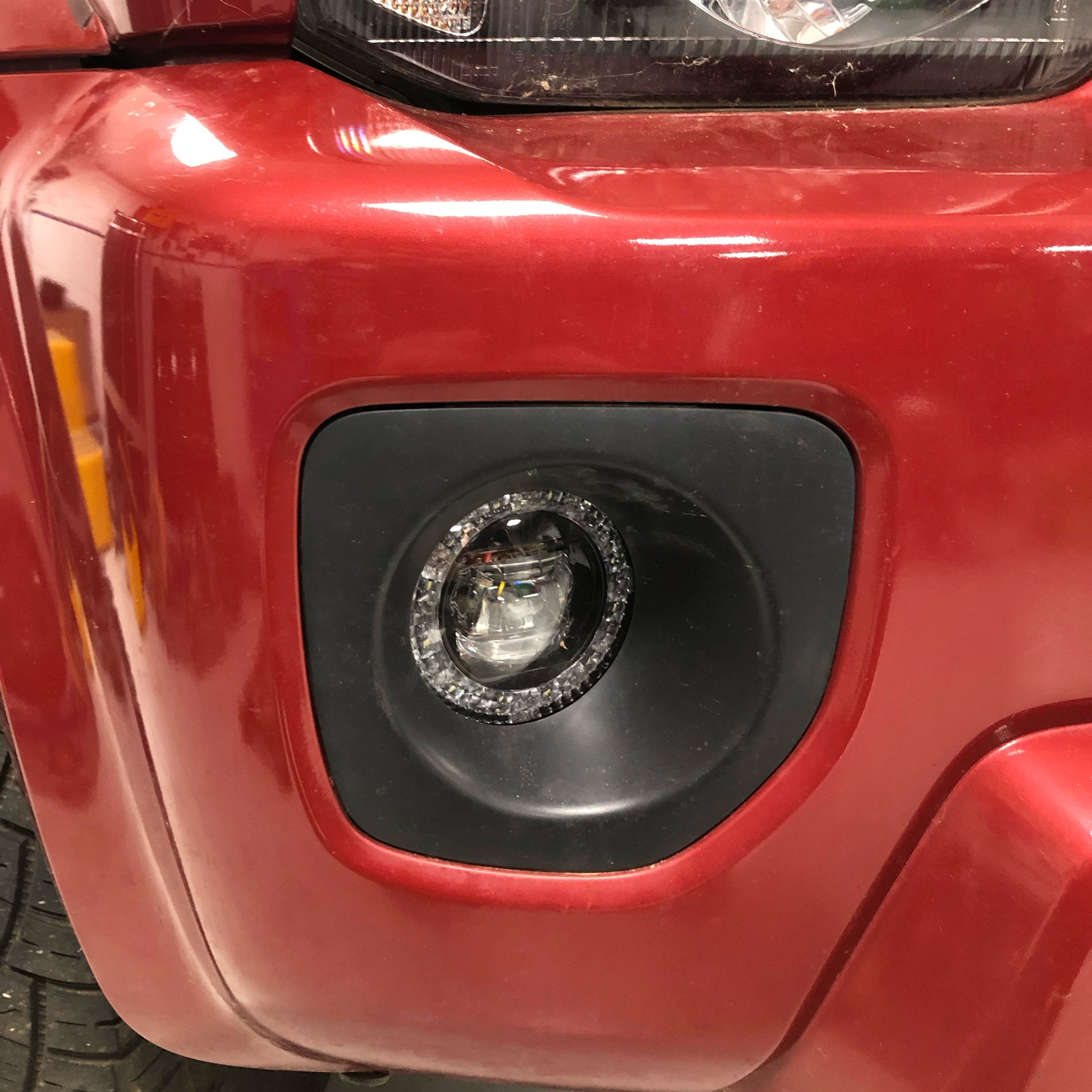

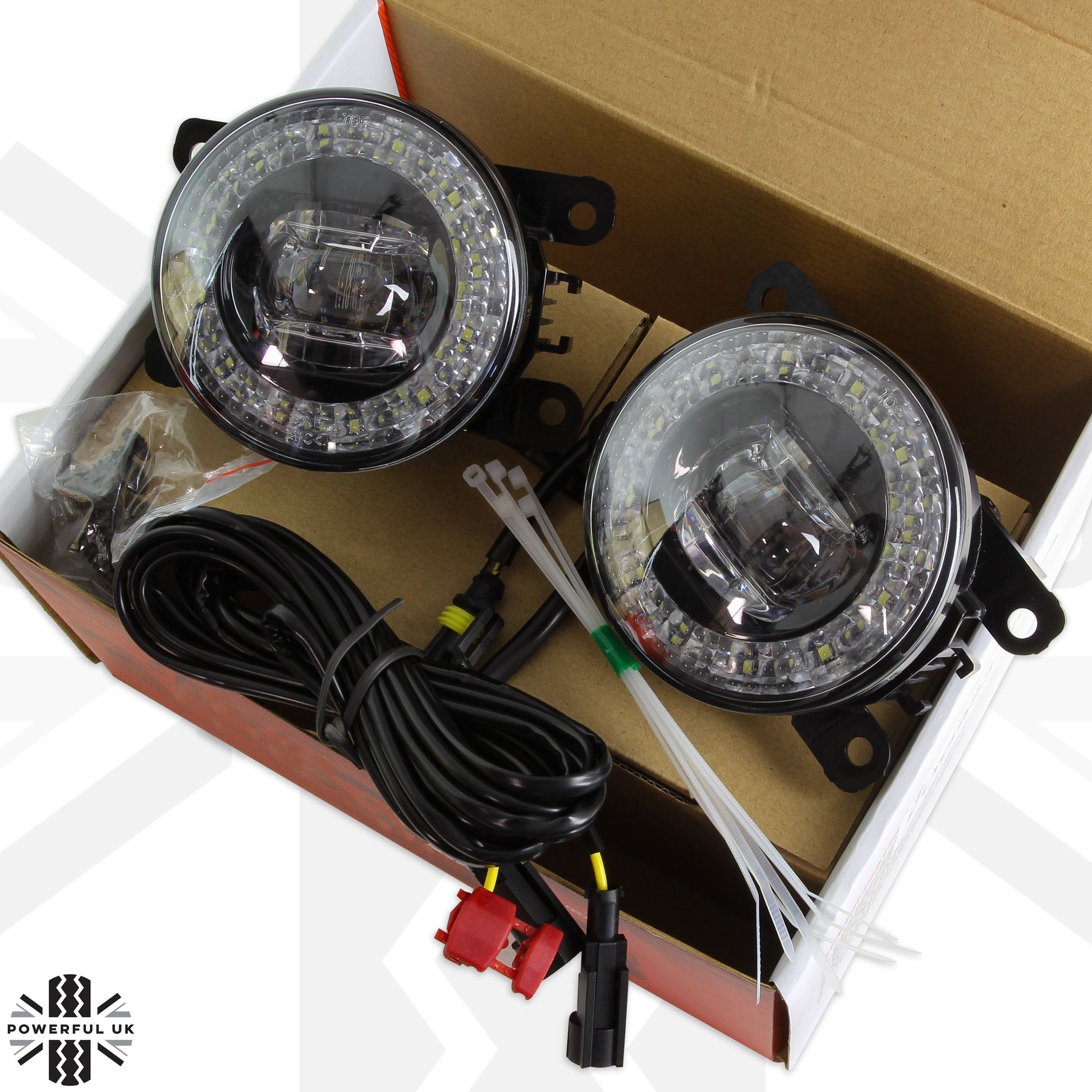

This listing is for a pair of replacement LED fog lights that are ready to fit the Suzuki Jimny.
These lights have been designed to be a direct replacement for the standard Valeo halogen FOG Lamps.

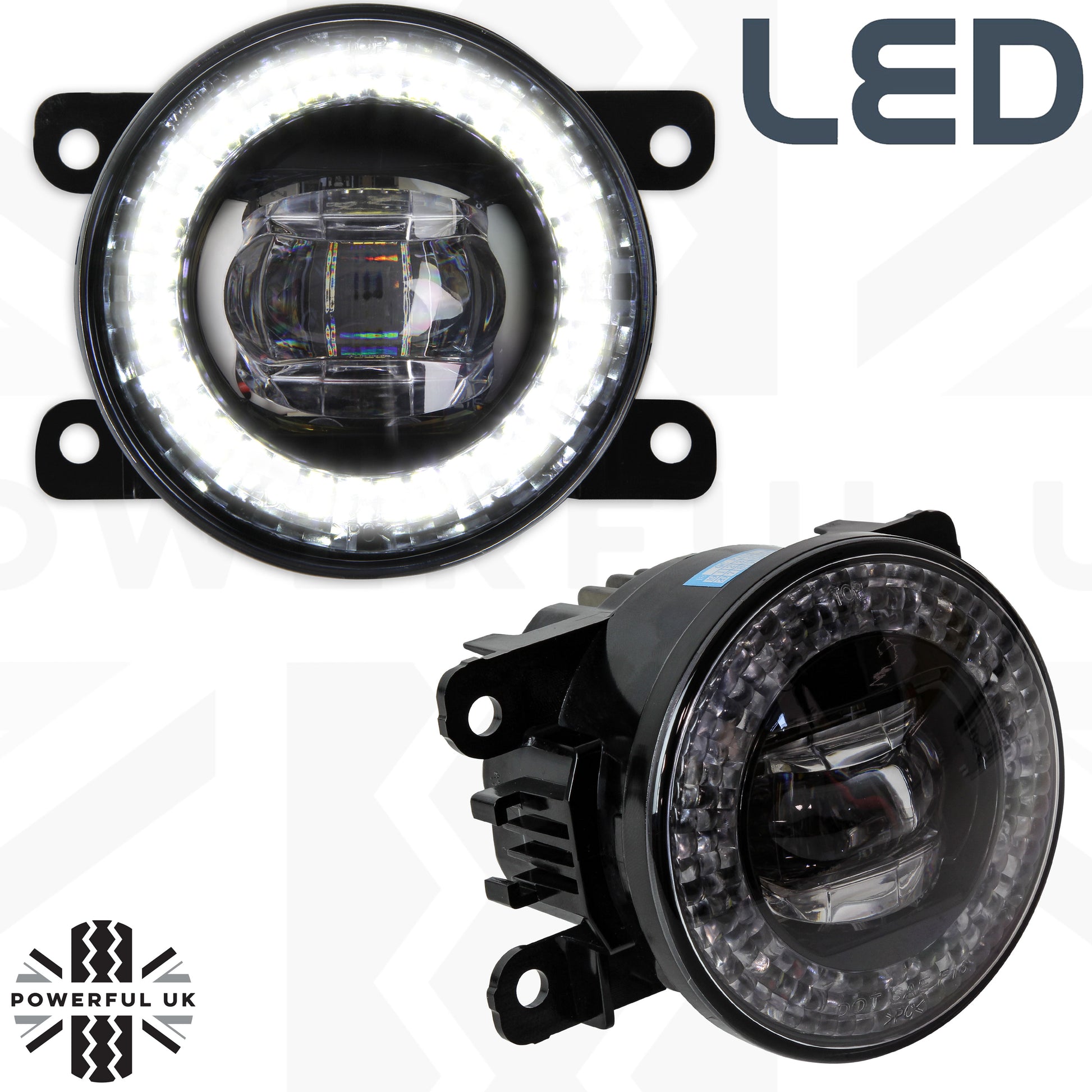

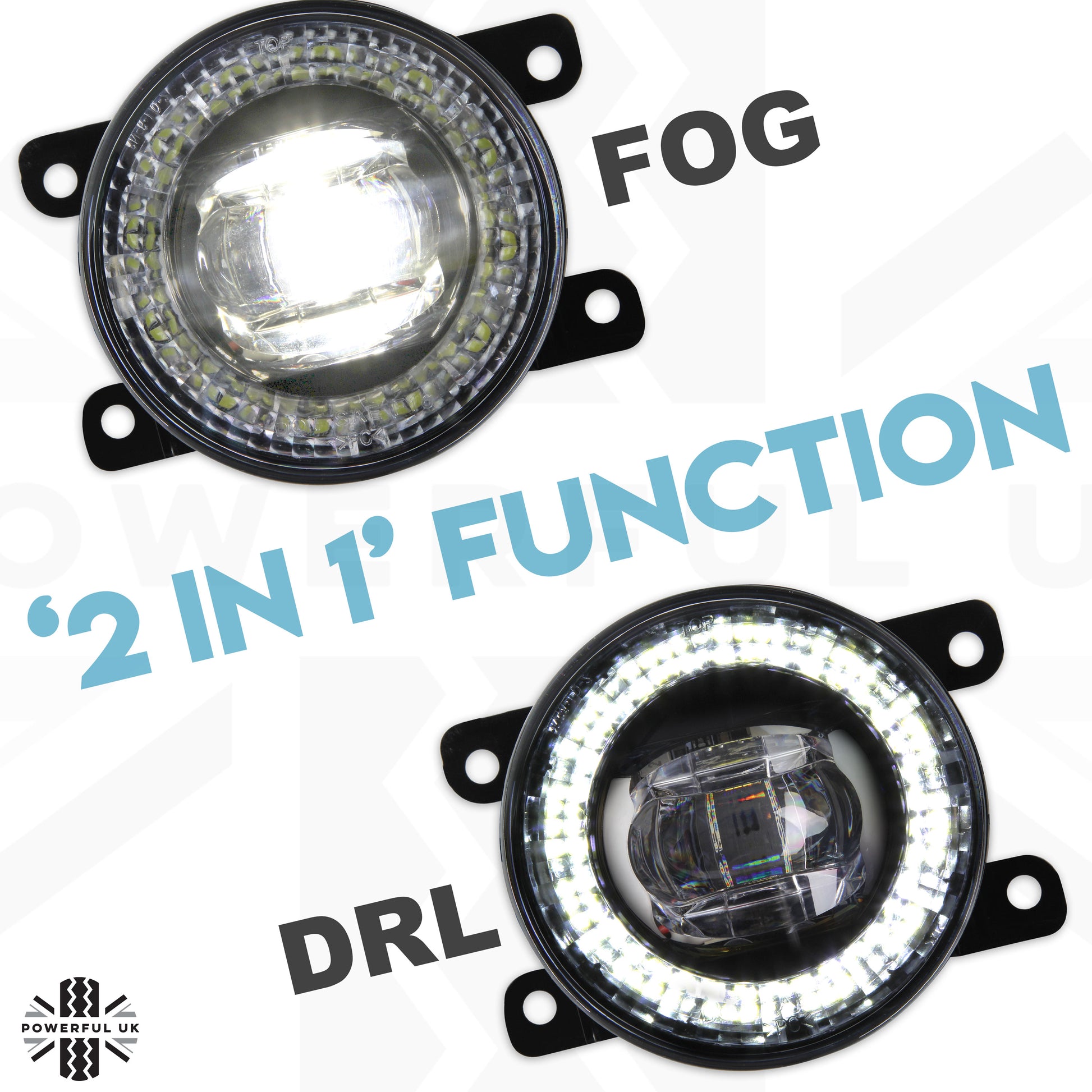

These light units have 2 separate functions:
a) FOG LAMP - this is the central part of the lamp and it has 3 powerful 3w LEDs producing a bright and clear white light - this is connected using the standard H11 plug

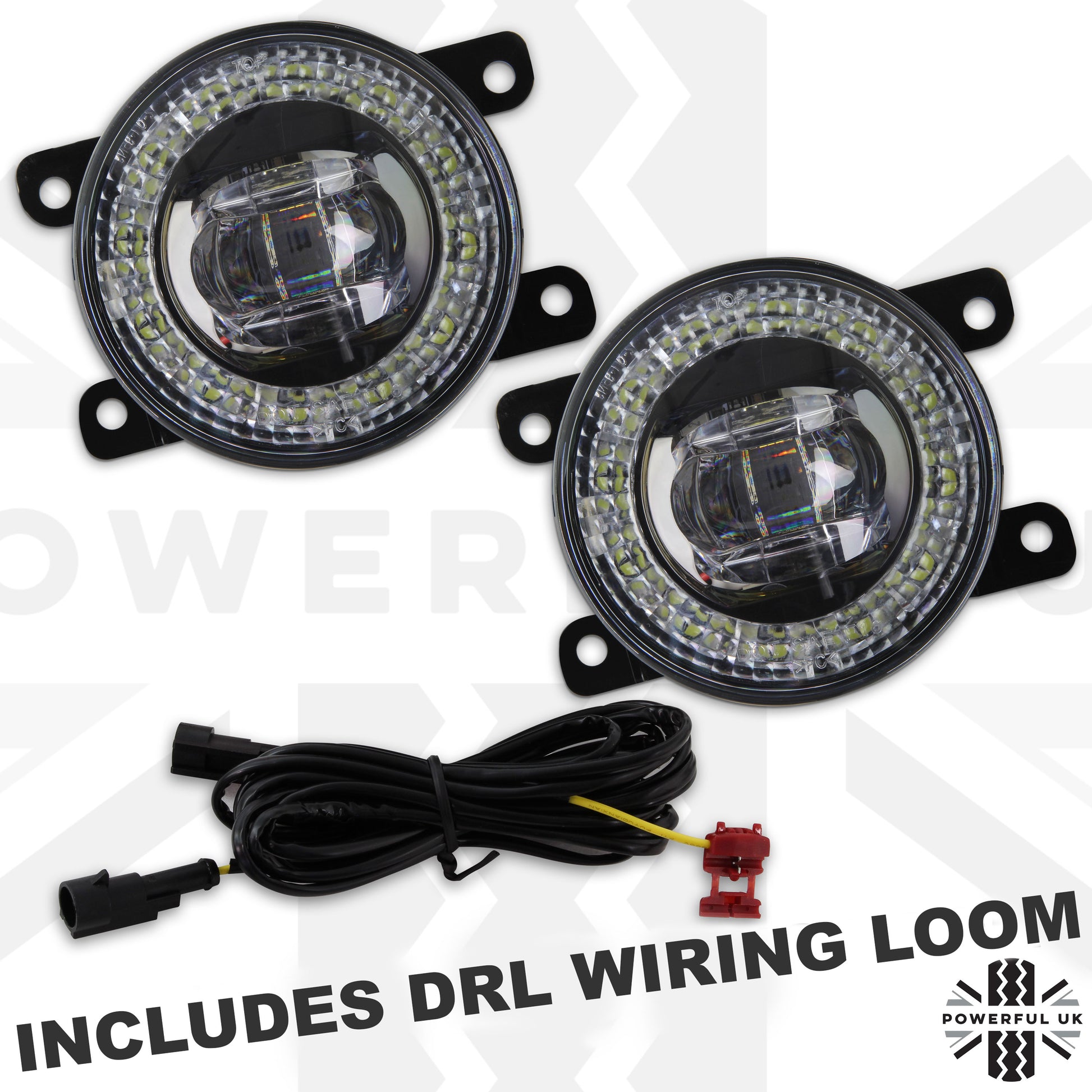

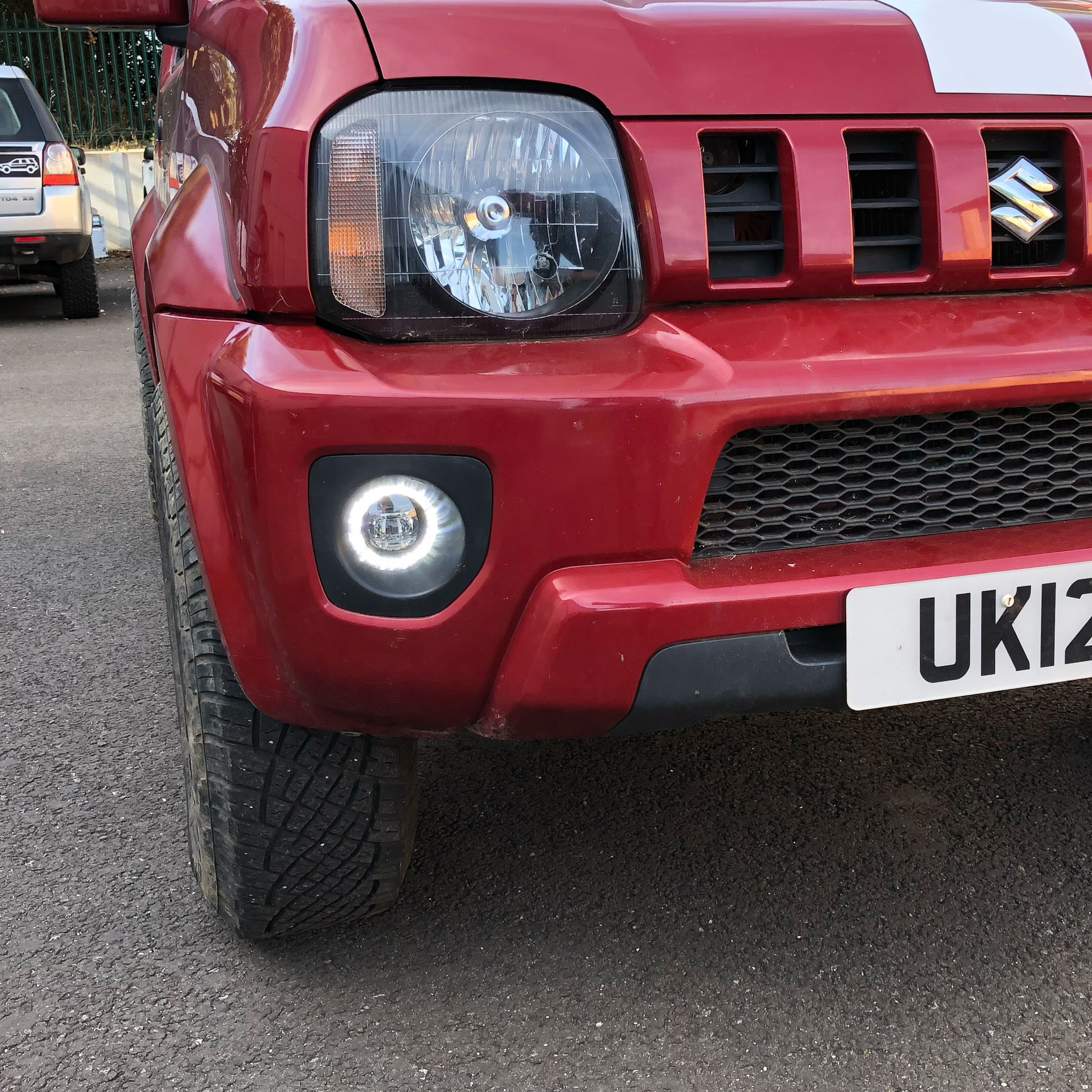

b) DRL LAMP - this is produced by the ring of LEDs around the outer edge of the lamp unit - this is connected using the wiring loom connected to an ignition live feed - see video.

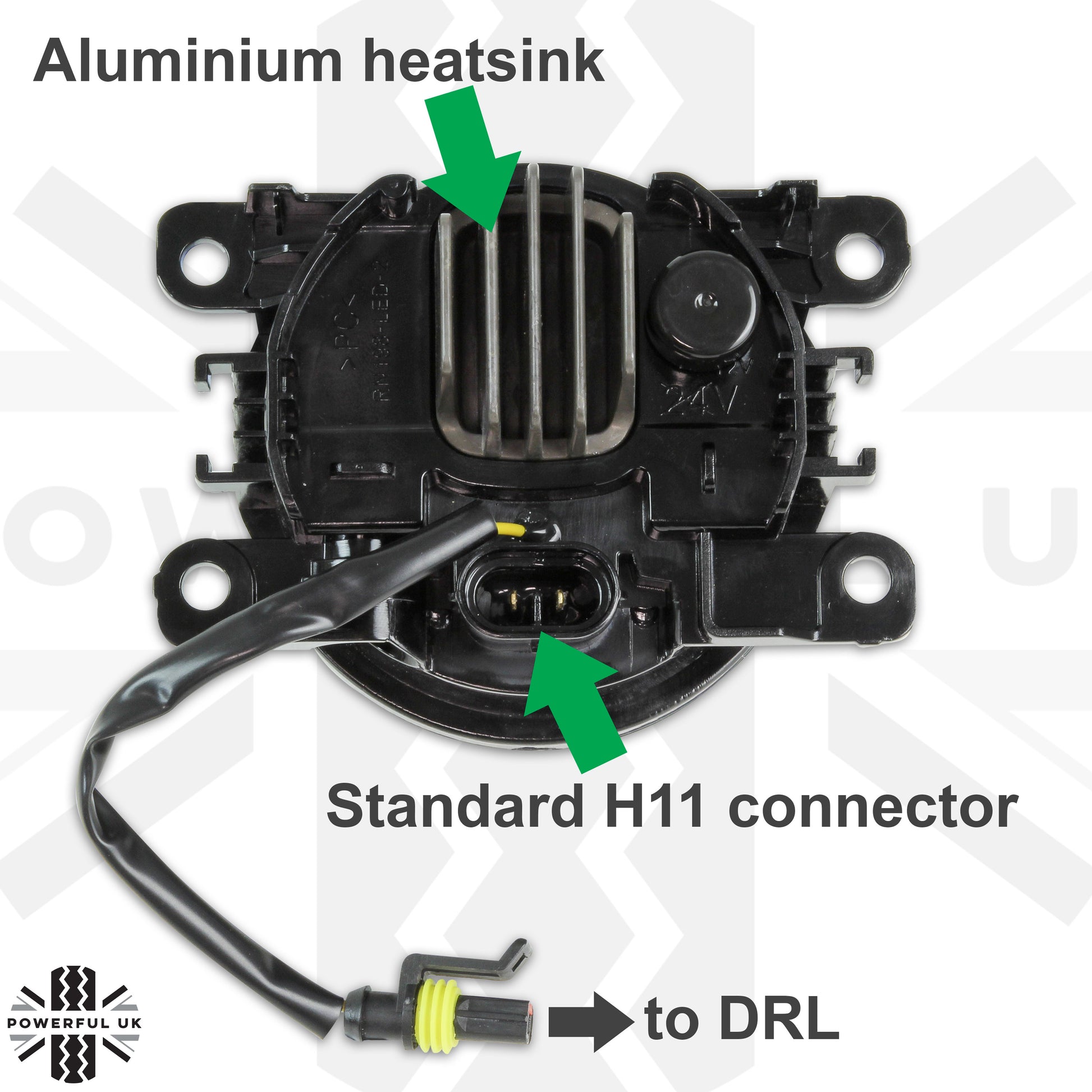

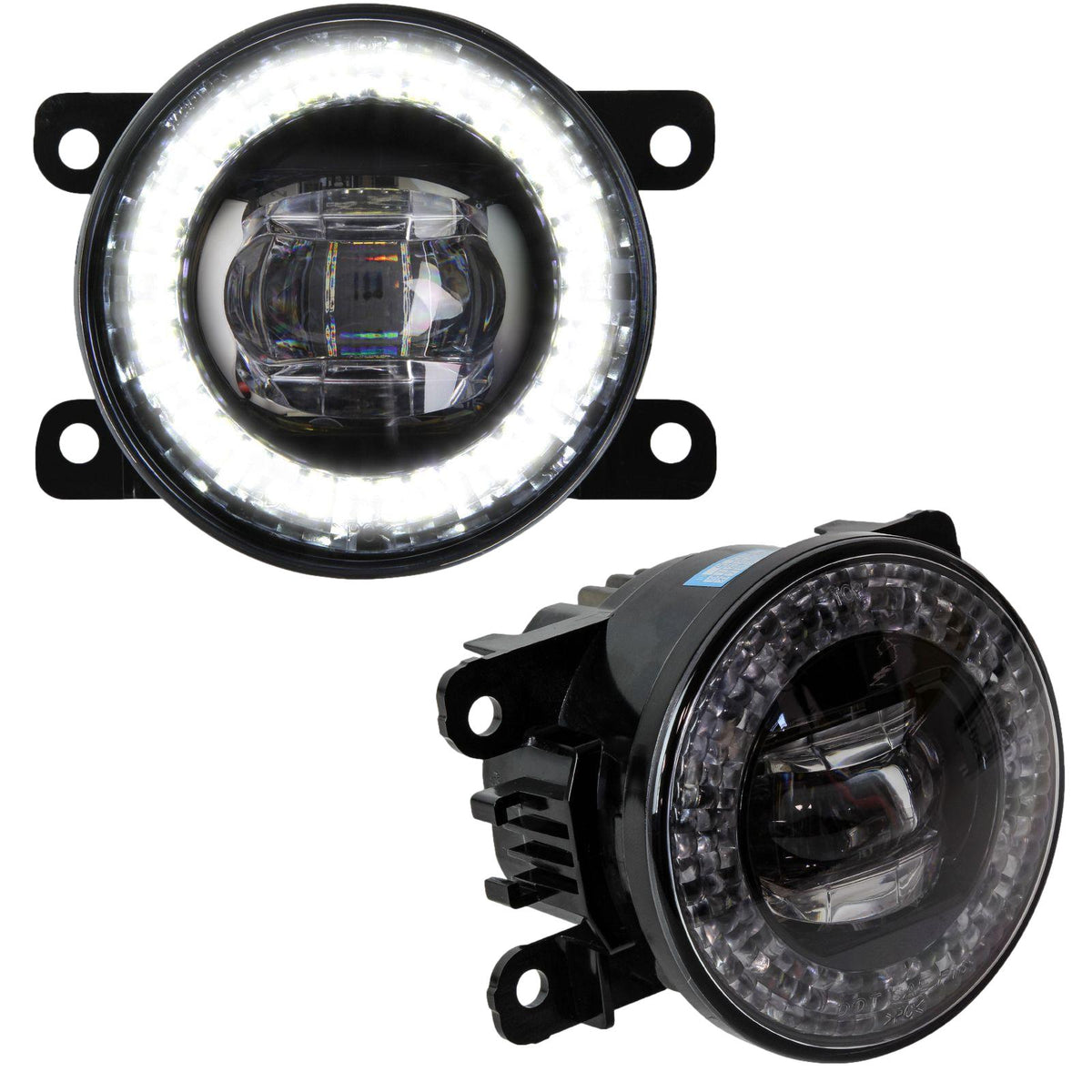

The light unit housing is made from plastic and has an aluminium finned heatsink to dissipate heat from the LED units.
These lights are also vented on the rear of the unit (to help prevent condensation) using a microscopic filter which keeps out dust/water.
The fog beam height is adjustable from underneath the light unit using a standard cross-head screwdriver.
There is a standard H11 connector on the rear of the light units so they are just plug and play installation for the FOG lamp function.
The DRL function requires just one wire connecting to a positive ignition feed.
Note: You should consider installing a DRL controller module which will dim the DRL when your headlights are on - these are cheaply available from eBay.

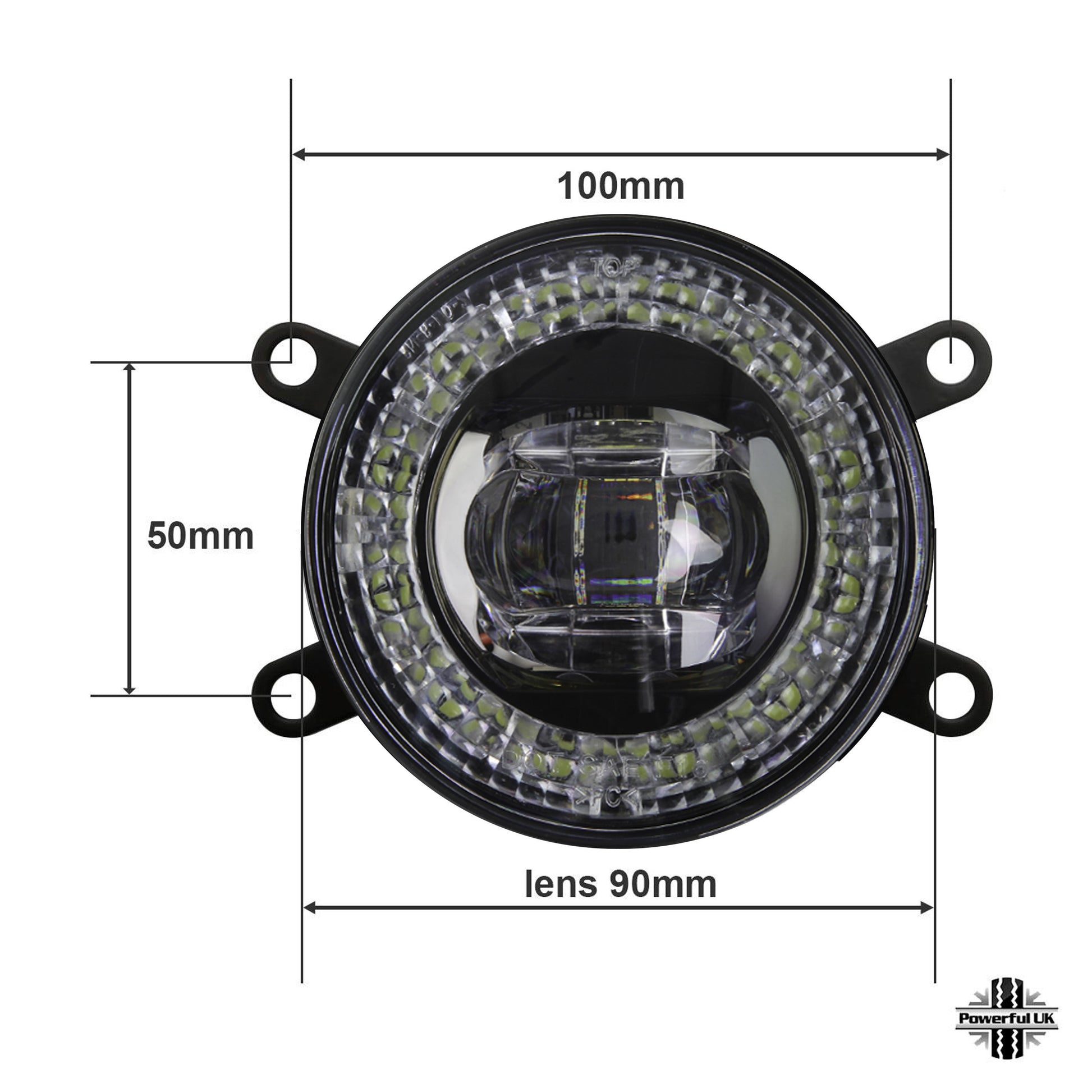

The approximate diameter of this lamp lens is 90mm across.
These units have a tough plastic lens that makes them less likely to crack than glass.
These lights are not E-Mark approved but will pass a UK MOT.
This is not a genuine Suzuki item.
Fitting details
See below video:
Which Vehicles will this fit ?

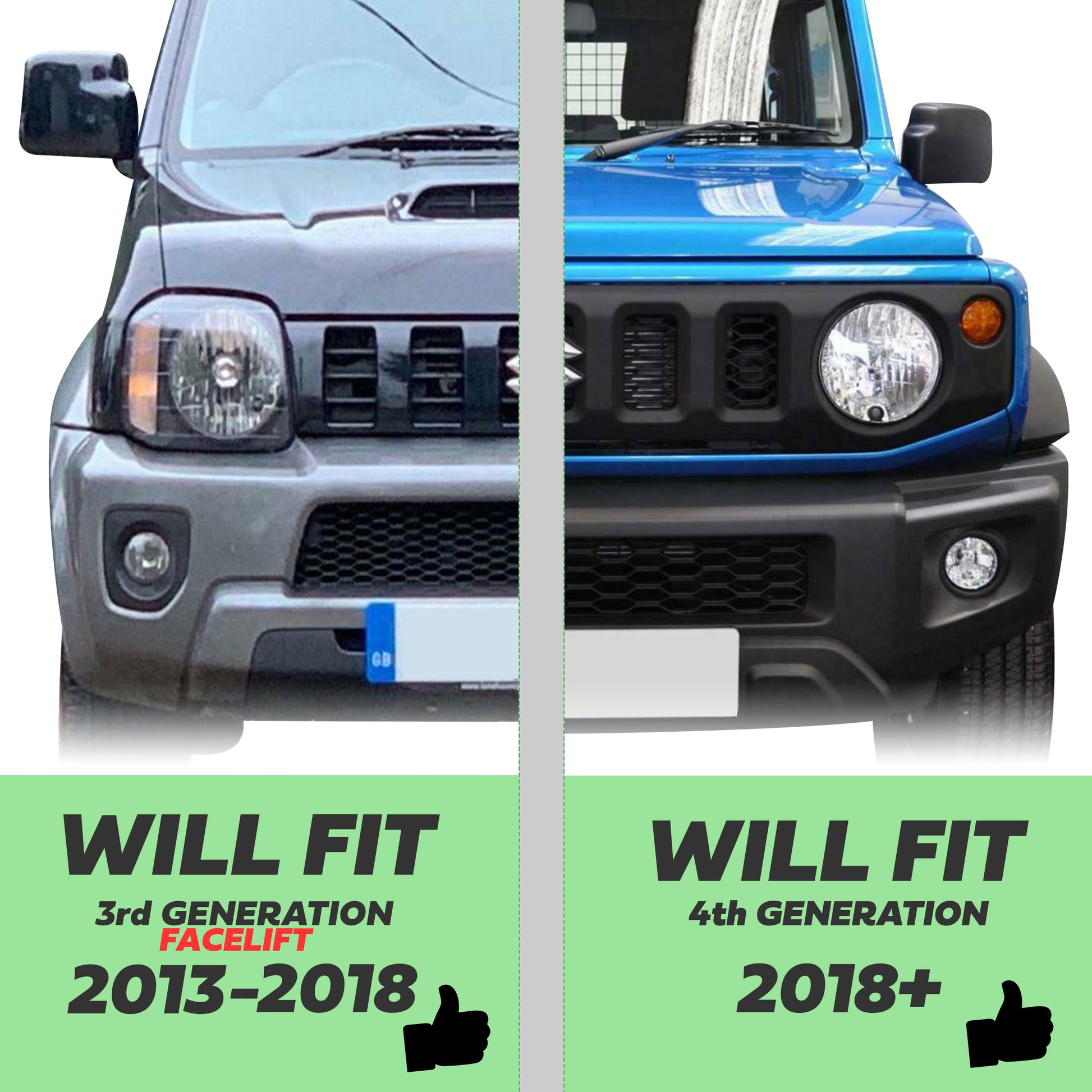

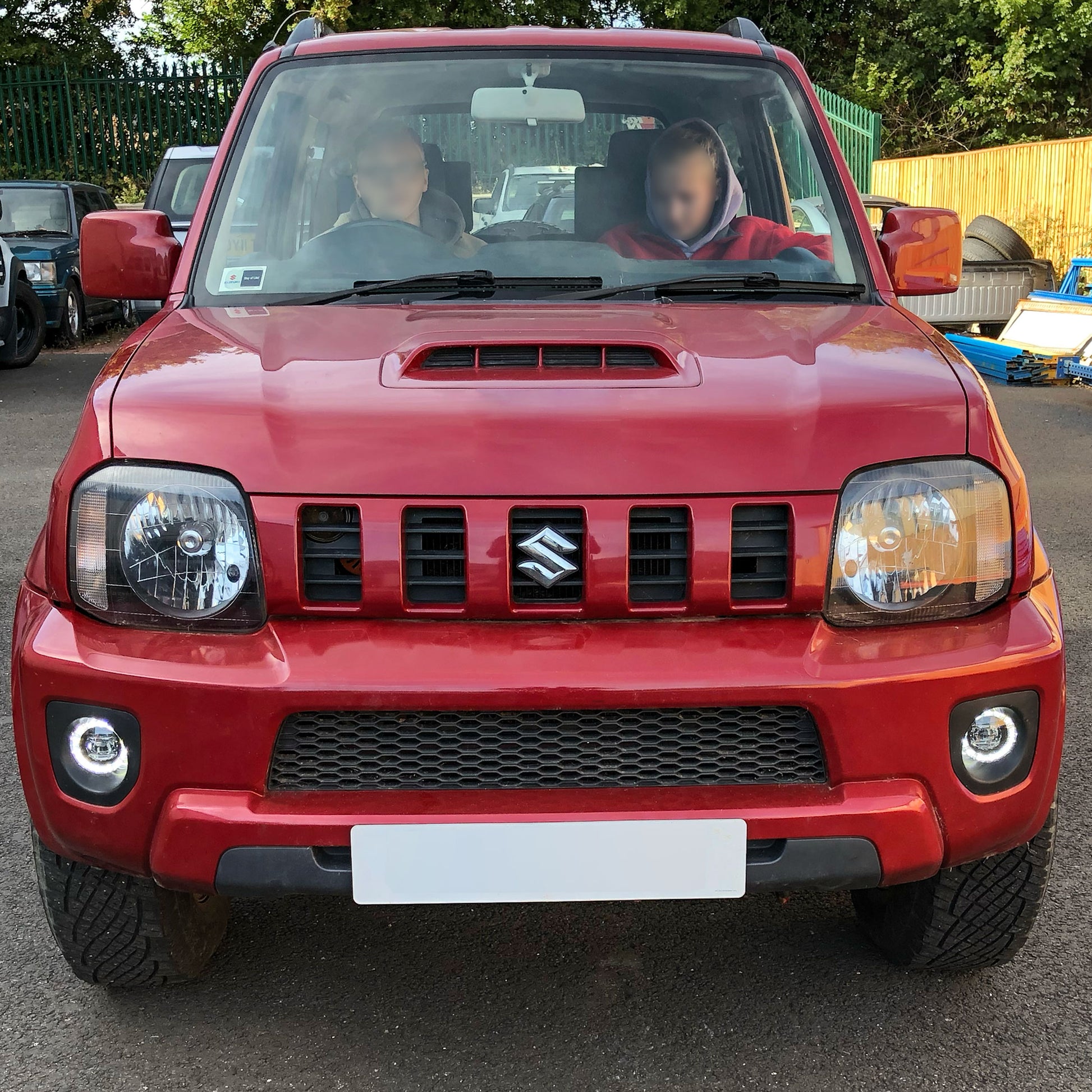

This item WILL fit the Suzuki Jimny 3rd Generation Facelift (2013 to 2018) and 4th Generation (2018 onwards) Models
