Rear Passenger Power Outlet Splitter Loom
for Land Rover Defender L663

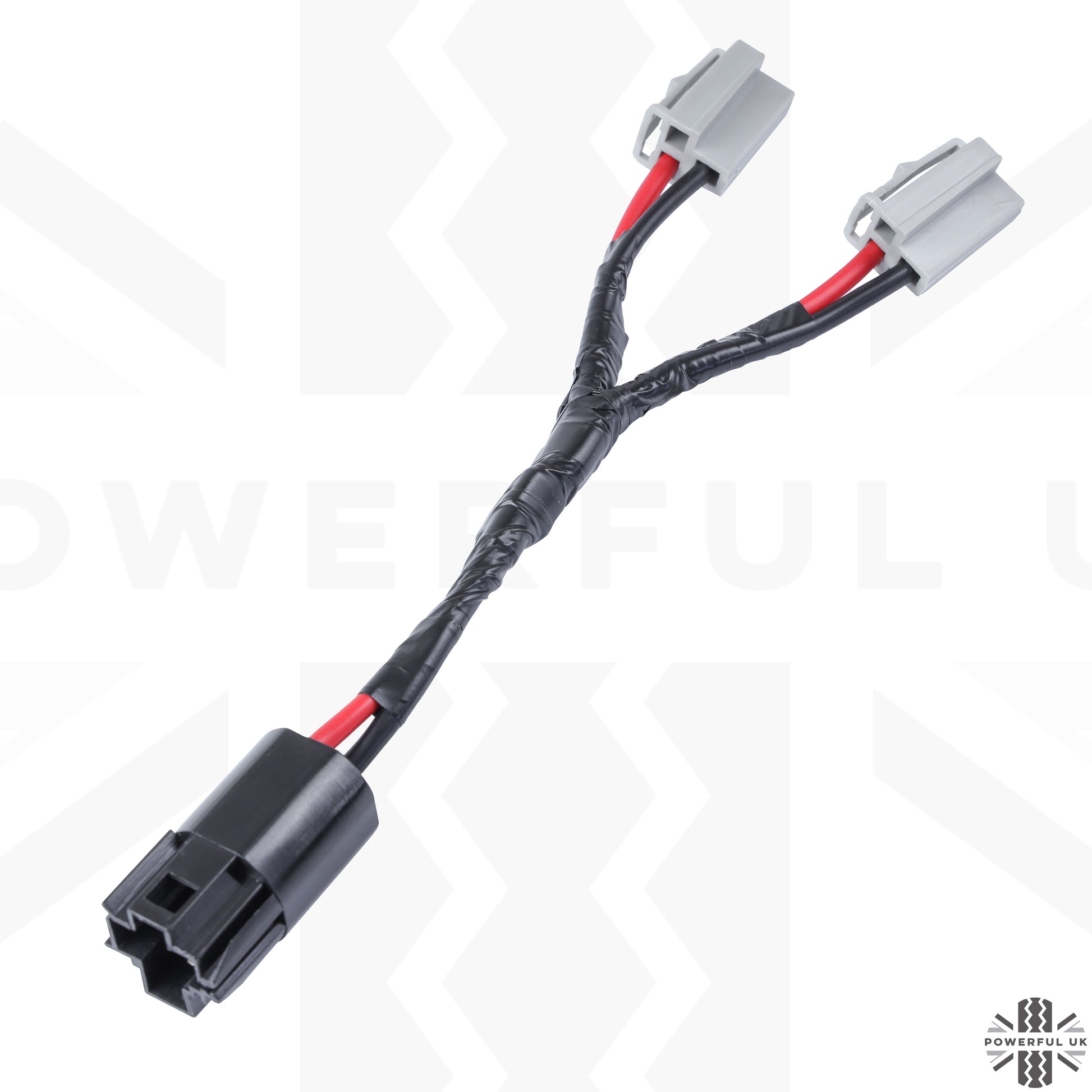

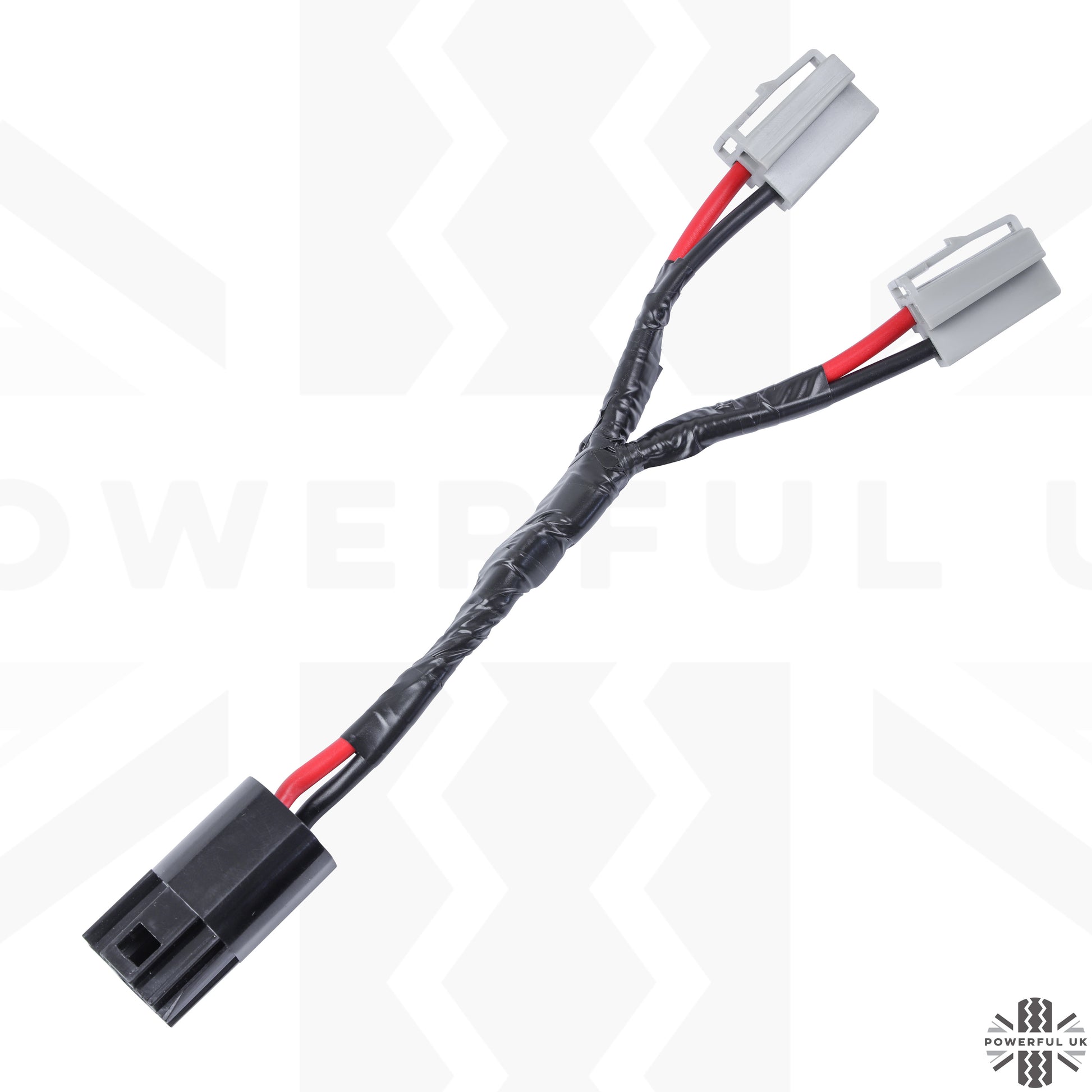

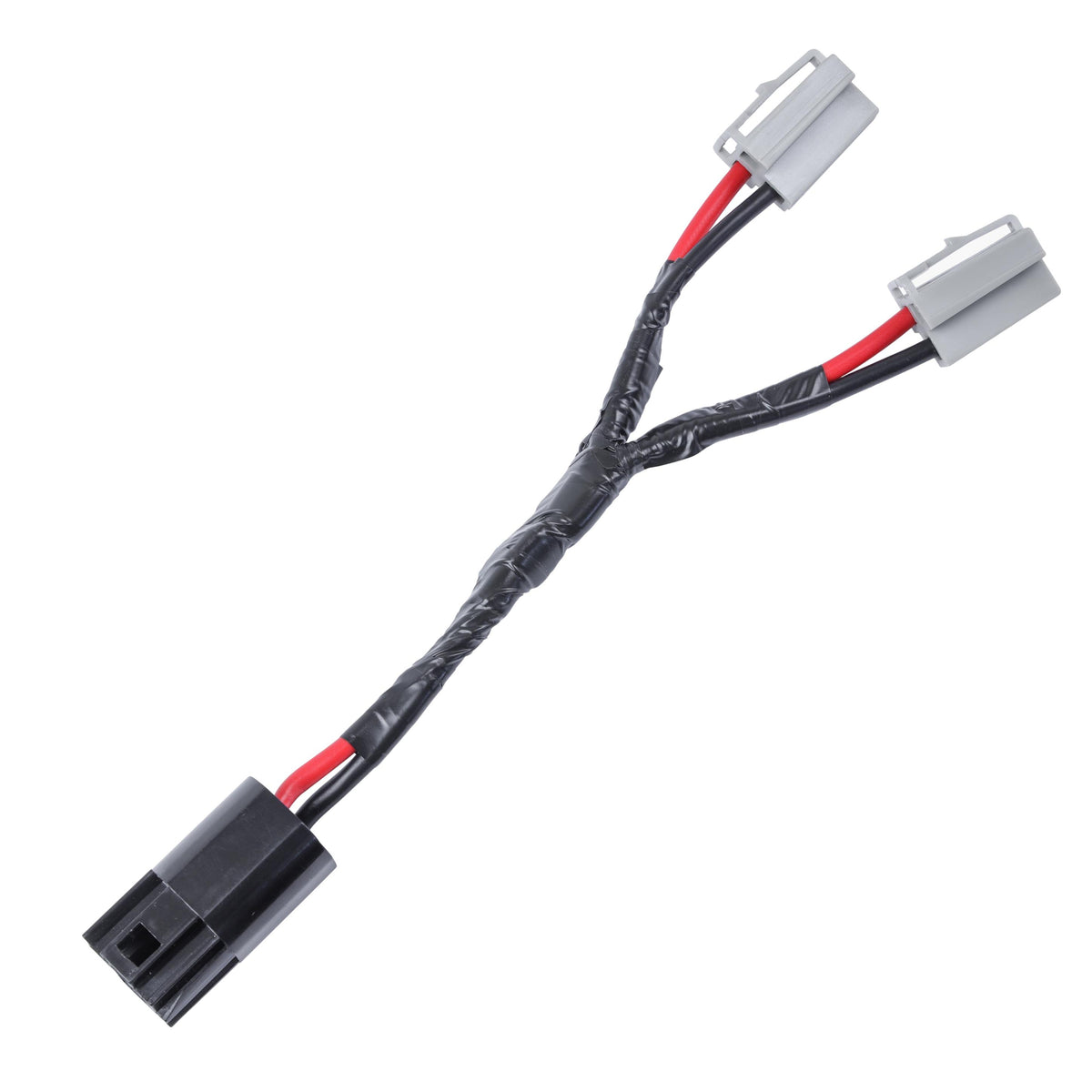

This listing is for a rear passenger power outlet splitter loom for the Land Rover Defender L663.

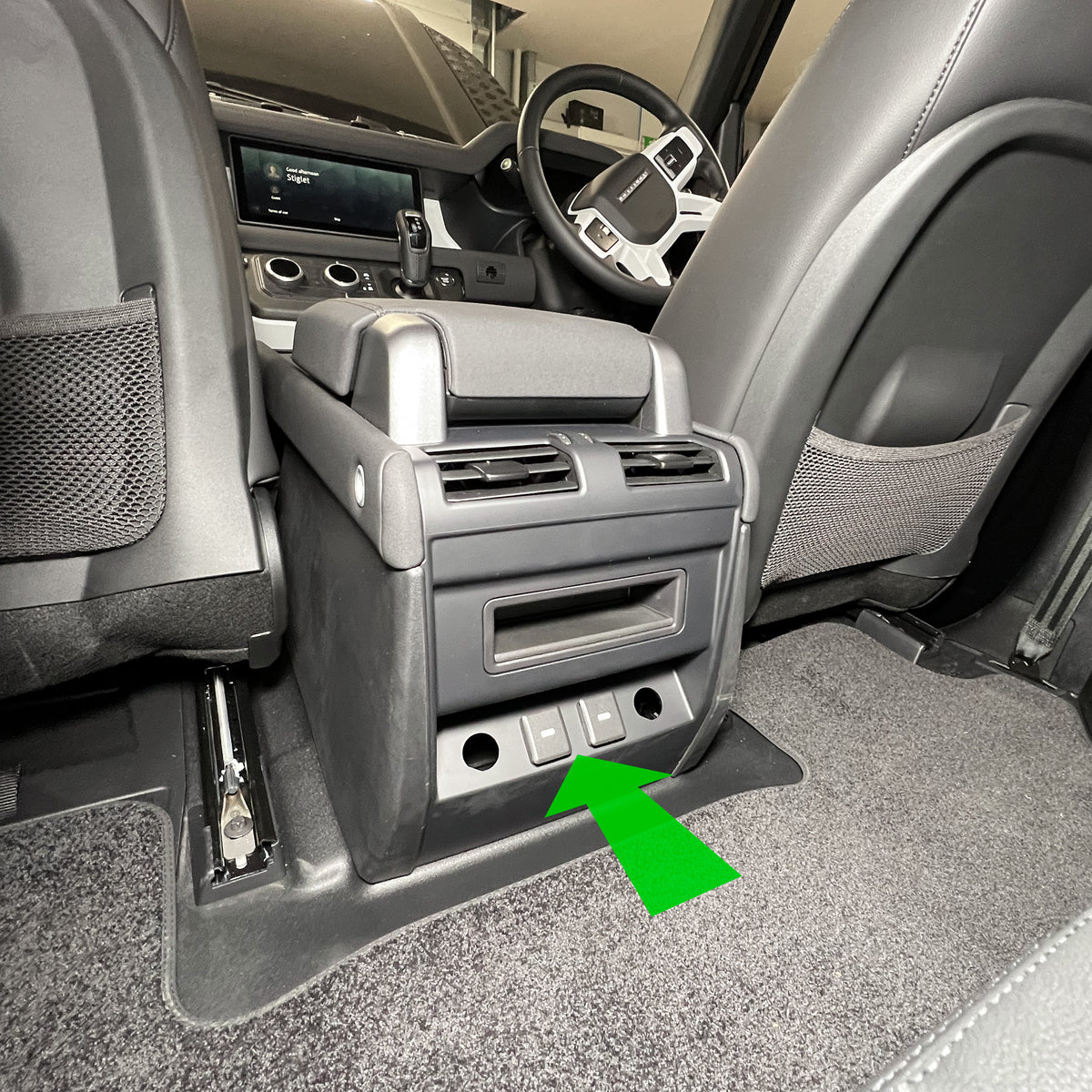

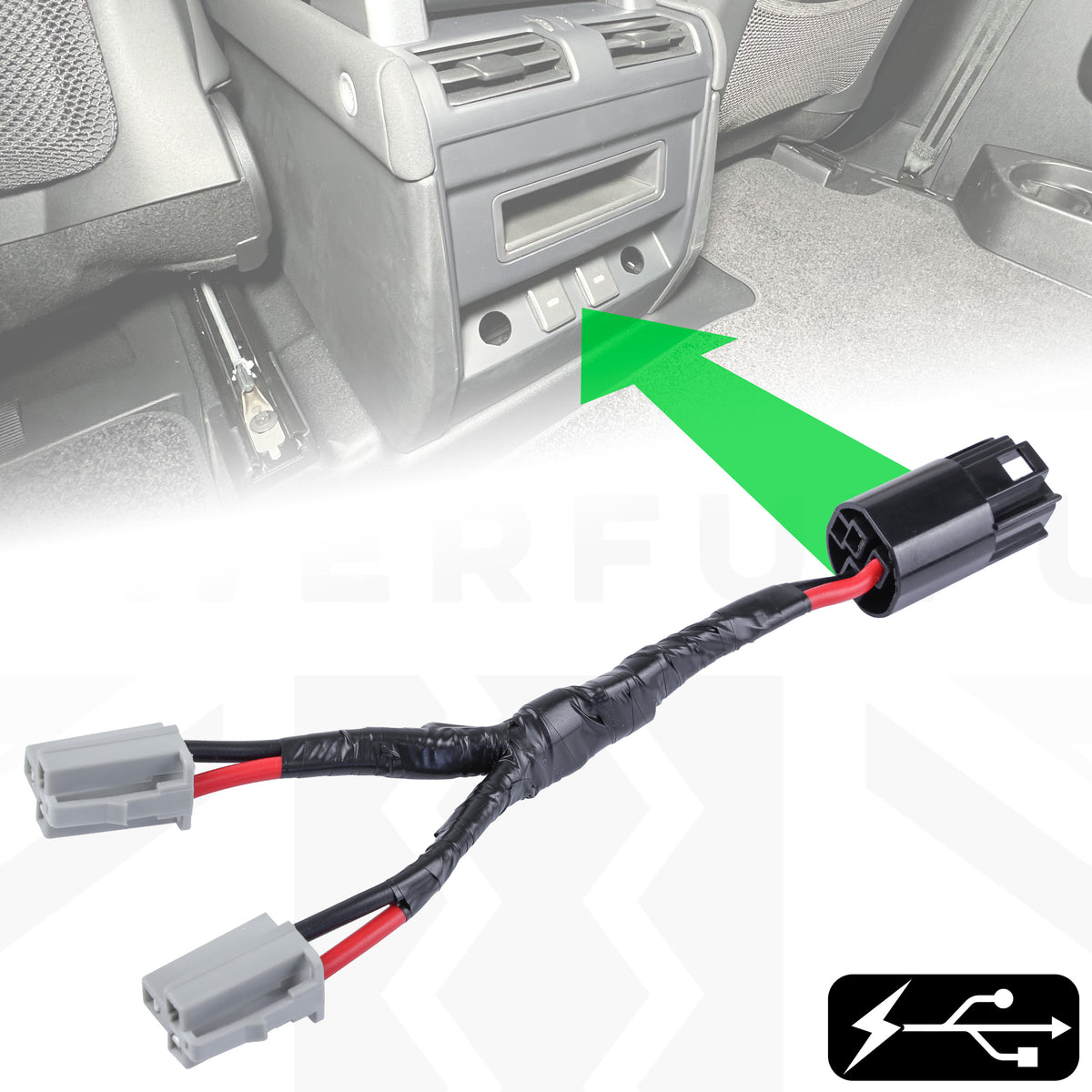

This loom can be used to retrofit an additional power outlet in the centre console for the rear passengers.
Depending on your model year you will have one of the following set-ups in the rear of the centre console:
- EARLY: 4 power outlets fitted from factory - Only early Defenders had 4 power outlets fitted
- LATER: 2 power outlets fitted from factory (+ 2 blanks) - with wiring in place to fit additional outlets
- LATEST: 2 power outlets fitted from factory (+ 2 blanks) - no wiring in place to fit additional looms - this is where you can use this splitter loom

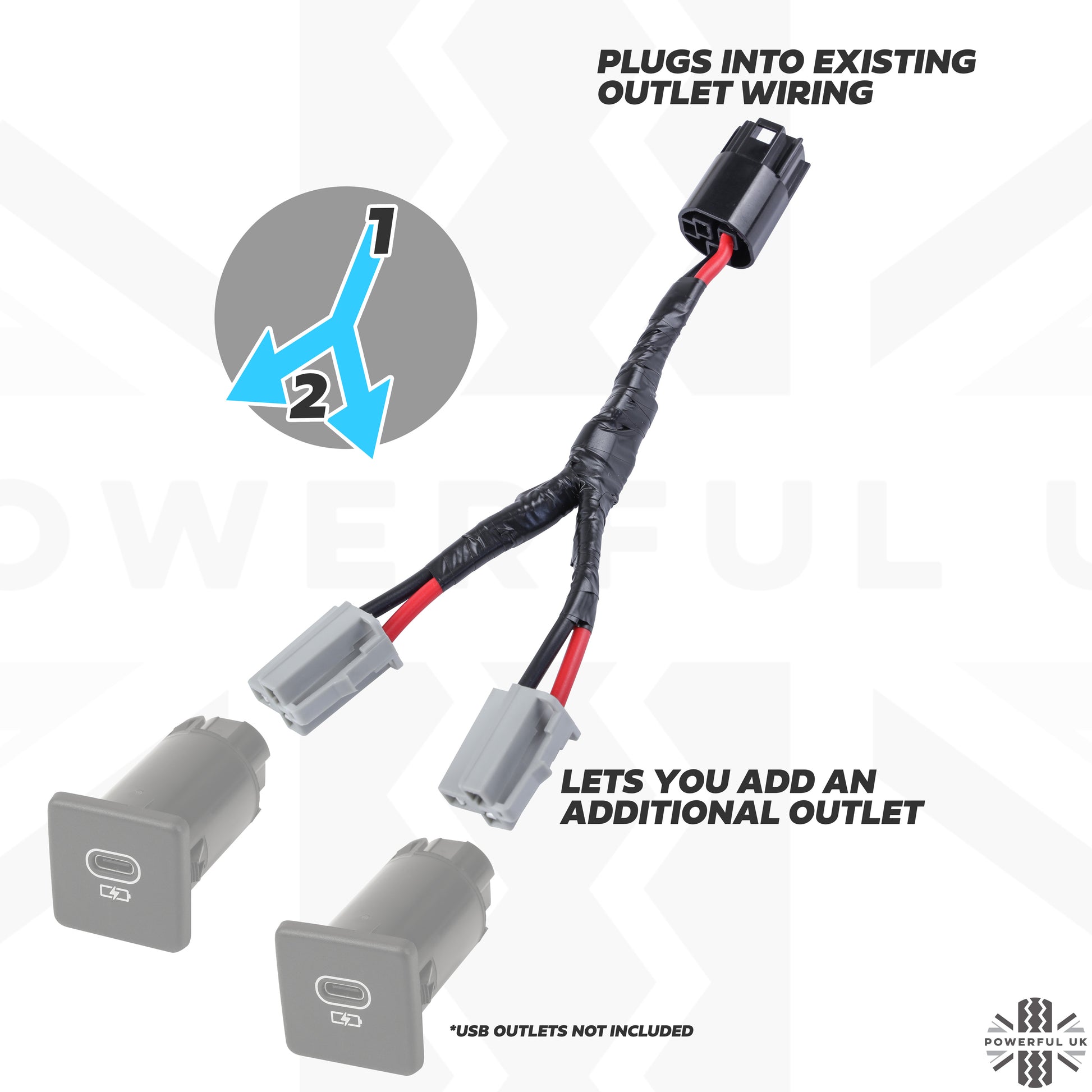

If you have a later model and do not have the wiring in place to plug in an additional outlet you can use this loom to split 1 into 2 and install an additional outlet.

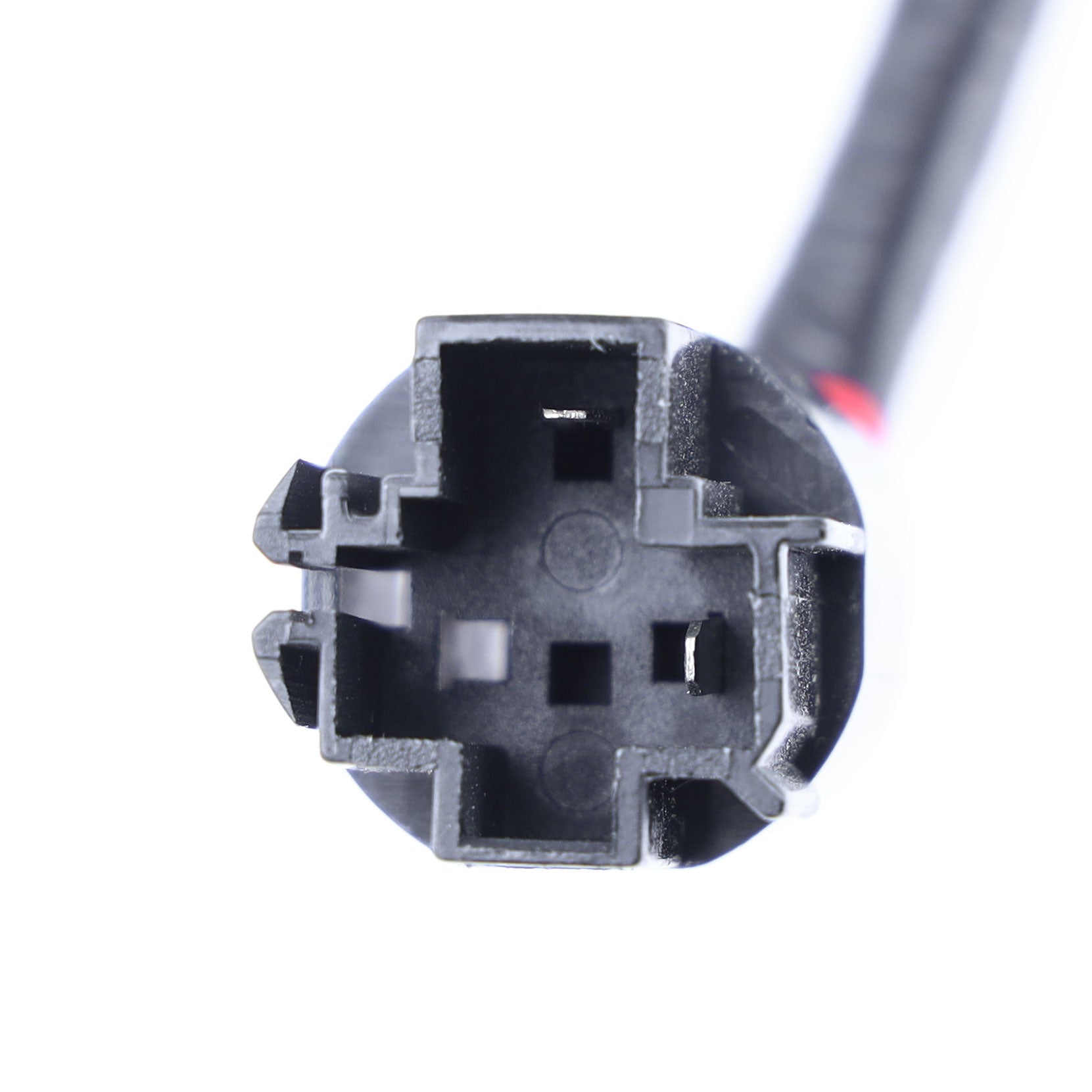

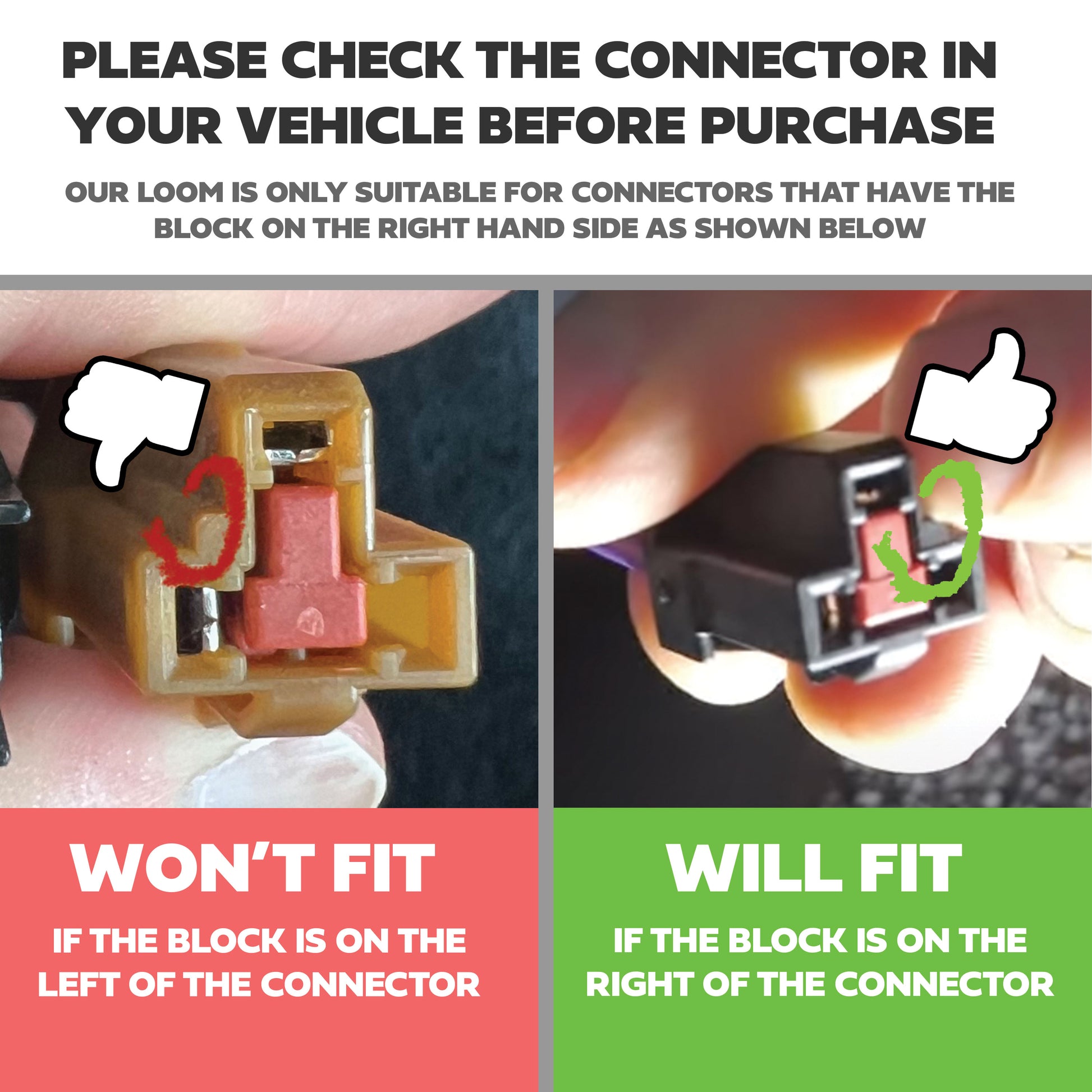

Note: Please ensure the connector in your vehicle has the block on the right hand side (this loom will not fit if the block is on the left) - see photos.
We also sell these looms as a pair (to enable you to install 2 additional outlets) - see our other listing.
We would not recommend fitting a cigarette lighter type outlet to avoid the risk of drawing too much current (the vehicle loom is fused anyway).
You can purchase additional USB-A or USB-C outlet from us - see our other listings.
If they are present, you may be able to fish the cables out without having the remove the fascia but we have made a video of the fascia removal process below if needed.
This is not a genuine Land Rover accessory.
Fitting details
See below video where we remove the rear
passenger console fascia:
Removing the rear passenger console fascia in the Land Rover Defender L663 - YouTube
Video will open in a new window
Which Vehicles will this fit ?
This item WILL fit the Land Rover Defender L663 - please ensure your connector is compatible before purchase - see photos
