16 Way Headlight Connectors for Range Rover L322 2010 models (Pair)Part number: RRC308-PAIR
Range Rover Late Type Headlight Connectors (PAIR)
for Range Rover L322 2010
These are the 16 way connectors you need to
convert your 2003 -2005 Range Rover L322 to the newer 2010 headlights.
Note: If you have a 2005 -09 model L322 the connectors are the same as the 2010 on headlights although the wiring configuration is different. We do sell a plug and play loom to convert 2006 vehicles to 2010 headlights (see our other items RRC209).

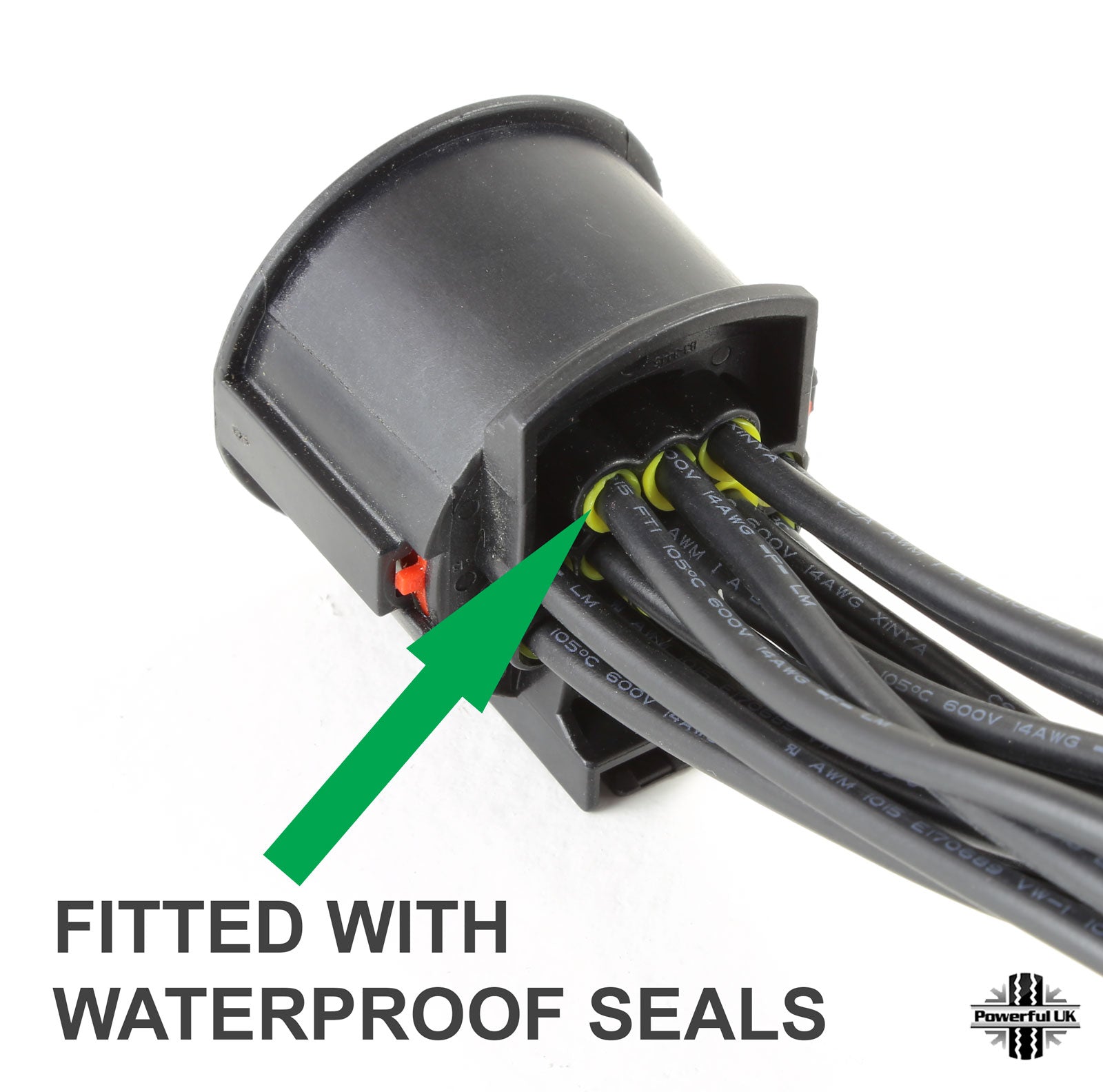

These connectors have the correct wires fitted to the connectors and have water proof seals fitted around the wires.
These looms have been specially made for us.
These connectors will plug into the back of Range Rover L322 ( vogue shape ) 2010 onwards headlights.
There are other similar connectors for sale on eBay but be careful as these are supplied as a kit of parts and unless you are good with a soldering iron you will be there for hours.

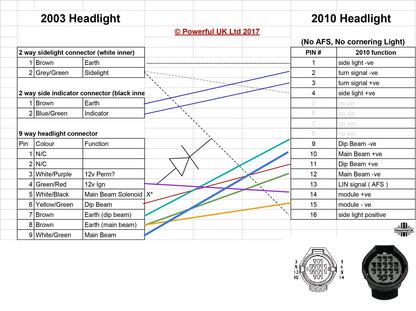

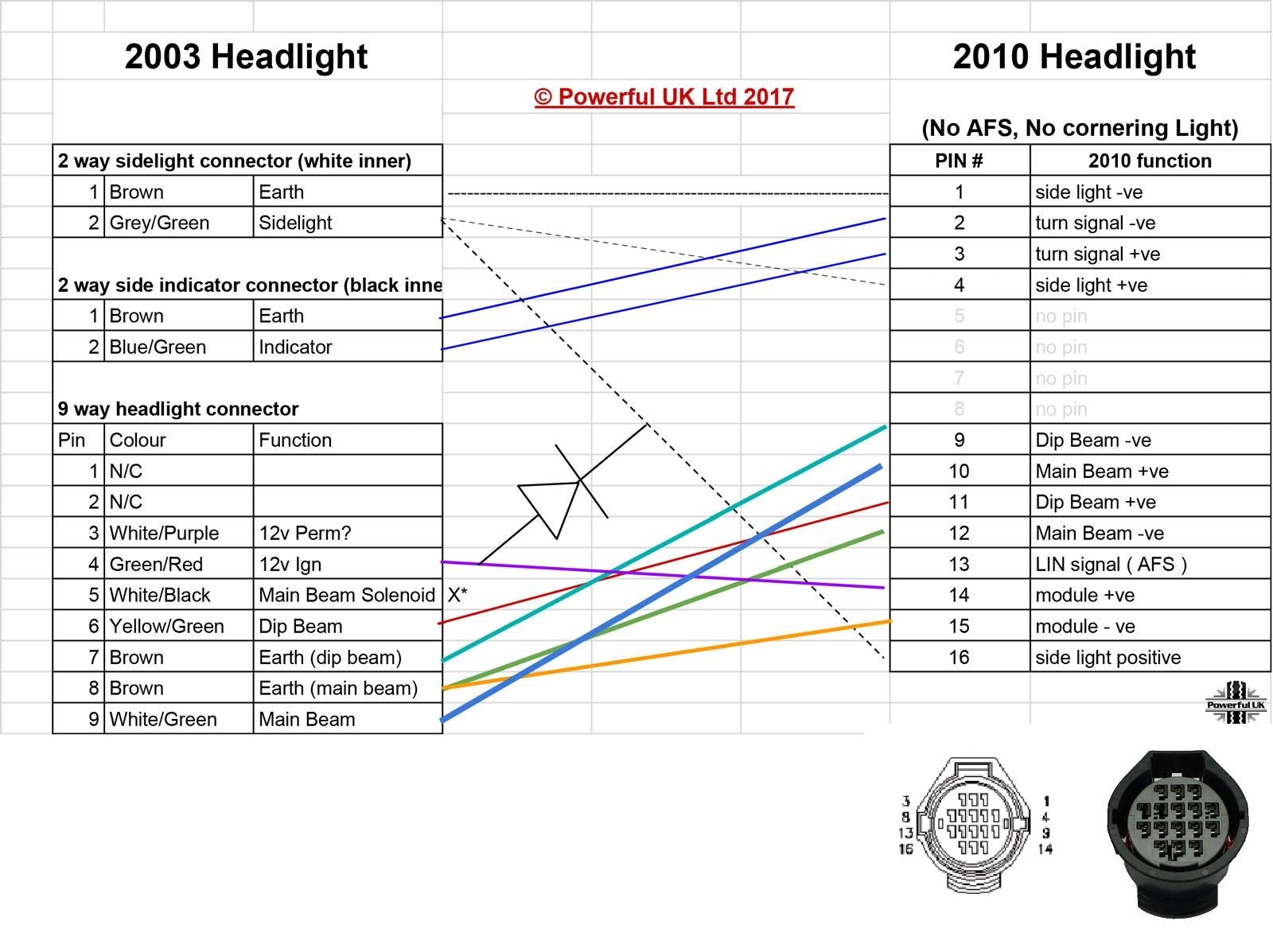

See below wiring configuration we have used - please note this is for guidance only and we will not accept any responsibility for loss or damage resulting from using this guide.
Note: All 16 cavities of this connector are populated with pins and wires to allow you to use these in any application.

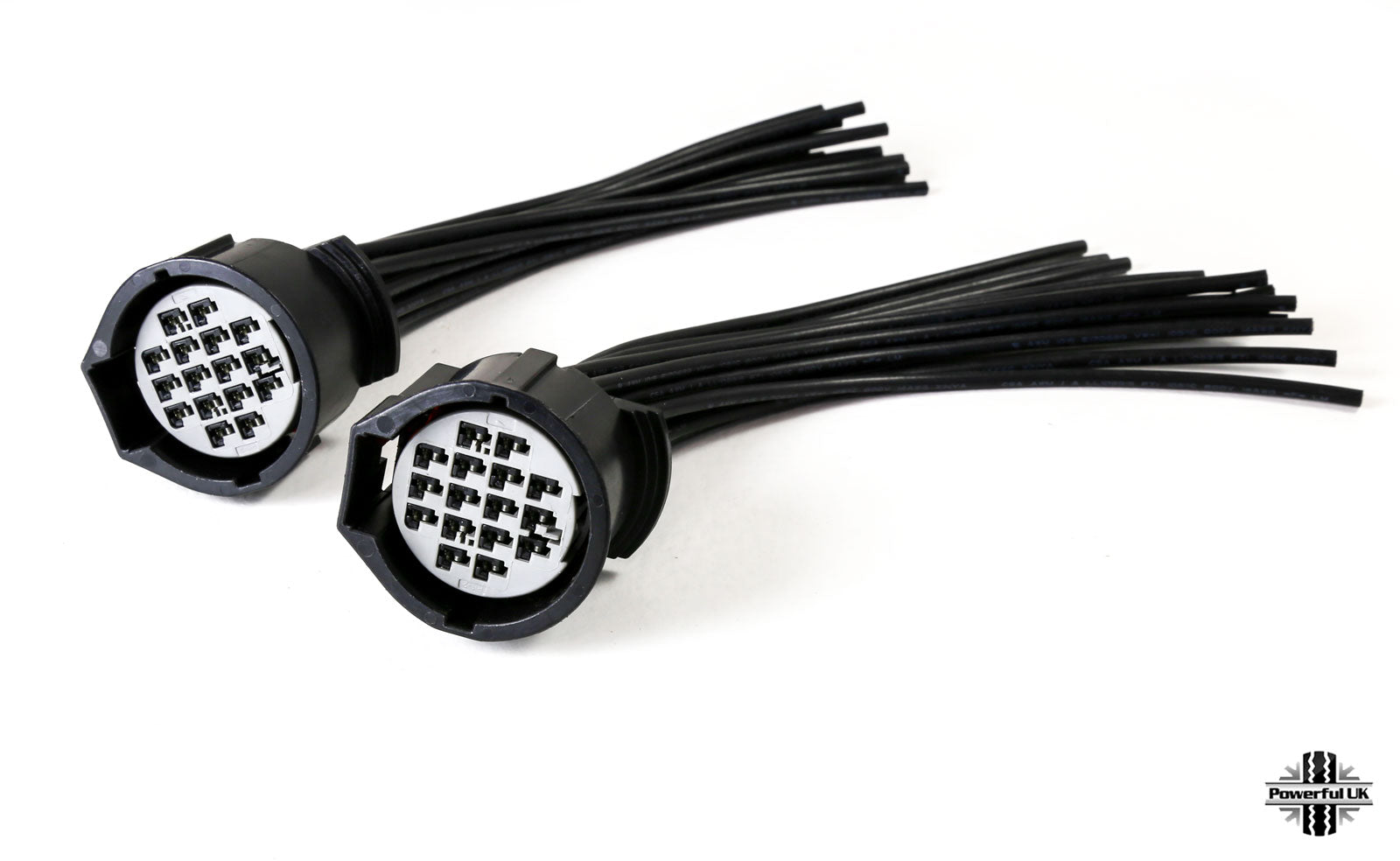

This listing is for a pair of headlight connectors, each pre assembled with 180mm of wire and pre fitted waterproof connectors.

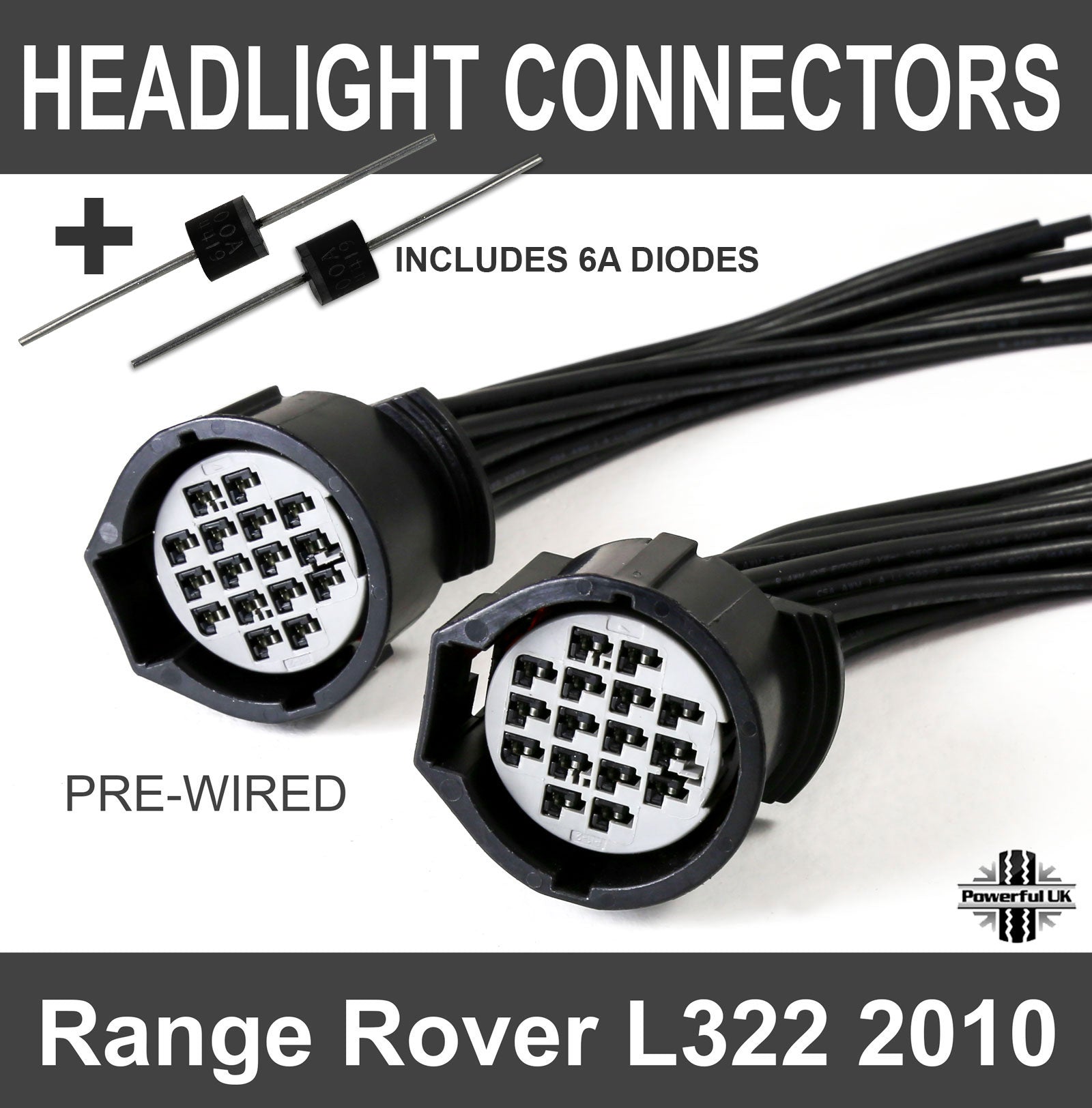

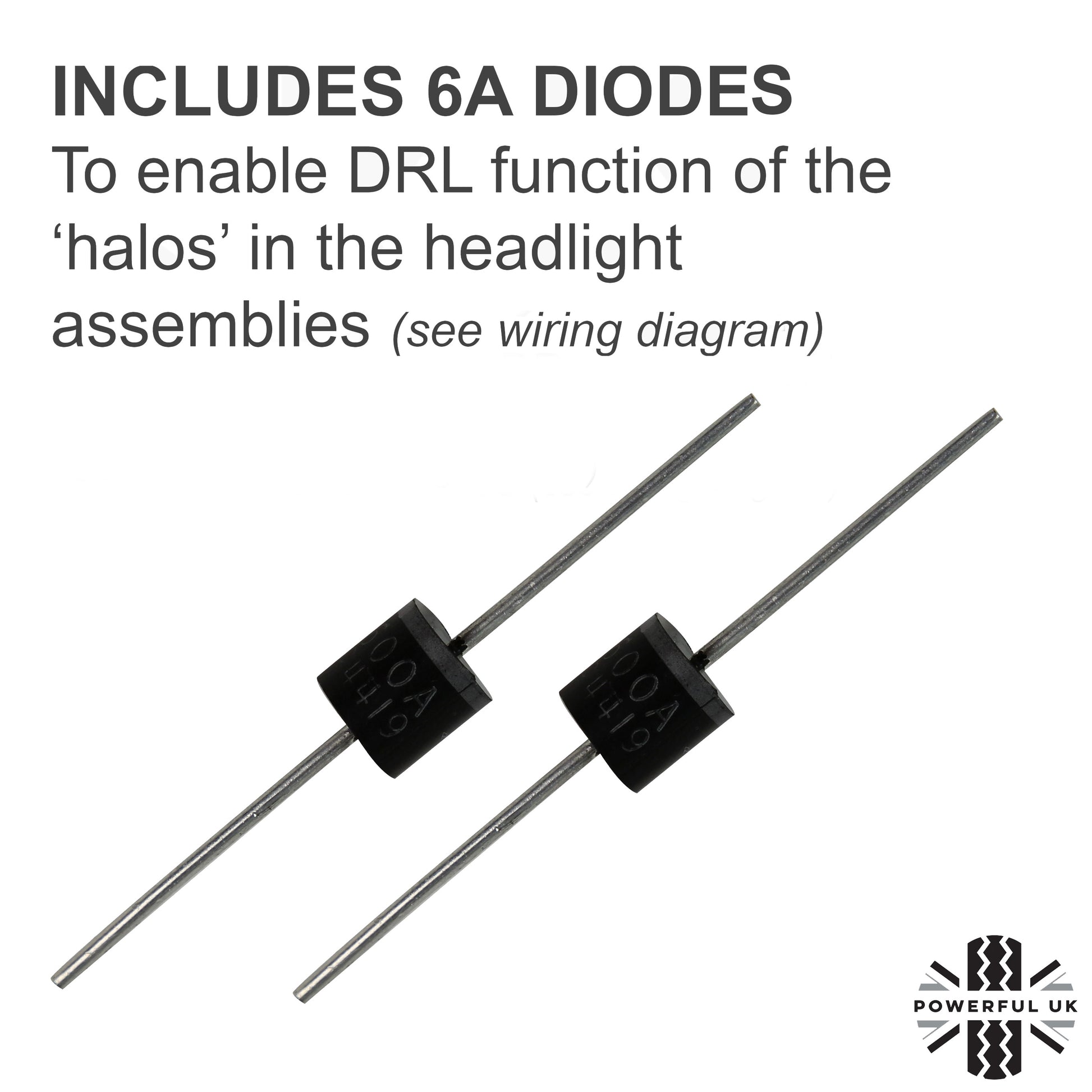

This listing includes 2 x 6a diodes to enable to DRL function of the 'halos' in the headlight assemblies.
What we are in effect supplying here is the end of the car wiring loom from a 2010 onwards Range Rover L322 .
These are not available to purchase from Land Rover - they will only sell you the loom for £100's !
These are not genuine Land Rover parts.
