Tow Bar Overhaul Kit + lock & keys - 41mm Small Type (early) for Range Rover Sport L320

Tow Hitch Overhaul Kit

Small Type ( EARLY )

for Range Rover Sport L320

This is an overhaul kit for the tow hitch on your Range Rover Sport L320 (2005 -2013 ... please read below as you could have an early car with later tow hook as they are interchangeable ).

The internal locking mechanics in the removable tow hitches become corroded, stiff or seized - this kit will allow you to recondition your tow hitch to its former glory!

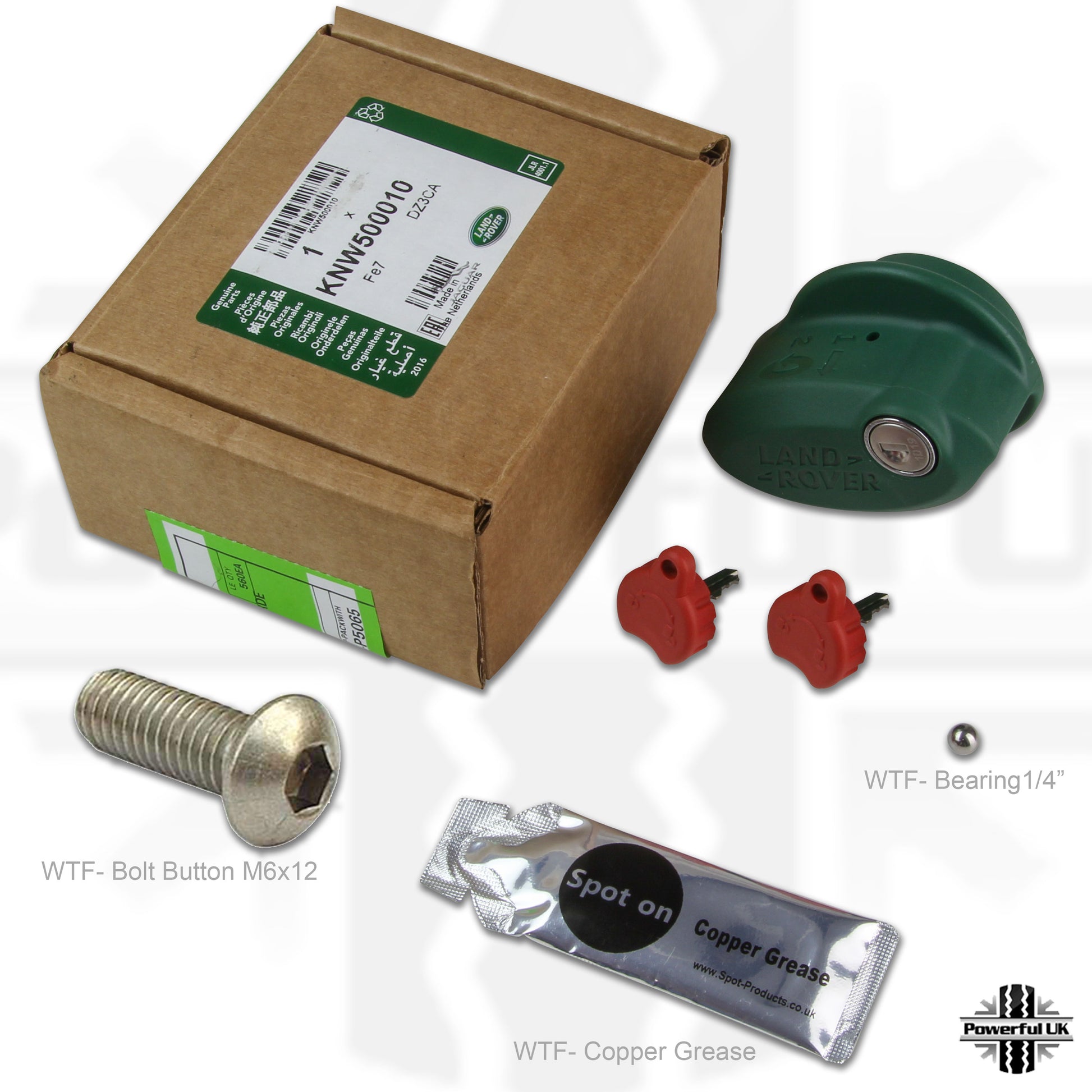

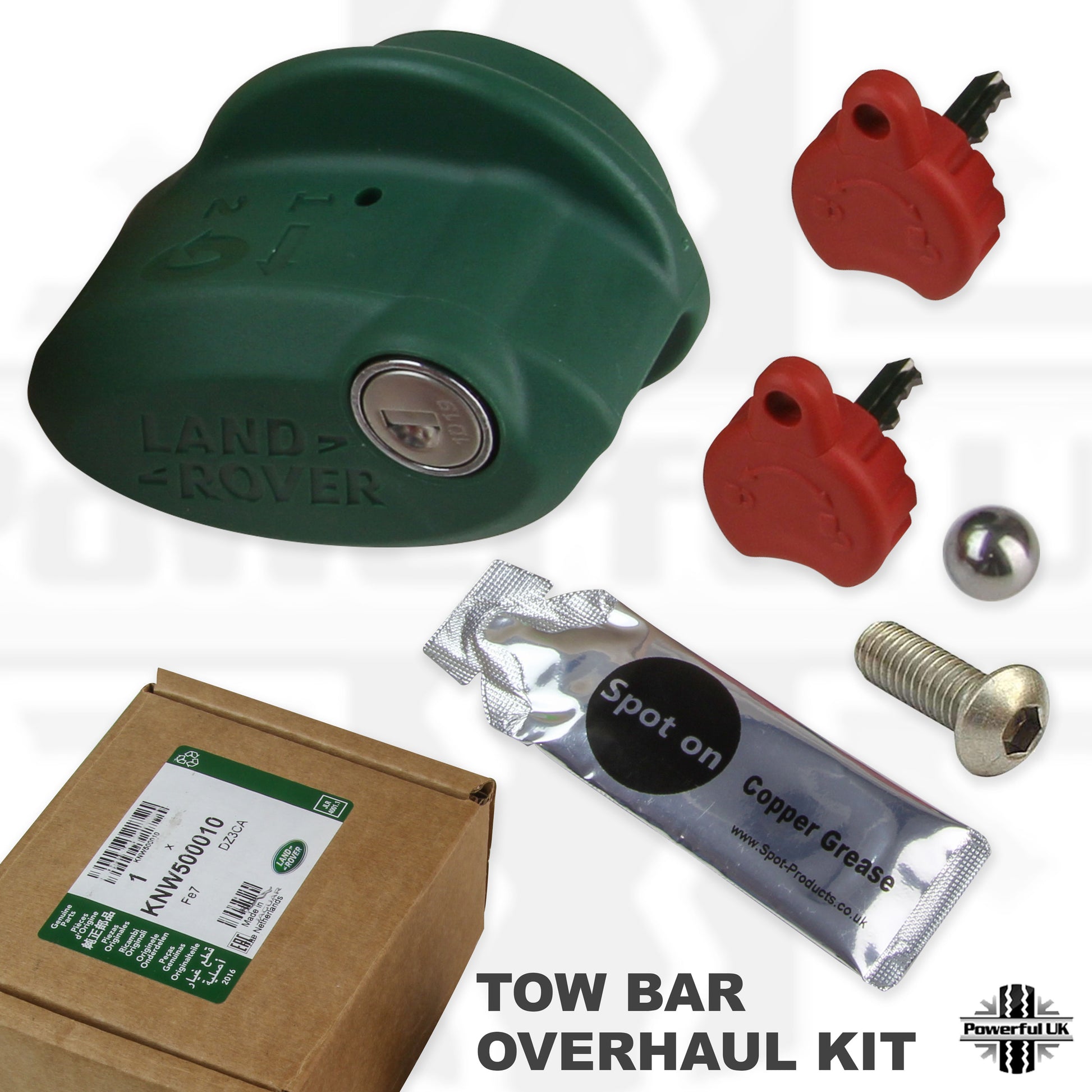

Included in the kit is:

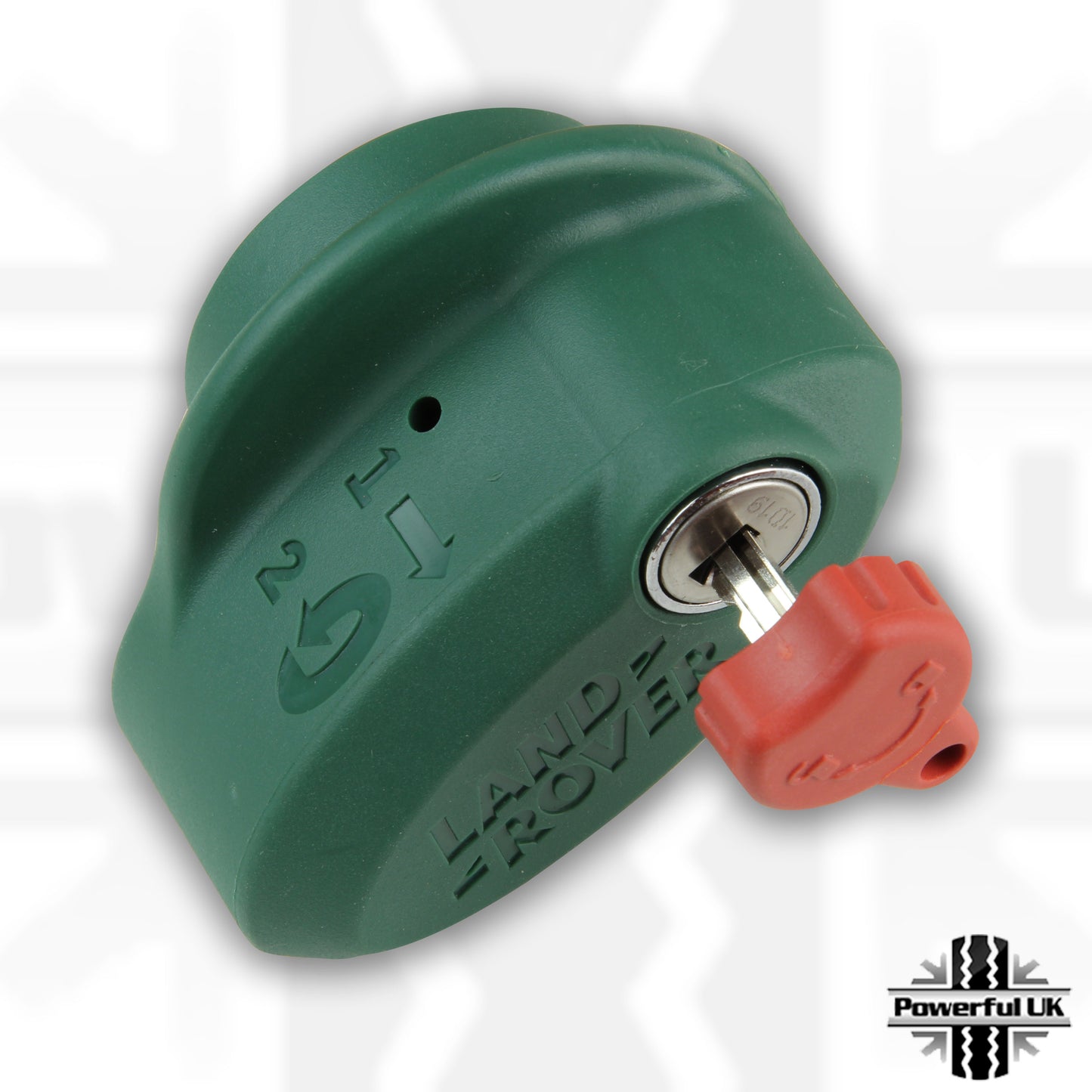

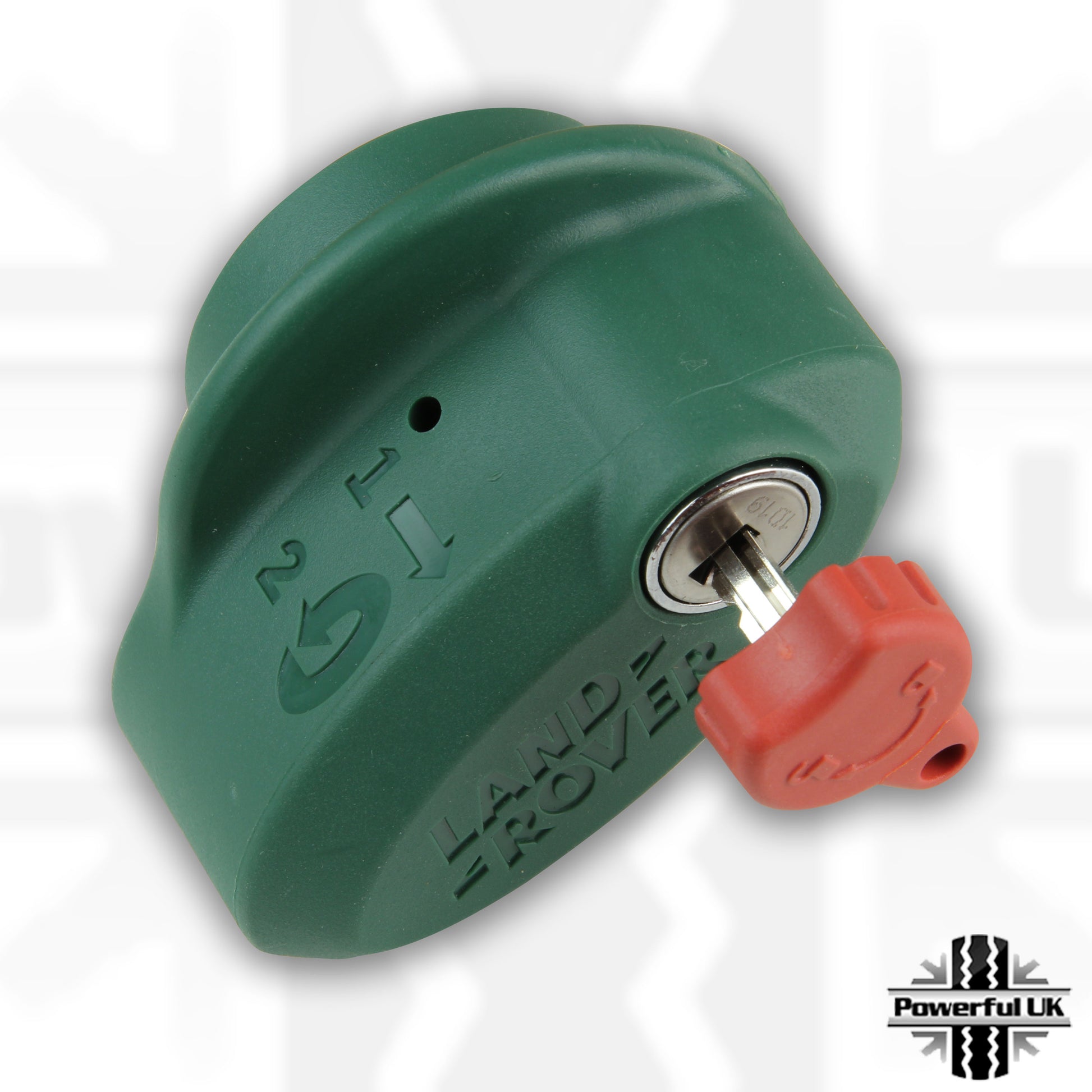

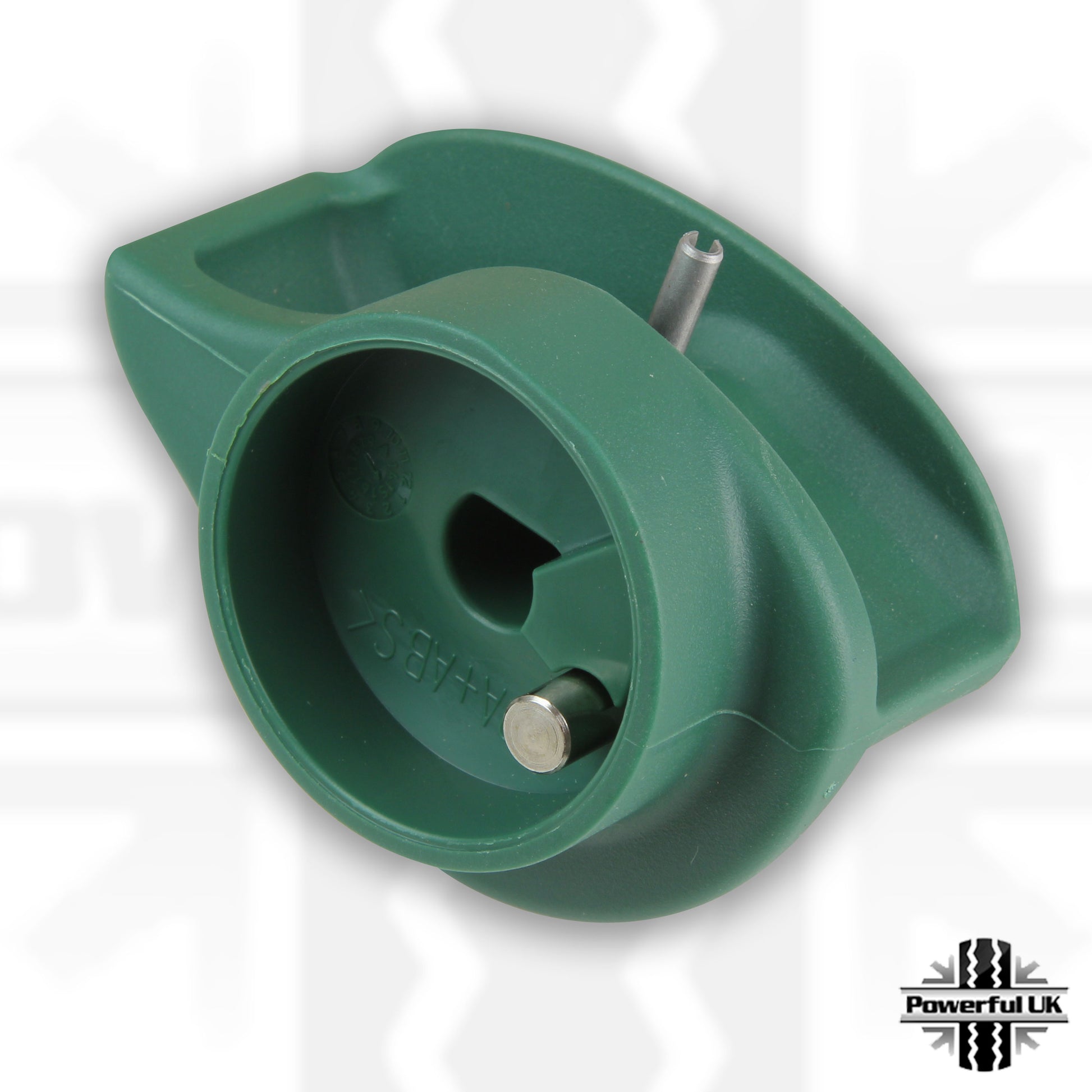

1 x Lock assembly (Small Type) with 2 keys (Genuine Land Rover item KNW500010)
1 x Copper grease sachet
1 x Steel ball bearing
1 x Button bolt

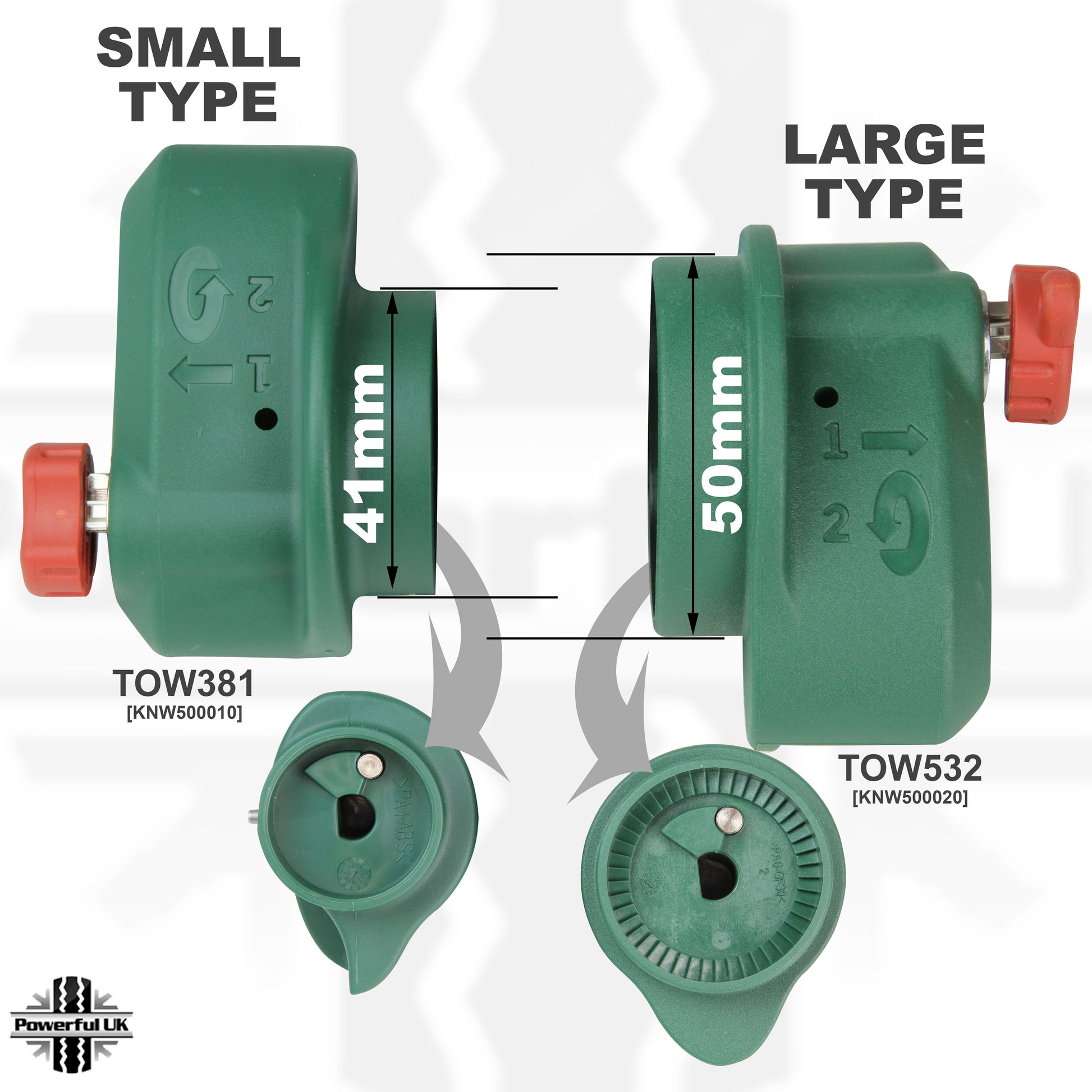

Please note: There are 2 type of lock assembly that are fitted to the Range Rover Sport - small type or large type [ This listing is the SMALL types ] . Please check which you have before ordering (see photos).

Also note that the small type locking mechanism does not have a "rachet" inside so does not "click" as you twist it.

Although the tow bars are listed as "early" and "late" type the only change is the lock mechanism plastics - you can use either tow hook on all Range Rover Sport models from 2005 -2012.

Note: If you have the small type lock you are actually able to upgrade to the large type by purchasing TOW608 (large cog) and TOW532 (large lock).

See below video showing you the overhaul process step-by-step.

If there is any damage to your tow bar / mechanism you should not use it - serious damage can arise from using a faulty tow bar !

NOTE: If your tow hitch is difficult to remove from your vehicle see part number TOW258 -Tool for a removal tool.

Fitting details

See below video

Which Vehicles will this fit ?

This item WILL fit Range Rover Sport L320 (all models from 2005 -2013) with the 'Small type' lock fitted (see photos).

This item WILL NOT fit Range Rover Sport L320 (all models from 2005 -2013) with the 'Large type' lock fitted (see photos).
