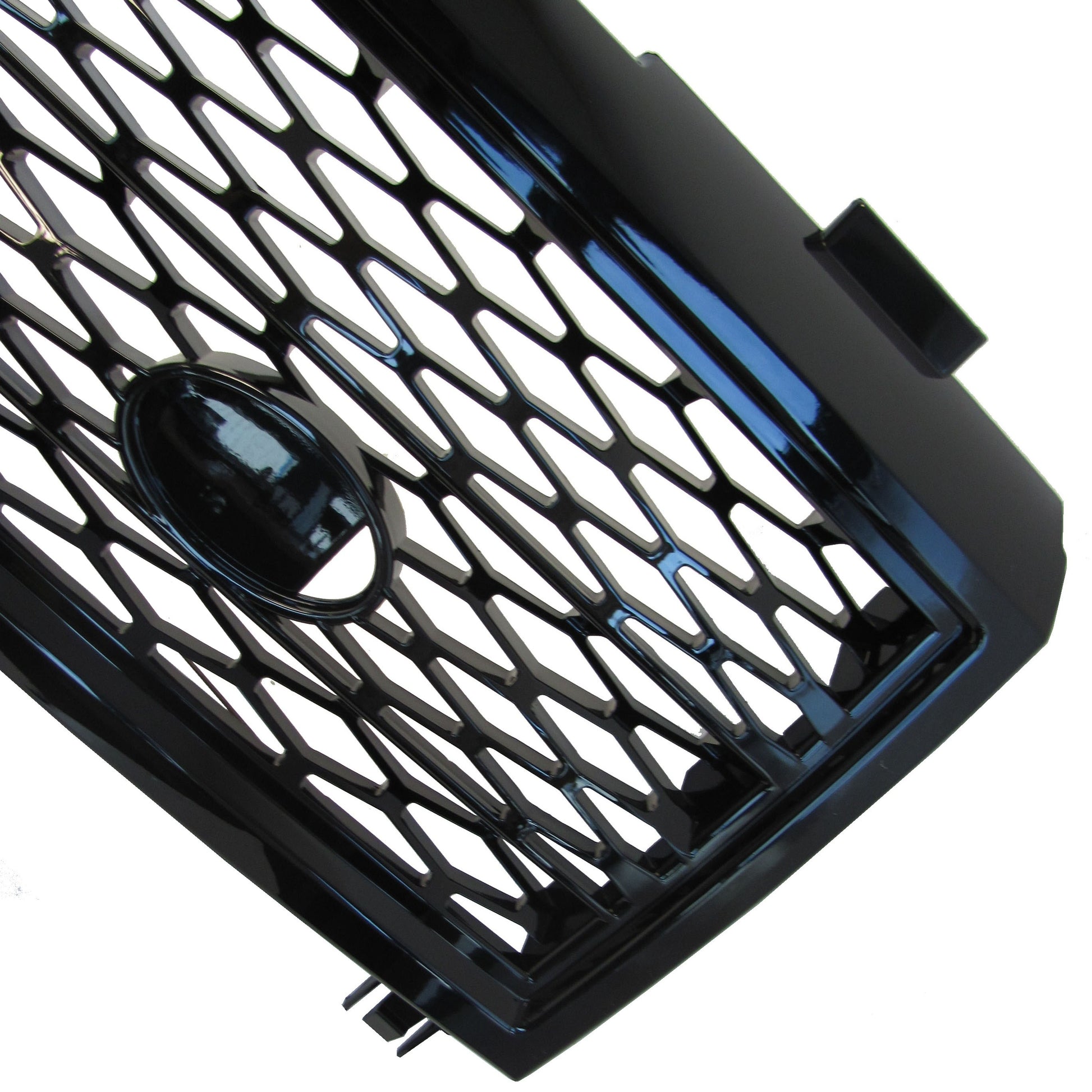

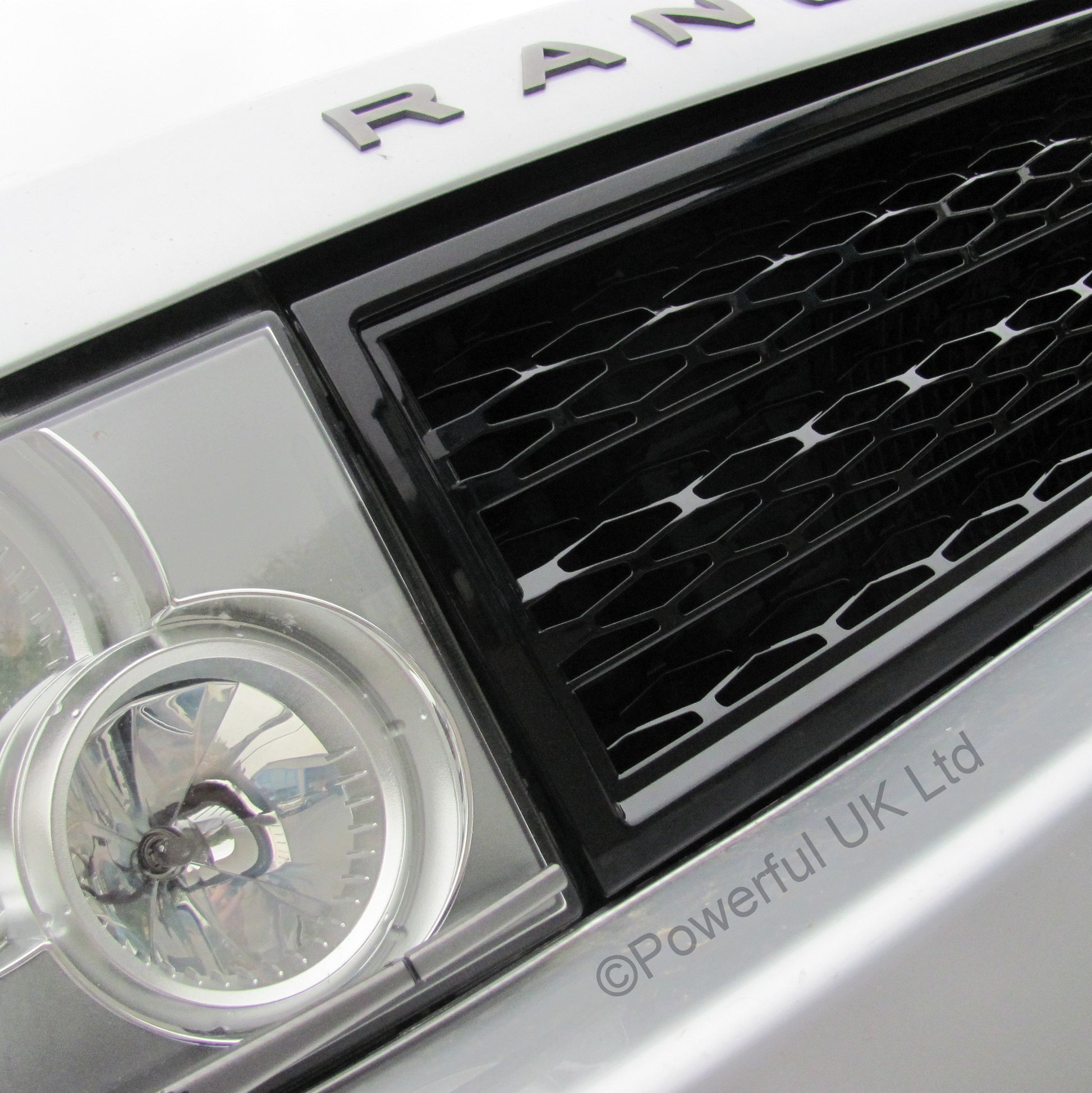

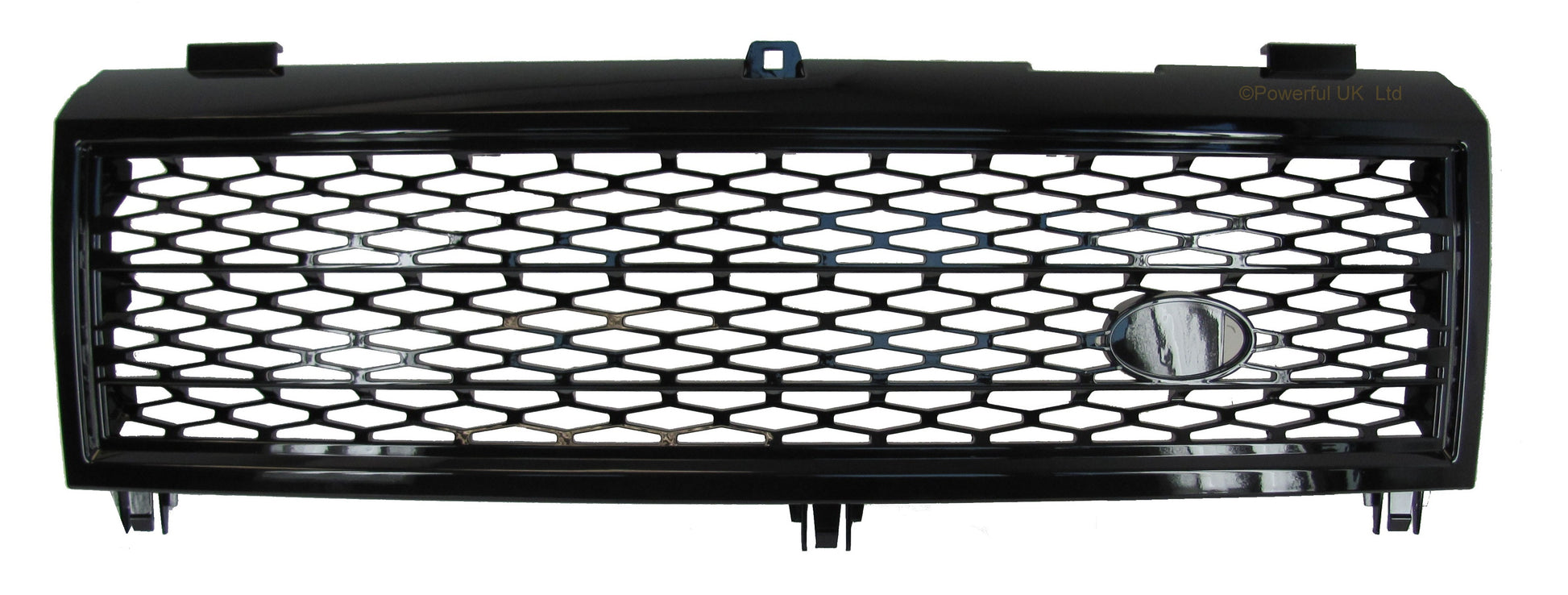

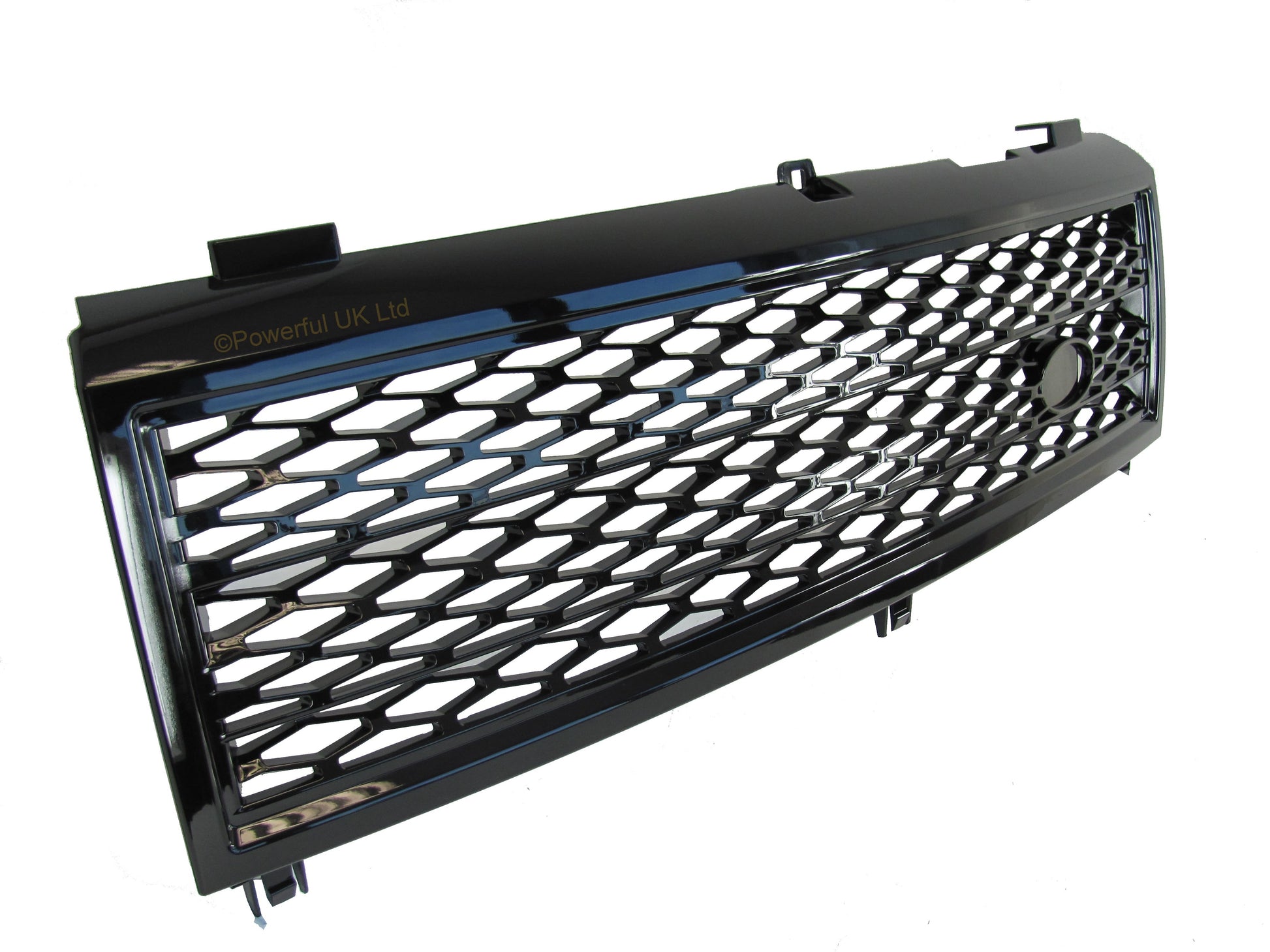

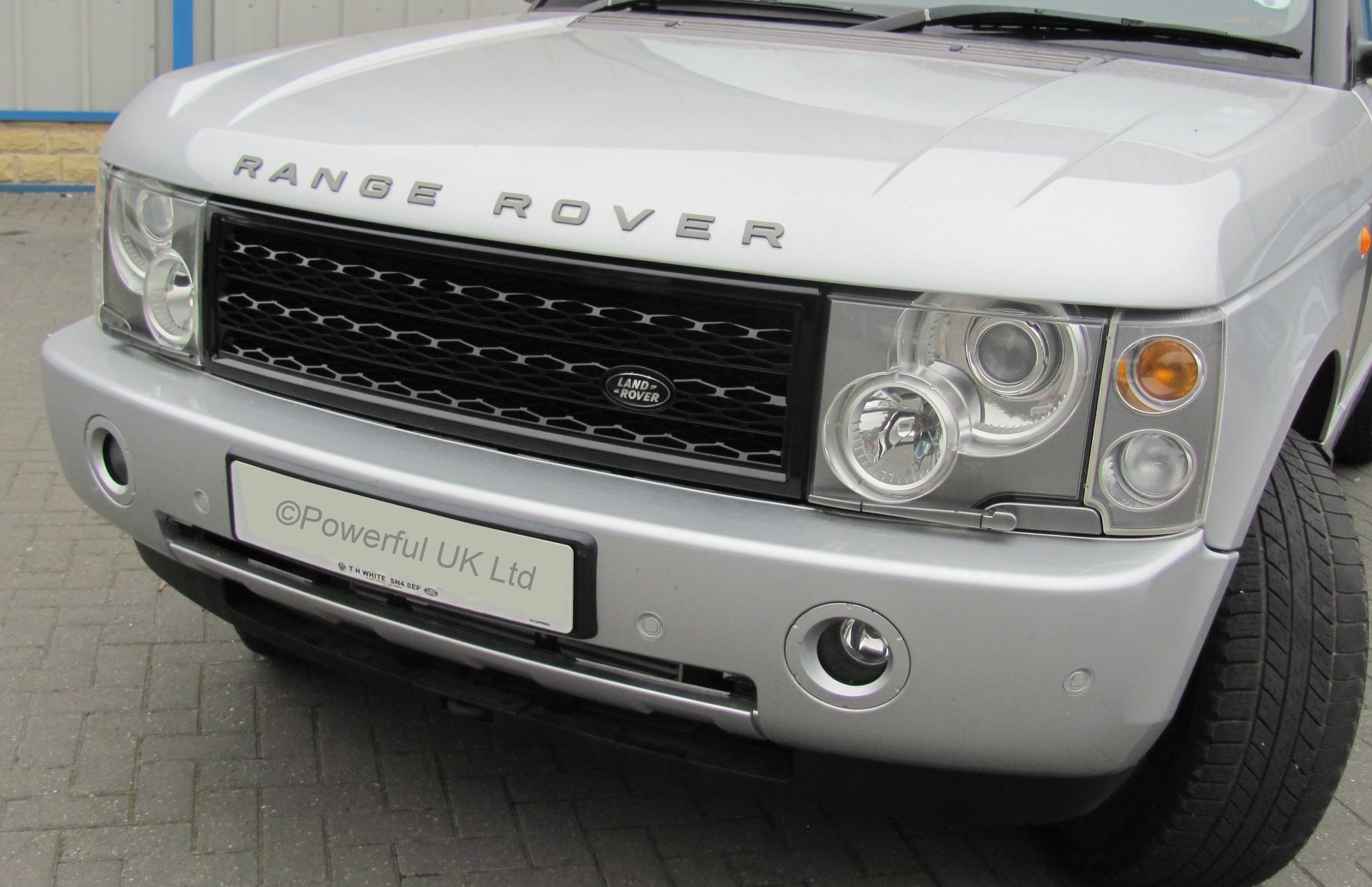

Front Grille - Full Gloss Black
to fit Range Rover L322 2002-05
Additional Badge Required: LRB618
Ideal to replace a damaged or worn front grille.

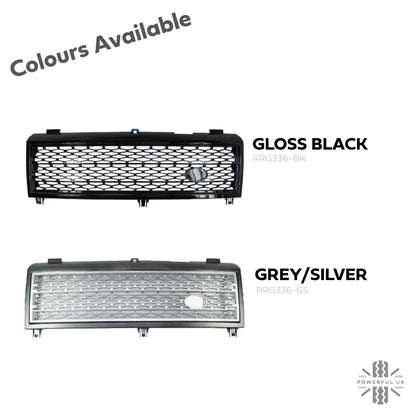

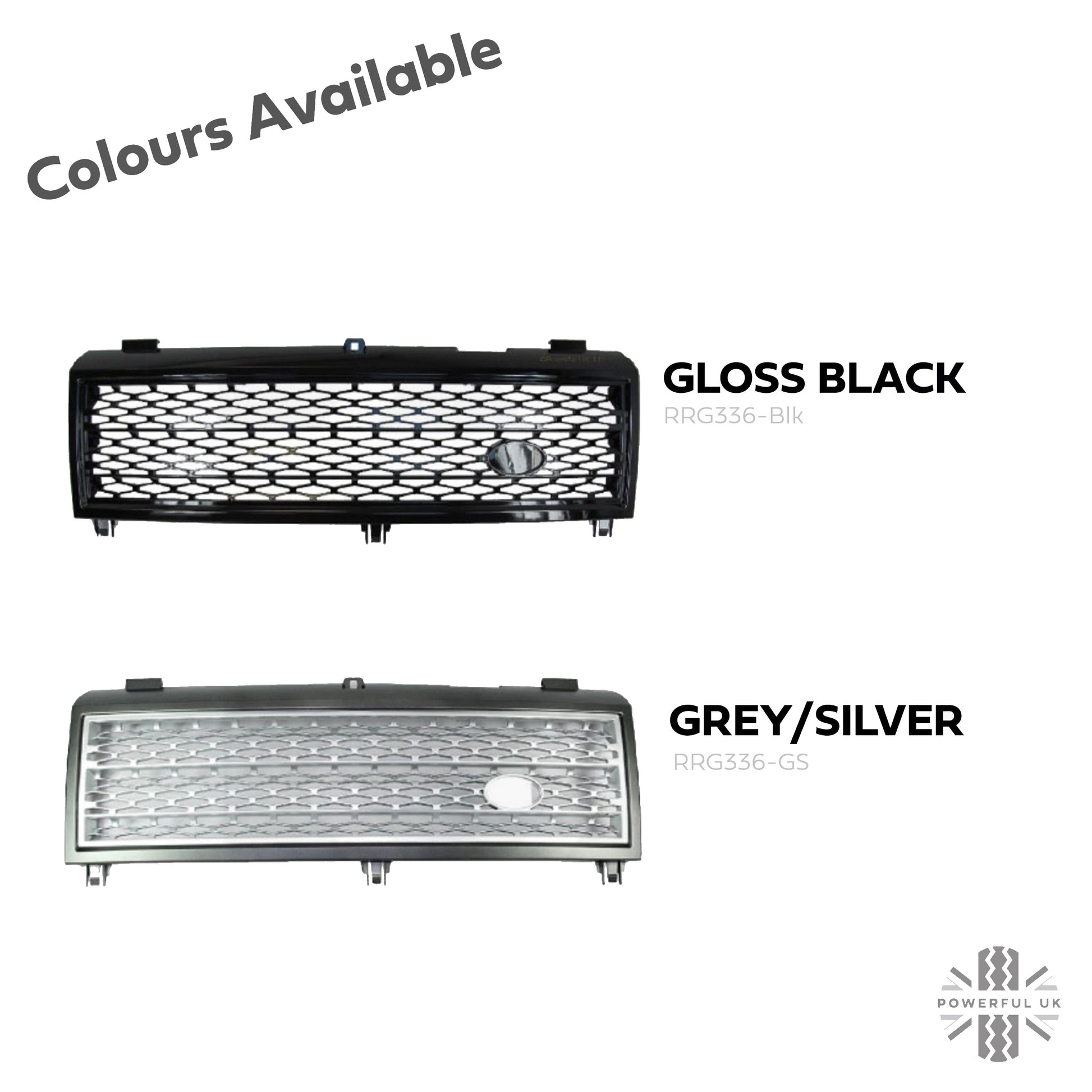

This listing is for a front grille Supercharged style finished in Full Gloss Black, we also have this in other colour combinations - see our other listings.
Note: This grille DOES NOT come with a badge. You will need to purchase one separately.
This grille is not a genuine Land Rover product.
Fitting Details
Open the bonnet and remove the 3 bolts at the top of the grille.
Tilt the grille forward at the top and remove the air temperature sensor ( it is just a push fit in the grille )
Remove the grille by tilting forwards and pulling upwards to release the lower clips.
Un-clip the air sensor and swap to the new grille
Fit the new grille and refit center screw - done.
To do this you need only a cross head screwdriver ! no other tools.
This will take 15 minutes maximum.
See below for fitting video.
Please note: We now no longer supply this grille with a badge as mentioned in the fitting video

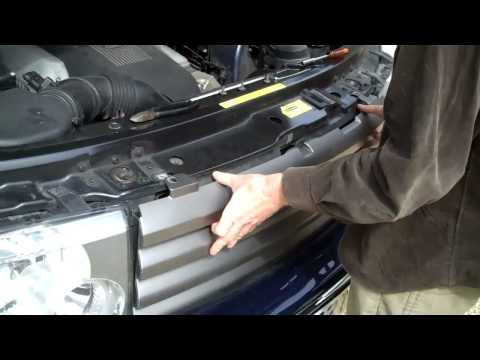

How to remove the front grill from a Range Rover Vogue (earl - YouTube
Video will open in a new window
Which Vehicles will this fit ?

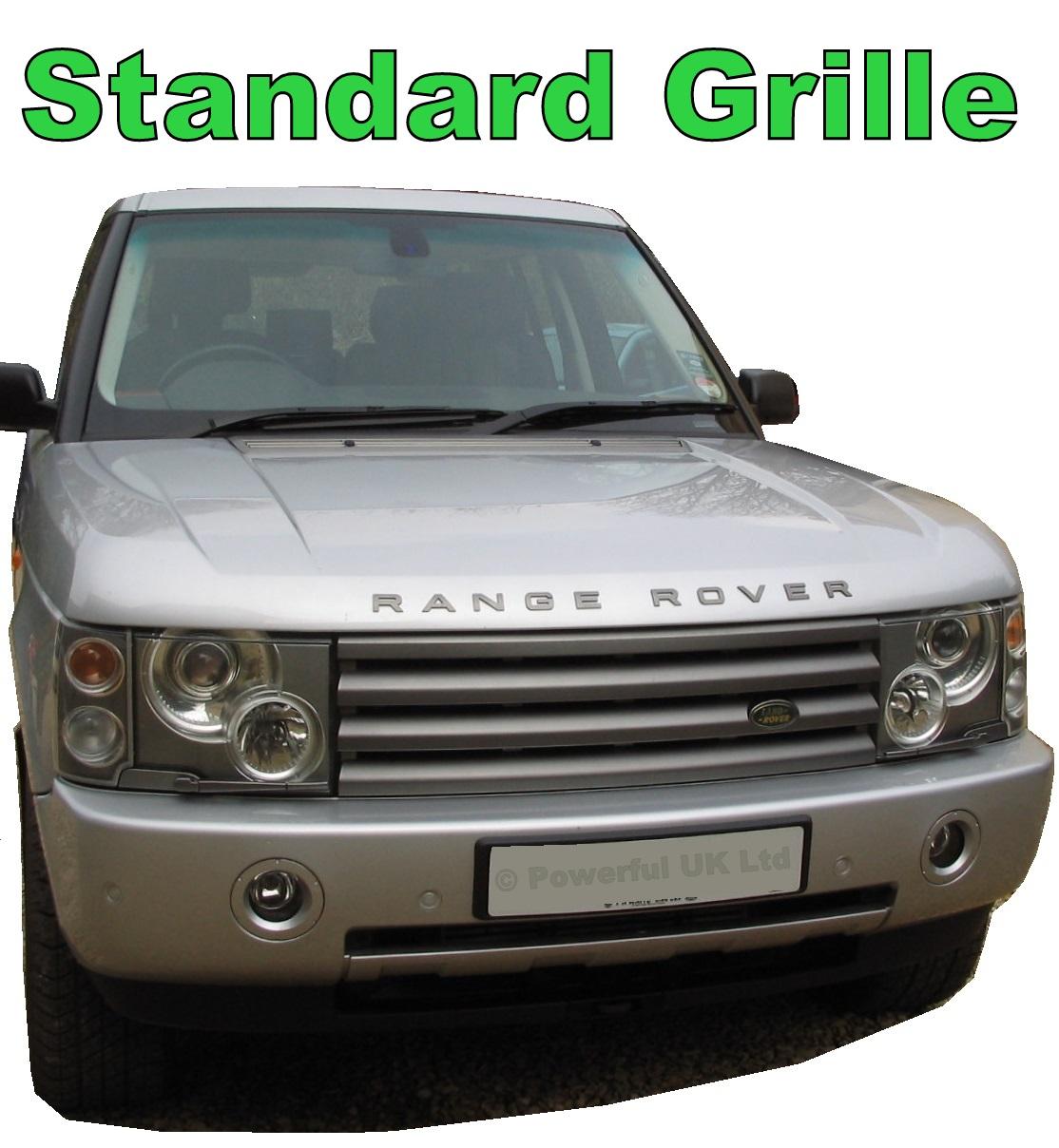

This item WILL fit Range Rover L322 models from 2002 to 2005 ( square headlight models )
This item WILL NOT Fit a 2006 on Range Rover L322
This item WILL NOT fit a Range Rover Sport
This item WILL NOT fit a P38 Range Rover.
