Headlight Upgrade (Plastic Lens) - Crystal - RHD for Land Rover Defender

Part number: HL865-PAIR
Regular price Price:  £46.00 GBP
Sale price Price: £46.00 GBP
FREE SHIPPING included to most UK locations
Shipping to other locations calculated at checkout.
Price includes VAT.

Crystal Halogen Headlamp Conversion kit


to fit Land Rover Defender

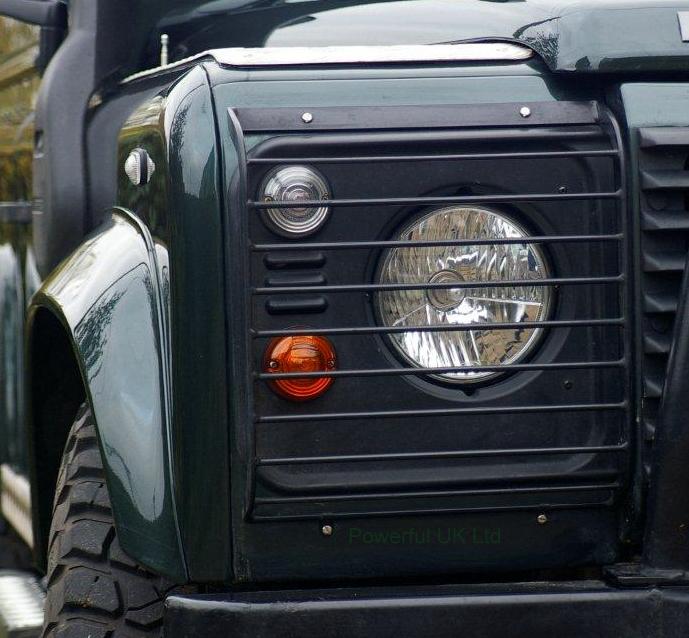

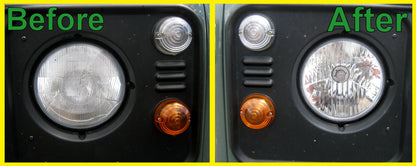

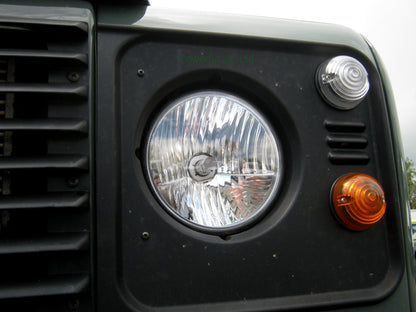

Upgrade the headlights in your Land Rover Defender to these new Crystal Halogen headlights.

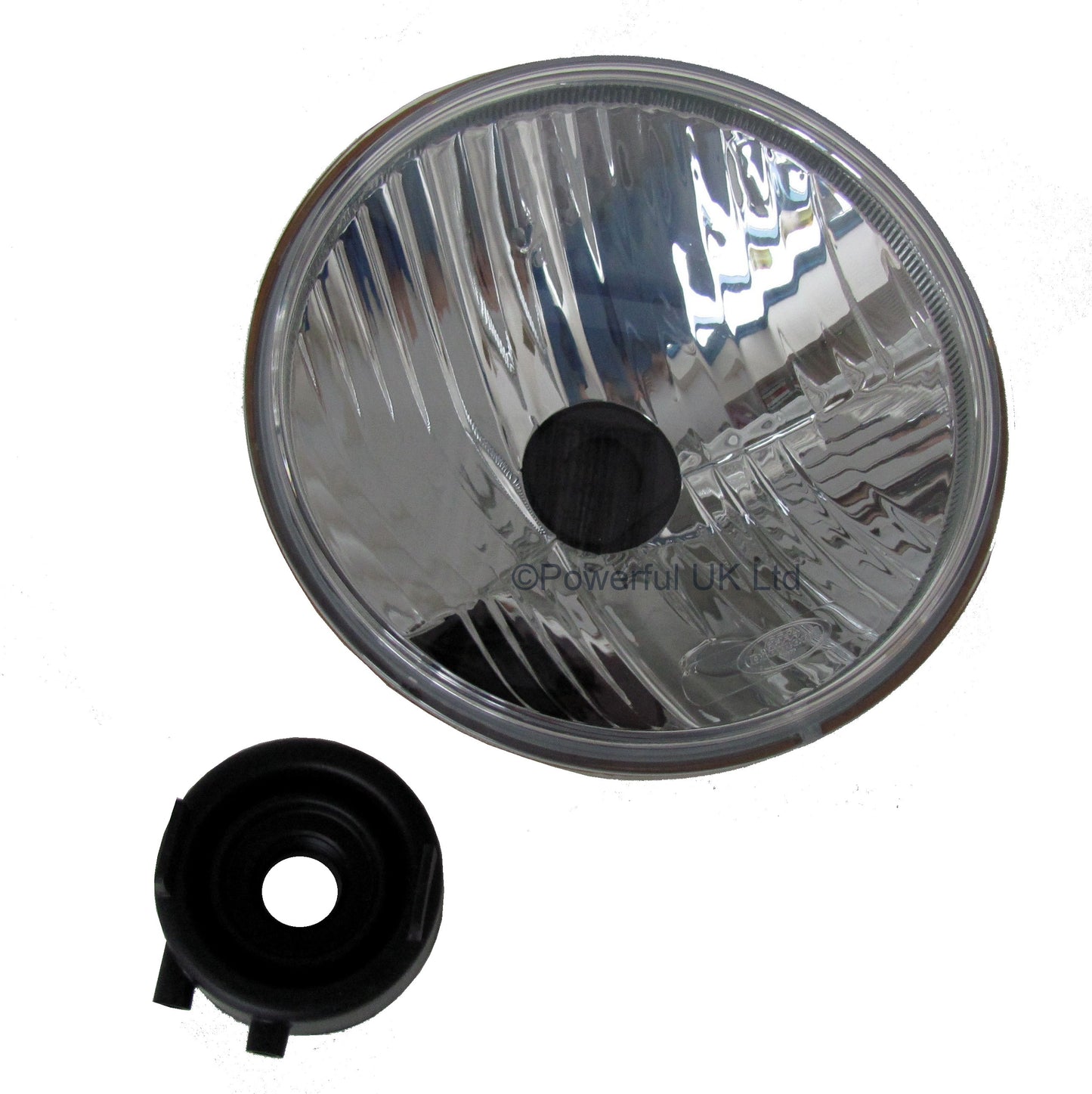

This listing is for a PAIR of headlights with plastic lenses ready to fit into your Defender.

These lights are RHD ( Right Hand Drive - UK / Japan etc ) MOT passing headlights with the correct UK beam pattern.

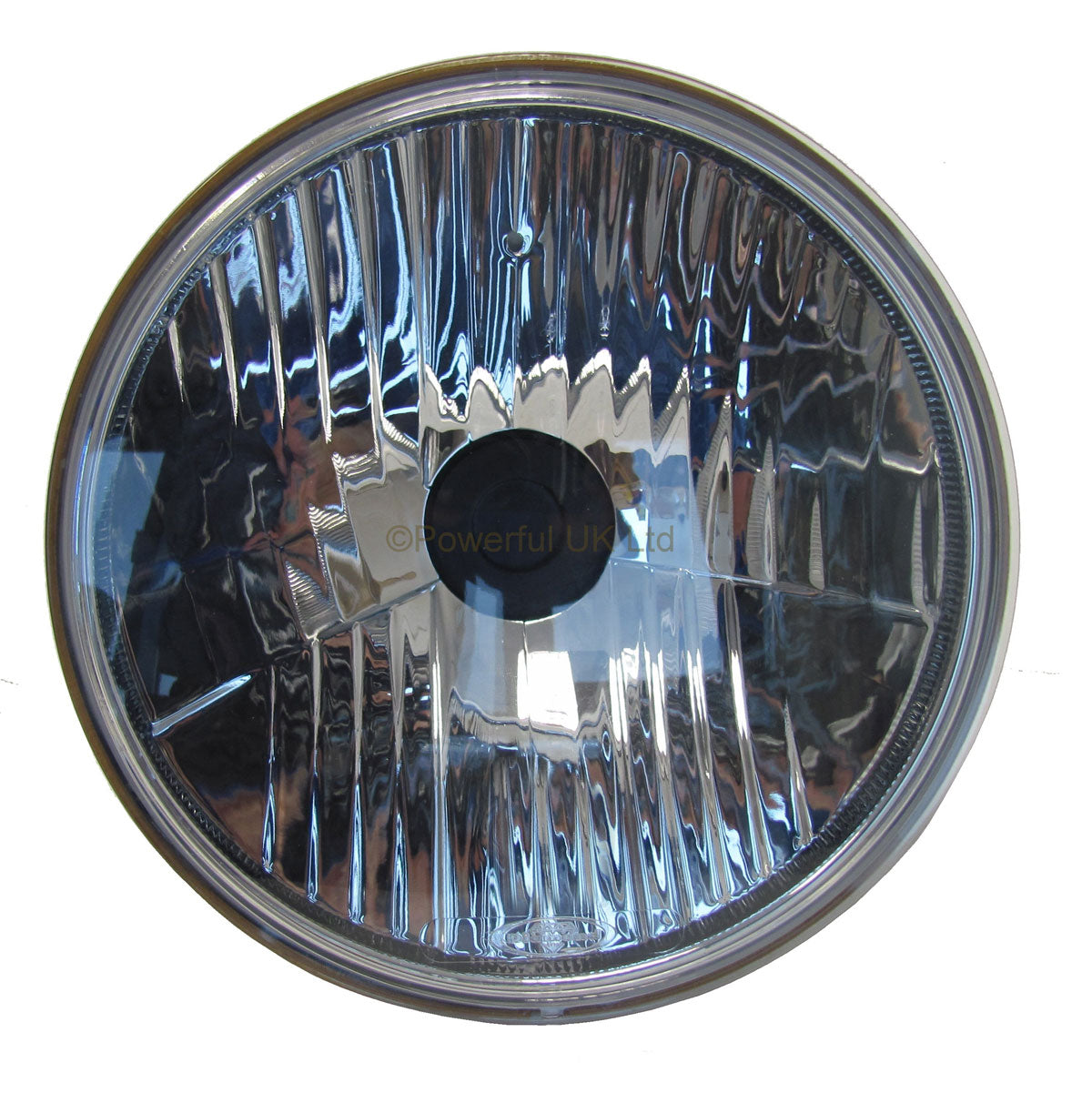

The light pattern is set by the reflector not by the lens (as on original headlights) so the lens is smooth giving a cleaner sharper appearance to the lights.

In addition these lights have a tough polycarbonate lens as used on most modern cars - glass lenses have a habit of cracking especially if used in water or off road conditions ( the shock of being hot when in use then hitting cold water often causes the glass to crack )

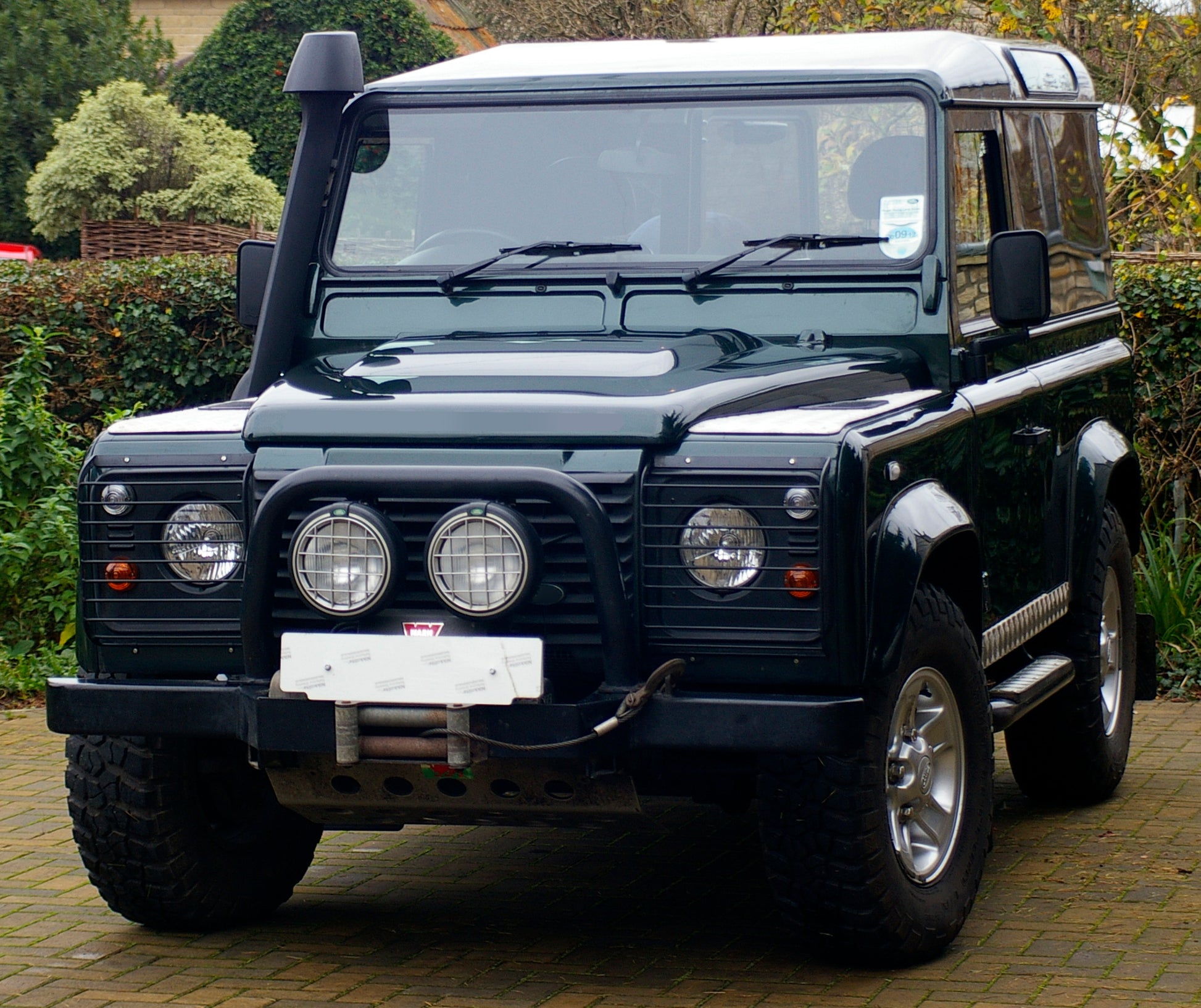

These really are the next stage on from the quadoptic headlight that was so popular in the 80's and 90's

The evolution of the headlight is really as follows..

1) Pre-focused - low power bulb and poor reflector

2) Sealed Beam - Improved but low colour temperature. The bulb is part of the unit and not changeable.

3) Halogen Conversion - Here this is an upgrade in the bulb to a changeable H4 type bulb and this is the technology used for the "quadoptic" headlights and on later Defenders etc.

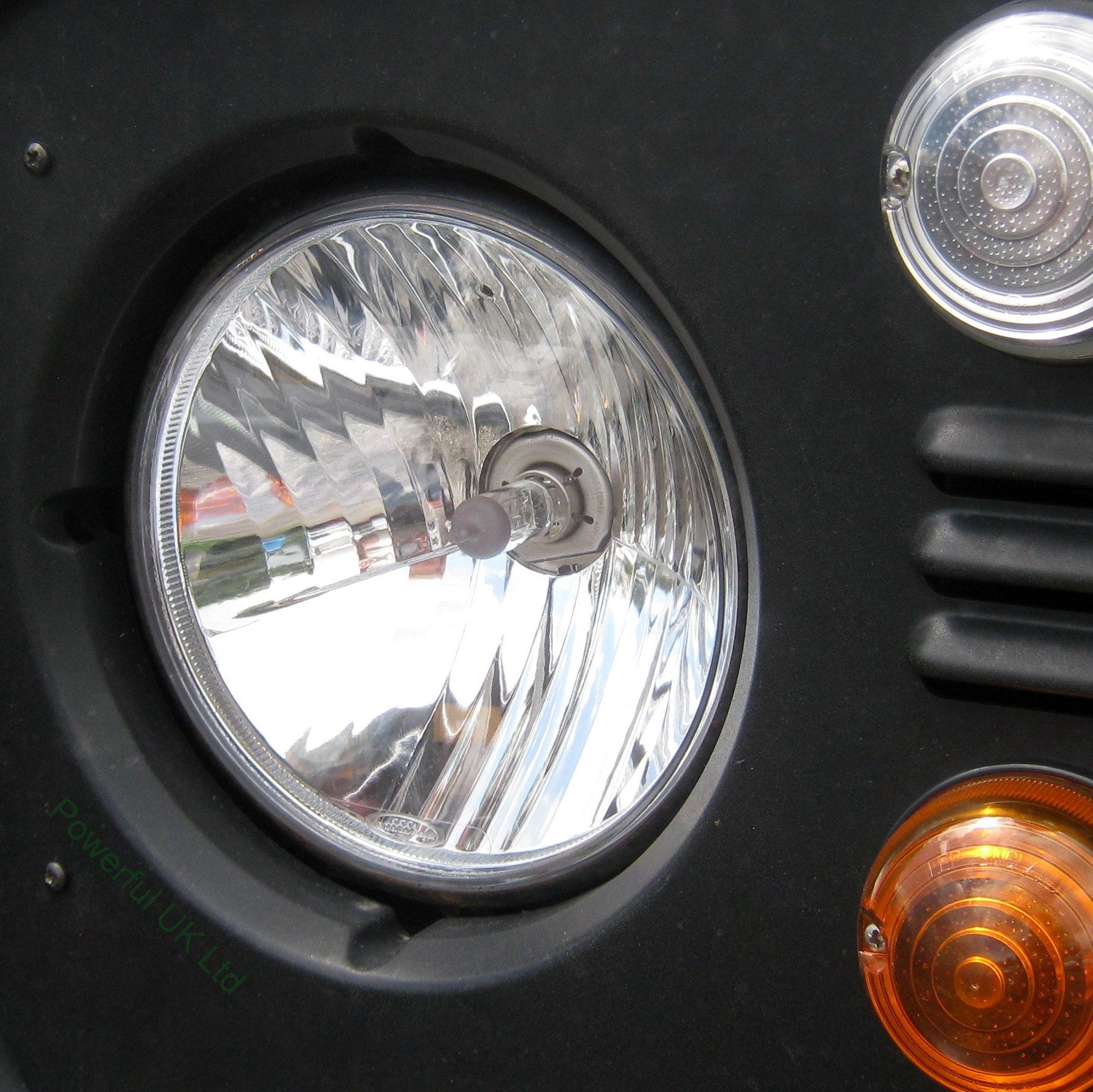

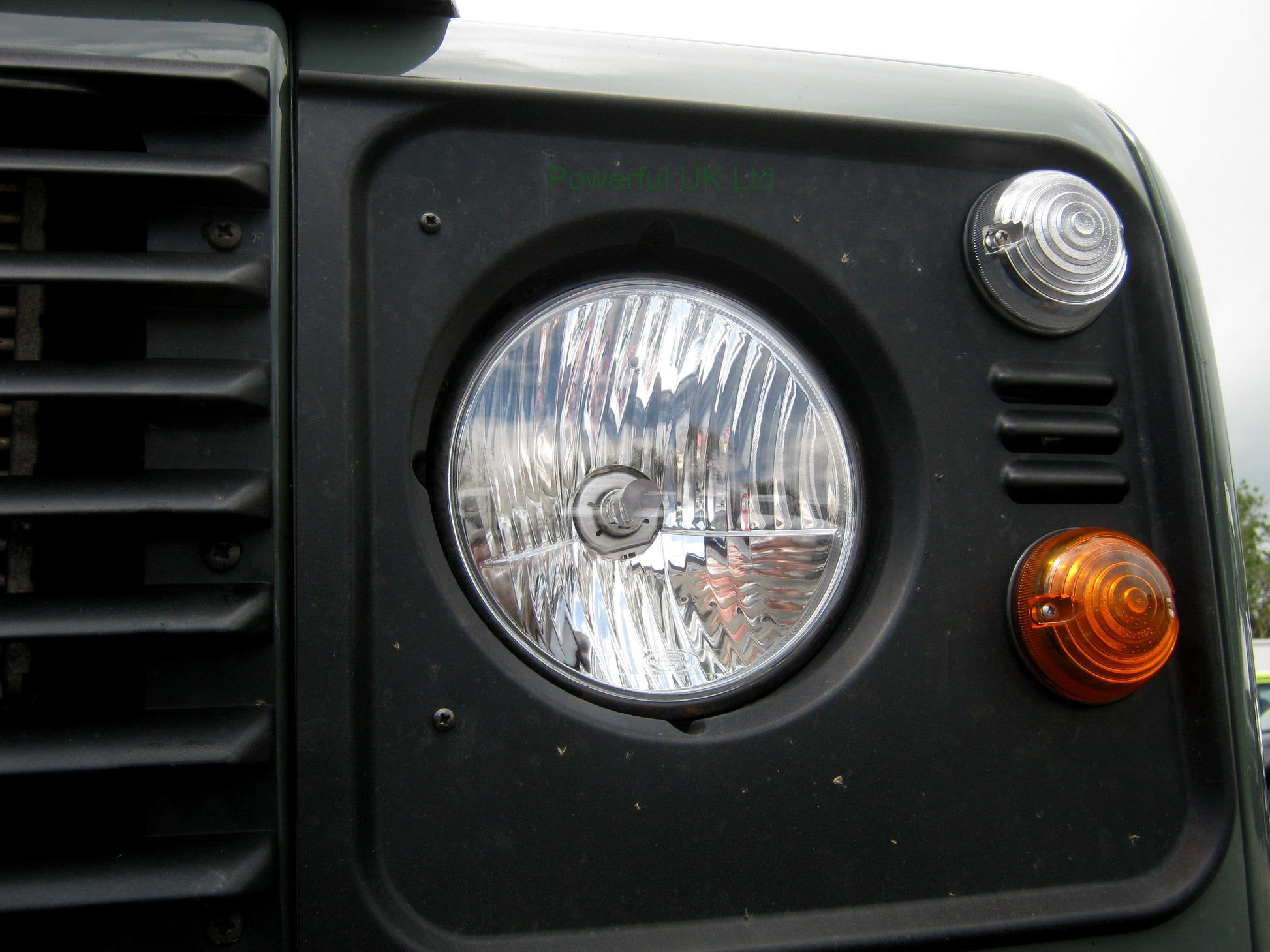

4) Crystal Halogen - This uses the same H4 bulb as above but the light has a complex reflector to set the light pattern - as used on the vast majority of modern cars.

These lights give up to 25% more light output than standard headlights even using the same bulb !

ALL new cars use this new technology for the headlights and this is one major reason modern cars have much better lights

In addition to the better technology the reflector on these lights are made from plastic and so will not rust or corrode like the older metal ones.

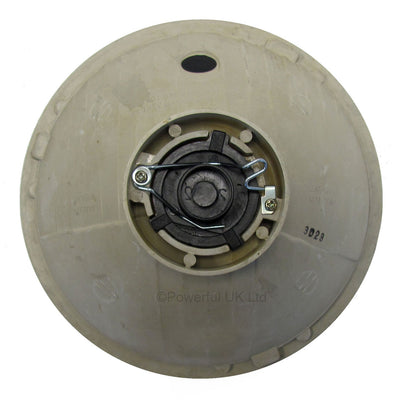

These lamps are not supplied with a sidelight fitting - see our other item (HL857) for the version with the sidelight.

The lens is a tough plastic lens with anti-scratch coating.

These lights use Halogen H4 bulbs which should be fitted already to your old headlights but you may want to consider upgrading these as well at the same time - see our Osram "NightBreaker plus" H4 bulbs.

These lights are not E Marked but are RHD MOT passing lights.

These lights will fit into Lucas metal bowls also Lucas and wipac type plastic bowls.

This is not a genuine Land Rover item.

Specification Summary

Lens - clear polycarbonate plastic with anti-scratch coating.

Reflector - Multi surface plastic reflector ( non rusting )

Bulb - Halogen H4 ( not provided )

E Marked - No ( but will pass MOT )

Fitting Details

Straight replacement for standard unit - no modification or drilling needed.

If you have halogen headlights already then there is no wiring change -

Note - the left headlight and right headlight are both the same.

See below fitting video.

Crystal Halogen Headlight Upgrade in Land Rover Defender - YouTube

Video will open in a new window

Which Vehicles will this fit ?

These lights will fit most classic cars with round 7" headlights ( with separate sidelights )
