H7 LED 4000 LM Headlight bulbs - White (Pair)Part number: H7-LED-White
High Power H7 LED
Headlight / Fog Light Bulb Kit

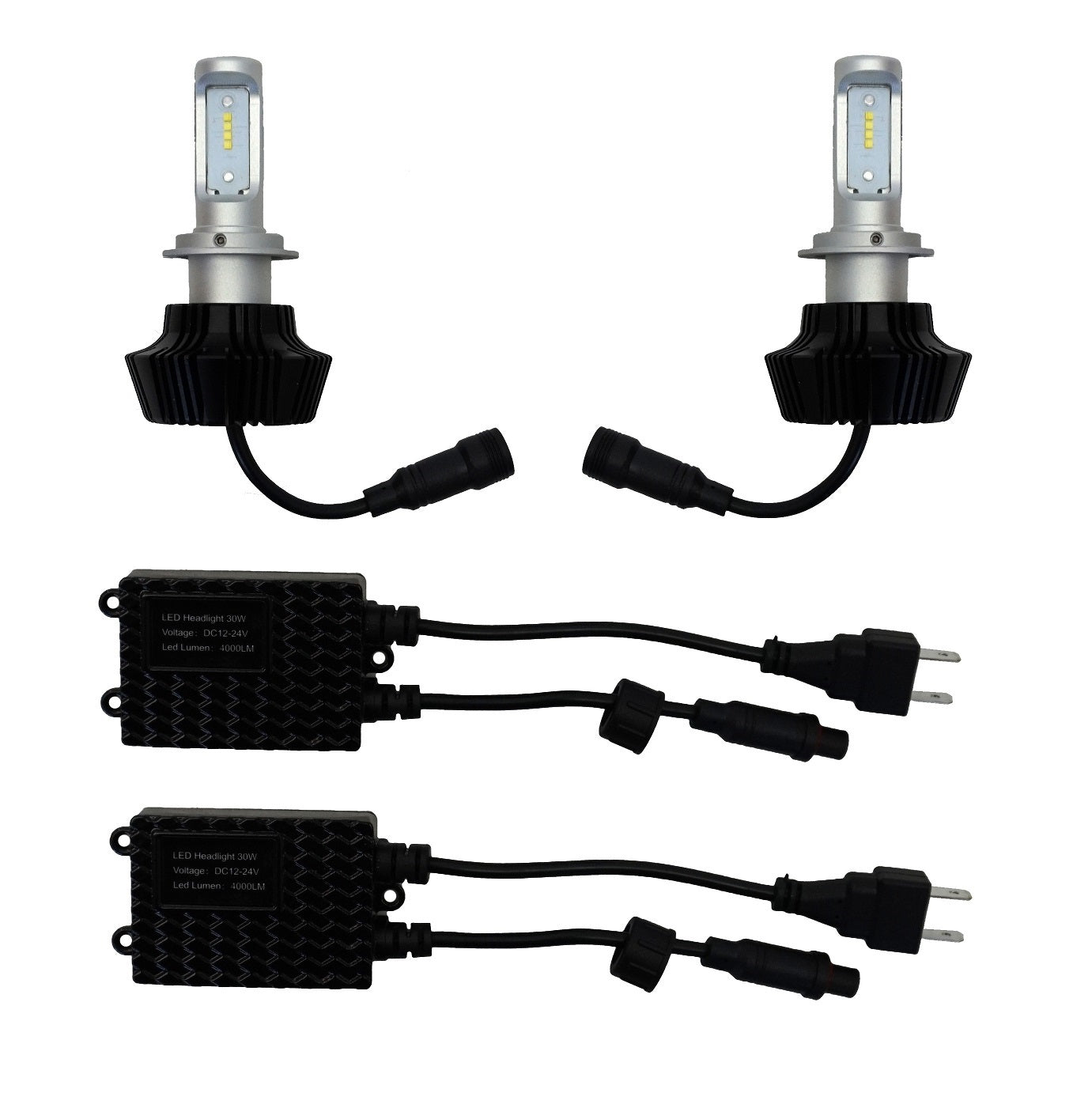

This listing is for a PAIR of Halogen H7 LED bulbs complete with control circuits.
The H7 bulb has a single filament inside the lamp and is often used for car headlights and fog lights.
These are the latest generation of LED headlight bulbs that use the Philips "LumiLED" led chips. These LED's are very bright and very small meaning they can give a light output very similar to the original H7 bulb giving a very controlled beam pattern.

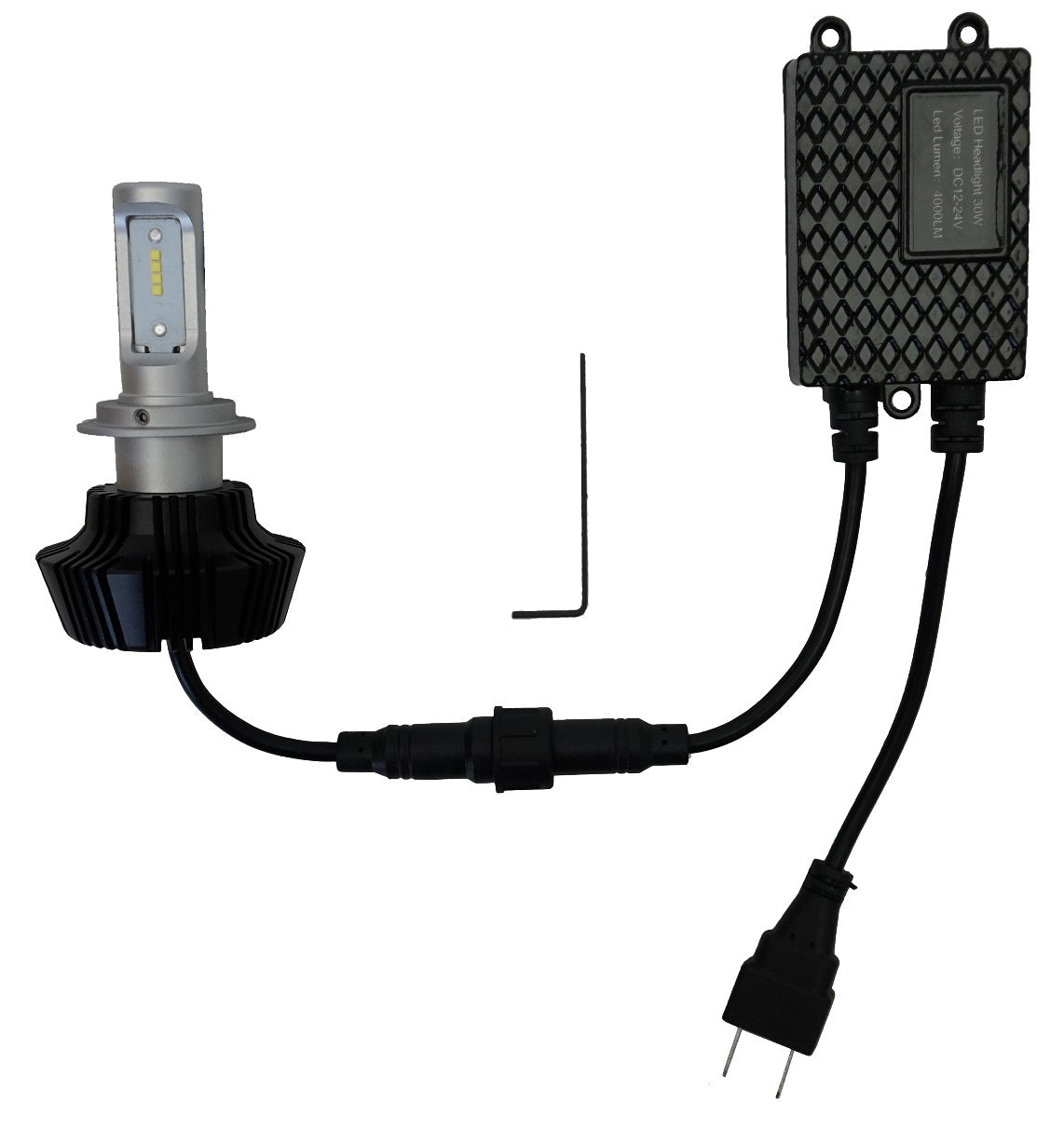

As you can see from the pictures there are 4 LED's on each side of the bulb - so 8 LED per bulb.
The light output in lumens from a standard H7 bulb is 1000 -1400 so these LED bulbs rated at 6000 Lumens are roughly 3 times brighter for half the electrical power consumed.
The colour temperature for these bulbs are 6500 kelvin.
No changes to wiring are needed to fit these bulbs - they plug and play to the current wiring.
The mounting "collar" on these bulbs is adjustable ( with allen key supplied ) so you can fine tune the position / rotation of the LED light source to give the best output in your headlight.
The rear black heatsink on this bulb can be unscrewed to help when fitting these bulbs and is also reversible.
Please note: HID and LED technology is advancing quickly and legislation is struggling to keep up. According to current legislation, HID and high power LED headlights should only be installed in vehicles equipped with headlight wash and self-levelling systems. If your vehicle does not have these features installed then we advise you should refer to the latest VOSA MOT guidance.
These bulbs can be used for RHD ( UK, japan etc ) and LHD ( USA, France etc ) cars as it is the headlamp reflector shape ( not the bulb ) that sets the beam pattern.
Remove the rubber cap from the back of the headlight and then remove the 2 pin electrical connector.
The bulb is held in place with a wire clip - release the clip and the bulb can then be removed.
The front plate on the bulb can be adjusted to achieve optimum beam pattern - see video.
Which Vehicles will this fit ?
These bulb will fit any vehicle with a H7 bulbs
