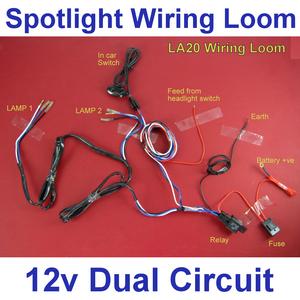

Item Details - Dual circuit wiring looms for angel eye spotlights ( main bulb + side light )

12v Spotlight Wiring loom kit

( spotlights with additional sidelight )

Has someone wired spotlights to your car and they dont work?

Fitting a pair of spotlight to your classic car or kit car ?

Do your spotlamps have an angel eye or side light in addition to the main bulb ?

This is the looms for you.

A high quality loom that comes complete with all the essential parts like Relay / waterprooof in line fuse holder / switch etc.

The switch "pod" has 2 switches

• Switch A is for the main bulb function
• Switch B is for the side light function.

The switch pod has 2 indicator lights so you can see which functions are activated.

This kit comes with a discrete switch that can be mounted on the dash etc so no need to drill holes and fit switches.

The loom comes in 2 parts with connector that joins the "in car" part of the loom to the "engine bay" part of the loom.

This kit is wired so that only a small current goes through the in car wiring a switch - the main power goes through a relay straight to the lights.

This kit has a 30 Amp relay fitted which will power 300w total power ( so 2 x 150W bulbs )

See below wiring instructions.
