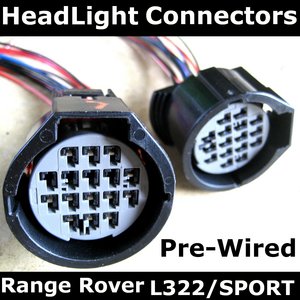

Range Rover Late Type Headlight connectors ( PAIR )
Range Rover L322 06 +
These are the 16 way connectors you need to convert your 2003 -2005 Range Rover L322 to the newer 06 -09 headlights.
These connectors also fit the new 2010 headlights ( we don't have wiring configuration for these worked out yet )
These connectors have the correct wires fitted to the connectors and have water proof seals fitted around the wires and waterproof bungs fitted into the unused terminals.
These looms have been specially made for us.
These connectors will plug into the back of Range Rover L322 ( vogue shape ) 2006 onwards headlights.
There are other similar connectors for sale on eBay but be careful as these are supplied as a kit of parts and unless you are good with a soldering iron you will be there for hours.
In addition our connectors have correct colour coded wires so you are not left with loads of wires of the same colour that can cause problems.
We will provide a description ( colour diagram ) of what each pin on the connector does on the original headlight application.
This kit has now been updated to have the wiring for the AFS included - the AFS function will not work but it will self calibrate to the straight ahead position when you turn the ignition on. ( AFS is the feature on the new cars where the headlights move as the car goes around a corner )
These will be sent with general guidance on what the function is on the 03 light and the 06 lights to help you convert your car but due to the different models etc and different functions we do not offer a guaranteed full conversion kit or advanced technical help.
This listing is for a Left and Right headlight connector ( a pair ) each pre assembled with 180mm of wire and pre fitted waterproof connectors.
What we are in effect supplying here is the end of the car wiring loom from a 2006 onwards Range Rover L322.
